Power Amplifier Rated output -
Analog output Output level FIX : 2.0 Vrms (10 kΩ/kohms)/Variable
Total Distortion ANALOG IN: 0.01 %(1 kHz)
SN ratio: ANALOG IN 90 dB (Audible Range)
Frequency response 20 Hz to 20 kHz : ±0.5 dB
Music Services Supported Pandora, Spotify, TuneIn, Napster, SiriusXM, Amazon Music, Tidal, iHeartRadio, Deezer, Mood:Mix and SoundCloud with more coming soon.
Subject to availability in your area
Music Stored On Phone/Tablet iTunes Music stored locally on your iOS device or music files on your Android or Kindle Fire device.
NAS (Network Attached Storage) Play from your home network: DLNA compliant.

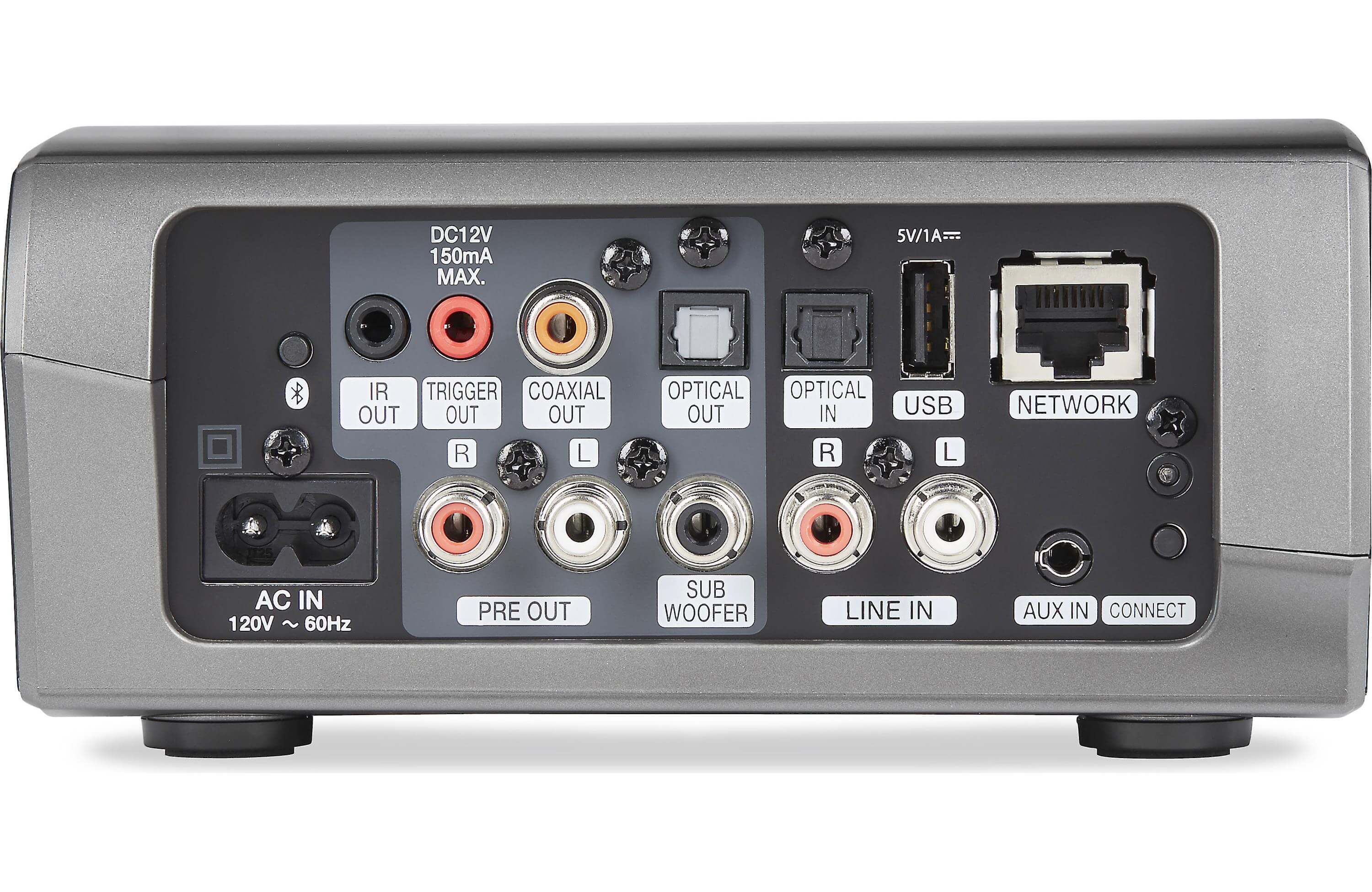

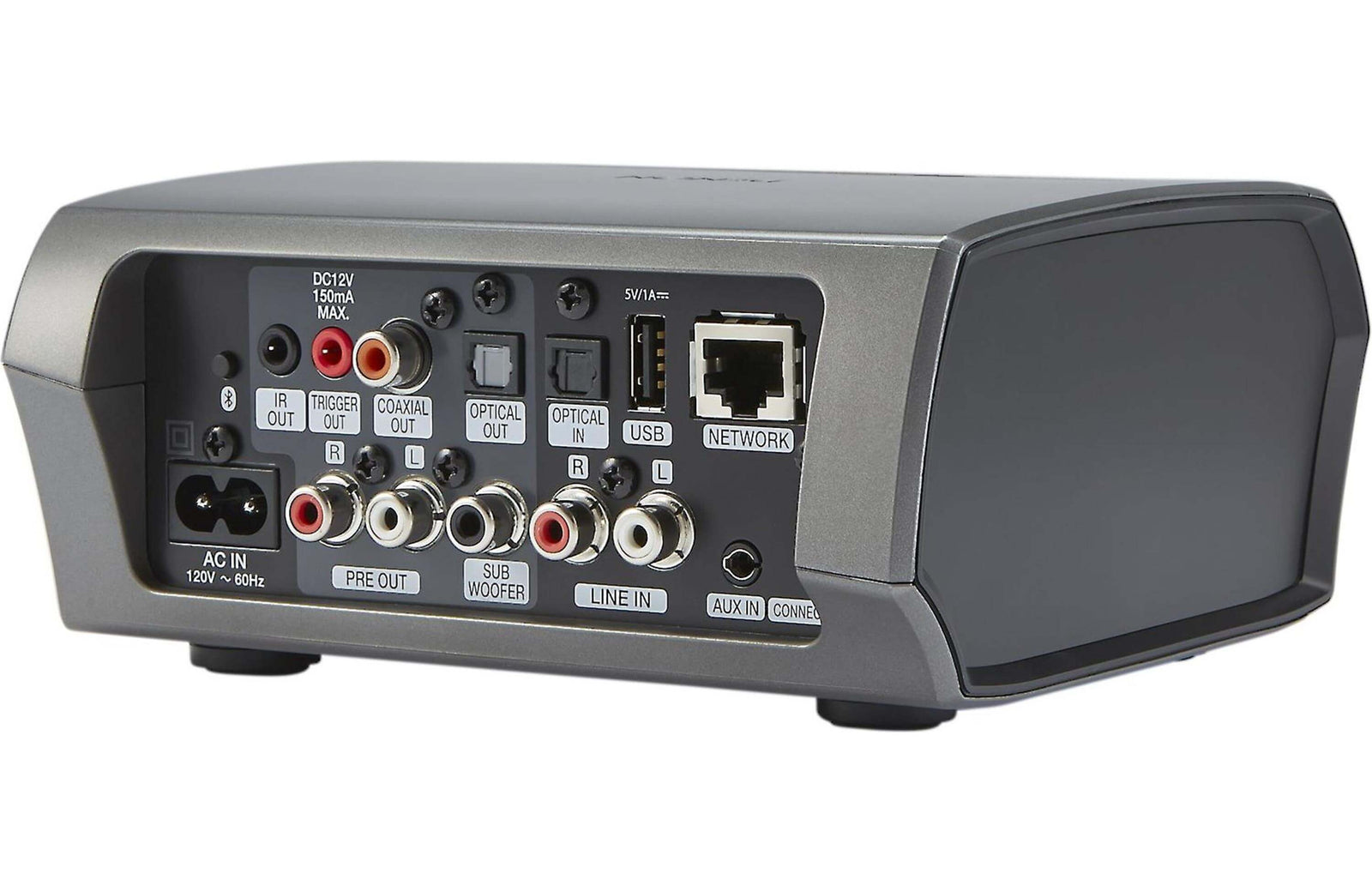

Audio outputs Analog (variable/fixed), Digital coax, Fiber optic.
USB Storage Connected to the HEOS Link or other HEOS player.
Aux Input Analog or optical digital sources connected to the HEOS Link or other HEOS players.
Music Downloads DRM-free downloads from any service.
Subject to audio format support
Album Art Supported JPG, PNG, BMP and GIF picture formats.
Internet Radio Supported: Streaming AAC,
MP3, WMA (via the TuneIn service).
Audio Formats Supported WMA: Up to and including 192kbps
AAC and MP3: Up to and including 320kbps
WAV, ALAC and FLAC: Up to and including
DSD: 2.8MHz, 5.6MHz
Bluetooth Supported Play on one speaker or add other HEOS speakers
in party mode.
Internet Radio Supported Streaming AAC, MP3, WMA (via the TuneIn service).
Wireless Connectivity Supports latest dual band wireless networks (including 802.11 a/b/g/n/ac standards).
Wired Connectivity Single RJ-45 jack for connection to wired Ethernet
Power Supply AC 120 V, 60 Hz
Operating Temperature Range 41°F to 95°F
Dimensions (H x W x D) 2.91in x 6.14in x 5.83in
Product Finish Gunmetal Silver front, top and back panels with black sides.
Package Contents HEOS Link
3.5mm setup cable
Quick Start Guide
IR emitter cable
IR direct cable
Buttons and Indicators Volume up/down
Mute / Mute button LED indicator
Multicolored LED status indicator
Network ‘connect’ button (rear)
Bluetooth ‘connect’ button (rear)
