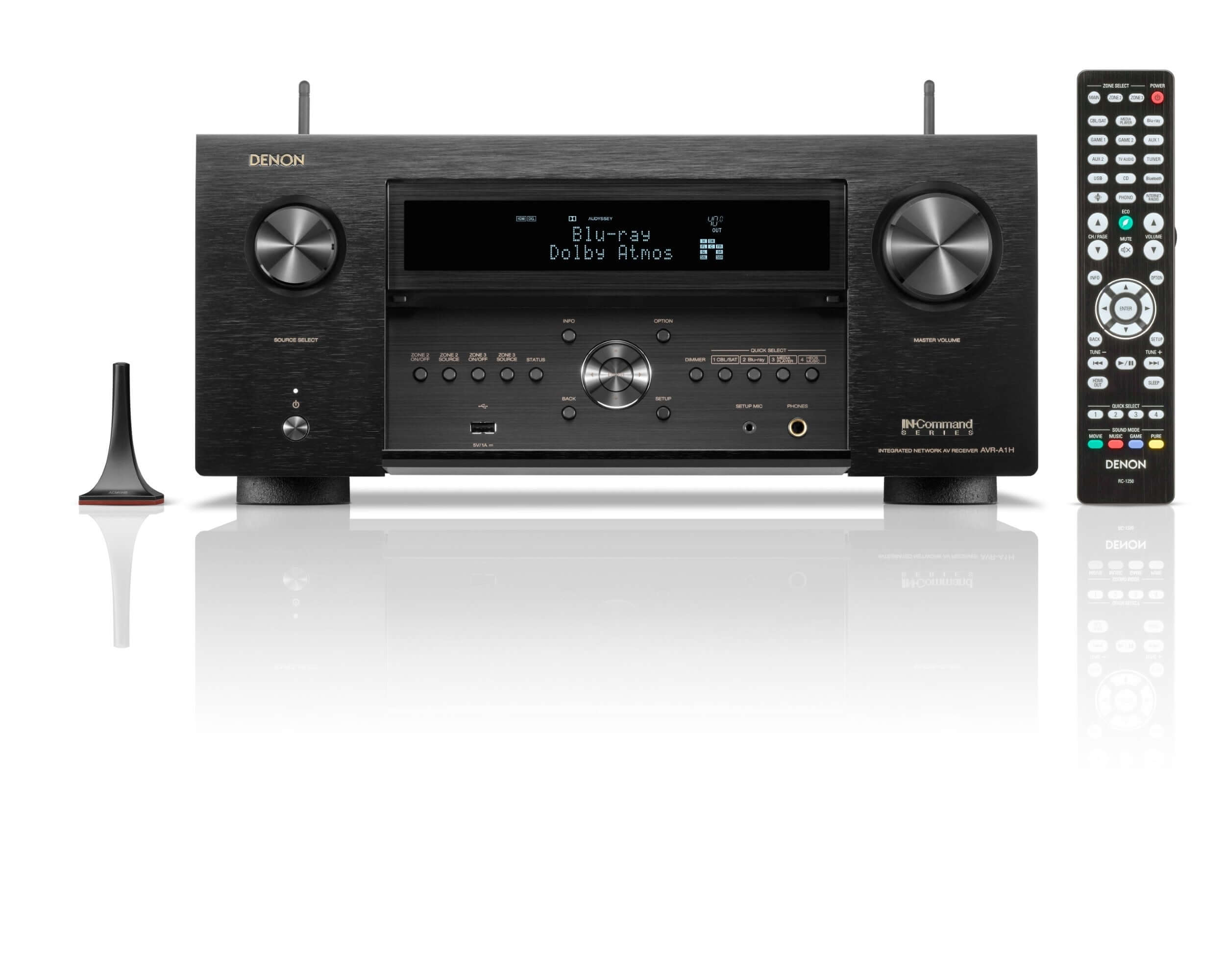

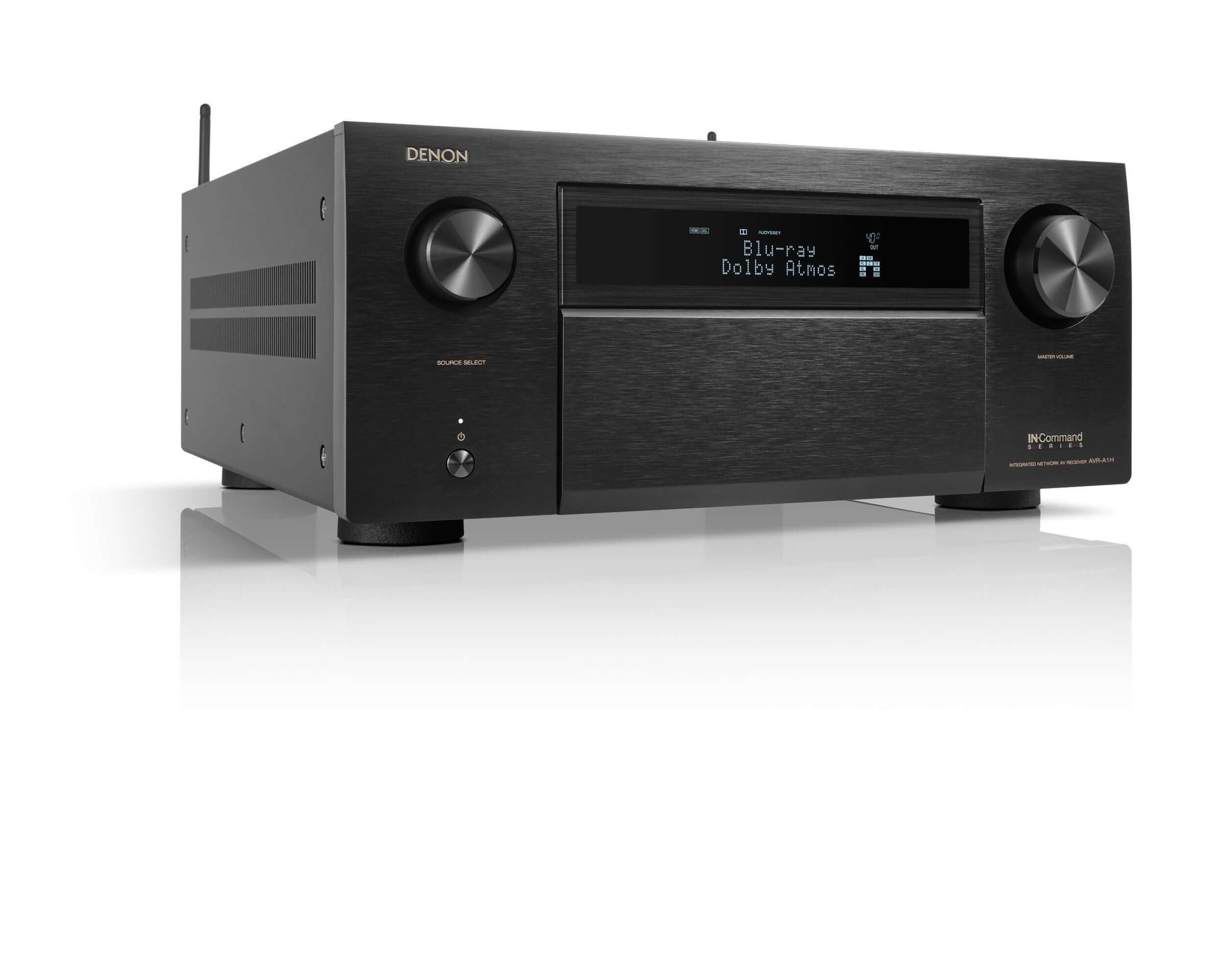

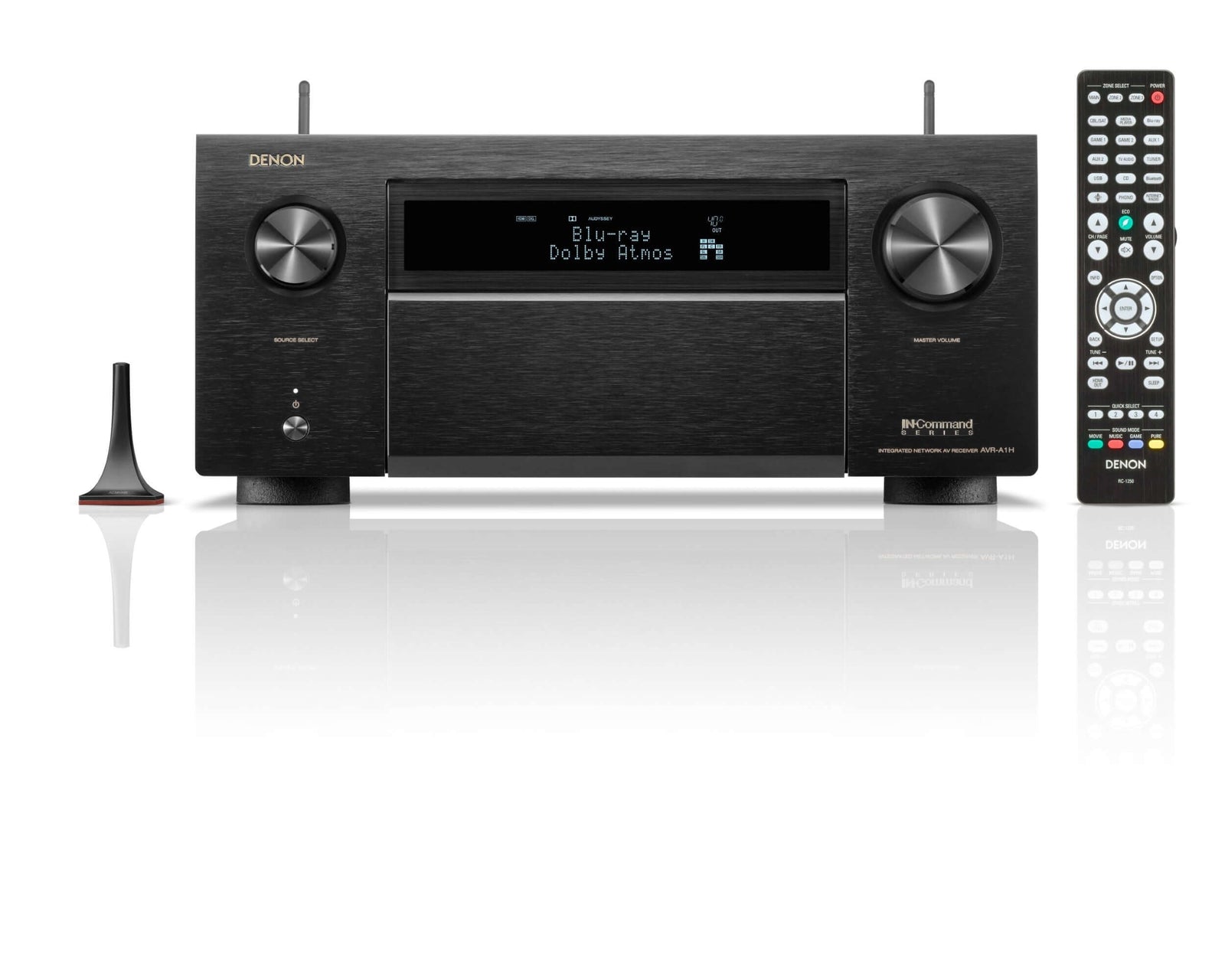

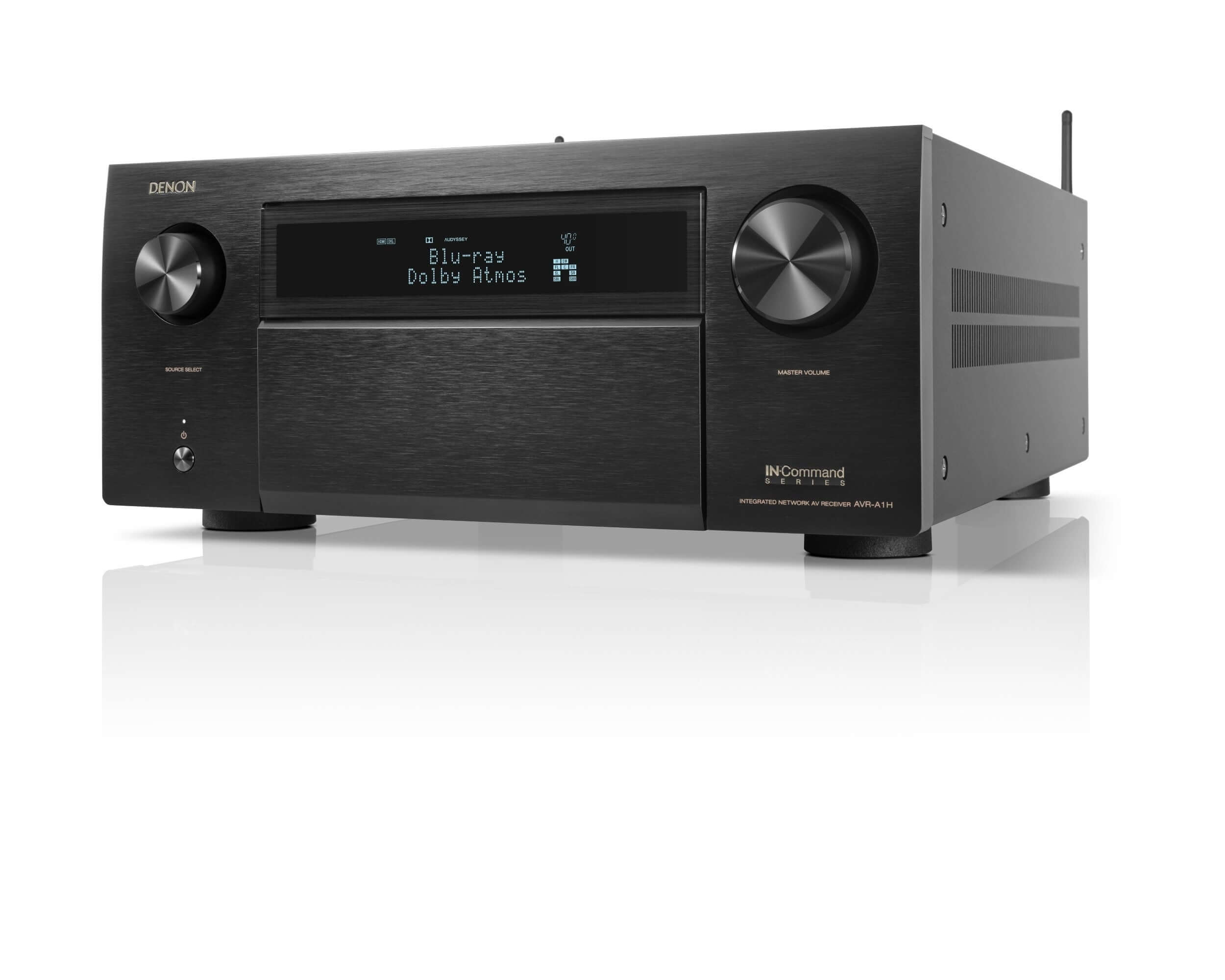

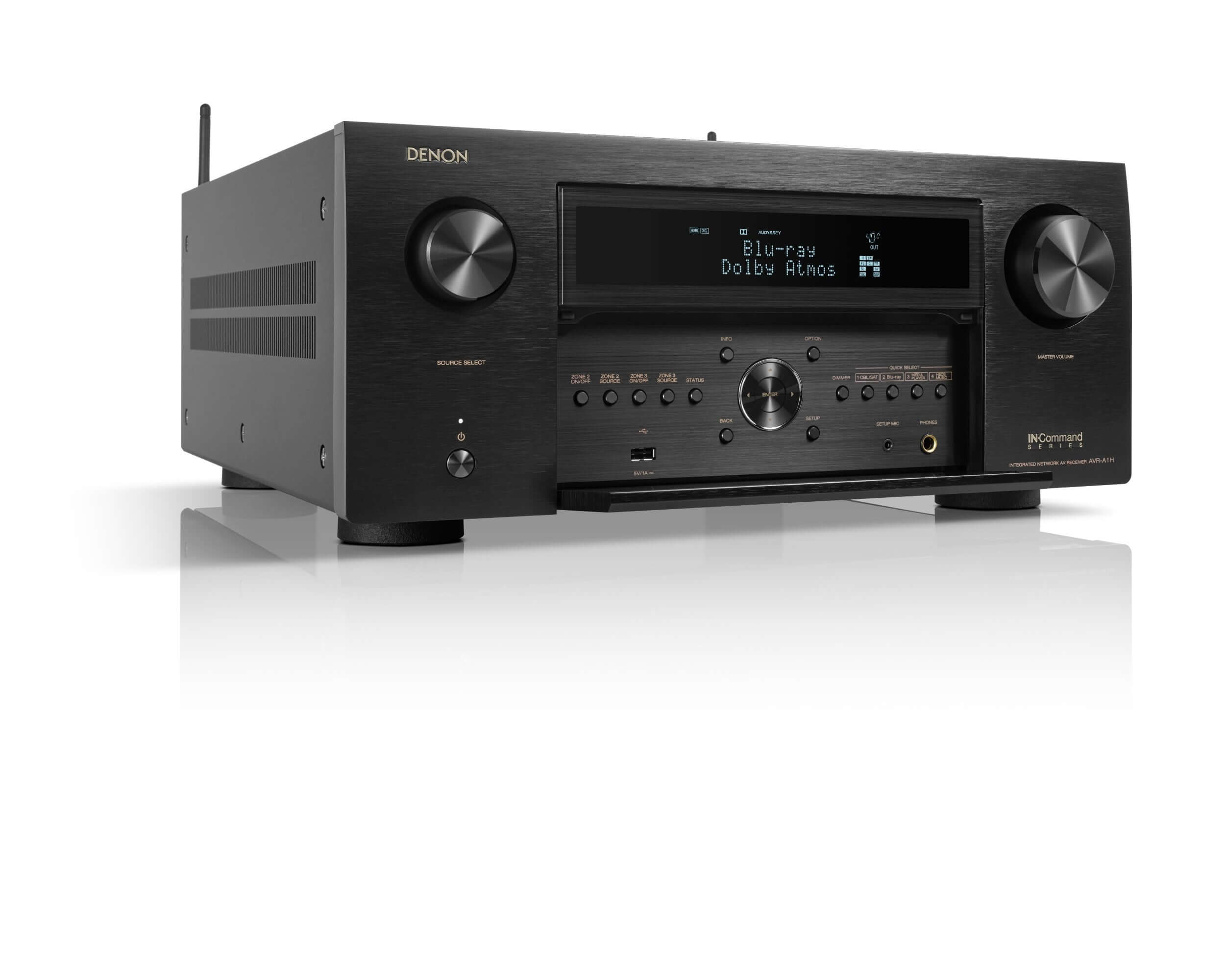

Denon AVR-A1H 15.4 Channel 8K A/V Receiver with HEOS

by Denon
UPC: 747192137458
$6,499.00

SKU AVR-A1H

Product Qualifies for FREE Ground Shipping

Denon AVR-A1H 15.4 Channel 8K A/V Receiver with HEOS

AVAILABLE FOR PRE-ORDER

With 15 channels of amplification, our most powerful transformer, carefully selected parts, and hefty, high-rigidity construction, our flagship AVR-A1H delivers a professional theater experience in your home cinema. Weighing in at more than 70 pounds, it powers 150W per channel and supports up to a 9.4.6 speaker configuration for the ultimate setup flexibility. Enjoy amazing 8K video quality and HEOS® Built-in wireless music streaming. Designed and manufactured at our factory in Shirakawa, Japan and tuned by the Denon Sound Master, our flagship AVR inherits Denon’s signature sound design and takes it into the future.

Ultimate 3D audio experience
Experience a new level of 3D audio entertainment with capacity for up to a 9.4.6 speaker configuration.

Rediscover your collections
Engineering expertise allows you to hear your music and movie collections like never before.

Over 70 pounds of power
Weighing in at more than 70 pounds, the A1H powers 150W per channel.

Denon Heritage
Our flagship receiver evolves Denon’s signature sound design and was carefully tuned by the Denon Sound Master.



Specs

FEATURES AVR-A1H
MULTICHANNEL SURROUND
DTS HD Master, DTS:X, DTS:X Pro o, o, o
DTS Neo:X, DTS Neural:X -, o (15ch)
DTS Virtual:X o
IMAX Enhanced o
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music o, o, o, o
Dolby ProLogic Ilz, Dolby Surround -, o
Auro 3D o
360 Reality Audio/MPEG H o, o
Audyssey DSX -
Multichannel Stereo o
Max. Number of Processing (Pre-Amp) Channels 15.4

SOUND ENHANCEMENTS
Mono Block Power Amp Construction o (L/R separated)
Discrete Power Amplifier o
D.D.S.C. HD Digital o (32 bit)
Pure Direct o
Gold-Plated RCA Terminals o
Clock Jitter Reducer o
Alpha Processing AL32 Processing Multichannel
Denon Link HD -
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume o, o
Audyssey LFC o
Dirac Live Upgradability o
Compressed Audio Restorer o

NETWORK
Media Server o
HEOS Wireless Multi-Room Technology o
Bluetooth Re-transmit for Bluetooth headphones o
Alexa/Google Voice Assistant/Apple HomePod o, o, o
Lossy Formats: MP3, WMA, AAC o, o, o
Lossless Formats: FLAC, ALAC, WAV o, o, o
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) o, o, o
DSD Audio Streaming o (2.8/5.6MHz)
FLAC HD 192/24 o
WAV 192/24 o
ALAC 192/24 o
Gapless playback o (FLAC, WAV, ALAC ,DSD)
AirPlay 2 o
TuneIn o
Spotify Connect o
Pandora o
SiriusXM o
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested o
HEOS App Control o
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports o
Wi-Fi o
Bluetooth o

HDMI
HDMI Inputs: Back, Front 7, -
HDCP2.3 Support o
HDMI Outputs: Main, Zone 2, 1
Video conversion Analog -> HDMI -
Analogue to HDMI scaling -
HDMI to HDMI scaling 1080P/4K to 8K
GUI Overlay on HDMI o / o
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB o, o
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue o / o / o / o / -
Enhanced ARC o
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR o , o, o, o, o
ALLM (Auto Low Latency Mode) Pass-Through for Gaming o
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching o, o, -
3D Signal Pass-Through o
8K Signal Pass-Through, Scaling, GUI Overlay o, o, o
4K signal pass-through, scaling, GUI overlay o / o / o
HDMI pass-though in standby mode o
Picture adjust / Noise reduction - / -
CEC o
DSD Audio Capability o
Audio Return Channel (ARC), Enhanced ARC o, o
Auto LipSync o

MULTIROOM / CI
Multi-Room Zones 3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog o (2ch), o (2ch), o, o
Zone Audio Output: Speaker, Pre-Out o, o
Zone HDMI Output from HDMI Source o
IP Control, RS232 Control, Web Control, App Control o, o /o, o
Remote In/Out o, o
DC Trigger Output 2
HDMI Diagnostics o

OTHERS
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 2-Line FLD
Graphic User Interface - GUI Modern HD GUI
ISF Certification -
GUI Languages 3
Setup Assistent o
Quick Select Plus, Quick Select o, -
Firmware Update by Network / USB o / o
Variable Crossover o
Optimized Bass Redirection o
Bass Sync o
ECO Mode o
Auto Power Off o
Sleep Timer o

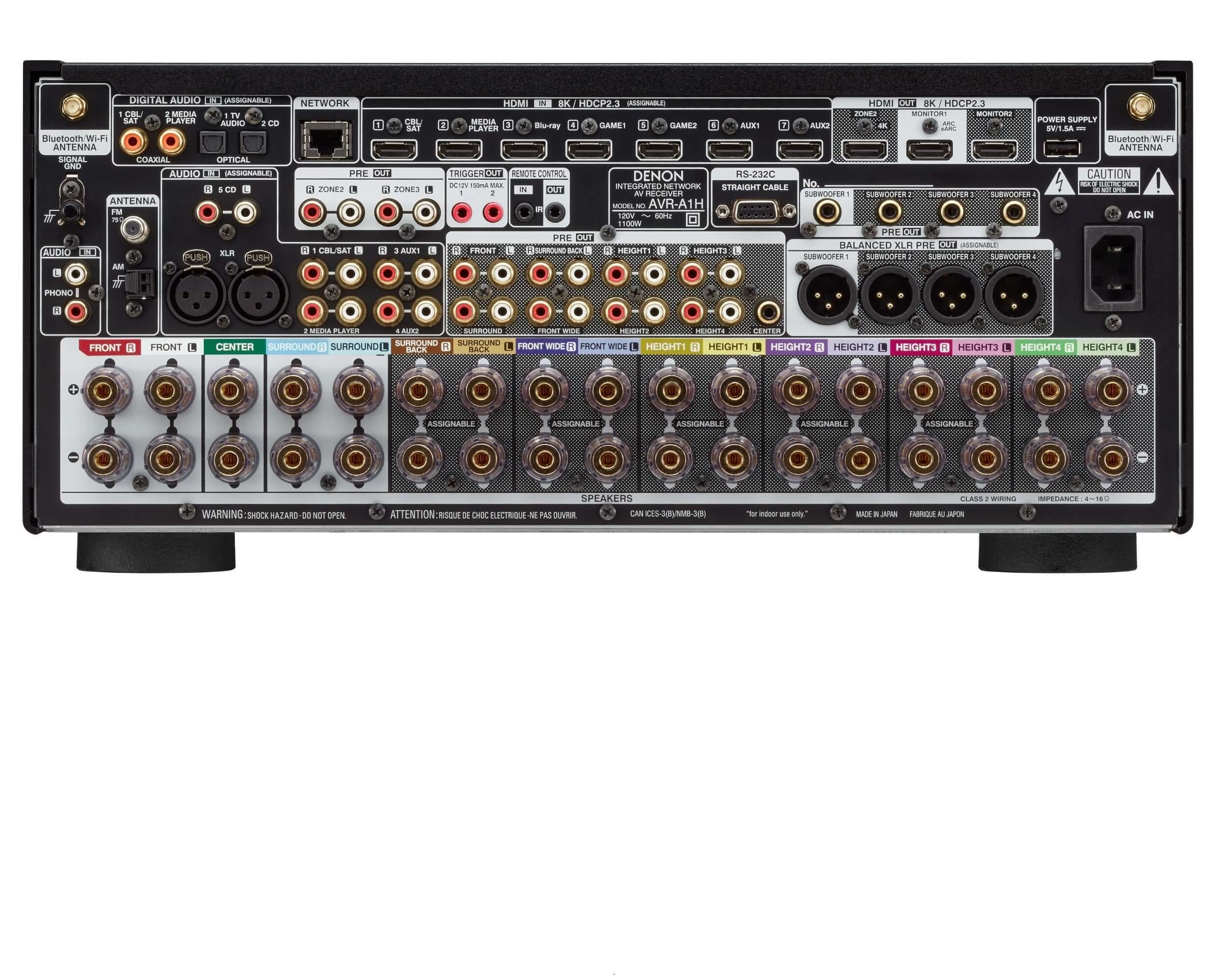

INPUTS/OUTPUTS
VIDEO
Composite In / Out - / -
Component In / Out - / -
HDMI In, Out 7, 3
Multi-Room Video Out: Video, HDMI -, o
AUDIO
Analog In, Out 5 (1x XLR), -
Phono (MM) In o
Digital In: Optical, Coaxial 2, 2
Multi-Room Out: Analog, Digital 2, -
Multichannel Pre-Out o (17.4)
Subwoofer Out 4 (independent)
7.1 multichannel input -
OTHER
Speaker Terminal: Gold-Plated Screw, Regular Screw o, -
Number of Speaker Terminals 17
Speaker A/B Assignable
Bi-Amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB -, -, -, -, o
USB Audio, Made for iPod, Made for iPhone o, -, -
AM/FM Tuner o

SPECIFICATIONS
Number of Power Amps 15
Power Output (8 ohm, 20Hz - 20kHz, 0.08% 2ch Drive) -
Power Output (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive) 150W
Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 190W
Power Output (6 ohm, 1kHz, 10% 1ch Drive) 260W

GENERAL
Metal Front Panel o
System Remote Control RC-1250
Pre-Programmed, Learnable, LCD Display o, o, o
Power Consumption in W 900
Power Consumption No-Sound (ECO on/off) in W 70W/125W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Network Control On Consumption in W
Maximum Dimensions
Antenna:Horizontal: (W x D x H) in inches
Antenna:Vertical: (W x D x H) in inches)
【w/o Antenna: (W x D x H) in inches】Maximum Dimensions
Antenna:Horizontal: (W x D x H) in inches
Antenna:Vertical: (W x D x H) in inches)
【w/o Antenna: (W x D x H) in inches】
17.1 x 19.6 x 7.7
( 17.1 x 19.6 x 10.2 )
【 17.1 x 19.4 x 7.7 】
17.1 x 19.6 x 7.7
( 17.1 x 19.6 x 10.2 )
【 17.1 x 19.4 x 7.7 】
Carton Dimensions (Packaging) (W x D x H) in Inches) 23.8 x 21.8 x 14.2 (in)
Weight in lbs 70.5
Weight in lbs (Packaging) 80 (TBD)

WARRANTY
3 Year Warranty
