Definitive Technology UIW RSS II Reference In-ceiling/In-wall Bipolar Loudspeaker (Each)

UPC: 093207051708
$699.00

SKU UIWRSSII

Product Qualifies for FREE Ground Shipping

  • Bipolar arrays spread surround effects evenly over a broad area
  • Two 4-1/2 inch cast basket drivers and two 4-1/2 inch pressure-coupled Low Bass radiators for high dynamic impact
  • Integrated wood enclosure ensures consistent high performance every time
  • Two 1 inch Pure aluminum dome tweeters
  • Installs in either new or existing construction applications
  • Available individually
  • Definitive Reference Architectural Speakers are perfect for bringing spectacular-sounding, high-performance "invisible" home theater systems into every room in your house. The Reference Surround Speaker II (RSS II) is intended for use as an in-ceiling or in-wall rear or side surround speaker in custom installed home theater systems of the highest quality.

    The RSS II features a non-resonant sealed medite (a dense wood product) enclosure to deliver the tight, detailed bass and uncolored midrange of audiophile free-standing speakers in every installation. The performance of open back built-in speakers will vary depending on the nature of the wall/ceiling cavity behind the speaker. But Definitive Reference series speakers with integrated enclosures sound superb every time. Six rotating dogleg clamps and beefy wood screws make the RSS II easy to install in either new or existing construction and provide secure, non-resonant mounting for ultimate audiophile performance free of vibrations and buzzes.

    It features a curved angle bipolar array, which is perfect for movie and music surround use because it provides an ideal combination of direct sound for specificity and localization and ambient sound for enhanced spaciousness. The RSS II delivers uniquely enveloping surround performance totally immersing the listeners in a complete 360-degree soundstage. Walls seem to disappear and the listening room will be almost magically transformed into the location of the original sonic event. The curved aspect of the bipolar array further improves dispersion into the room. When installed in the ceiling, the direction in which the driver arrays face can be rotated 90 degrees in order to optimize the performance depending on the specific location of the speakers in relation to the seating area.

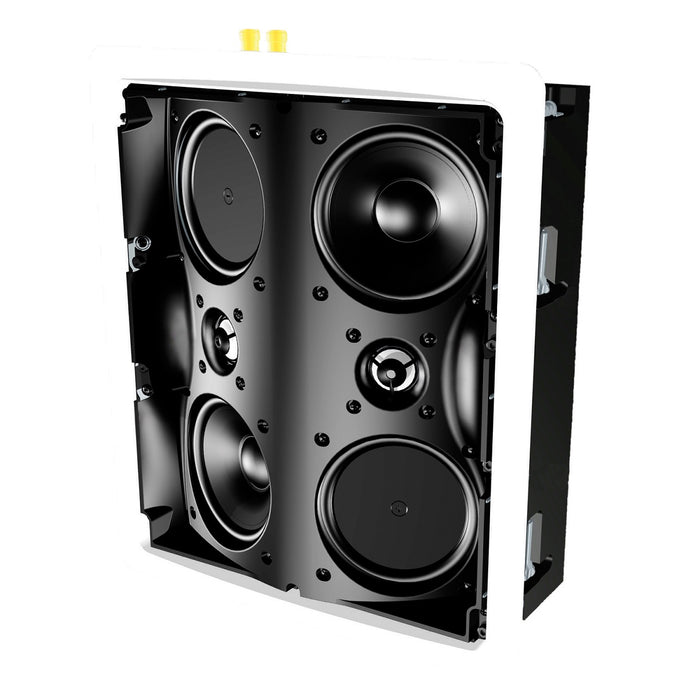

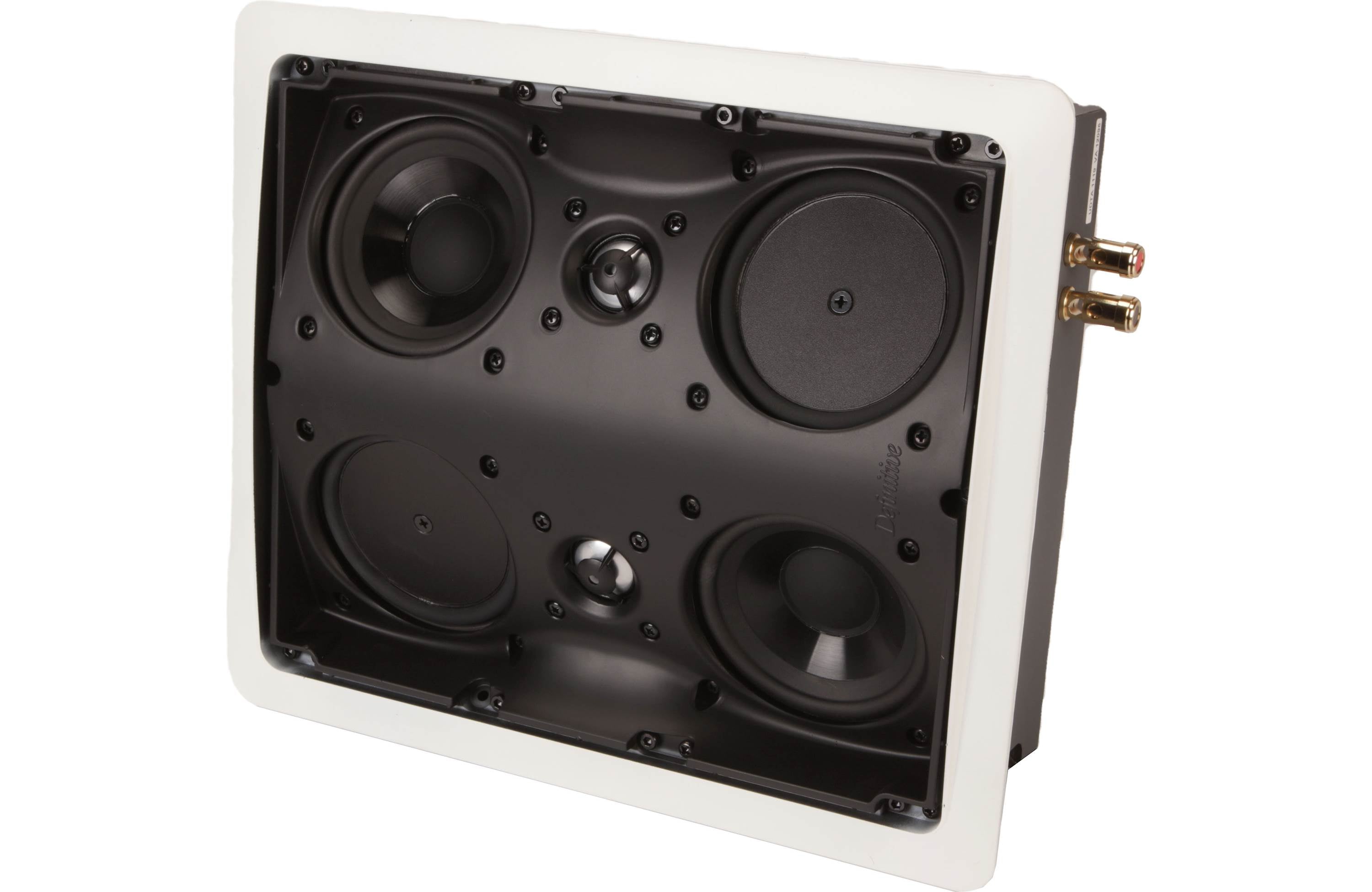

    Each RSS II bipolar surround speaker contains two complete 3-way full-range systems each with a 4-1/2 inch cast-basket bass/midrange driver pressure coupled to a 4-1/2 inch planar Bass Radiator and a 1" pure aluminum tweeter, for a total of 6 driver/radiators in each speaker. The RSS II's dynamic, spacious and uncolored sonic signature has been specifically engineered to blend perfectly with any of Definitive's loudspeakers whether freestanding, in-wall or in-ceiling for an amazing lifelike sonic experience.

    Specs
    Driver Complement
    Tweeter

    Quantity 2
    Diameter 1" (2.54cm)
    Type Pure Aluminum Dome
    Mid / Woofer

    Quantity 2
    Diameter 4 1/2" (11.43cm)
    Type High Definition Bass/Midrange Driver
    Tweeter/Mid Array

    Type Bipolar Configuration
    Bass Radiator

    Quantity 2
    Diameter 4 1/2" (11.43cm)
    Type Planar Bass Radiator
    Electrical

    Audio Inputs
    Speaker Level 1 Pair (Heavy Duty Spring Loaded
    Maximum Sensitivity

    1 watt @ 1 Meter 90 dB
    Total Frequency Response

    Overall 26 Hz - 30 kHz
    Nominal Impedance

    Compatible with 8 ohm
    Compatible with 8 ohm
    Crossover

    A/V Receiver Crossover Setting Small (80 Hz)
    Power Handling 10 - 200 watts per channel
    Installation

    Cut Out Dimensions
    Height 11 5/8" (29.53cm)
    Width 9 7/8" (25.08cm)
    Mounting Depth 3 7/8" (9.84cm)
    Outer Flange

    Height 12 3/4" (32.38cm)
    Width 11" (27.94cm)
    Placement

    Orientation In Wall or In Ceiling
    Cabinet Type
    Speaker Enclosure Sealed Medite
    Product Weight

    Out of Box 12.5 lbs
    Shipping

    Accessories

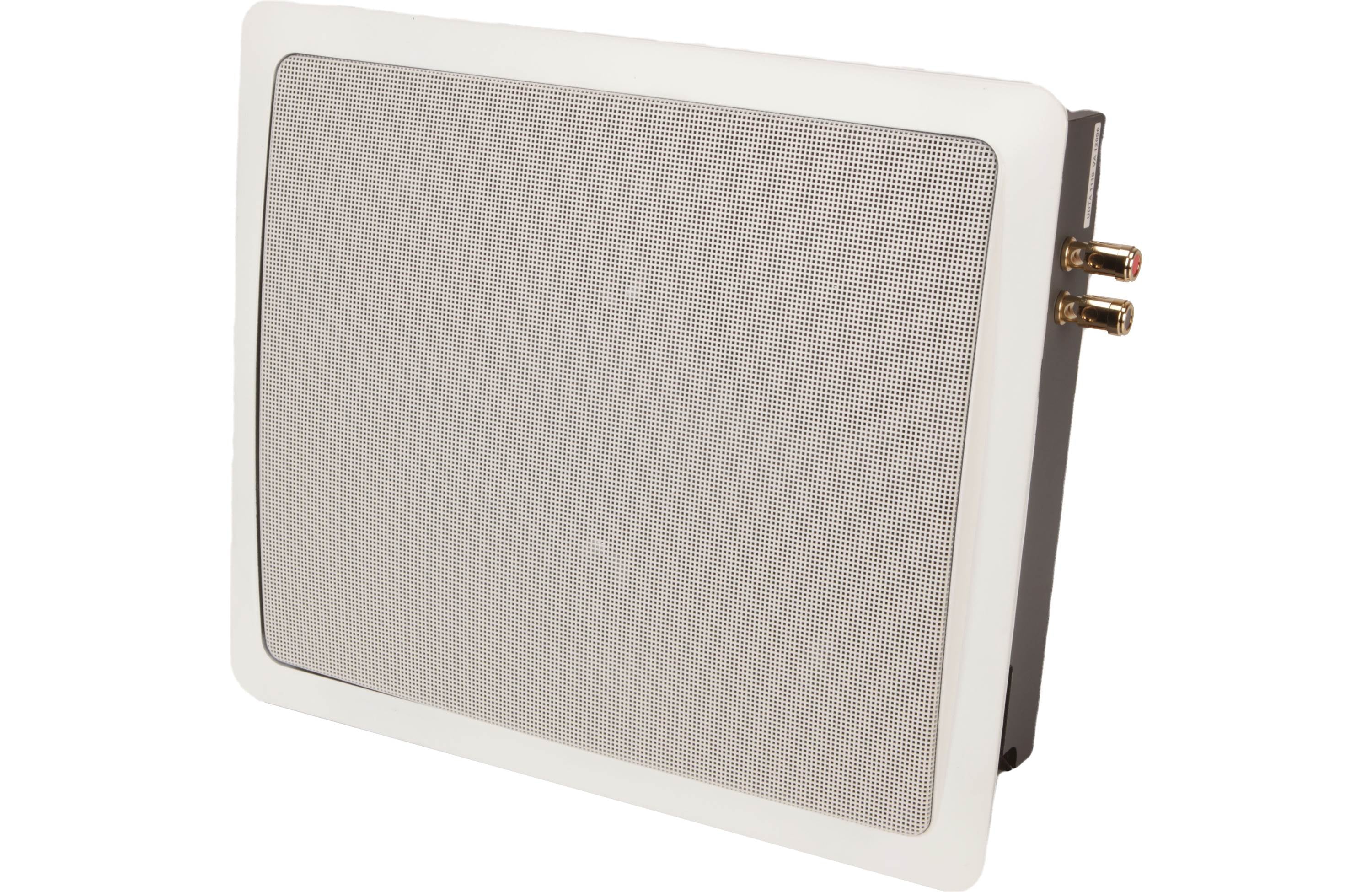

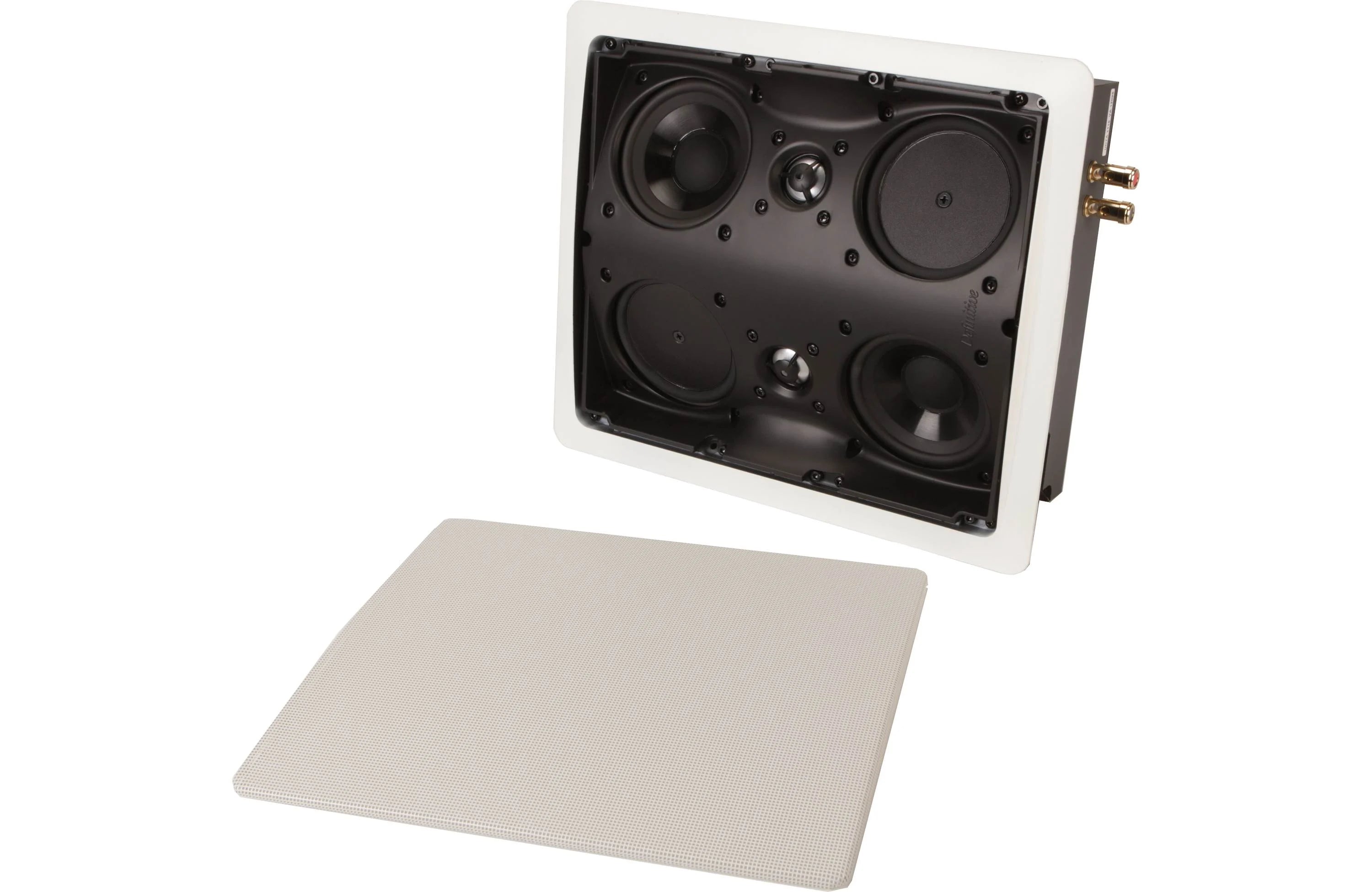

    Included Accessories Wall Template; Paint Mask; Paintable Grill; Self Adhering Foam Gasket
    Optional Accessories Rough-In-Kit (Available Separately)
    Carton Size

    Height 14" (35.56cm)
    Width 13 1/4" (33.66cm)
    Depth 10 1/4" (26.04cm)
    Shipping Weight

    One per Carton 14 lbs
    Warranty

    Drivers and Cabinet
    Parts and Labor 5
