Definitive Technology IW Sub 10/10 Fully-Enclosed In-Wall Subwoofer (Each)

UPC: 093207010545

SKU IW SUB 10/10

Product Qualifies for FREE Ground Shipping

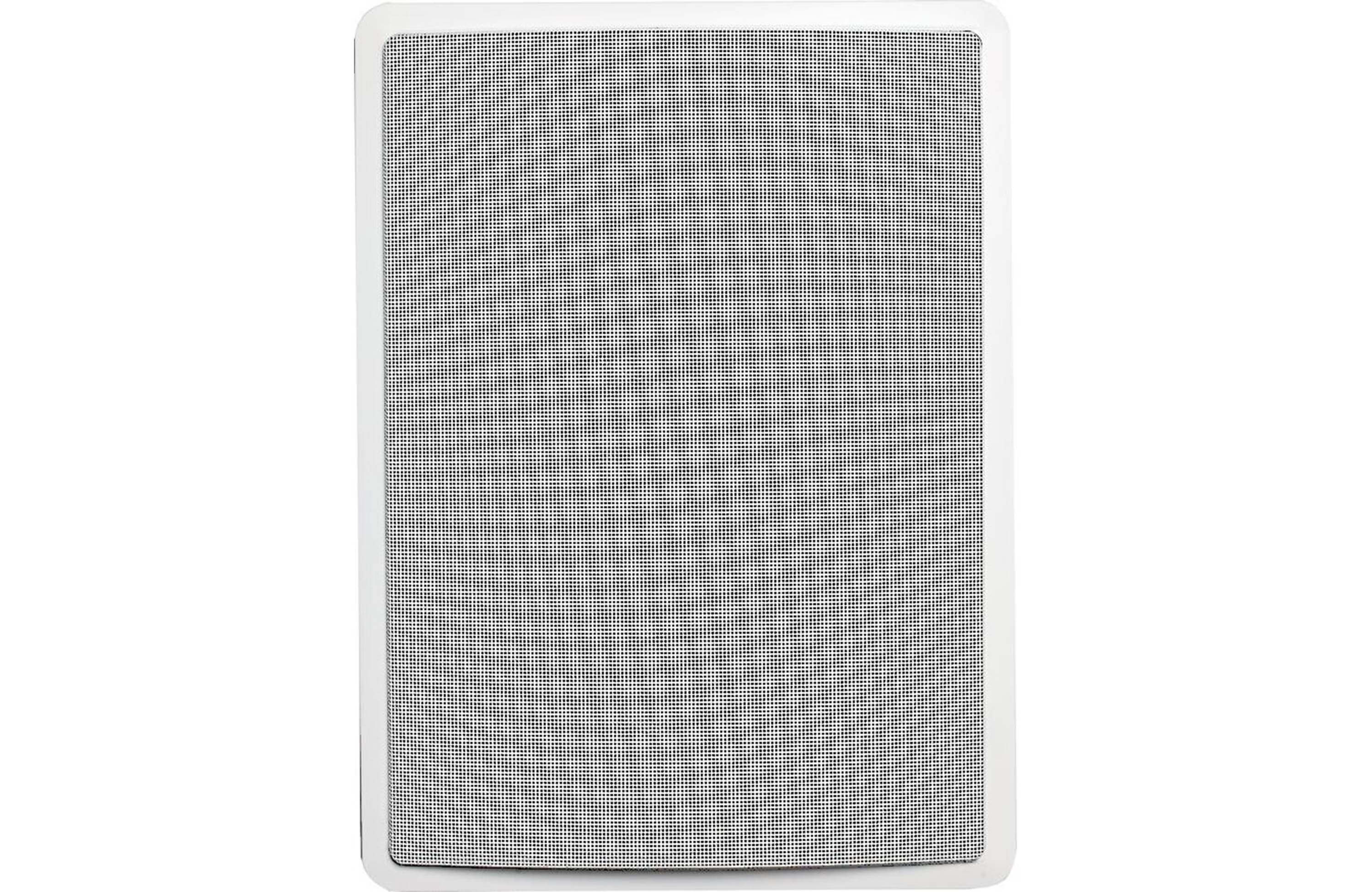

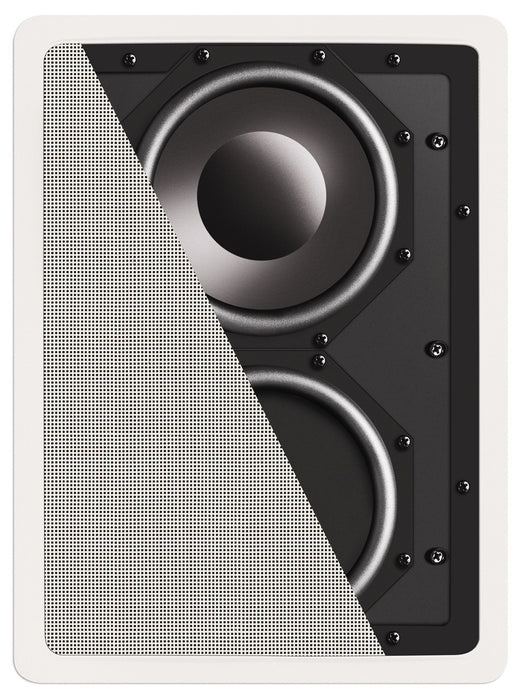

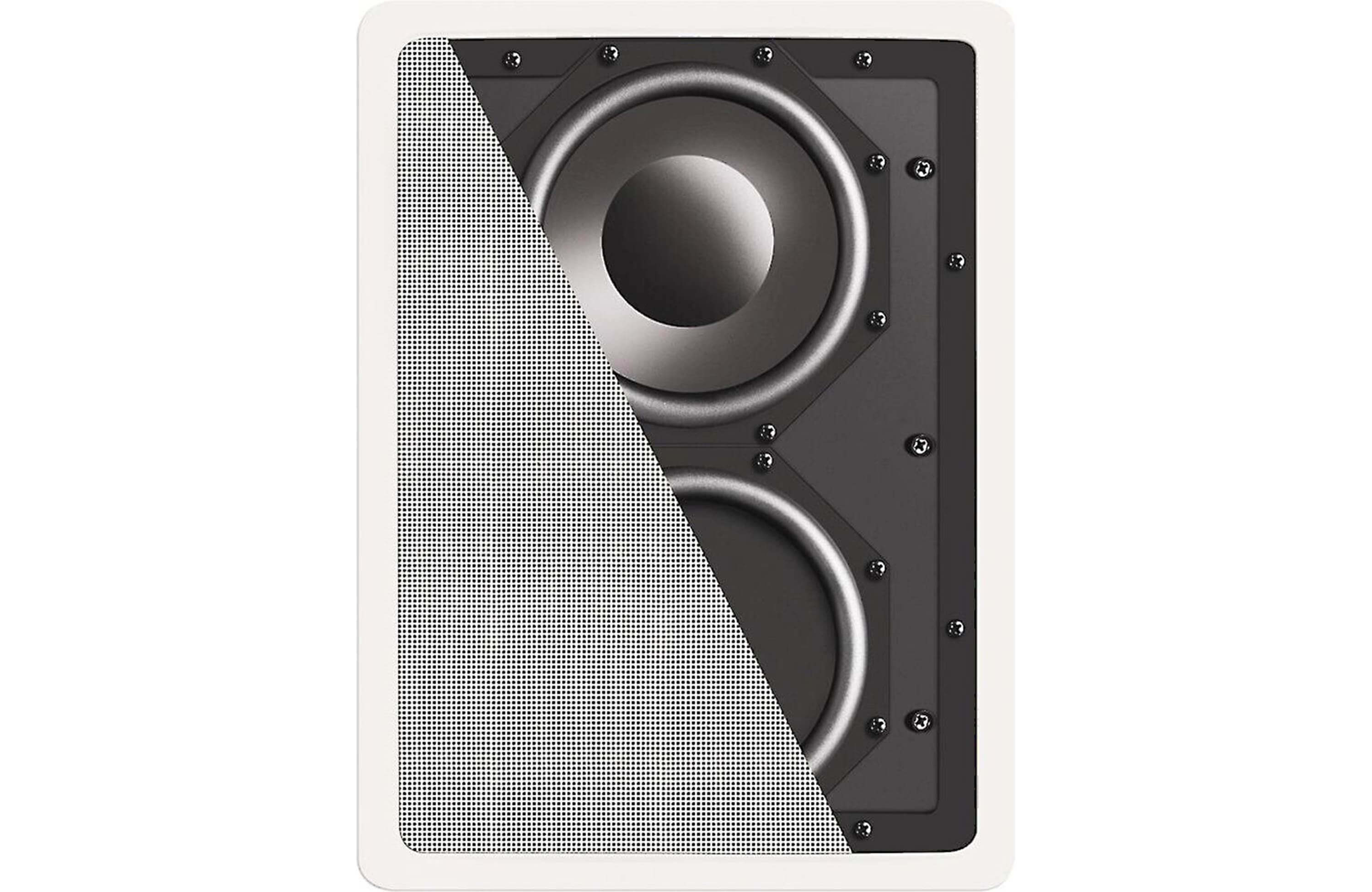

Definitive Technology IW Sub 10/10 Fully-Enclosed In-Wall Subwoofer (Each)

Enjoy deep high impact bass without using any floor-space
  • Fits in standard new or existing wall construction
  • Fully enclosed design ensures perfect results in any wall

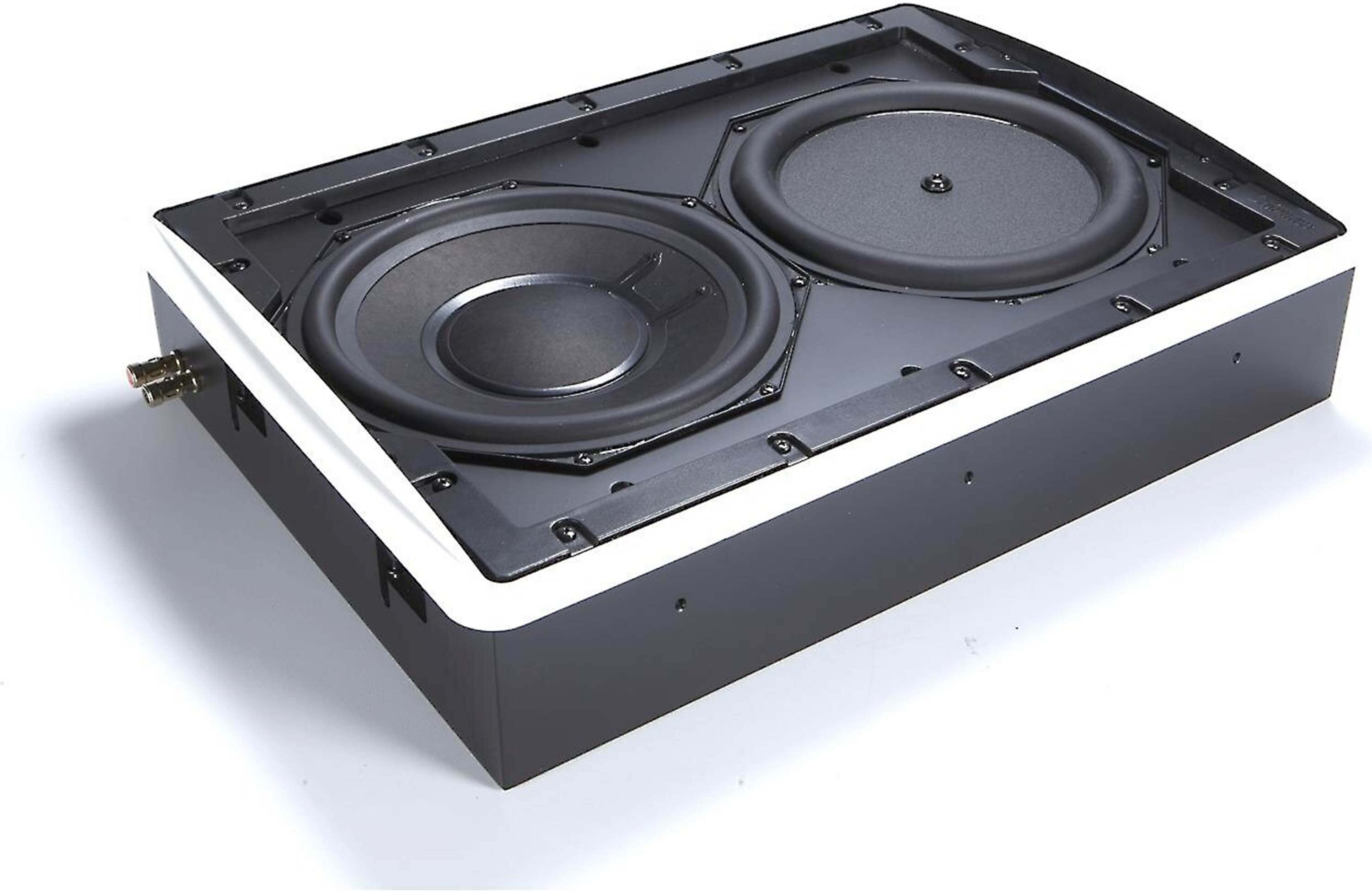

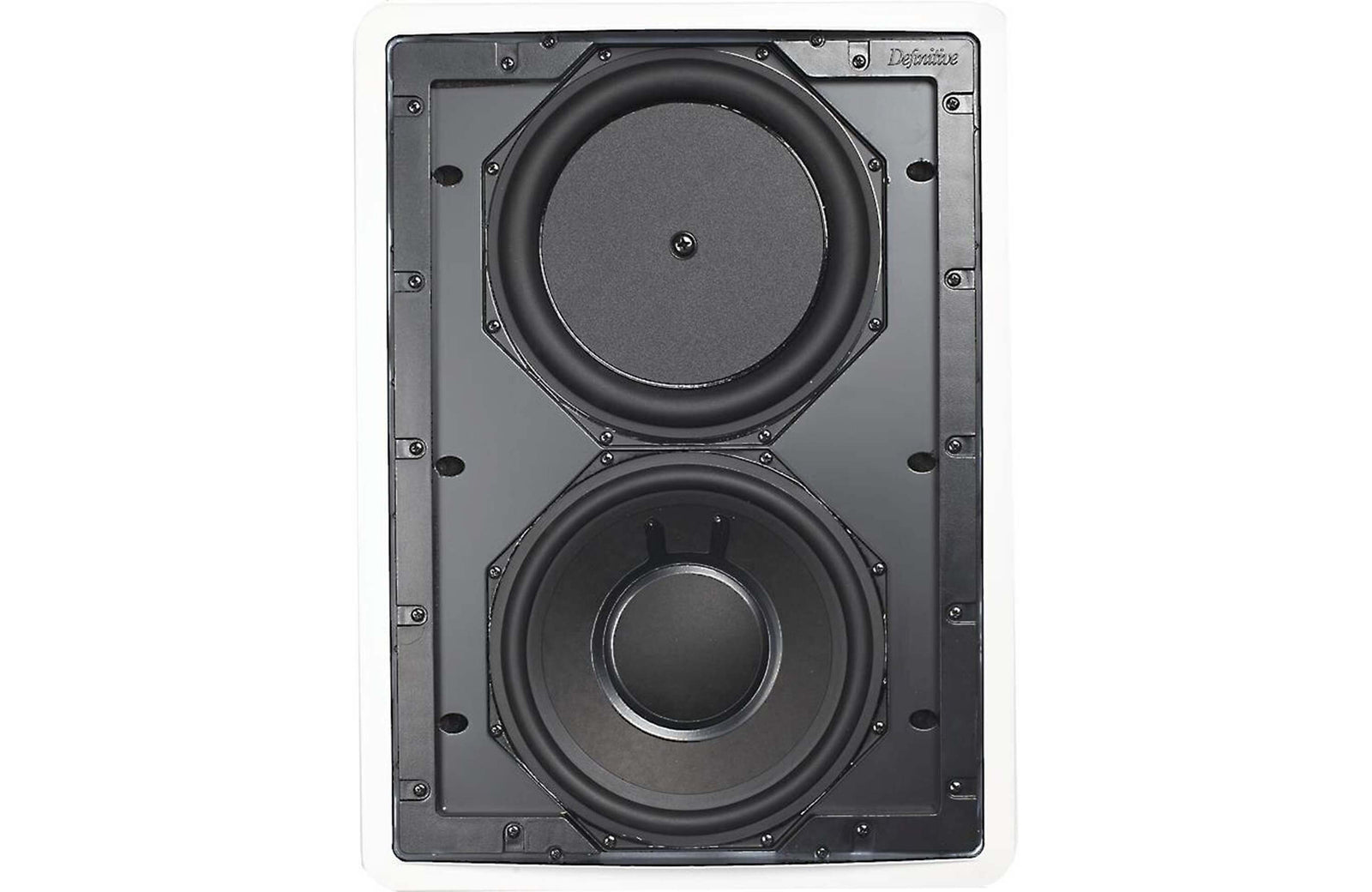

  • One 10 inch active subwoofer driver pressure coupled to one 10 inch Ultra Low Bass radiator
  • Use with Definitive SubAmp 600 only (sold and packaged separately)

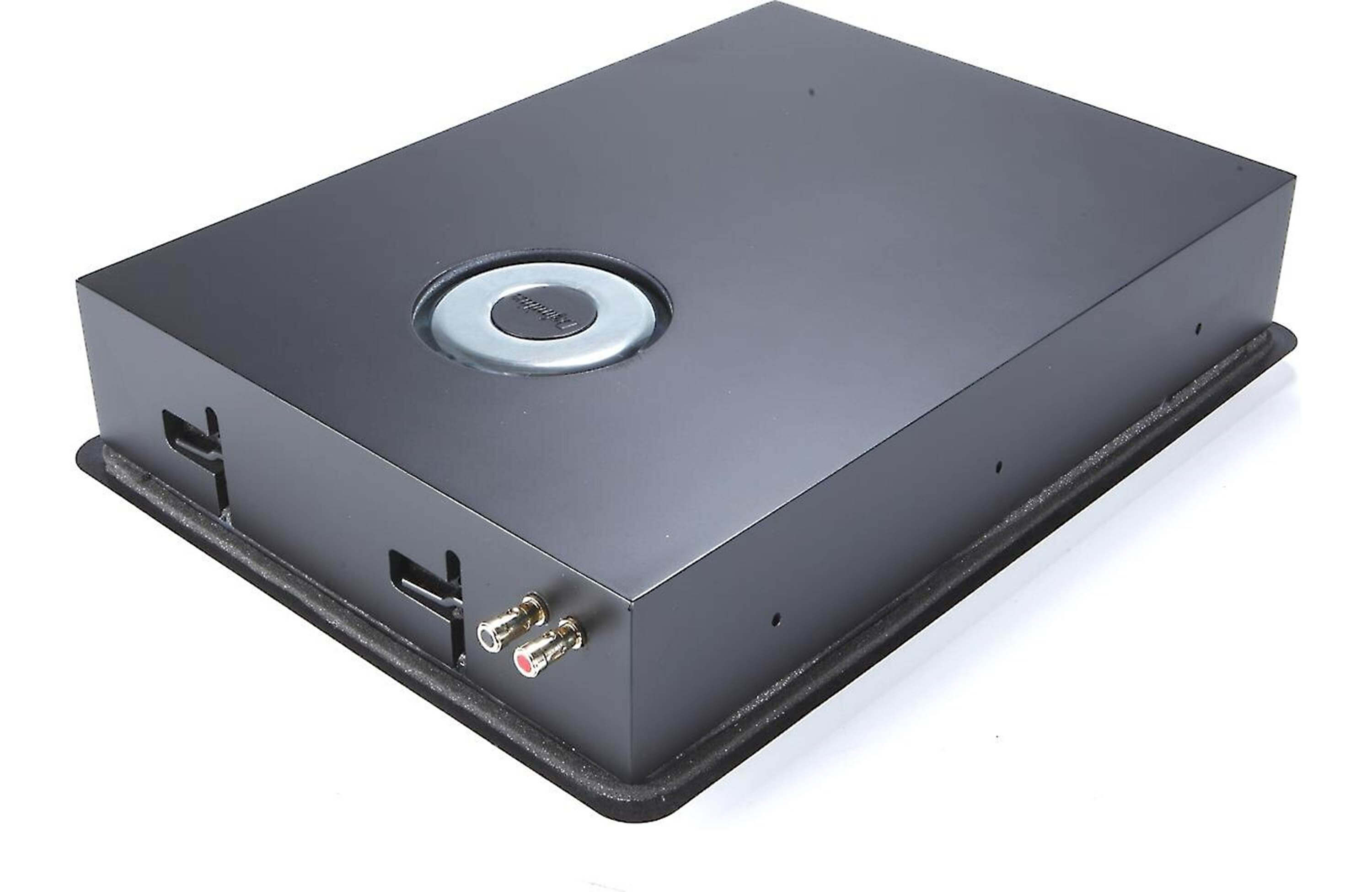

  • The IWSub 10/10 is a completely self enclosed in-wall subwoofer for use in whole house distributed music or stealth home theater installations. It's a deep bass powerhouse that will disappear in your room. It has a non-resonant sealed medite (a dense wood product) enclosure and a paintable bezel and grille. Inside the completely self-enclosed in-wall sub is the technical brainpower derived from Definitive's award winning SuperCube free-standing subwoofers. It includes a special shallow-depth, long excursion active 10 inch driver pressure-coupled to a 10 inch Ultra Low Bass radiator for deep, tight, high impact bass. Combined, these features result in tight musical excellence.

    The IWSub 10/10 installation is straightforward and easy in both newly constructed and existing walls. The IWSub 10/10 must be used with the companion outboard SubAmp 600 (sold separately) that provides 600 Watts of digital power along with sophisticated crossover functions.

    The 10/10 produces musically accurate low end that's never before been available in a compact, nearly invisible in-wall subwoofer that installs easily in new construction or existing walls. The IWSub Reference will deliver superb output performance when used singly, or in pairs for larger rooms.

    Driver Complement

    Quantity 1
    Diameter 10" (25.40cm)
    Type Long Throw Active Subwoofer Driver
    Bass Radiator

    Quantity 1
    Diameter 10" (25.40cm)
    Type Planar Low Bass Radiator

    Audio Inputs
    Speaker Level 1 Pair (Heavy Duty Spring Loaded)
    Total Frequency Response

    Overall 16 Hz - 200 Hz
    Nominal Impedance

    Designed for SubAmp 600 (4 ohm)

    Cut Out Dimensions

    Height 19 7/8" (50.48cm)
    Width 14 3/8" (36.51cm)
    Mounting Depth 3 13/16" (9.68cm)
    Outer Flange
    Height 21" (53.34cm)
    Width 15 1/2" (39.37cm)

    Vertical Orientation
    Cabinet Type
    Speaker Enclosure Sealed Medite
    Product Weight

    Out of Box 27 lbs Shipping
    Included Accessories Wall Template; Paint Mask; Paintable Grill; Self Adhering Foam Gasket
    Required Accessory SubAmp 600 (Available Separately)
    Carton Size

    Height 25 1/2" (64.77cm)
    Width 19 1/2" (49.53cm)
    Depth 10 1/2" (26.67cm)
    Shipping Weight

    One per Carton 30 lbs

    Drivers and Cabinet
    Parts and Labor 5
