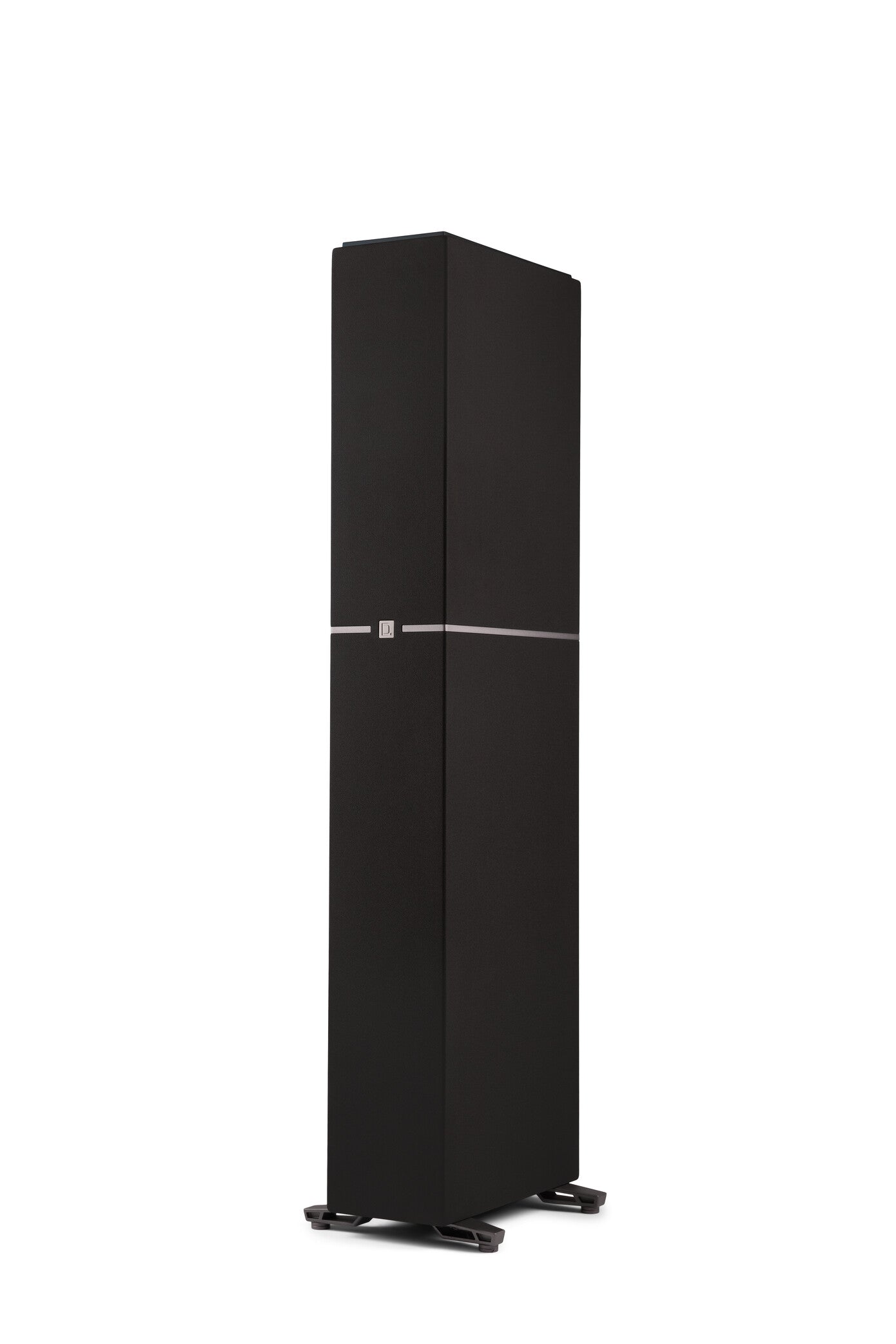

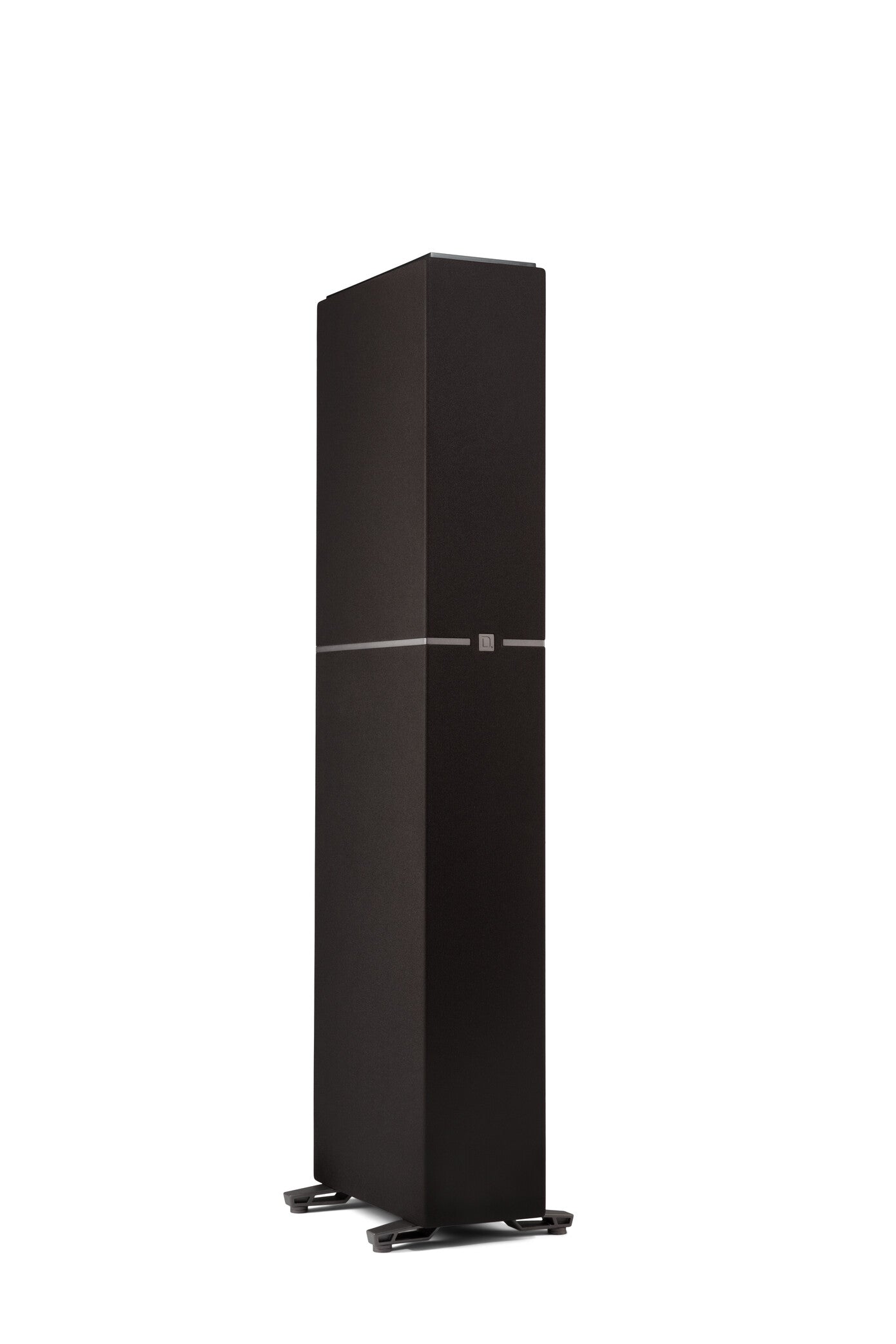

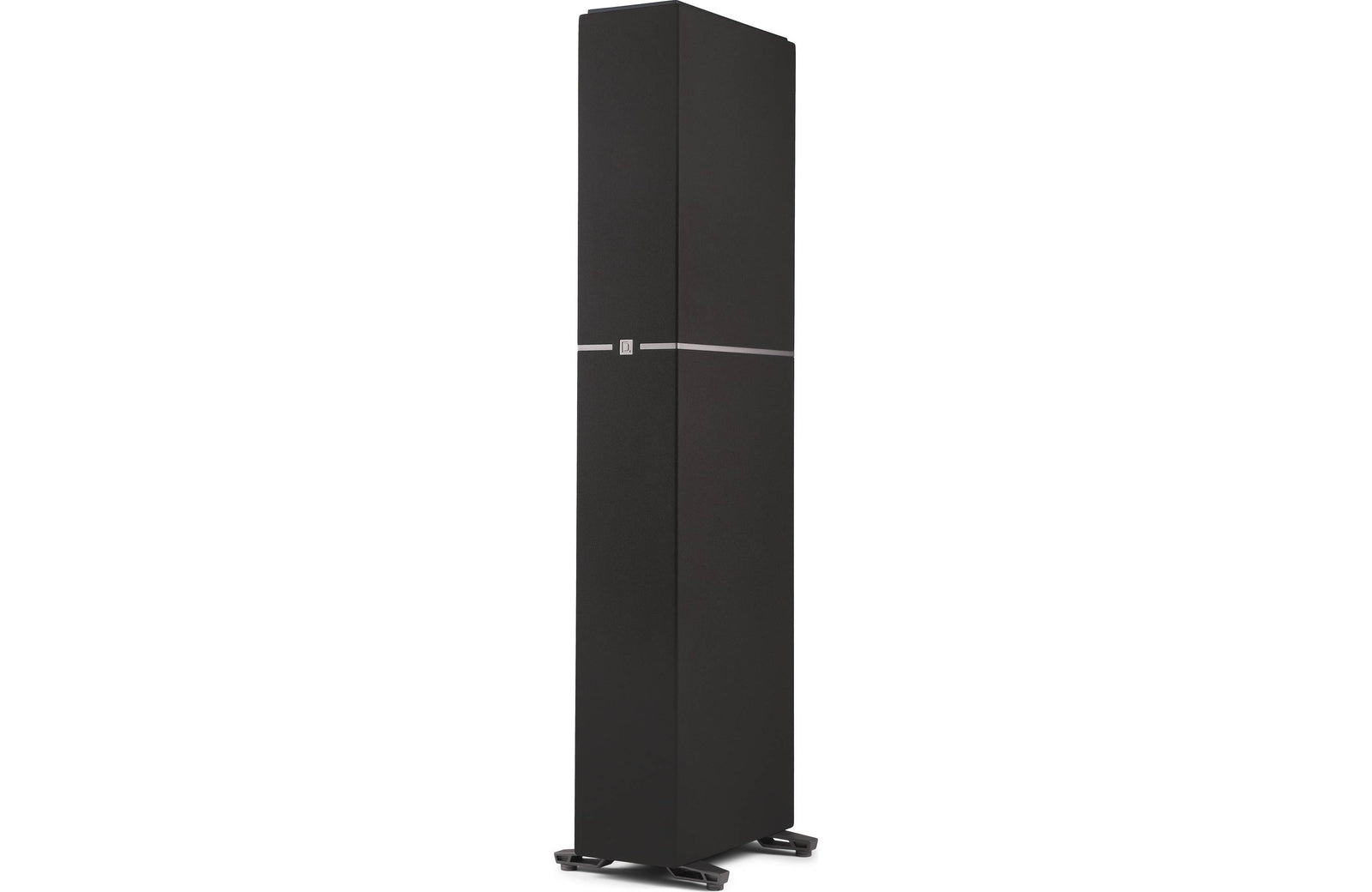

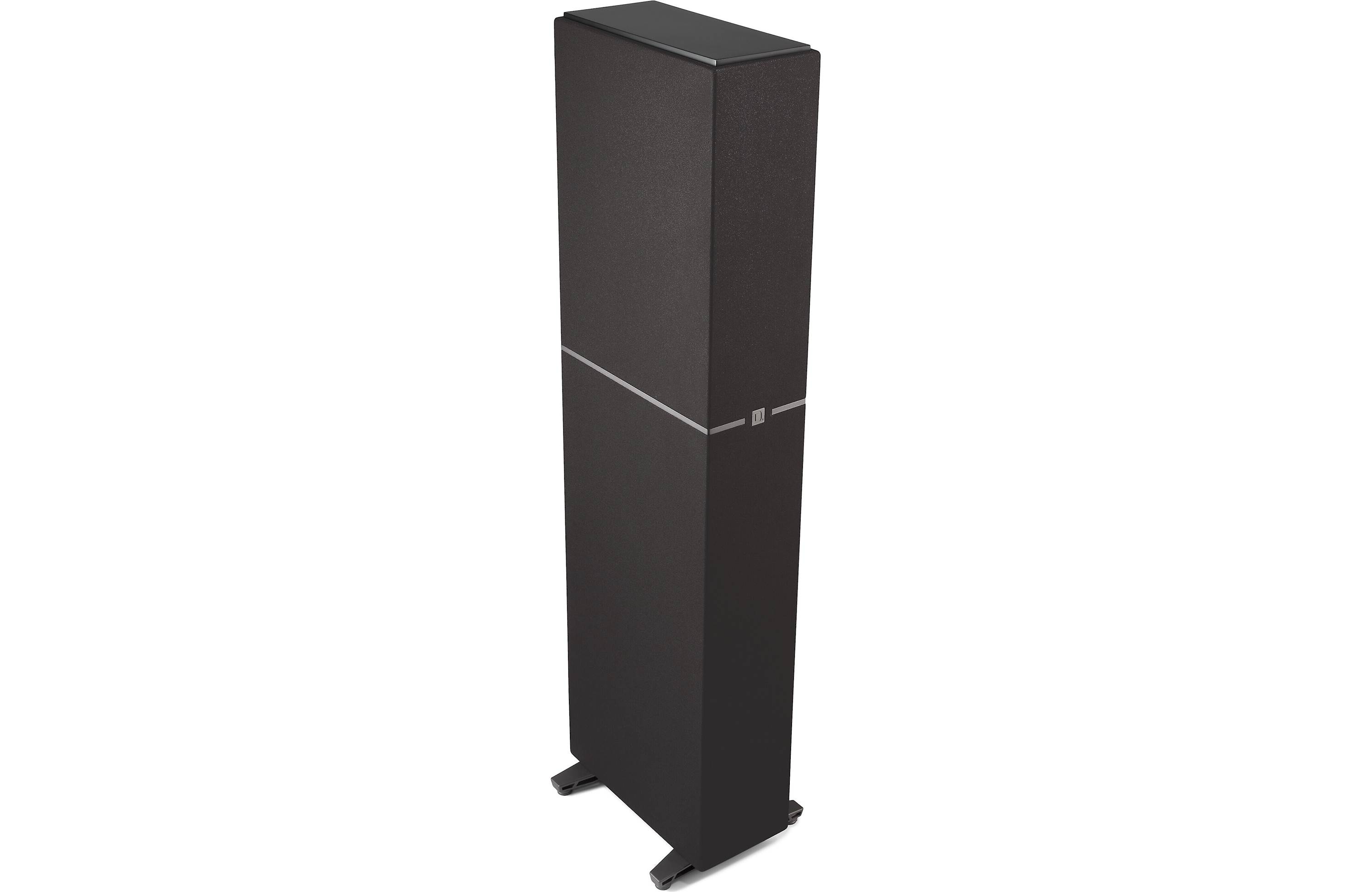

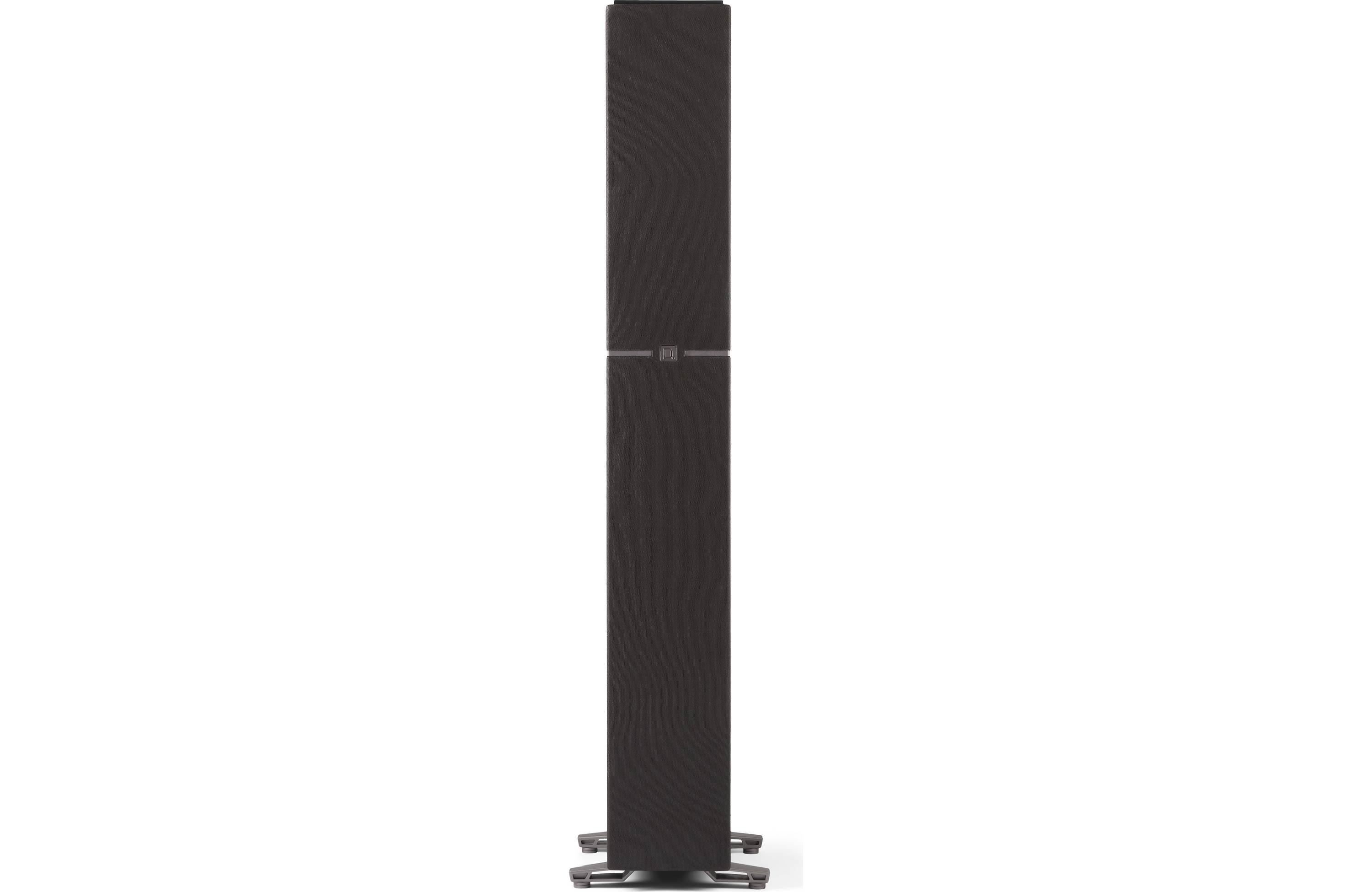

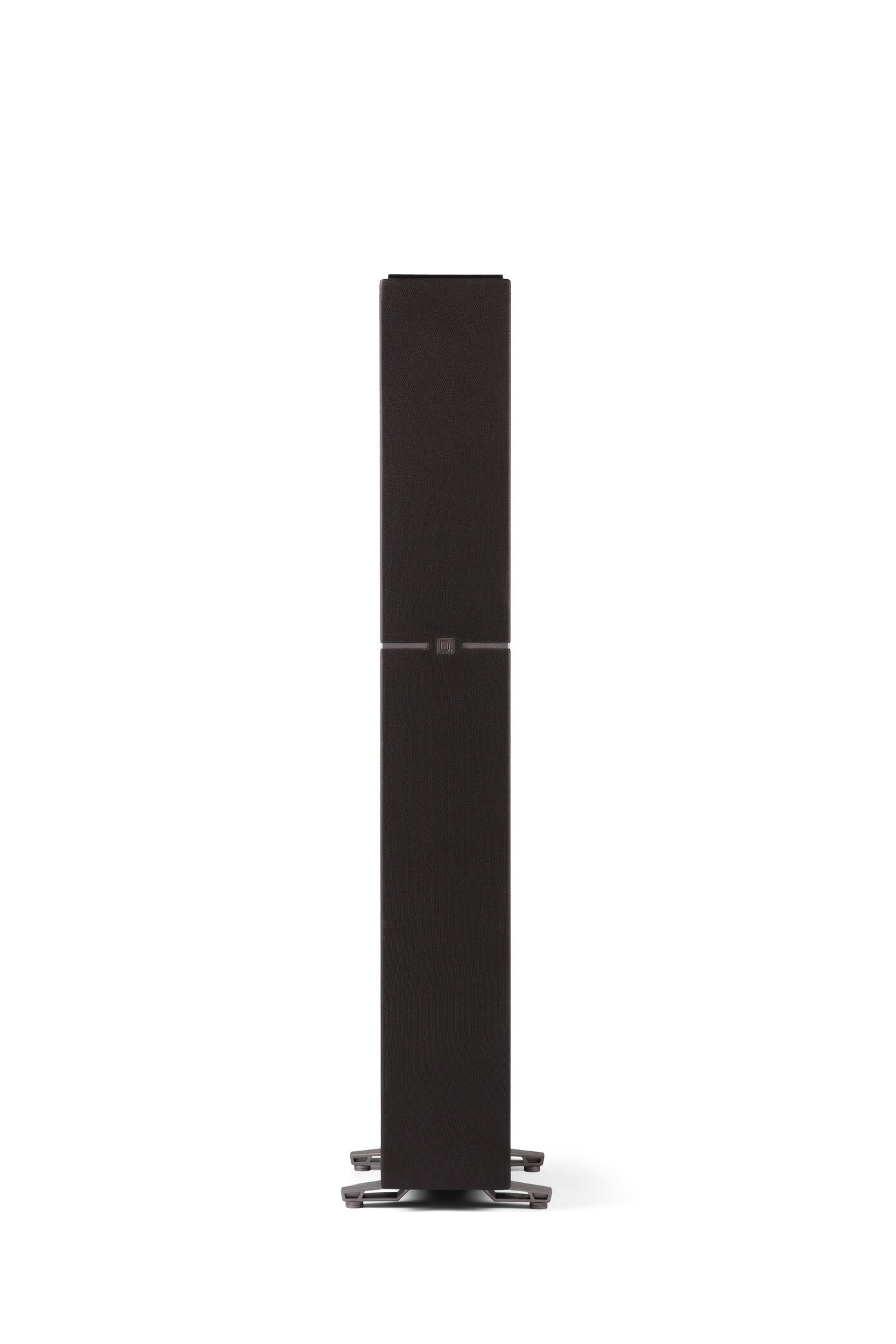

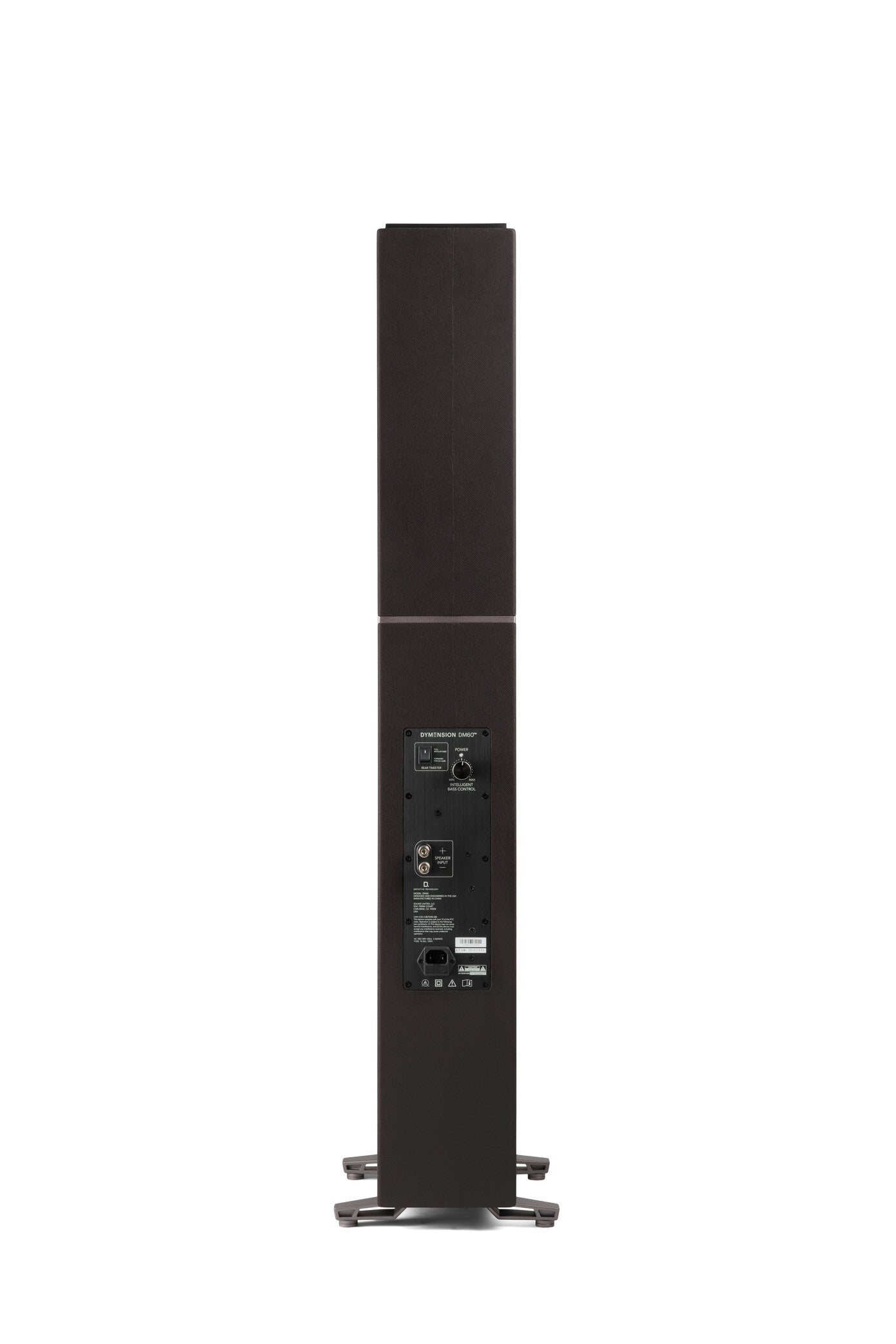

The Dymension™ DM60 fills your home theater with larger-than-life sound. Crystal clear
highs, incredible depth-of-field, and thunderous bass envelop you whether you’re
enjoying the latest blockbuster or your favorite songs. Innovations include aluminum
oxide tweeters, an adjustable Balanced Double Surround System™ (BDSS) bipolar array,
an integrated powered subwoofer with 3XR™ technology, and a robust Class D amplifier.
• Fully balanced bipolar driver array for truly enveloping sound
• Built-in 180W 8” subwoofer with dual 3XR™ bass radiators
• Aluminum oxide tweeter produces crisp, sparkling highs
• 4.5” BDSS™ drivers provide balanced sound, and a wide listening area
• Atmos/DTS:X ready—add optional DM95 height module
• Patented Intelligent Bass Control for seamless integration

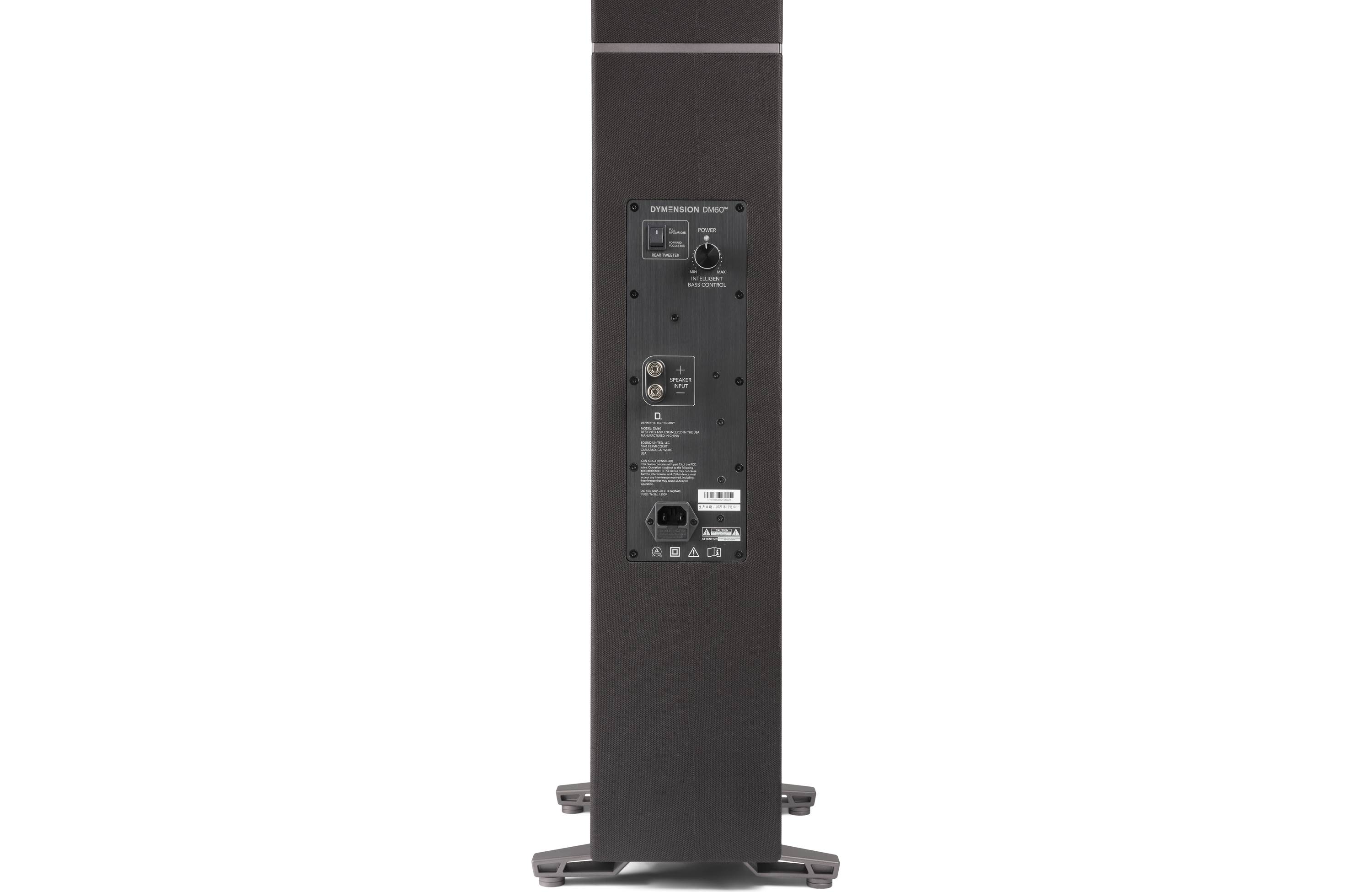

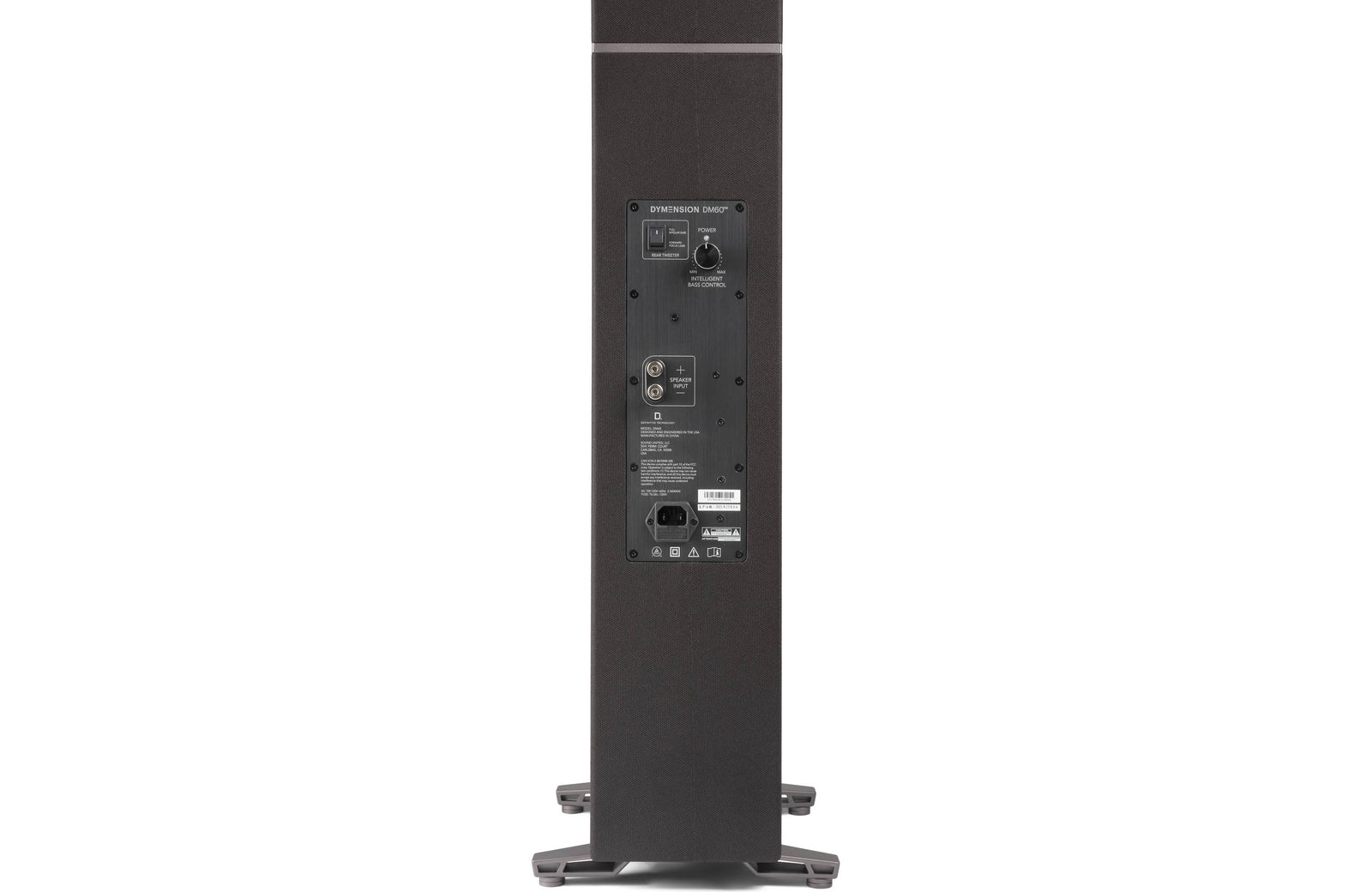

• Rear-array attenuation switch for near-wall placement
• Timbre-matched with other Definitive Technology speakers
• Foot spikes and pads allow versatile placement and leveling
• Understated design disappears into the room when the lights are low
Fully Balanced, Adjustable Bipolar Array
Bipolar driver arrays direct more sound in more directions than traditional speakers for
incredible depth-of-field and a truly enveloping listening experience. The bipolar effect
can be adjusted to optimize for room placement.
BDSS System and Linear Response Waveguide
DM60’s four 4.5” mid/bass woofers feature our patented BDSS technology.
BDSS improves midrange driver excursion and provides a wide, uniform soundstage
with seamless mid/bass integration. A Linear Response Waveguide™ extends and
smooths off-axis dispersion for great sound everywhere in the room.
Aluminum Oxide Tweeters
DM60’s rigid, well-damped aluminum oxide tweeters provide smooth extended response
with crisp transients, pinpoint imaging, and exceptional definition, for incredibly lifelike sound.
Built-In 8” Powered Subwoofer
An integrated 8” subwoofer, powered by an all-new, high-performance Class D 180W
amplifier, delivers clean, detailed bass that perfectly blends with mids and highs and
feels consistent no matter where you sit. All-in-one design means simpler setup and a
streamlined footprint—no extra subs required.
3XR Architecture with Dual Bass Radiators
3XR™ Architecture—introduced in our critically acclaimed Descend Subwoofer
Series—combines a subwoofer and two passive radiators to produce huge, balanced
bass in any space, with less distortion than traditional ported designs. It’s low end you
can feel—everywhere in the room.
Patented Intelligent Bass Control
Sophisticated digital processing seamlessly blends subwoofer output with mids and highs to provide powerful deep-bass performance without sacrificing midrange clarity. Bass will never get in the way of dialogue and other critical soundtrack elements.
Consistent sound across other Definitive Technology series gives you the flexibility to mix
and match Dymension™, Dymension CI, and Mythos speakers to design your dream home theater and whole home system.
DM95 On-Wall Height Satellite Module Option
Available separately, this DM95 Atmos-compatible and DTS:X-compatible wall-mountable height module extends sound above you, for total sonic immersion with hyper-realistic overhead effects.
Dimensions (H × W × D)
45.4 × 11.3 × 13.7 in.
1153 × 287 × 349 mm
Weight 60 lbs (27.2 kg)
Grille Material Acoustically transparent black cloth (not removable)
Tweeter (2) 1 in. aluminum oxide domes
Midrange/Midbass (4) 4.5 in. BDSS™ with Linear Response Waveguide™
Bipolar Array Fully balanced, adjustable
Bipolar Array Adjustment Rear tweeter switch: 0dB, -6dB
Subwoofer System Driver Complement
(1) 8 in. subwoofer
(2) 8 in. passive radiators
30 Hz–30 kHz (-10dB)
34 Hz–23 kHz (-3dB)
Nominal Impedance 4Ω (8Ω compatible)
Sensitivity 88dB (2.83V/1m)
Recommended Amplifier Power Rating 50–300W
Subwoofer Amplifier 250W (Peak) Class D
Intelligent Bass Control Variable +12dB/-15dB
(4) Adjustable hard floor glides
(4) Adjustable carpet spikes
