Definitive Technology Dymension DM10 Compact Center Channel Speaker with Bass Radiator

UPC: 747192137076
Call for Availability

SKU DymensionDM10

Product Qualifies for FREE Ground Shipping

Definitive Technology Dymension DM10 Compact Center Channel Speaker with Bass Radiator

The Dymension™ DM10 center channel speaker with integrated bass radiator delivers
full-range sound with superior vocal clarity and big bass impact in a compact
footprint. It’s the ultimate low-profile centerpiece for immersive home theater and
music systems.

• Three-driver array for rich, full-range center channel sound
• Built-in passive radiator provides seamless bass impact
• Aluminum oxide tweeter delivers crisp highs and ultra-clear speech
• Long-throw drivers offer superior low-end performance
• Composite polymer cones produce uniform, detailed mids
• Timbre-matched with Definitive Technology speakers
• Black fabric treatment virtually disappears into the room

Advanced Three-Driver Array
The DM10’s two 5.25” midrange woofers and 1” tweeter deliver ultra-clear vocals with
uncanny realism. It’s immersive sound that draws you into the action every time.
Integrated Passive Radiator
An integrated 9” passive radiator enhances bass impact, perfectly blending with
mids and highs to anchor voices and effects with rich, full-range sound.
Custom Aluminum Oxide Tweeter
The DM10’s rigid, well-damped tweeter provides smooth extended response with
crisp transients and exceptional definition. You’ll notice clearer speech than ever
before, along with a more precise sonic image.
Long-Throw Midrange Woofers
DM10’s woofers feature composite polymer cones that produce superior
midrange detail. Long-throw surrounds optimize driver excursion for improved
low-end performance.
Consistent sound across Definitive Technology series gives you the flexibility to mix
and match Dymension™, Dymension CI, and Mythos speakers to design your dream
home theater and whole home system.
Disappearing Design

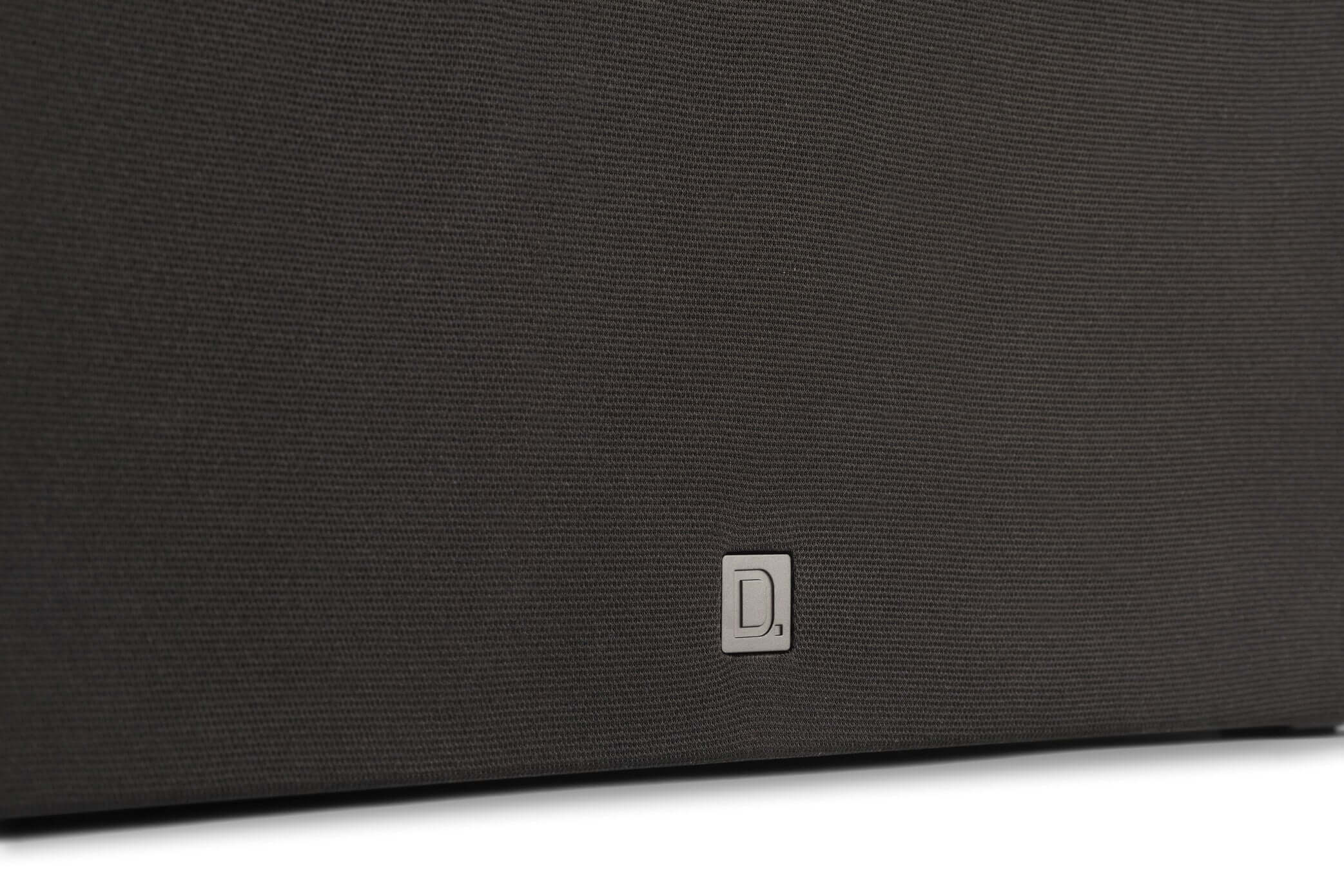

The DM10 is wrapped in an acoustically transparent black cloth grille. As soon as you
dim the lights, it virtually disappears into your room—so you can focus on the movie,
not your speakers.


Dimensions (H × W × D)
7.3 × 19.5 × 12.2 in.
186 × 496 × 311 mm
Weight 29.1 lbs (13.2 kg)
Color Black
Grille Material Acoustically transparent black cloth (not removable)
Tweeter (1) 1 in. aluminum oxide dome
Midrange/Midbass (2) 5.25 in. woofers
Subwoofer System Driver Complement (1) 9 in. passive radiator
Frequency Response
57 Hz–30 kHz (-10dB)
81 Hz–23 kHz (-3dB)
Nominal Impedance 4Ω (8Ω compatible)
Sensitivity 90dB (2.83V/1m)
Recommended Amplifier Power Rating 50–200W
