Definitive Technology DI3.5R Disappearing In-Ceiling Speaker (Each)
UPC: 93207063732
$259.00
SKU DI3.5R
Extraordinary High-Performance Speakers that Virtually Disappear in Your Room!

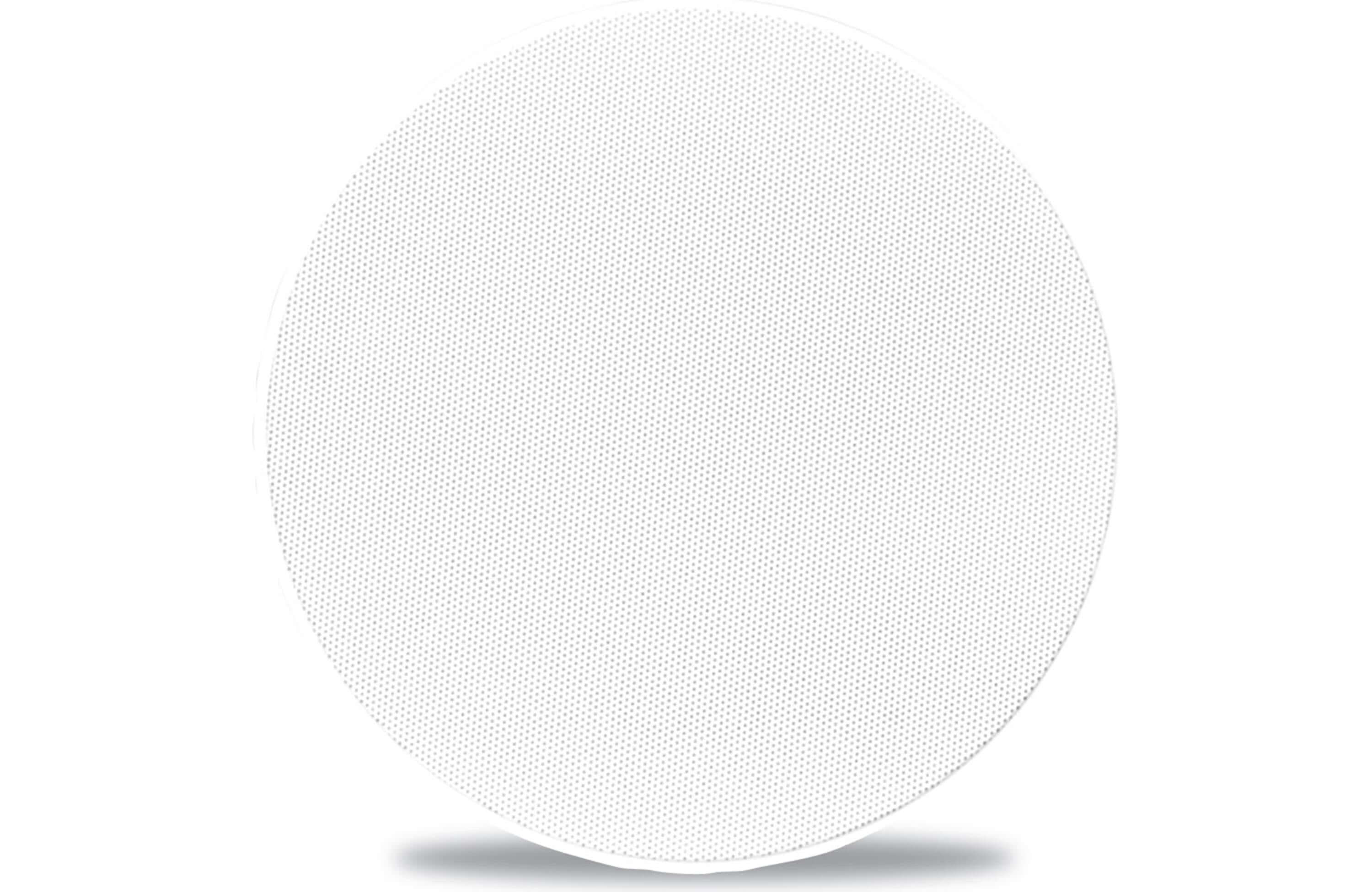

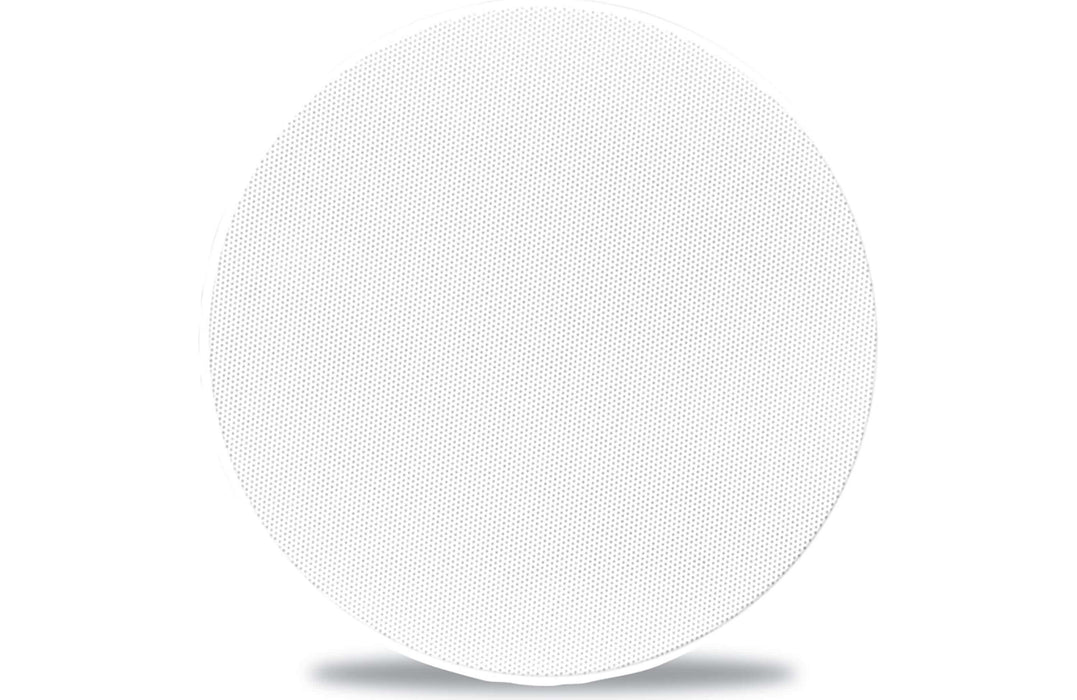

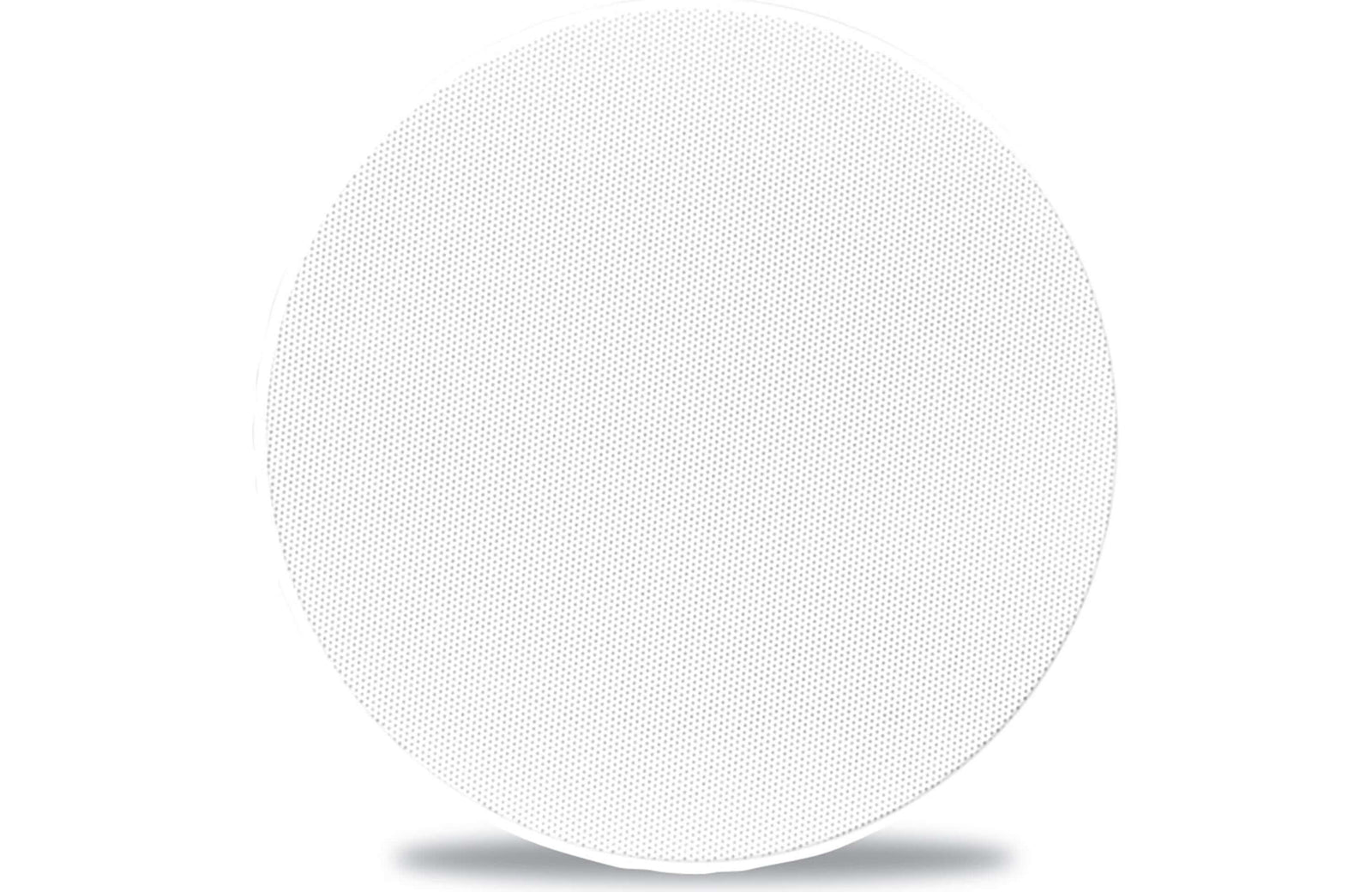

Flangeless design & micro-perf grille minimize visibility
Simple to install - no spackle work required
4-9/16" (11.6 cm)diameter matches mini recessed lighting fixtures

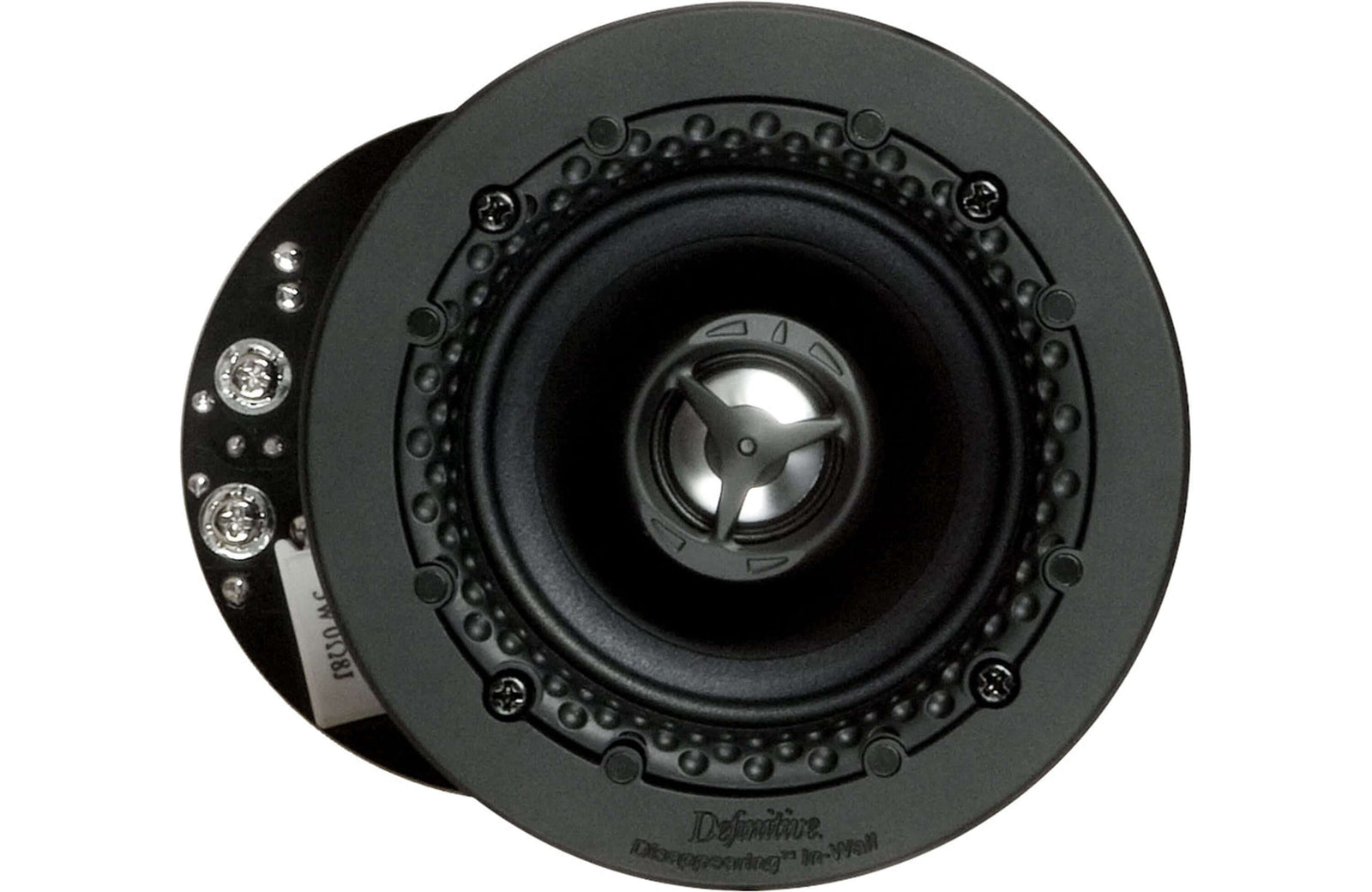

Latest generation BDSS drivers for audiophile-grade sound quality
Pivoting Pure Aluminum dome tweeters
Axially Aligned design ensures broad, balanced coverage area
GaussGrip™ magnetic grille fasteners
Adjustable high-definition crossover
Optional fire-rated enclosures
Cast PolyStone baskets for rigidity without "ringing"
Definitive's Disappearing In-Wall Speakers Just May be the "Holy Grail" of Built-in Speakers You want great sound everywhere in your home, but you may not always have room for or want the visual intrusion of free-standing speakers. Built-in flushmount speakers seem to be the answer but in practice they don't exactly disappear in the room, in fact many "in-wall" speakers call attention to themselves and create friction between your decorator and your audiophile sensibilities. Worse yet, most built-in speakers fall short on the performance end as well. Would Definitive allow you to suffer with bad sound? Oh no, no, no.
Definitive's Disappearing™ In-Wall series speakers feature near-invisibility thanks to their small diameters, hidden flange design, and low profile micro-perf grilles. They are as easy to install as traditional flanged flush-mount speakers, and don't require custom sheetrock/spackle skills to install yet they are practically invisible. The DI 3.5R is a mere 4-9/16" (11.6 cm) in diameter, about the same size as the mini recessed lighting fixtures that are all the rage in lighting design today.
Definitive's Advanced Technologies Mean Better Sound for You
The Disappearing In-Wall models feature Definitive's most advanced technologies such as Balanced Dual Surround System (BDSS) mid/woofer drivers and pivoting Pure Aluminum dome tweeters for spectacular audio performance far beyond traditional flush-mount speakers.
Definitive's exclusive Balanced Dual Surround System (BDSS) driver technology permits these new flush mount speakers to deliver more bass output and dynamic range than larger drivers. For example, the DI 3.5R's 3-1/2" driver has the output, bass and dynamics of a 4-1/2" traditional speaker.
With a pivoting 1" Pure Aluminum dome tweeter featuring a specially shaped housing that avoids the diffraction distortions of traditional post-mounted tweeters, and a sophisticated adjustable crossover network, the Disappearing In-Wall models deliver the kind of lifelike sonic performance and broad even dispersion that have made Definitive Technology the most highly reviewed speaker brand in the USA.
Great Sound for Everyone in the Room
With in-ceiling speakers, listeners are almost always "off-axis." You rarely sit right under an in-ceiling speaker; usually the speaker is at a 30, 45 or even 60-degree angle to the listener. We've engineered DI Series speakers to disperse sound over a very wide area so that the sound is well-balance and natural regardless of where you are relative to the speakers. BDSS technology drivers, aimable tweeters as well as the specially contoured and textured AeroRing™ around the driver all contribute to the wide angle dispersion and superior coverage capability of the DI Series models.
Everything You Need for Installation
Optional pre-construction "rough-in" brackets with repositionable metal mesh "arms" are available for new home construction projects. Fire-rated pre-construction enclosures will be available as options, allowing integrators, architects and designers to specify Disappearing In-Wall Speakers in multi-family and commercial applications.
Tweeter
Quantity 1
Diameter 3/4" (1.91cm)
Type Pivoting Pure Aluminum Dome
Mid / Woofer
Quantity 1
Diameter 3 1/2" (8.89cm)
Type BDSS Midrange Driver
Tweeter/Mid Array
Type Direct Radiating 2 Way Coaxial
Electrical
Audio Inputs
Speaker Level 1 Pair (Heavy Duty Spring Loaded
Maximum Sensitivity
1 watt @ 1 Meter 89 dB
Total Frequency Response
Overall 40 Hz - 30 kHz
Nominal Impedance
Compatible with 8 ohm
Crossover
A/V Receiver Crossover Setting Small (120 Hz)
Power Handling 10 - 125 watts per channel
Installation
Cut Out Dimensions
Diameter 3 3/4" (9.53cm)
Mounting Depth 3" (7.62cm)
Internal Clearance Required for Mounting Dogs (add to each side of Cut Out) 7/8" (2.22cm)
Grille Dimensions
Diameter 4 9/16" (11.59cm)
Placement
Orientation In Wall or In Ceiling
Cabinet Type
Speaker Enclosure Infinite Baffle
Product Weight
Out of Box 1.9 lbs
Shipping
Accessories
Included Accessories Wall Template; Paintable Magnetic Grill
Optional Accessories Rough-In-Kit; Fire Can (Both Available Separately)
Carton Size
Height 5 7/8" (14.92cm)
Width 7 1/16" (17.94cm)
Depth 6 7/8" (17.46cm)
Shipping Weight
One per Carton 3 lbs
Warranty
Drivers and Cabinet
Parts and Labor 5
Recommended Accessories for this Product
Definitive's Disappearing In-Wall Speakers Just May be the "Holy Grail" of Built-in Speakers You want great sound everywhere in your home, but you may not always have room for or want the visual intrusion of free-standing speakers. Built-in flushmount speakers seem to be the answer but in practice they don't exactly disappear in the room, in fact many "in-wall" speakers call attention to themselves and create friction between your decorator and your audiophile sensibilities. Worse yet, most built-in speakers fall short on the performance end as well. Would Definitive allow you to suffer with bad sound? Oh no, no, no.
Definitive's Disappearing™ In-Wall series speakers feature near-invisibility thanks to their small diameters, hidden flange design, and low profile micro-perf grilles. They are as easy to install as traditional flanged flush-mount speakers, and don't require custom sheetrock/spackle skills to install yet they are practically invisible. The DI 3.5R is a mere 4-9/16" (11.6 cm) in diameter, about the same size as the mini recessed lighting fixtures that are all the rage in lighting design today.
Definitive's Advanced Technologies Mean Better Sound for You
The Disappearing In-Wall models feature Definitive's most advanced technologies such as Balanced Dual Surround System (BDSS) mid/woofer drivers and pivoting Pure Aluminum dome tweeters for spectacular audio performance far beyond traditional flush-mount speakers.
Definitive's exclusive Balanced Dual Surround System (BDSS) driver technology permits these new flush mount speakers to deliver more bass output and dynamic range than larger drivers. For example, the DI 3.5R's 3-1/2" driver has the output, bass and dynamics of a 4-1/2" traditional speaker.
With a pivoting 1" Pure Aluminum dome tweeter featuring a specially shaped housing that avoids the diffraction distortions of traditional post-mounted tweeters, and a sophisticated adjustable crossover network, the Disappearing In-Wall models deliver the kind of lifelike sonic performance and broad even dispersion that have made Definitive Technology the most highly reviewed speaker brand in the USA.
Great Sound for Everyone in the Room
With in-ceiling speakers, listeners are almost always "off-axis." You rarely sit right under an in-ceiling speaker; usually the speaker is at a 30, 45 or even 60-degree angle to the listener. We've engineered DI Series speakers to disperse sound over a very wide area so that the sound is well-balance and natural regardless of where you are relative to the speakers. BDSS technology drivers, aimable tweeters as well as the specially contoured and textured AeroRing™ around the driver all contribute to the wide angle dispersion and superior coverage capability of the DI Series models.
Everything You Need for Installation
Optional pre-construction "rough-in" brackets with repositionable metal mesh "arms" are available for new home construction projects. Fire-rated pre-construction enclosures will be available as options, allowing integrators, architects and designers to specify Disappearing In-Wall Speakers in multi-family and commercial applications.
Specs
Driver ComplementTweeter
Quantity 1
Diameter 3/4" (1.91cm)
Type Pivoting Pure Aluminum Dome
Mid / Woofer
Quantity 1
Diameter 3 1/2" (8.89cm)
Type BDSS Midrange Driver
Tweeter/Mid Array
Type Direct Radiating 2 Way Coaxial
Electrical
Audio Inputs
Speaker Level 1 Pair (Heavy Duty Spring Loaded
Maximum Sensitivity
1 watt @ 1 Meter 89 dB
Total Frequency Response
Overall 40 Hz - 30 kHz
Nominal Impedance
Compatible with 8 ohm
Crossover
A/V Receiver Crossover Setting Small (120 Hz)
Power Handling 10 - 125 watts per channel
Installation
Cut Out Dimensions
Diameter 3 3/4" (9.53cm)
Mounting Depth 3" (7.62cm)
Internal Clearance Required for Mounting Dogs (add to each side of Cut Out) 7/8" (2.22cm)
Grille Dimensions
Diameter 4 9/16" (11.59cm)
Placement
Orientation In Wall or In Ceiling
Cabinet Type
Speaker Enclosure Infinite Baffle
Product Weight
Out of Box 1.9 lbs
Shipping
Accessories
Included Accessories Wall Template; Paintable Magnetic Grill
Optional Accessories Rough-In-Kit; Fire Can (Both Available Separately)
Carton Size
Height 5 7/8" (14.92cm)
Width 7 1/16" (17.94cm)
Depth 6 7/8" (17.46cm)
Shipping Weight
One per Carton 3 lbs
Warranty
Drivers and Cabinet
Parts and Labor 5
