Definitive Technology DI 5.5 LCR Disappearing In-Wall dual 5-1/4 speaker (Each)
UPC: 93207074295Product Qualifies for FREE Ground Shipping
Extraordinary Home Theater Speakers That Disappear
These remarkable speakers were specifically designed to bring you the world-famous sonic performance of Definitive's free-standing speakers in easy-to-install built-in configurations. All models in Definitive's Disappearing™ In-Wall series feature near-invisibility thanks to their small area, hidden flange design, and low profile micro-perf grilles. They are as easy to install as traditional flanged flush-mount speakers, and don't require custom sheetrock/spackle skills to install and look practically invisible.
The LCR 5.5LCR has been optimized for use as stereo Left/Right/Center front stage speakers while the matching DI 5.5BPS is a Bipolar technology speaker ideal for surround channel use. Together these models realize the dream of premium performance in a practically undetectable built-in home theater system. All models in the DI Series share the same accurate sonic signature so you can mix and match any combination of models to meet your exact application. For example, you can use DI 5.5LCR for L&R and center and a pair of DI 5.5R as in-ceiling surrounds and achieve excellent seamless performance.
Definitive's Disappearing In-Wall Speakers Just May be the "Holy Grail" of Built-in Speakers
You want great sound everywhere in your home, but you may not always have room for or want the visual intrusion of free-standing speakers. Built-in flushmount speakers seem to be the answer but in practice they don't exactly disappear in the room, in fact many "in-wall" speakers call attention to themselves and create friction between your decorator and your audiophile sensibilities. Worse yet, most built-in speakers fall short on the performance end as well. Would Definitive allow you to suffer with bad sound? Oh no, no, no!
Definitive's Advanced Technologies Mean Better Sound for You

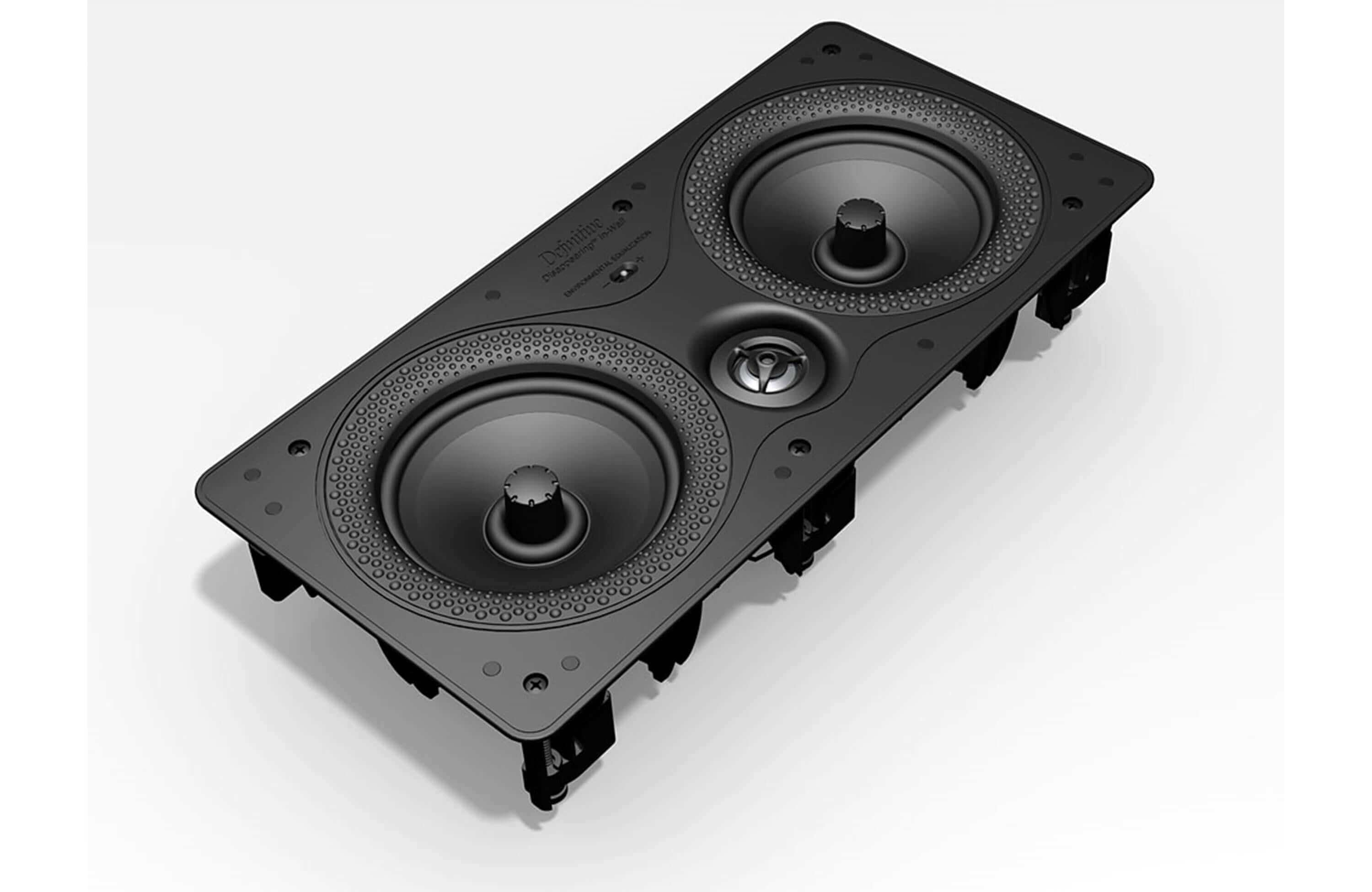

The Disappearing In-Wall models feature Definitive's most advanced technologies such as Balanced Dual Surround System (BDSS) mid/woofer drivers and pivoting Pure Aluminum dome tweeters for spectacular audio performance far beyond traditional flush-mount speakers.

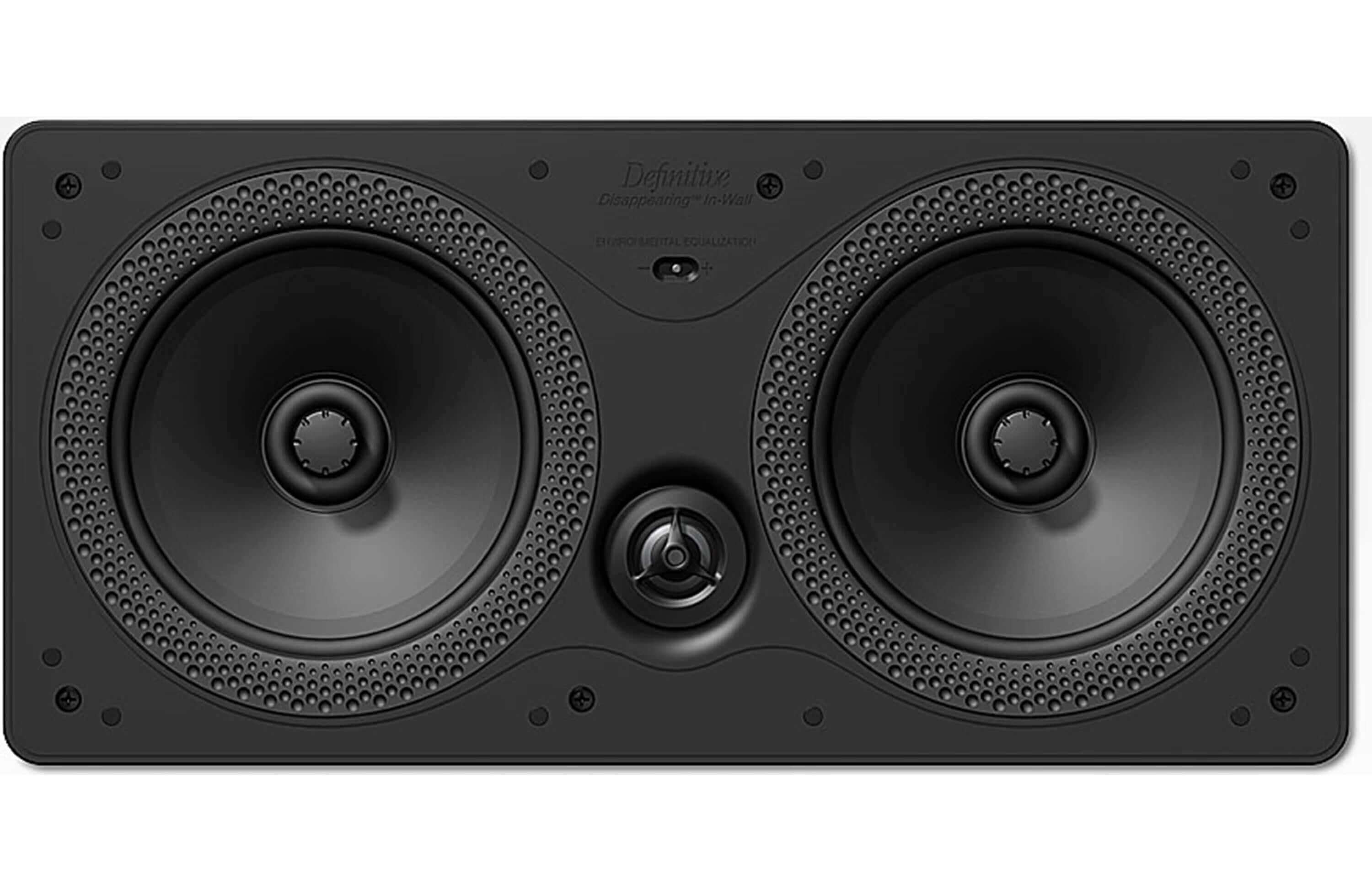

Definitive's exclusive Balanced Dual Surround System (BDSS) driver technology permits these new flush mount speakers to deliver more bass output and dynamic range than larger drivers. For example, the DI 5.5LCR's two 5-1/4" drivers have the output, bass and dynamics of a 8" traditional speaker.

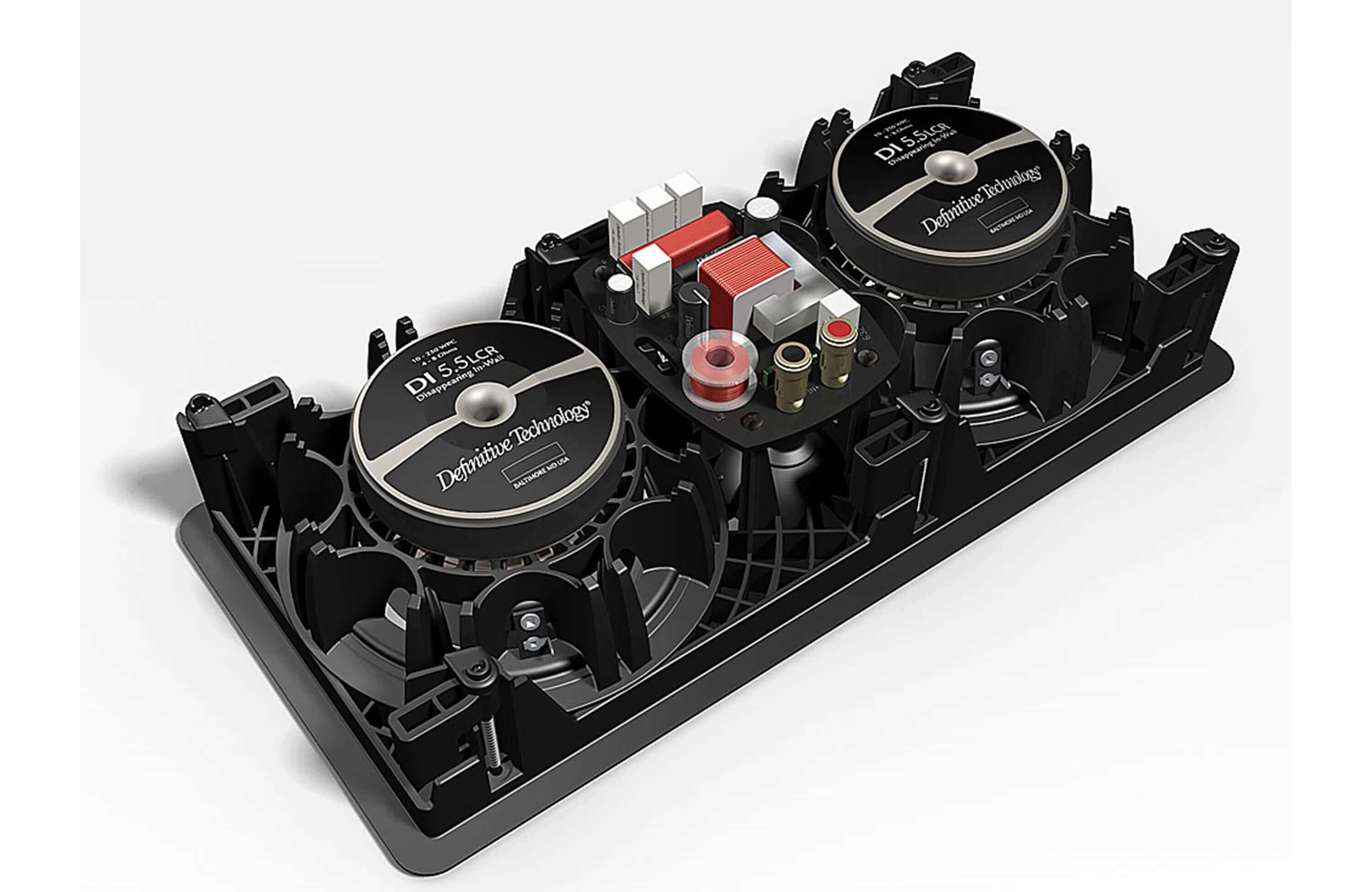

With a pivoting 1" Pure Aluminum dome tweeter featuring a specially shaped housing that avoids the diffraction distortions of traditional post-mounted tweeters, and a sophisticated adjustable crossover network, the Disappearing In-Wall models deliver the kind of lifelike sonic performance and broad even dispersion that have made Definitive Technology the most highly reviewed speaker brand in the USA.
Great Sound for Everyone in the Room
We've engineered DI Series speakers to disperse sound over a very wide area so that the sound is well-balance and natural regardless of where you are relative to the speakers. BDSS technology drivers, aimable tweeters as well as the specially countoured and textured AeroRing™ around the driver all contribute to the wide angle dispersion and superior coverage capability of the DI Series models.
Specs
Driver ComplementTweeter
Quantity 1
Diameter 1" (2.54cm)
Type Pivoting Pure Aluminum Dome
Mid / Woofer
Quantity 2
Diameter 5 1/4" (13.34cm)
Type BDSS Midrange Driver
Tweeter/Mid Array
Type Offset D'Appolito
Control
Environmental EQ
3 Way Switch User Selectable
Electrical
Audio Inputs
Speaker Level 1 Pair (Heavy Duty Spring Loaded)
Maximum Sensitivity
1 watt @ 1 Meter 89 dB
Total Frequency Response
Overall 28 Hz - 30 kHz
Nominal Impedance
Compatible with 8 ohm
Crossover
A/V Receiver Crossover Setting Small (60 Hz)
Power Handling 10 - 250 watts per channel
Installation
Cut Out Dimensions
Height 14 3/8" (36.51cm)
Width 6 7/16" (16.35cm)
Width 6 7/16" (16.35cm)
Mounting Depth 3 1/8" (7.94cm)
Internal Clearance Required for Mounting Dogs (add to Each side of Cut Out) 1" (2.54cm)
Grille Dimensions
Height 15 5/16" (38.89cm)
Width 7 3/8" (18.73cm)
Placement
Orientation In Wall (Horizontal or Vertical)
Cabinet Type
Speaker Enclosure Infinite Baffle
Product Weight
Out of Box 8 lbs
Shipping
Accessories
Included Accessories Wall Template; Paintable Magnetic Grill
Optional Accessories Rough-In-Kit (Available Separately)
Carton Size
Height 6 5/8" (16.83cm)
Width 17 3/8" (44.13cm)
Depth 9 5/8" (24.45cm)
Shipping Weight
One per Carton 10 lbs
Warranty
Drivers and Cabinet
Parts and Labor 5
