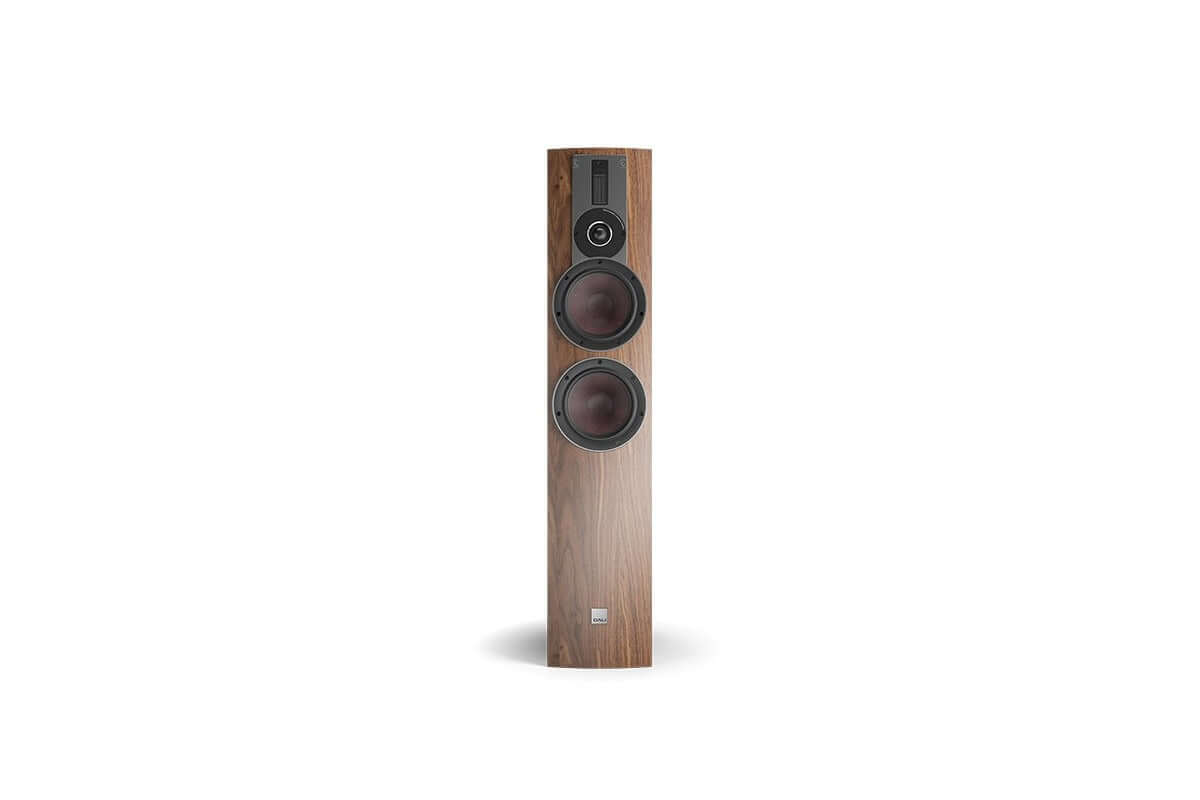

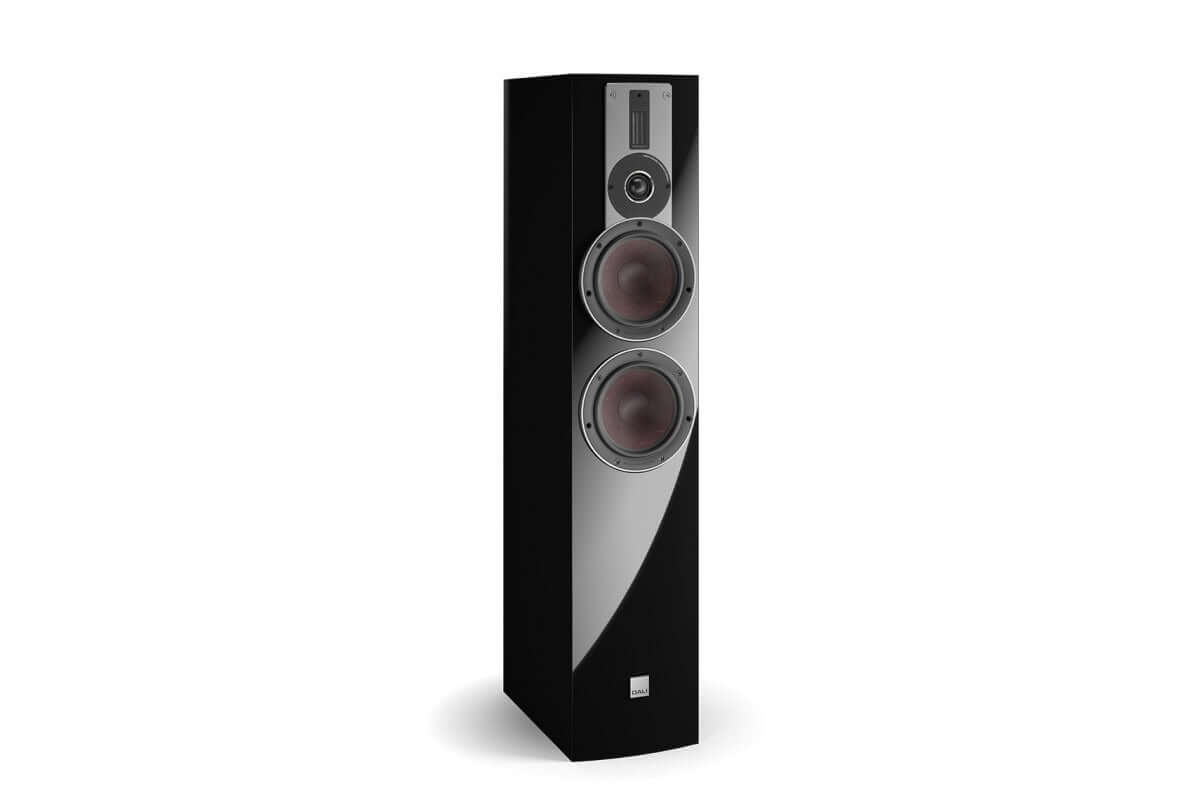

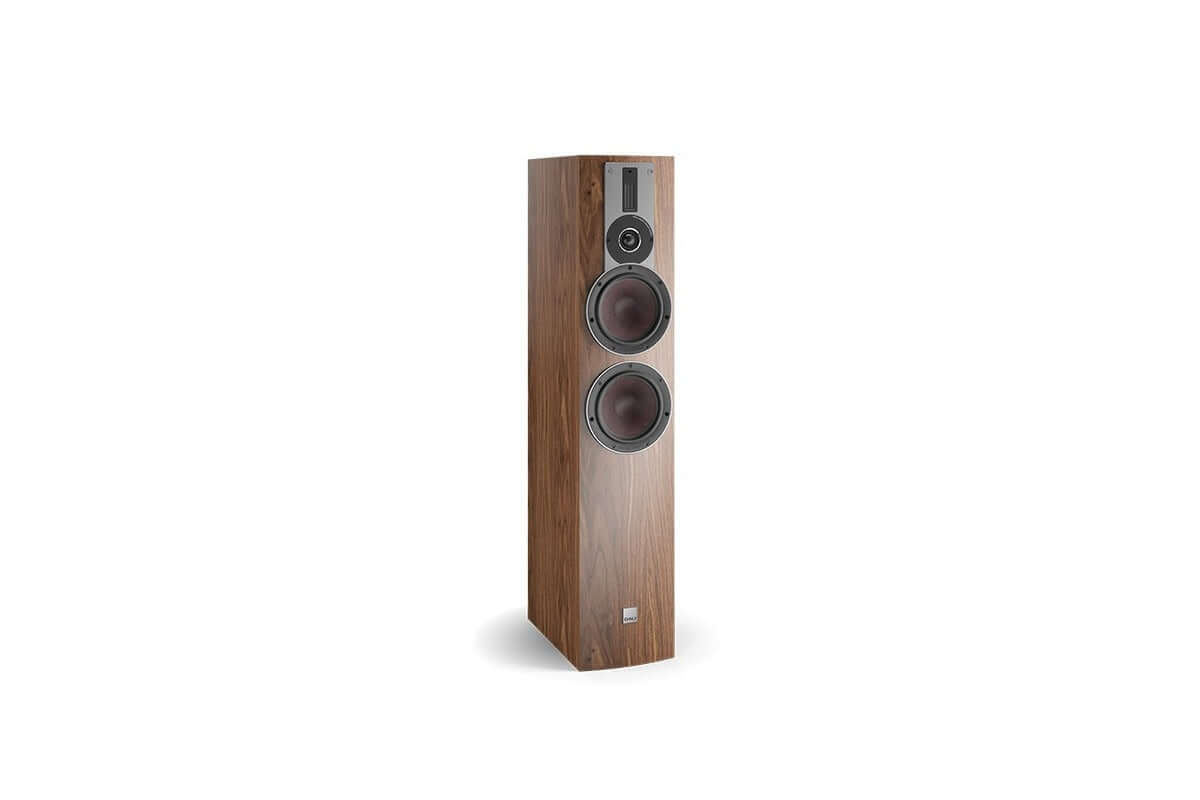

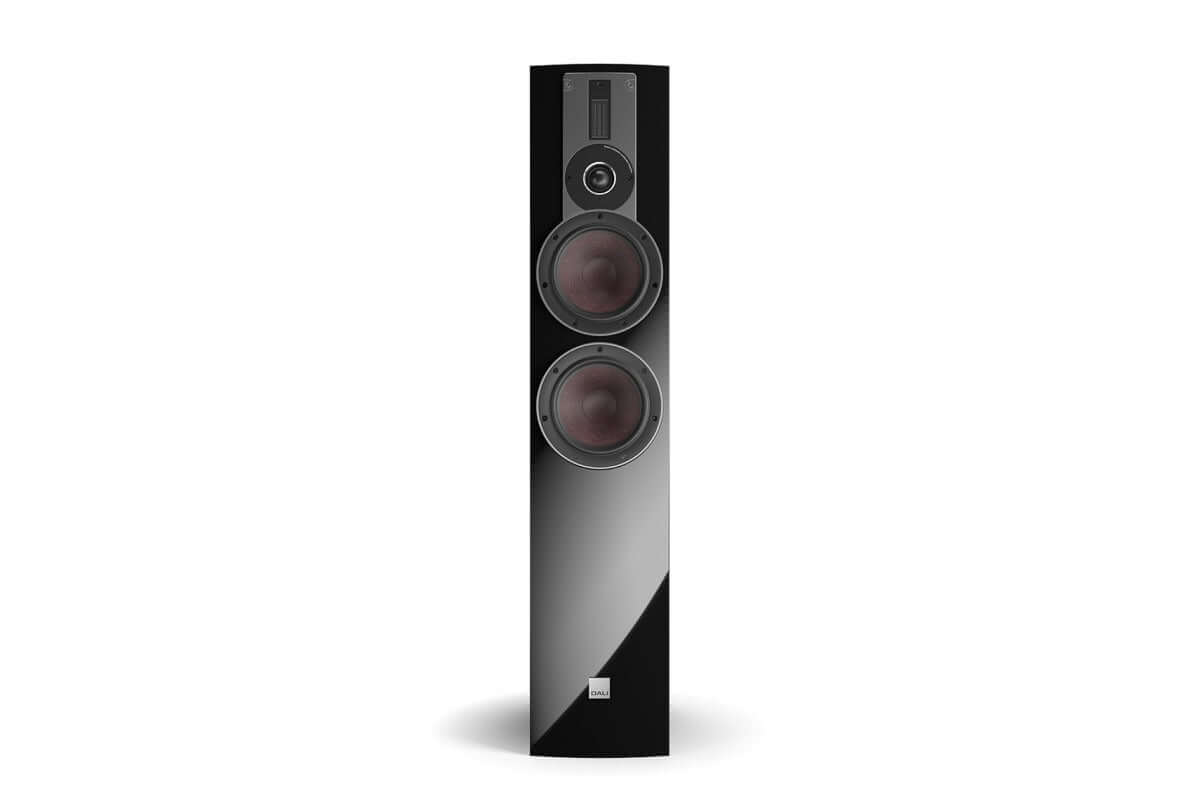

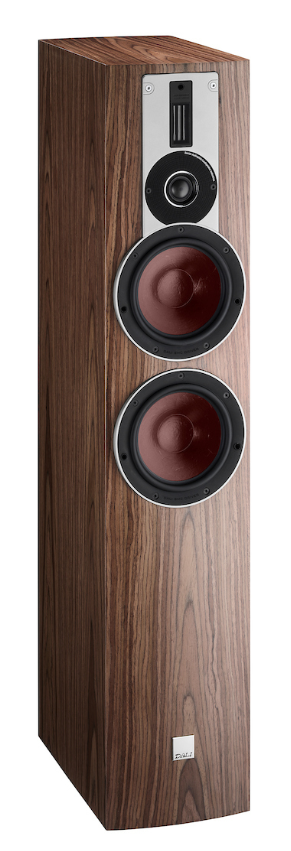

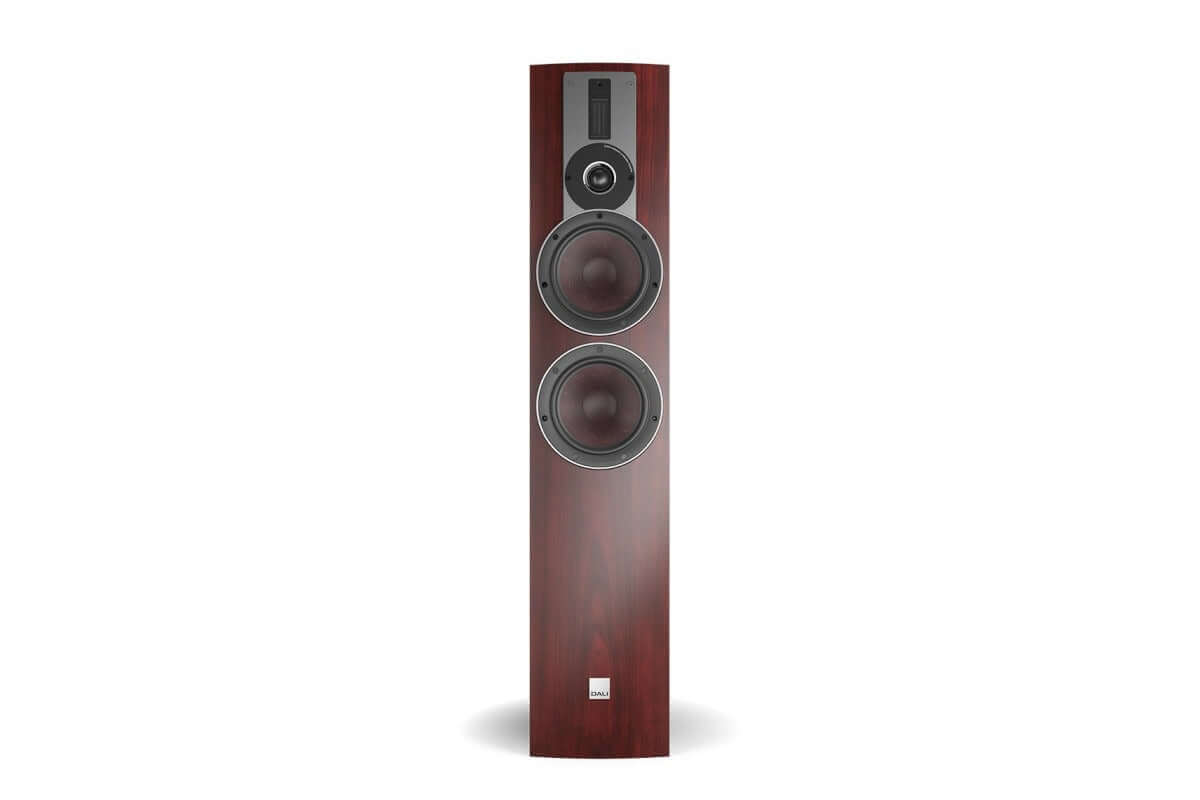

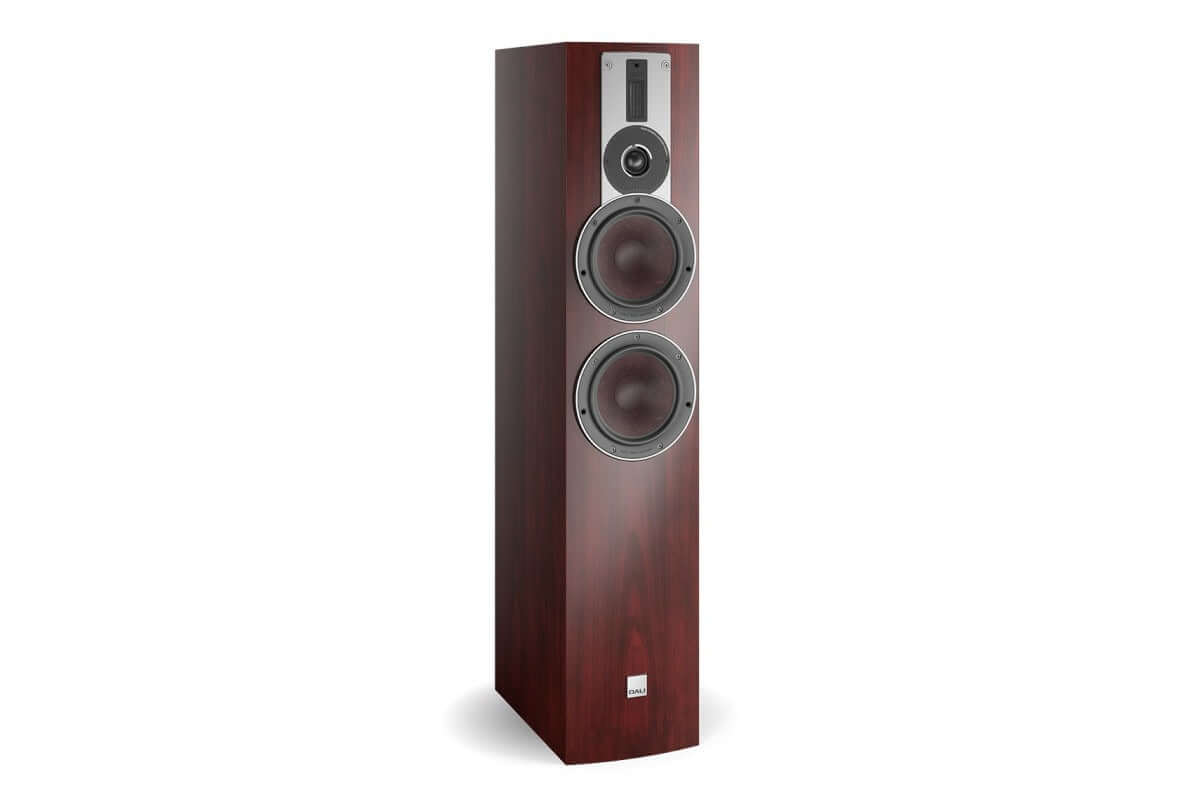

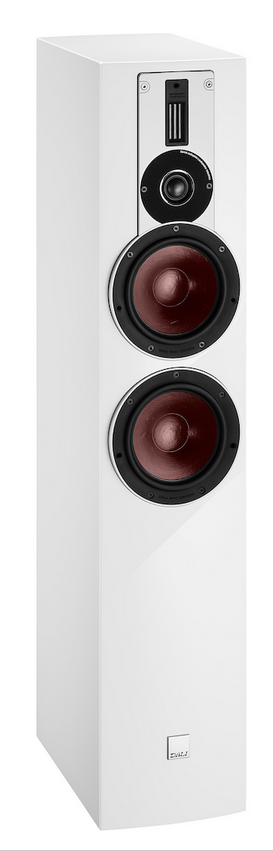

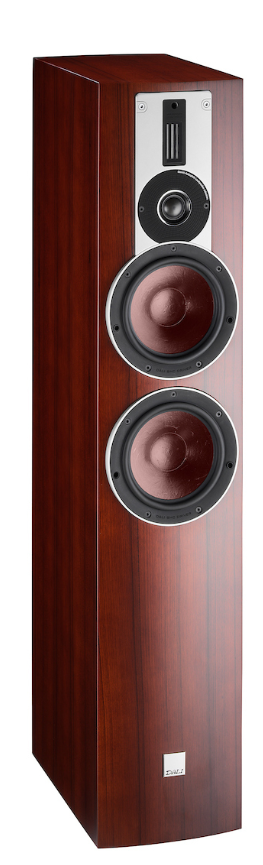

RUBICON 6 is a floor standing speaker that features two 6 inch woofers. The RUBICON 6 is able to deliver more physical bass to fill a larger room, especially thanks to the woofers. The woofers perfectly team up to move a lot more air and reach even lower into the deep bass area. The driver construction of the RUBICON 6 makes it even more powerful than its smaller siblings with an enhanced and controlled performance.
The RUBICON 6 is able to deliver more physical bass to fill a larger room, especially thanks to the woofers. The two woofers work together to move much more air, delivering more powerful bass and pumping out audio excellence that fills the room. The driver construction of the RUBICON 6 makes it even more powerful than its smaller siblings with an enhanced and controlled performance.
The RUBICON 6 can be matched with the RUBICON 2 or RUBICON LCR, the RUBICON VOKAL and the SUB M-10 D to create a surround setup.
SMC MAGNET SYSTEM
With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.
HYBRID TWEETER MODULE
The hybrid tweeter module is a DALI trademark and for the RUBICON series, it is build in Denmark. The hybrid tweeter module, combines the dome tweeter with the ribbon tweeter for an amazing rendering of the high frequencies.
Dividing the mid-range and basse drivers into separated chambers enables us to individually tune every driver to its specific frequency range to maximise the woofer output.
WOOD FIBRE CONES
Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.
The cone used in the RUBICON 6 draws upon the heritage from the EPICON technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the RUBICON 6.
The soft low-loss rubber surround is designed and bespoke specifically for the RUBICON 6, and all of the components are situated in an aluminum chassis designed for maximum airflow around the cone and magnet system.
Product series RUBICON
Frequency Range (+/-3 dB) [Hz] 38 - 34.000
Sensitivity (2,83 V/1 m) [dB] 88.5
Nominal Impedance [ohms] 4
Maximum SPL [dB] 110
Recommended Amplifier Power [W] 40 - 200
Crossover Frequency [Hz] 800 / 2,600 / 14,000
Crossover Principle 2 + -way
Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 2 X 6 "
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 33.5

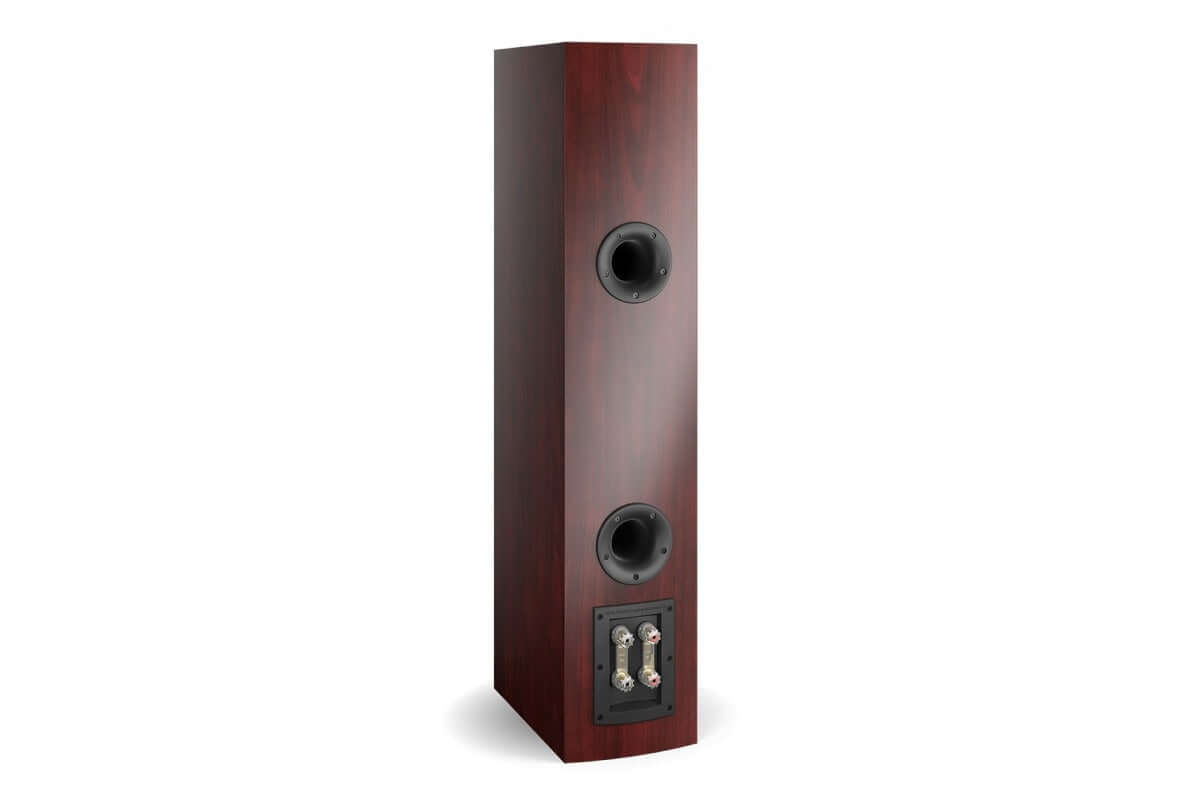

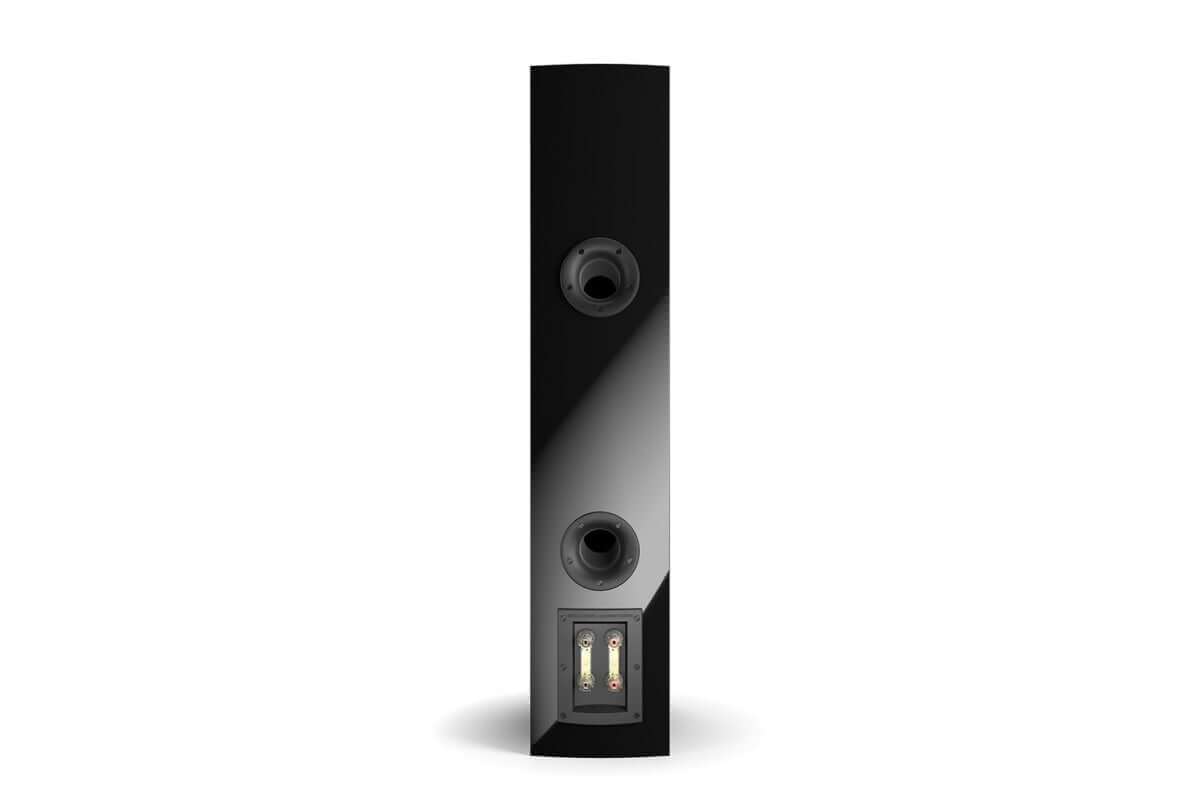

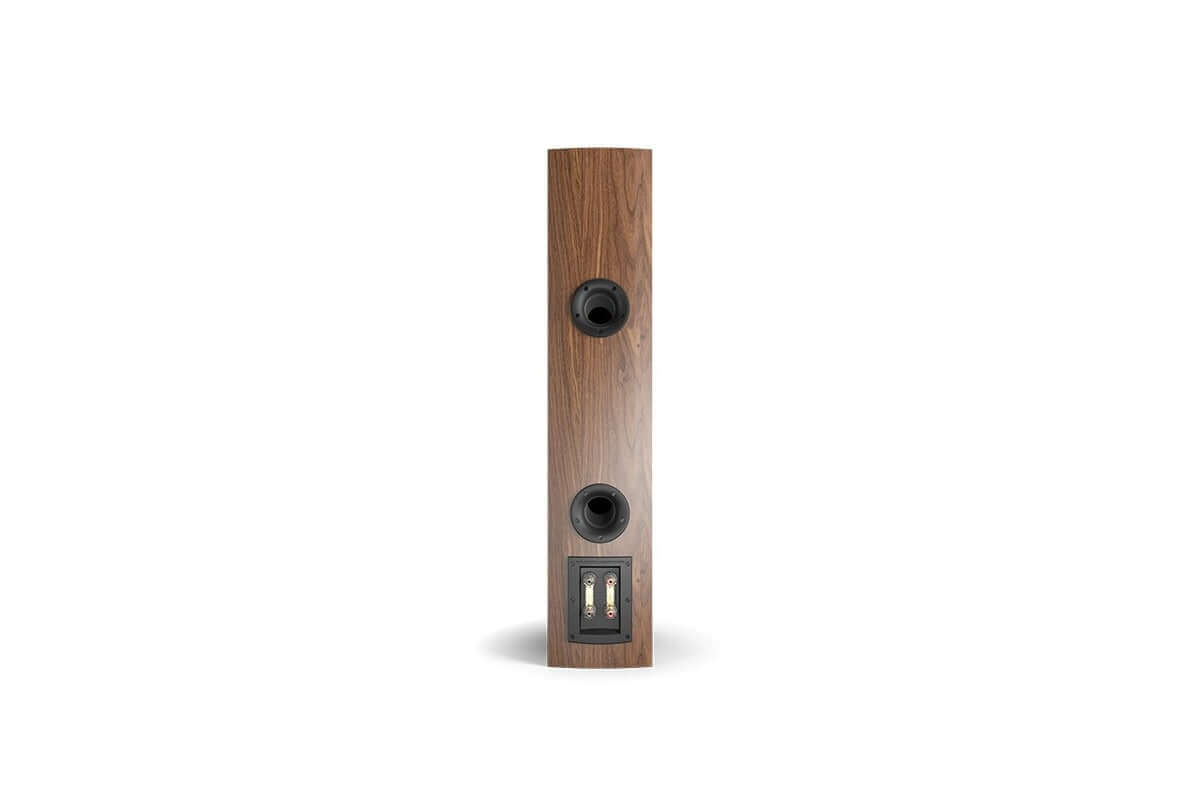

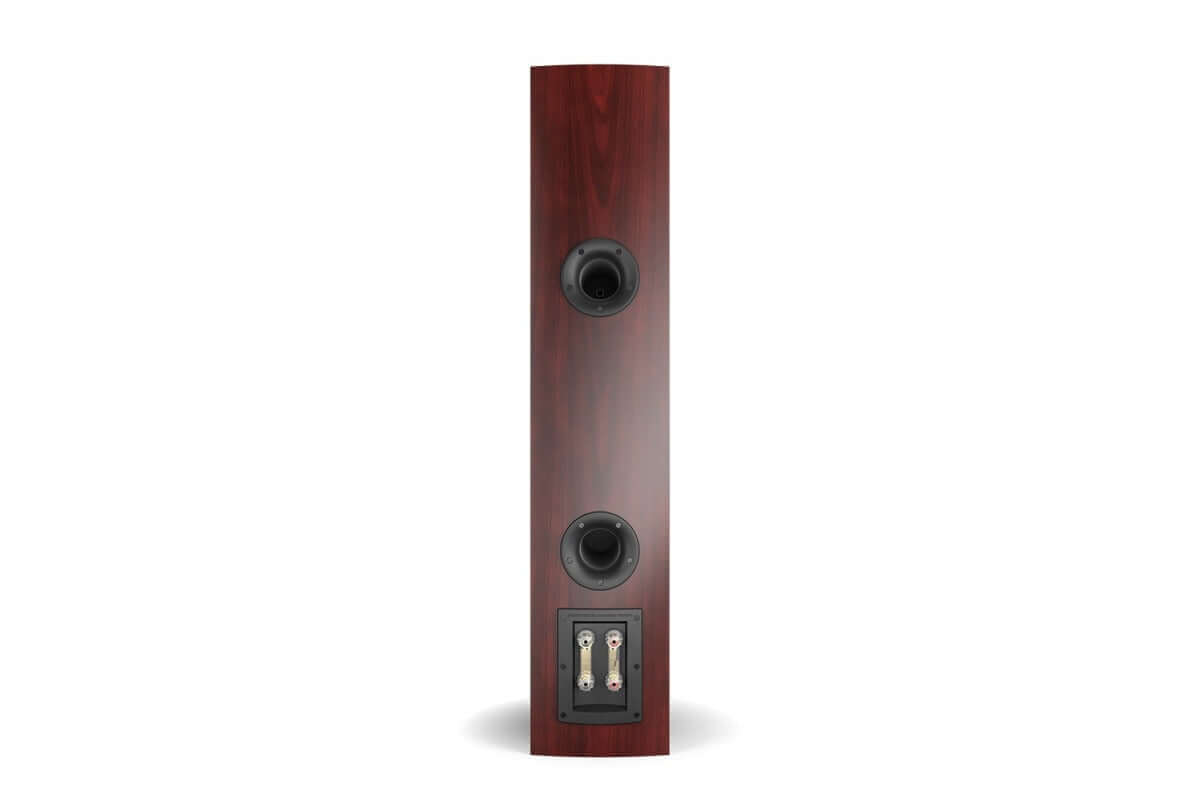

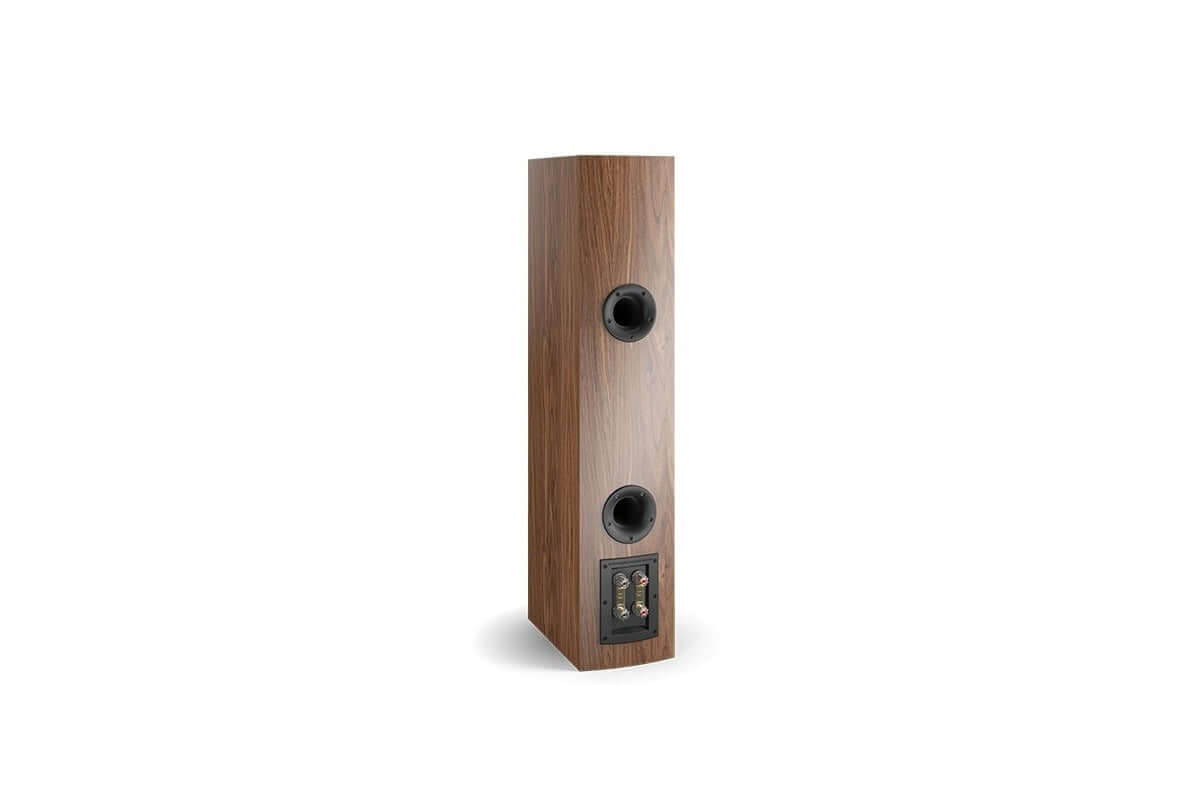

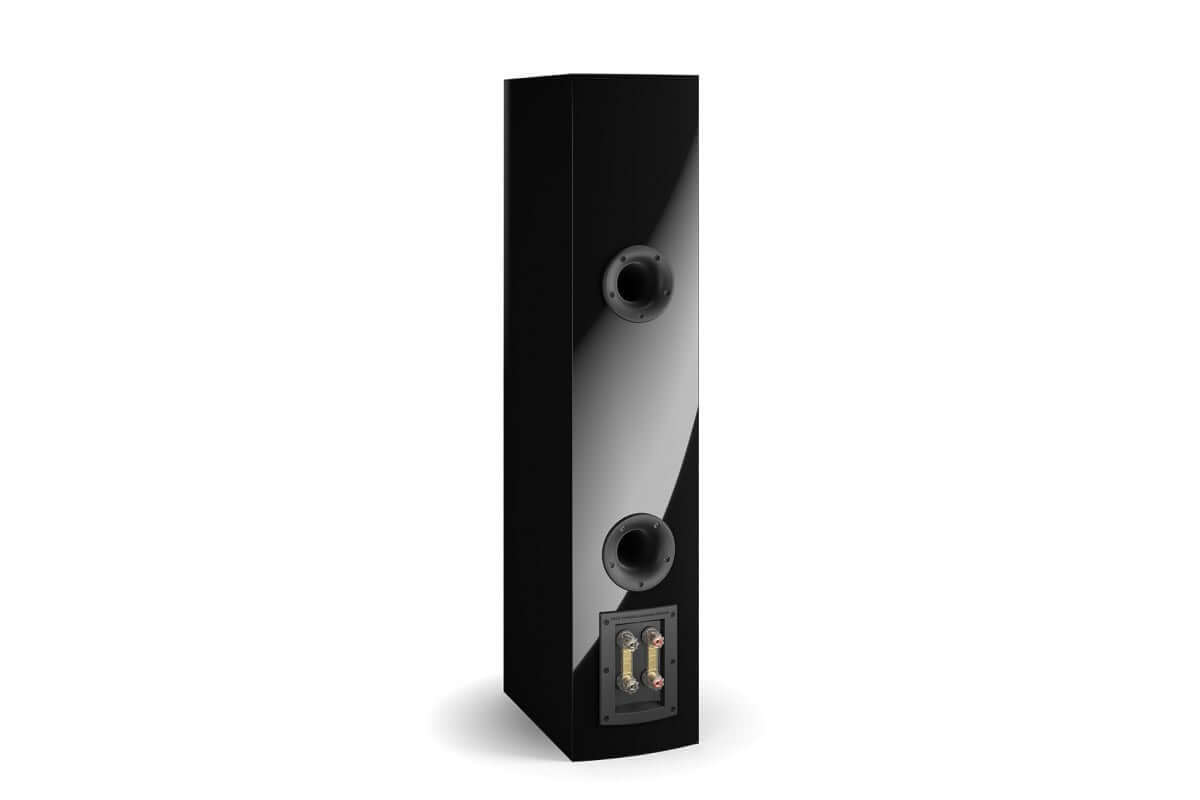

Connection Input Bi-Wiring
Magnetic Shielding No
Recommended Placement Floor
Recommended Distance From Wall [cm] 20 - 180
Dimensions With Base (HxWxD) [mm] 990 x 200 x 380
Accessories Included Manual
Micro Fibre Cloth
Weight [kg] 20.2
