Burmester 175 Reference Line Turntable

UPC:
Call for Availability
$49,000.00

SKU Burmester175TurntableReference

Product Qualifies for FREE Ground Shipping

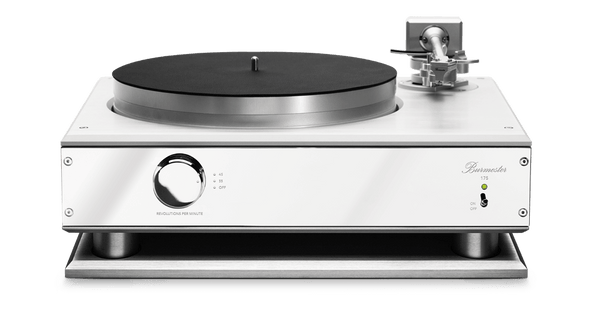

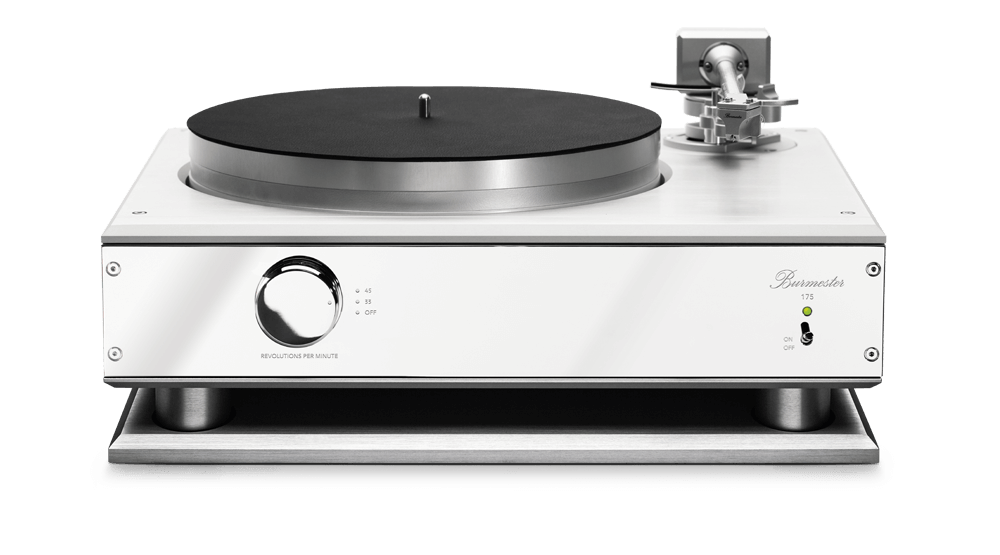

Burmester 175 Reference Line Turntable

After 35 years of experience in the processing of finest audio signals, Burmester now crowns its series of successful phono preamplifiers with a turntable. Recognisable as a typical Burmester even from the very first glance, the 175 turntable makes use of characteristic design elements of the Reference Line. The integrated signal processing from the Burmester 100 phono pre-amplifier processes the fine phono signals at the highest level. The Burmester 175 comes as plug-and-play-suite with an cardanic mounted 9-inch tone arm with carbon-aluminium tube. By taking this step, the manufacturer completes the portfolio for fans of analogue sound.

Platter & tone arm
The turntable of the 175 record player has a sandwich construction consisting of two layers of aluminium and a further layer of brass in between. This design principle ensures optimal damping and less resultant resonance. The bitumen coating located on the reverse of the platter increases the damping properties even further. The bearing is designed to be maintenance-free for life and therefore always ready for use. The sub-platter with a cone allows easy mounting of the platter and is centered automatically for perfect concentricity.

In addition to the platter, the cardanic mounted 9-inch tone arm with its carbon-aluminium tube intrinsically enhances the 175 s inherently exquisite sound quality. Its bearing in the form of a hybrid bearing of steel and ceramic guarantees the precise delivery of intricate vinyl detail. The anti-skating is gradually adjustable via control knob.

Drive
The 175 turntable is driven by four motors located in the outer square around the sub-platter. This squaring of the circle and the
use of multiple belts ensures that no irregular tension arises on the central bearing. The two-fold design of this arrangement shortens the ramp-up time and improves synchronisation. This simultaneously results in an improved sound and a fast starting time for the drive.

Alongside the mechanical system and the arrangement of the drive components, the control electronics and the motors are also crucial
for a great audio experience. The AC synchronous motors used are driven by digital motor electronics. The electronics are completely immune to fluctuations in the mains voltage frequency. Due to the high level of efficiency of the electronics, driver stages and motors, the entire unit remains cool and free from heat-related impairments.

Specs

Phono Preamplifier
Frequency Response (+0.2dB/ -3dB) 16 Hz 102 kHz (16 Hz - Subsonic Filter)
Output Noise Level -71 dBV (unweighted 22.4 kHz)
Input Impedance 4.7 k , 1.0 k , 470 , 330 , 220 , 100
(adjustable) (suggested for factory shipped pickup)
THD at 1kHz/ 0.5mV 0.0018 %
Gain at 1kHz 70 dB
Channel difference < 0.1 dB
Drive
Solid-aluminum chassis with cover plate
Stands are adjustable in height
Magnetic damper in floor plate for isolation
Three layer platter for optimized resonance
suppression (16,1kg)
Four AC synchronous motors and four belt
drive respectively
Tonearm
Multi layer carbon tube
Length of tonearm: 9 inches
Adjustment of azimuth via clamping screw
Adjustment of weight via fine thread
Pickup
Moving Coil cartridge (MC)
Stylus: Nude Shibata on Sapphire cantilever
Turntable - Dimensions & Weight
450 x 400 x 250 mm (Width x Depth x Height)
60,75 kg
Power Supply - Dimensions & Weight
450 x 316 x 97 mm (Width x Depth x Height)
8,6 kg
