Burmester 077 Reference Line Preamplifier

Burmester 077 Reference Line Preamplifier

The corner stone of the worldwide success of Burmester Audiosysteme was set in 1977 with the launch of the legendary 777 preamplifier. To celebrate its 30th anniversary in 2007 the company introduced another extraordinary preamplifier, the 077. Its self-adjusting phono stage can automatically compensate for any channel imbalances of pickup systems. The result is a more precise and extended soundstage. Additional attractions of this anniversary model are its X-Amp2 amplification stages and its control via the innovative BurLink technology. Its exquisite sound and versatile functionality are an homage to the world-renowned high-end icon 808. Operating the 077 is intuitive and does not distract from a relaxed listening experience. Its visual appearance bespeaks the typical Burmester design language.

Design

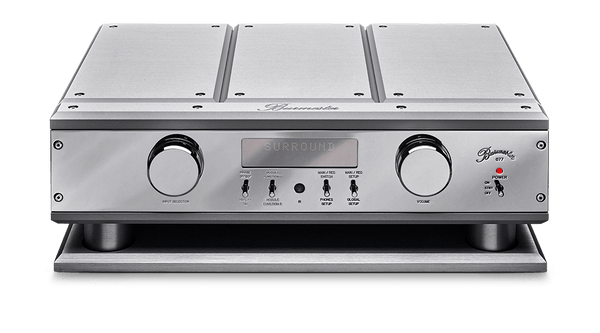

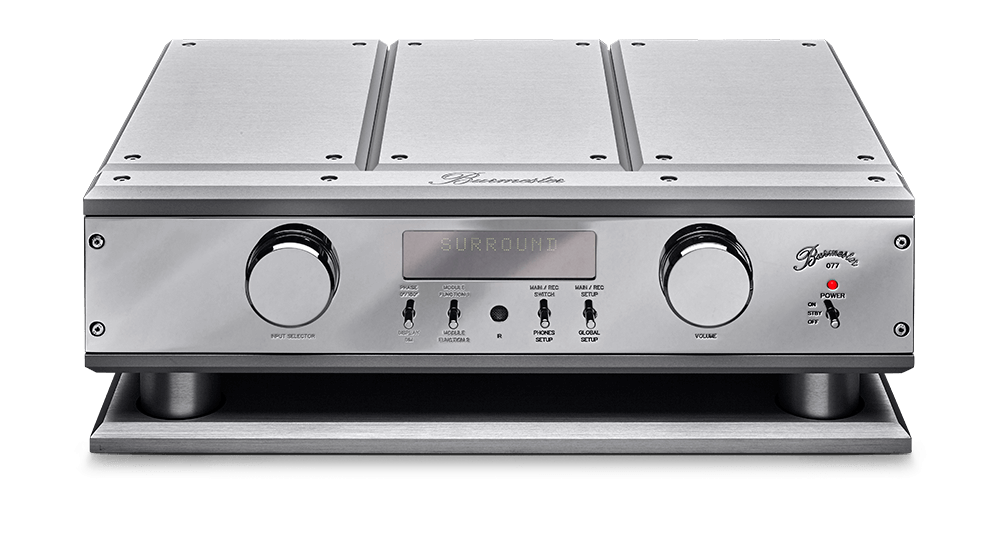

The Reference Line housing of the 077 preamplifier impresses immediately with the outstanding manufacturing quality of its solid aluminum enclosure. The 077 rests on a special base with carbon fiber damping. This insulates it mechanically from any distorting interference on its outstanding signal processing capabilities. As the ultimate upgrade Burmester offers an external power supply for the 077.

Handmade

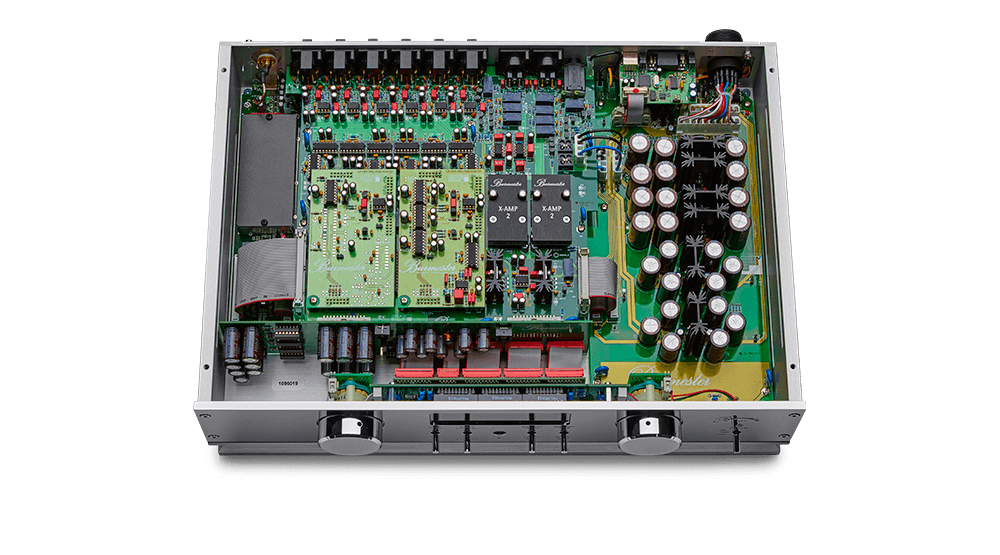

In the Berlin factory the cutting-edge electronics of the 077 preamplifier are carefully married to the high-quality aluminum housing. The hand-assembled printed boards, the powerful X-Amp2 amplification stages, the XLR terminals and other hand-selected electronic components are expertly crafted into an audiophile work of art. The process of careful selection and assembly and thorough quality control also apply, of course, to the available optional output modules.

Specs

Product Description and Technical Specifications
Special edition preamplifier celebrating Burmester s 30th anniversary
(The preamplifier 777 was Burmester s first product in 1977)
Dual-mono design for maximum channel separation
Completely DC-coupled without capacitors in the signal path
Burmester X-Amp2 amplification stages
Volume is set using a newly developed volume control circuit board
(Burmester: 60 steps / dB: 85 steps)

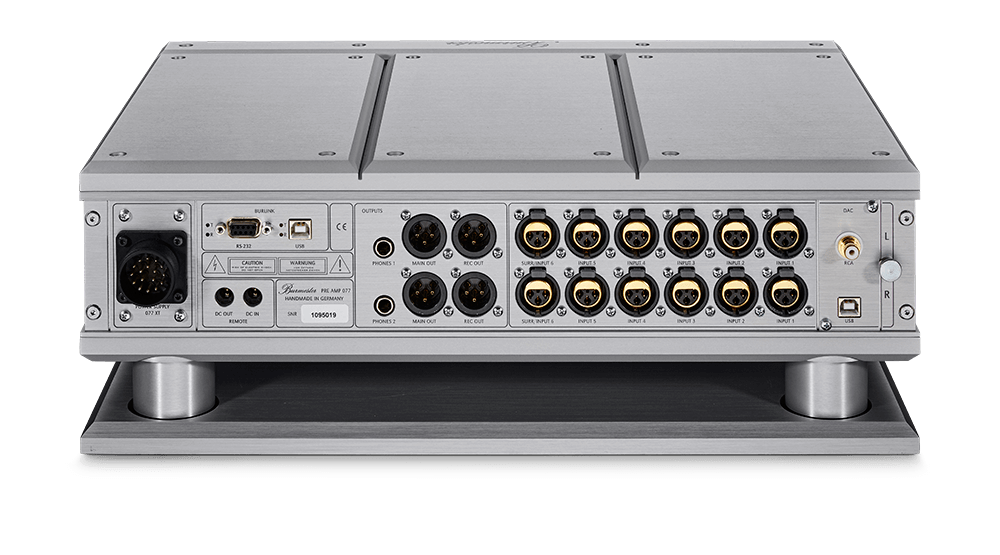

Six balanced inputs plus one optional modular input
Seamless integration into home theatre systems using the Surround Thruput terminal
Input sensitivity adjustable by +/- 6dB for each input individually
Custom labelling of programmable inputs
Two balanced outputs for two-zone applications
o MAIN-Outputs equipped with X-Amp2 modules
o RECORD-Output with high-performance operational amplifier
Combined RECORD and 2nd zone output for two-zone applications
Global setup for individual settings
Separate setup for each zone individually
Phase inversion for each input and every zone
2 headphone outputs with individual source selection (zone-dependent)
Separate balance control for each zone
Module slot for:
o Line input module unbalanced (standard)
o Phono MM module
o Phono MC module
o DA converter module (upsampling technology of the 069)
Selectable automatic calibration for phono
Phono MM module with programmable input capacitance
Phono MC module with programmable loads
DAC module with upsampling choice of 96kHz or 192kHz
Latest CMOS technology for switching of inputs
Latest CPU technology (ensures capability for future upgrades of controlling)
Mirrored display
Display brightness programmable in 4 levels
Remote control by other components (master/slave) via DC in/out connection
Burmester Link for external control via RS232 and USB
Full remote control
