HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It's the perfect partner for a home theater system based around the 704 S3, 706 S3 or 707 S3.
A premium choice for smaller set-ups
HTM72 S3 is the more compact center-channel speaker in the range, bringing superior dialogue clarity to the home theater experience.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Dimensions & Weight
Technical details
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range
48Hz - 33kHz
Frequency response
70Hz - 28kHz ±3dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 200Hz - 22kHz
Nominal impedance
8Ω (minimum 4.3Ω)
Recommended amplifier power
30W - 120W into 8Ω on unclipped programme
Sensitivity
87dB spl (2.83Vrms, 1m)
Technical features
Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™
Description
2-way vented-box system
Max recommended cable impedance 0.1Ω
Finishes
Cabinet finishes

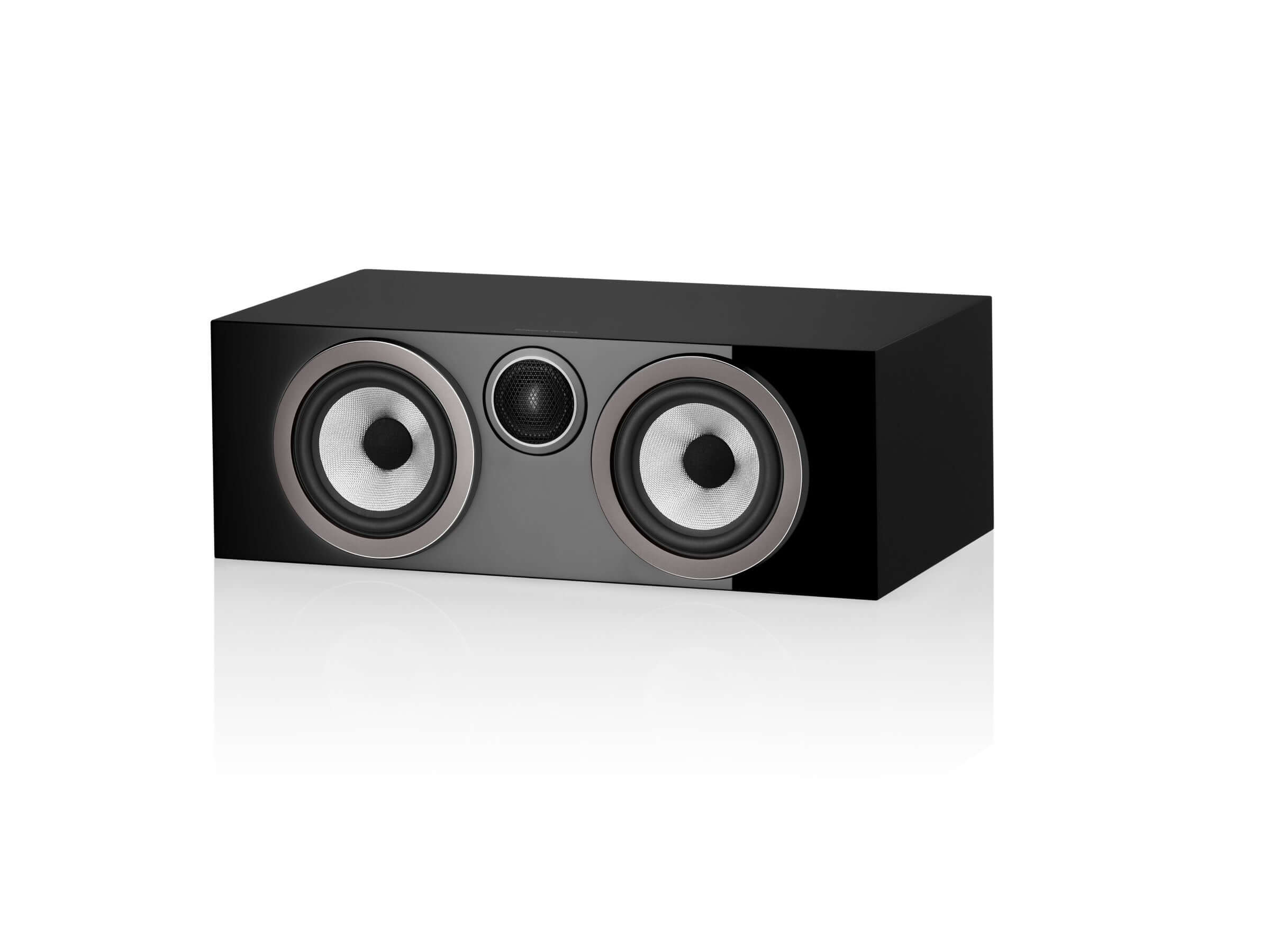

Gloss Black

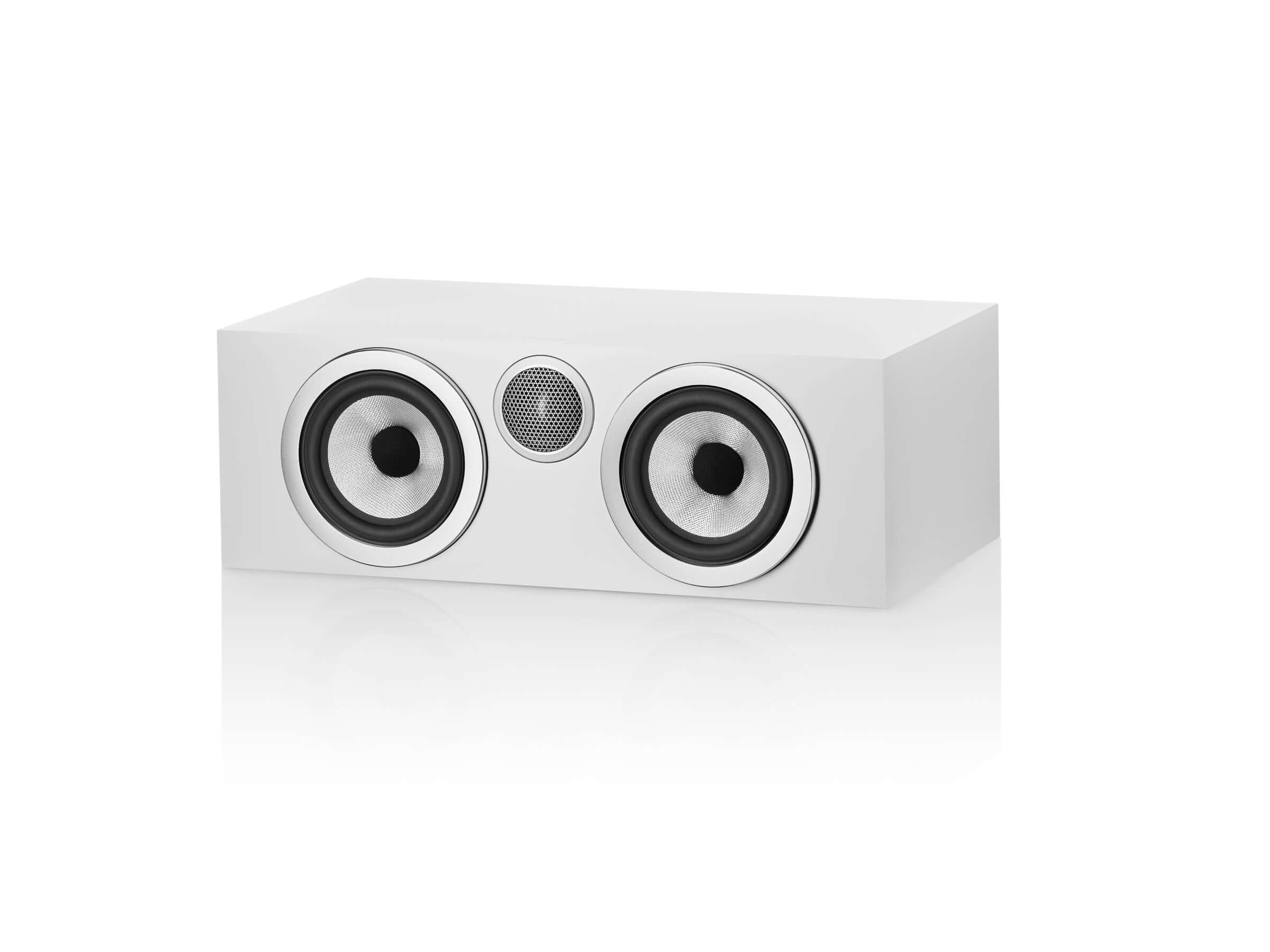

Satin White
Mocha
Grille finishes
Black

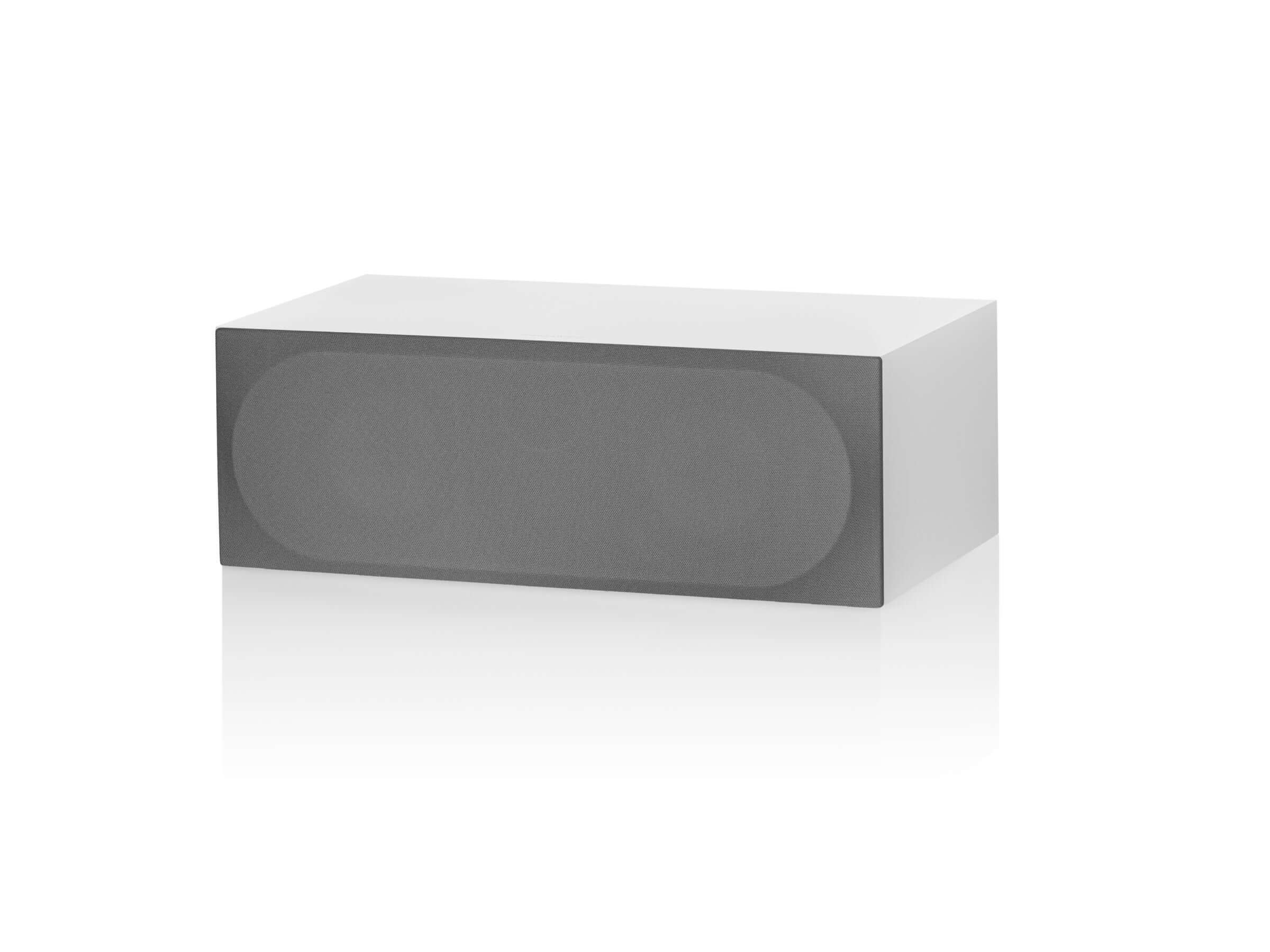

Grey (Satin White only)
