Bowers & Wilkins HTM71 S3 Signature Center Channel Speaker
UPC: 714346339952Bowers & Wilkins HTM71 S3 Signature Center Channel Speaker
The HTM71 S3 Signature is a first-of-its-kind 700 Series Signature center channel speaker, bringing even more clarity and detail to your favorite movies and music.
Crafted. Honed. Perfected.
HTM71 S3 Signature features optimized technologies, such as our proprietary decoupled Continuum midrange drive unit and Tweeter-on-Top, plus upgraded bass motor systems, improved capacitors, revised speaker terminals, and a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
Specs
Technical Details
Drive units
1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil Profile bass
Frequency range
-6dB 45Hz - 33kHz
Frequency response
50Hz - 28kHz ±3dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W - 200W into 8Ω on unclipped programme
Sensitivity
89dB spl (2.83Vrms, 1m)
Technical features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
Flowport™
Description
3-way vented-box system
Max recommended cable impedance
0.1Ω
Size & weight
Net weight
43,9lb
Dimensions
Height: 165mm (6.5in) cabinet only
233mm (9.2in) including tweeter
Width: 628mm (24.7in) cabinet only
Depth: 318mm (12.5in) cabinet only
356mm (14.0in) including grille and terminals

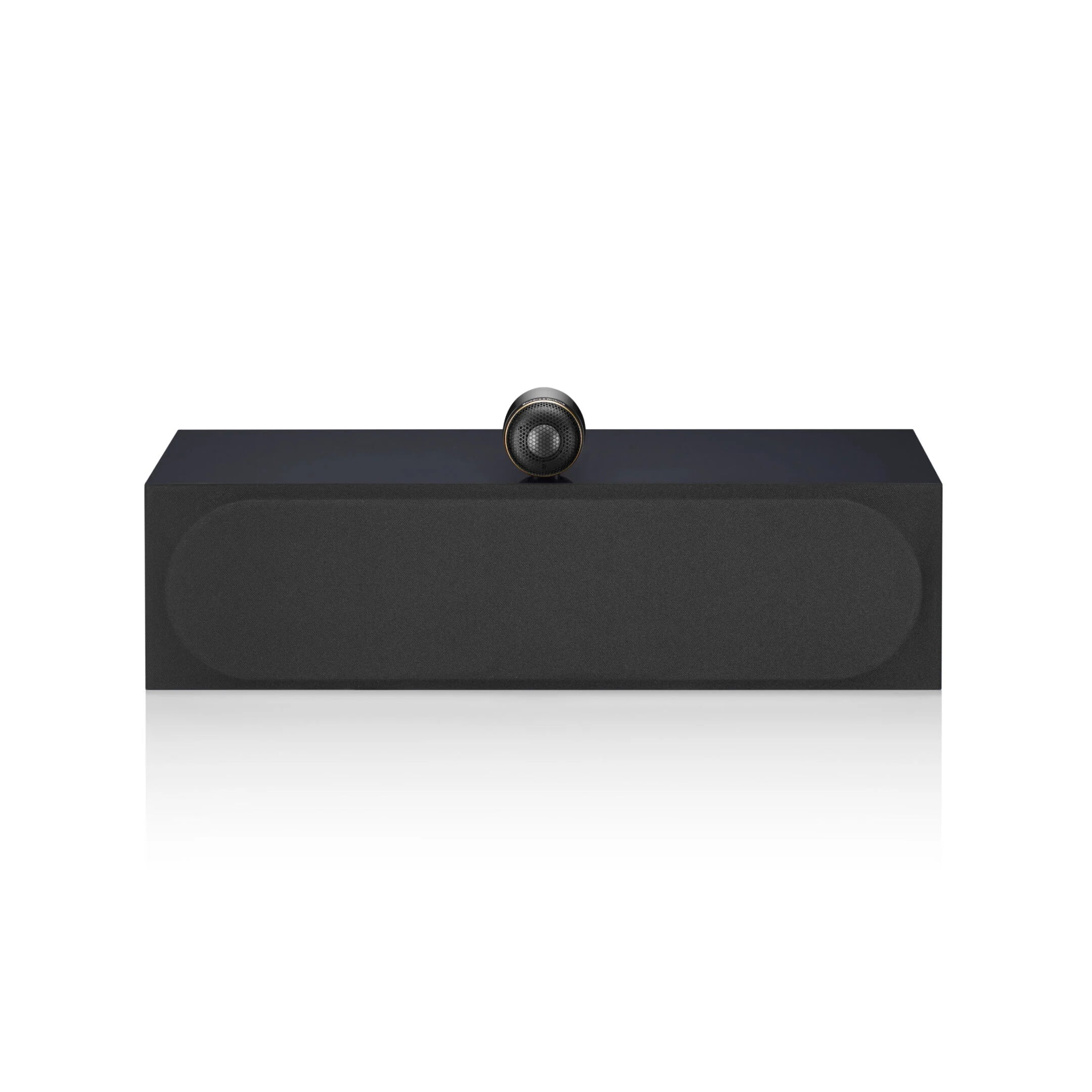

Finishes
Cabinet finishes

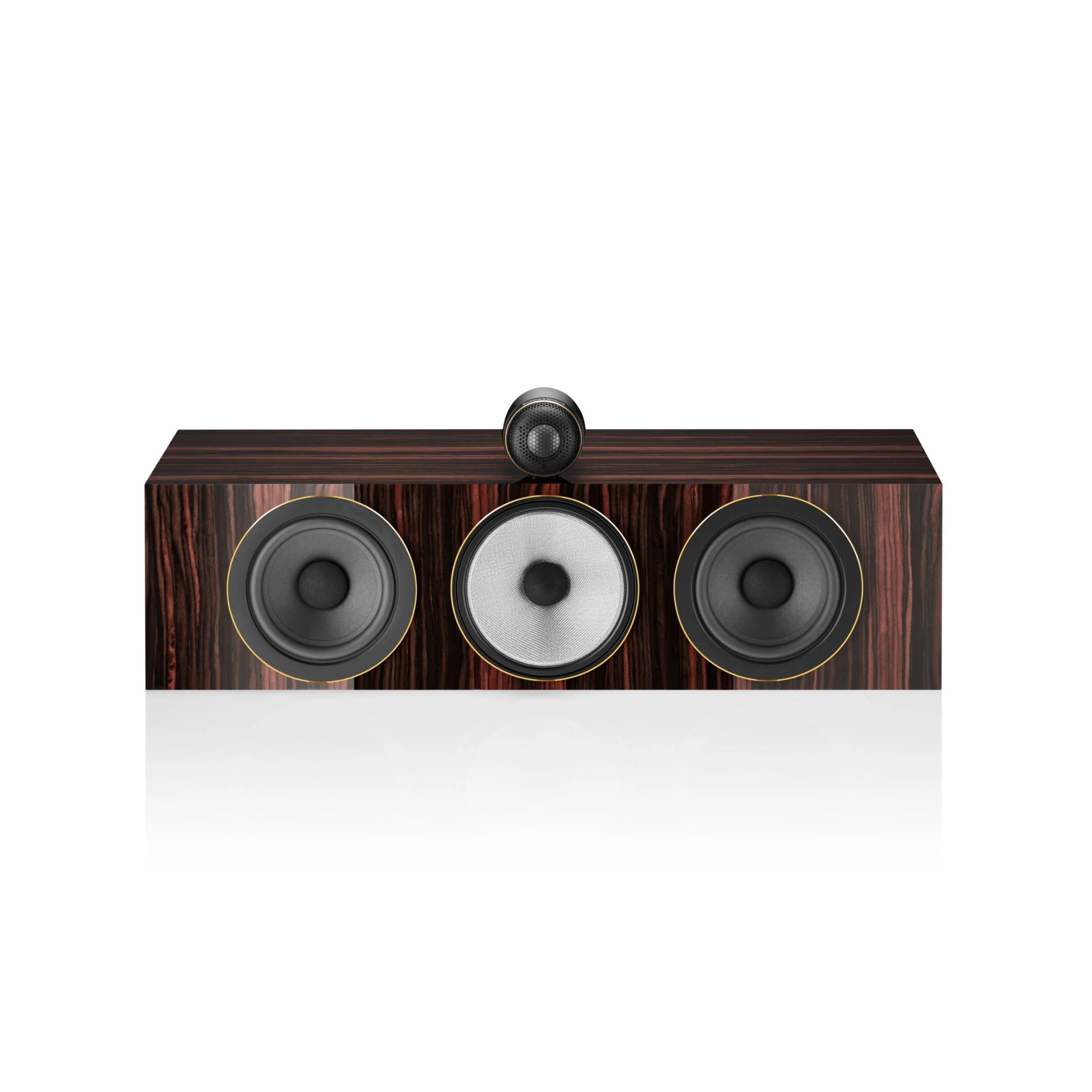

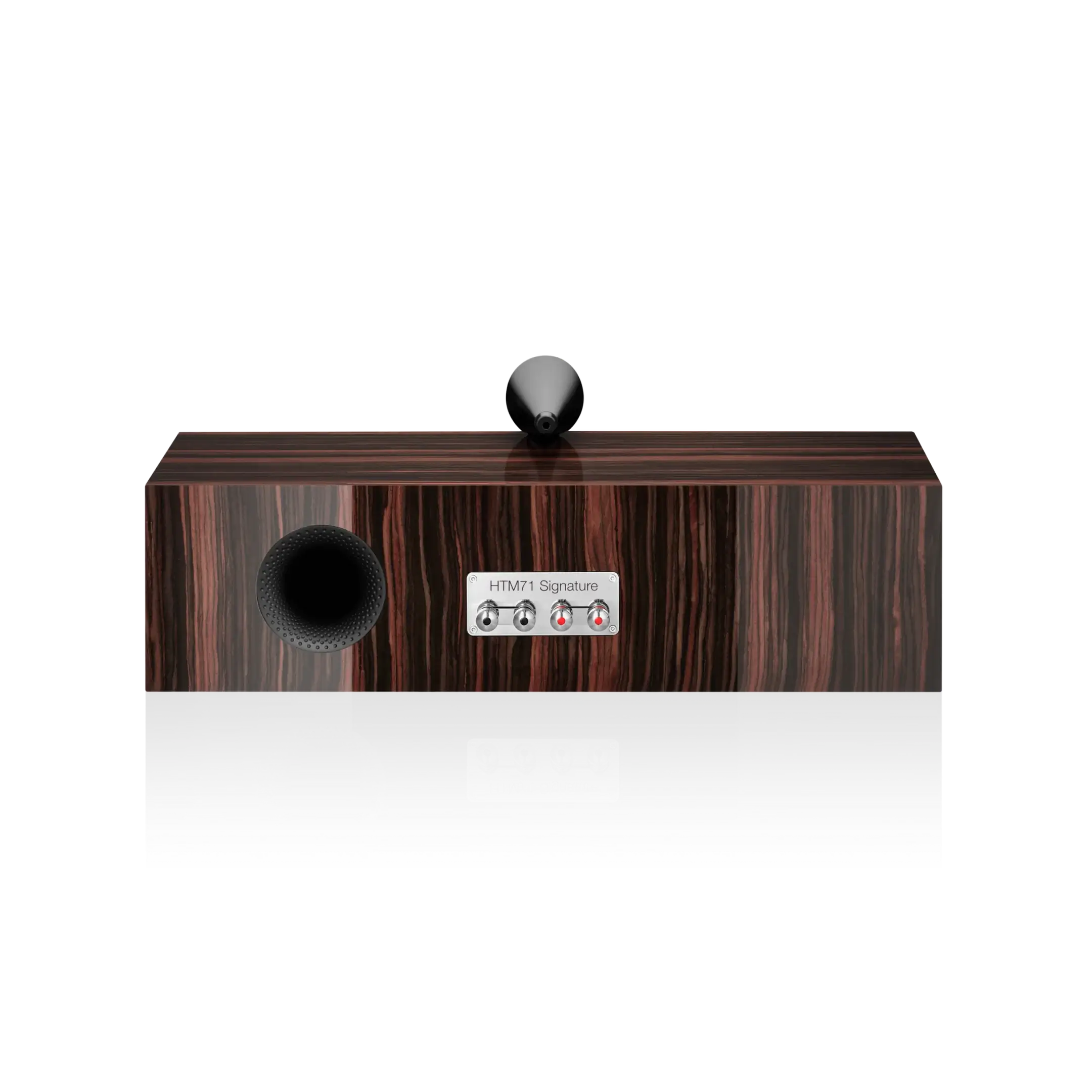

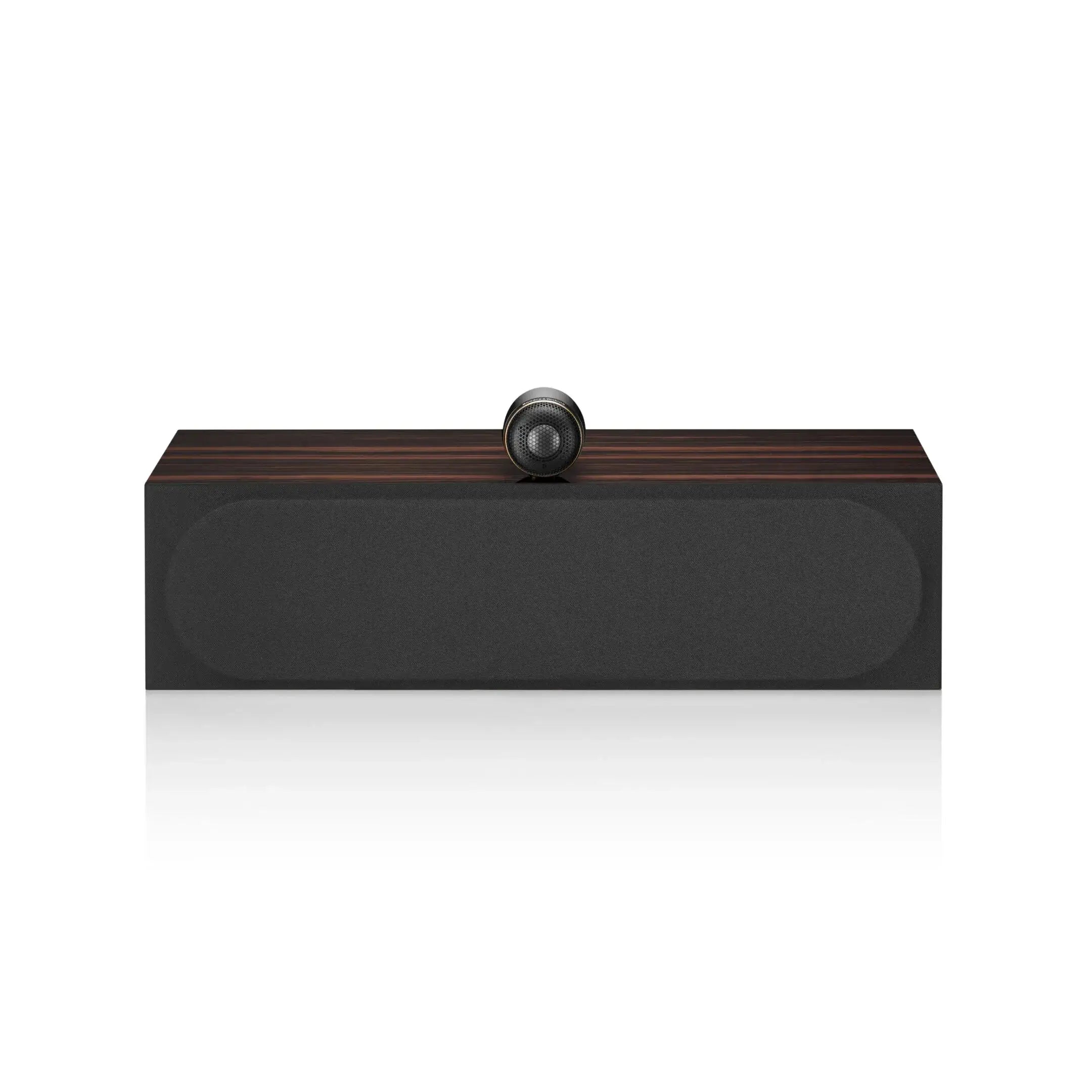

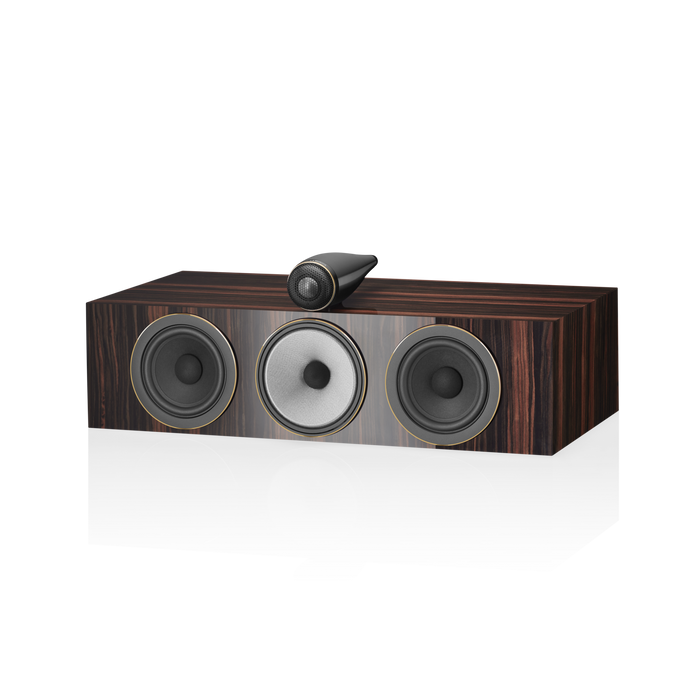

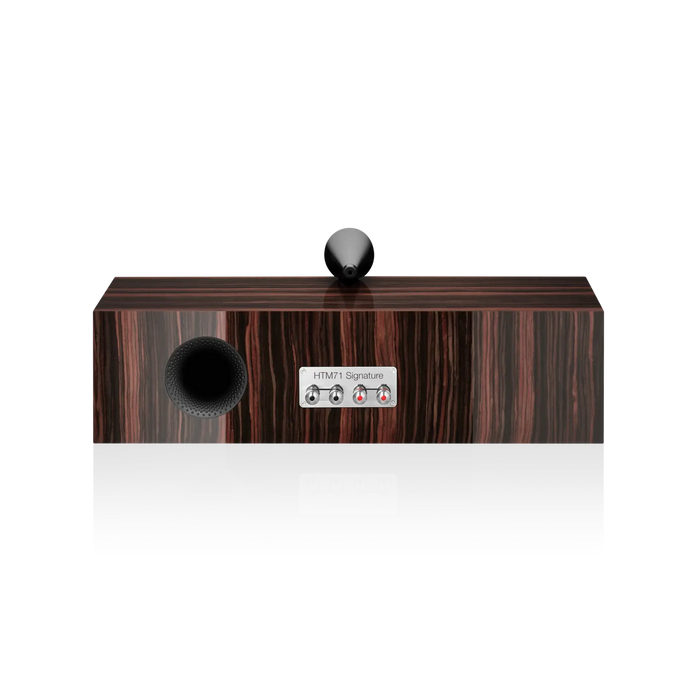

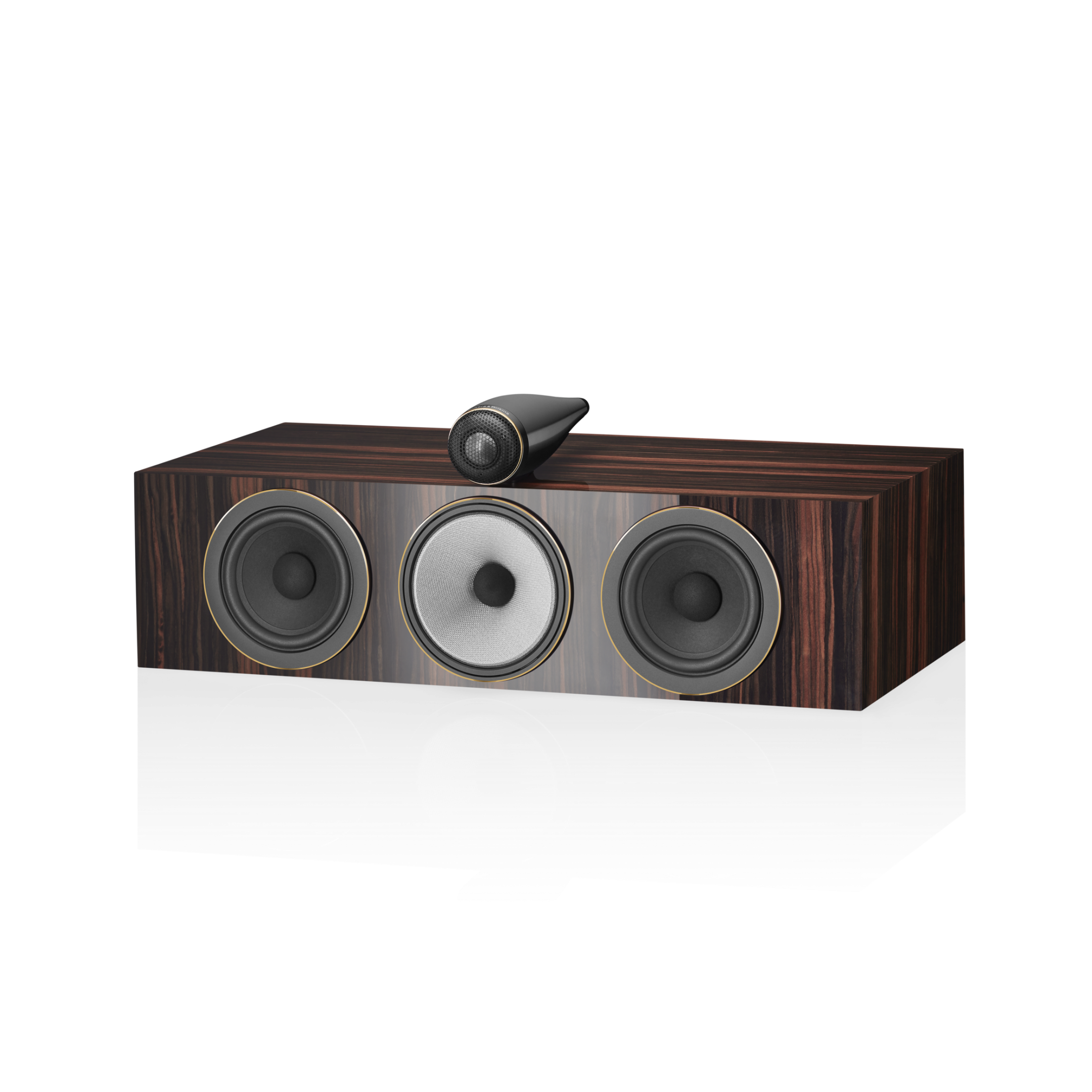

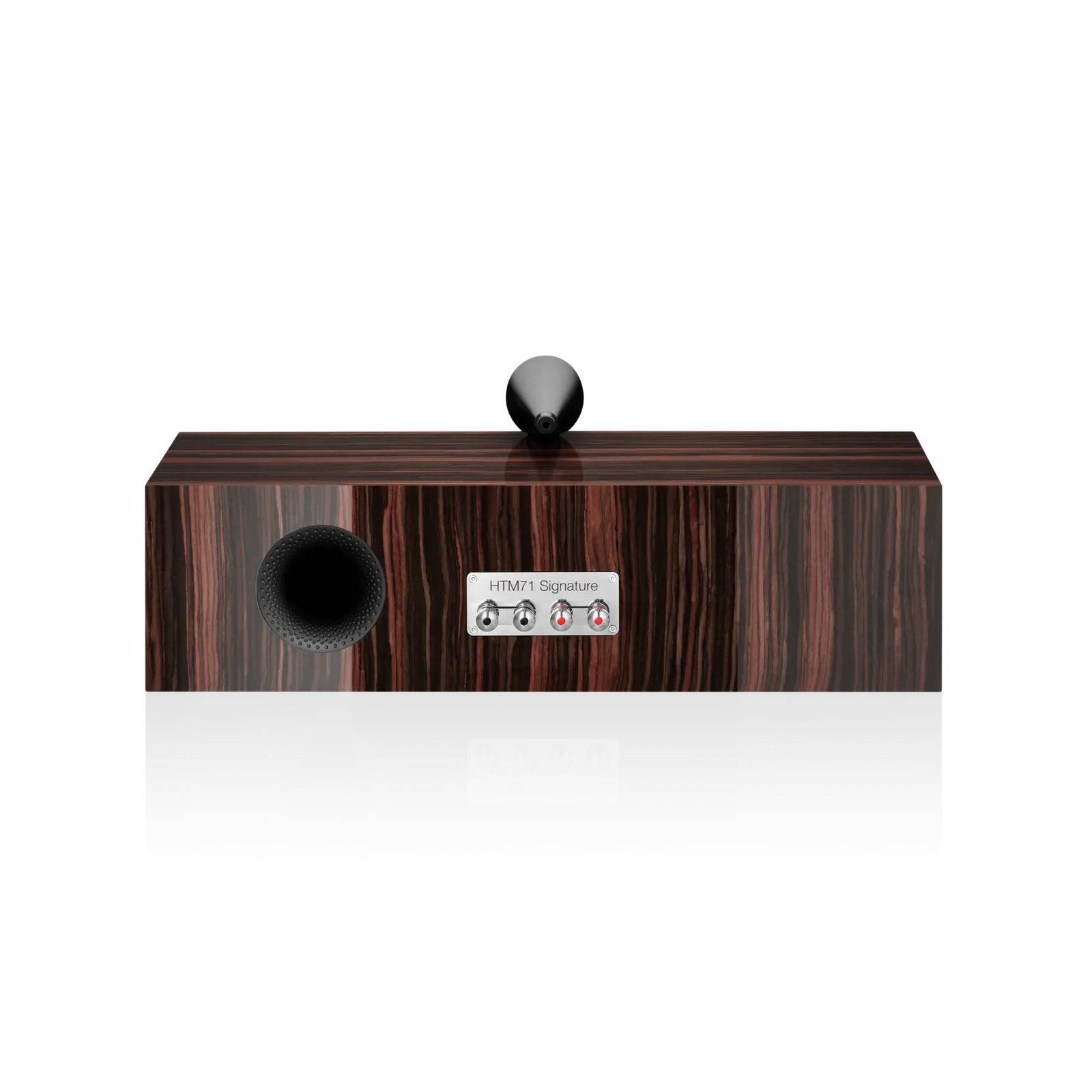

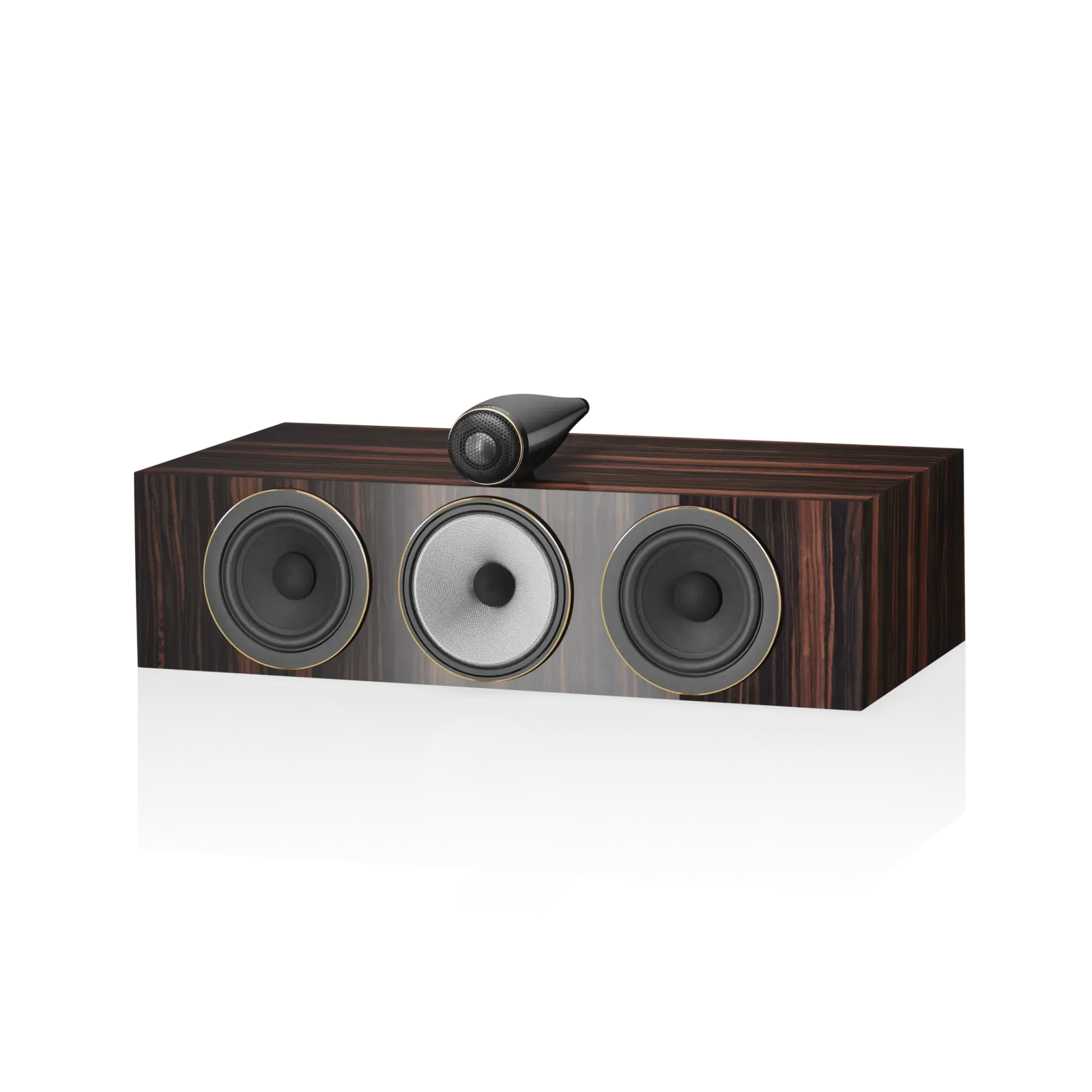

Datuk Gloss

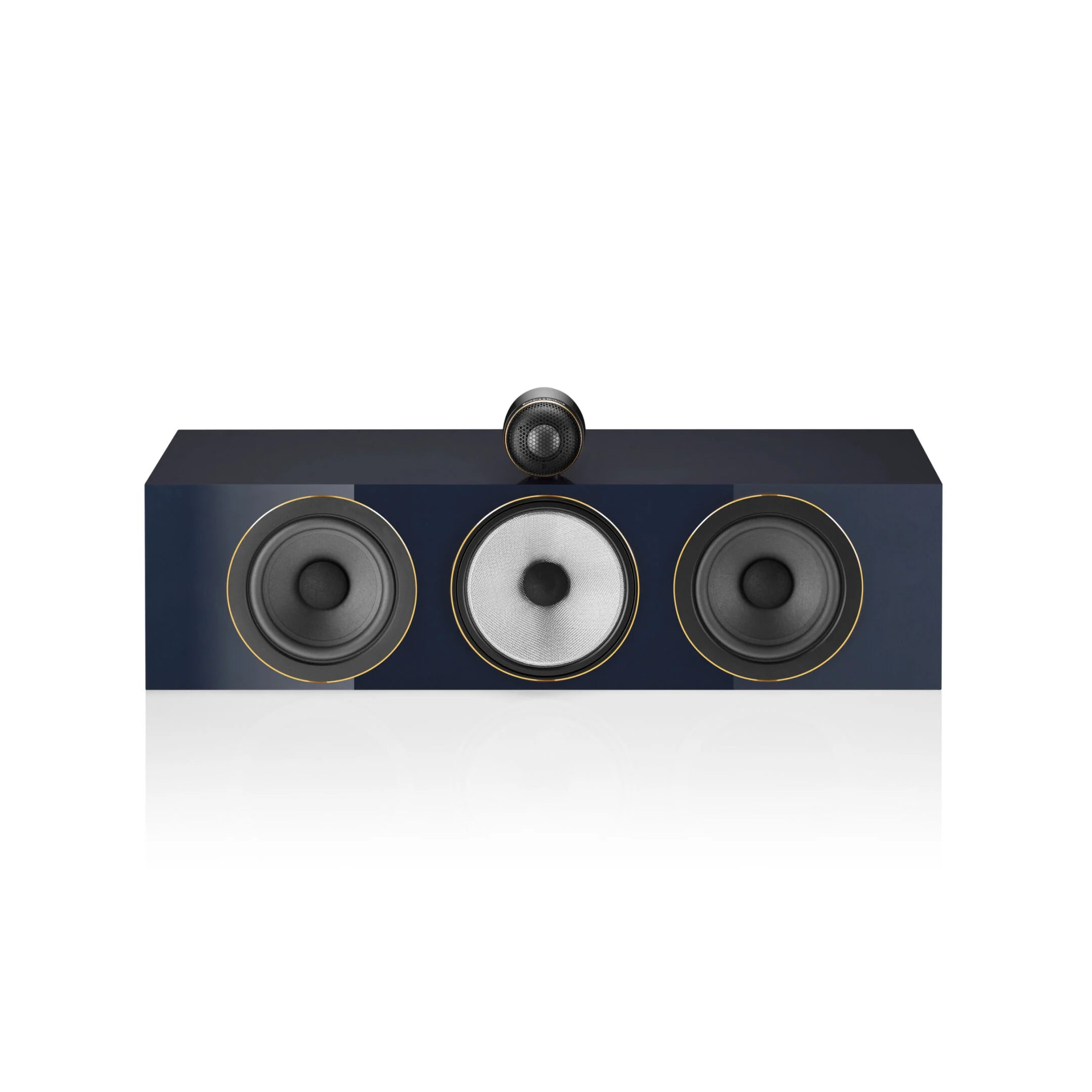

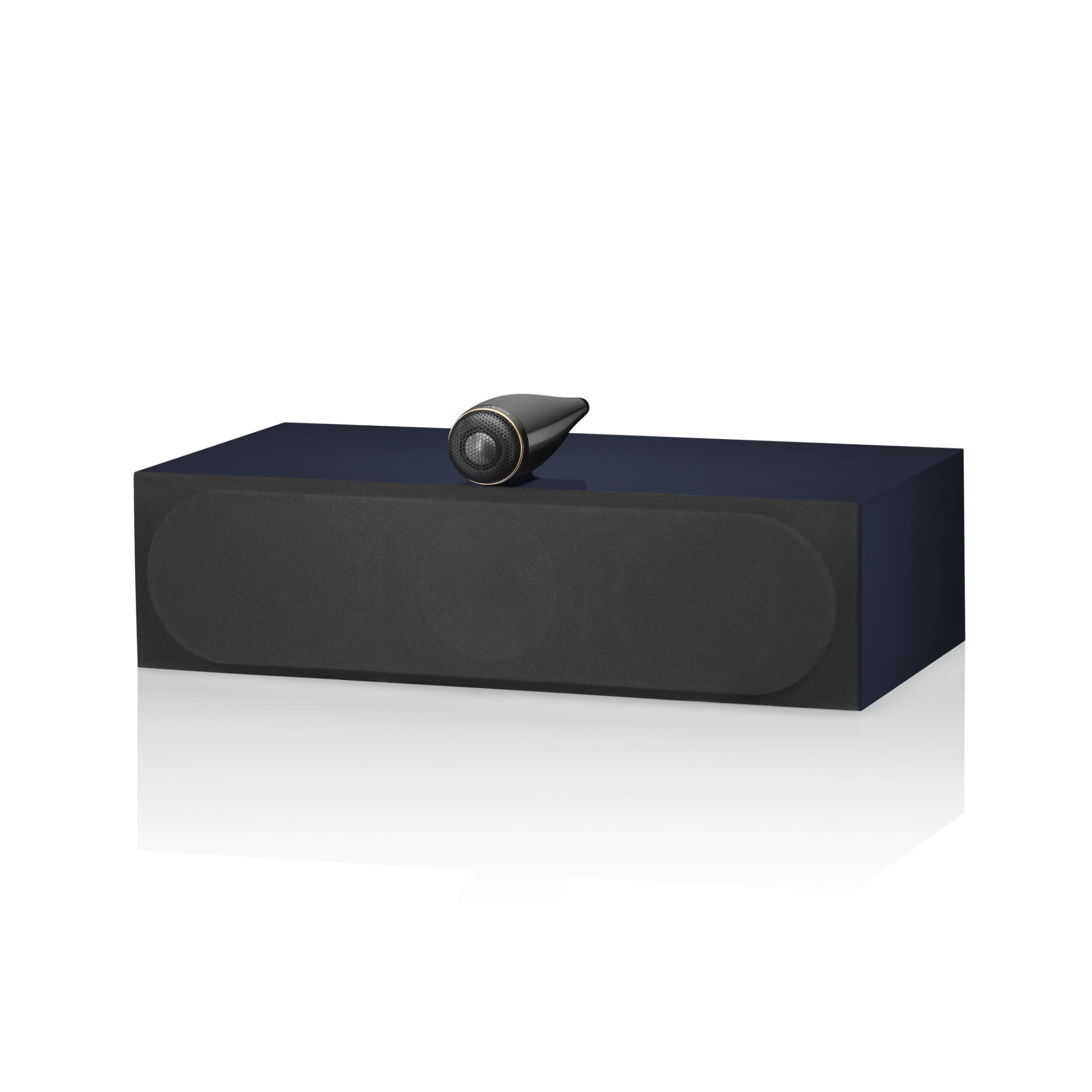

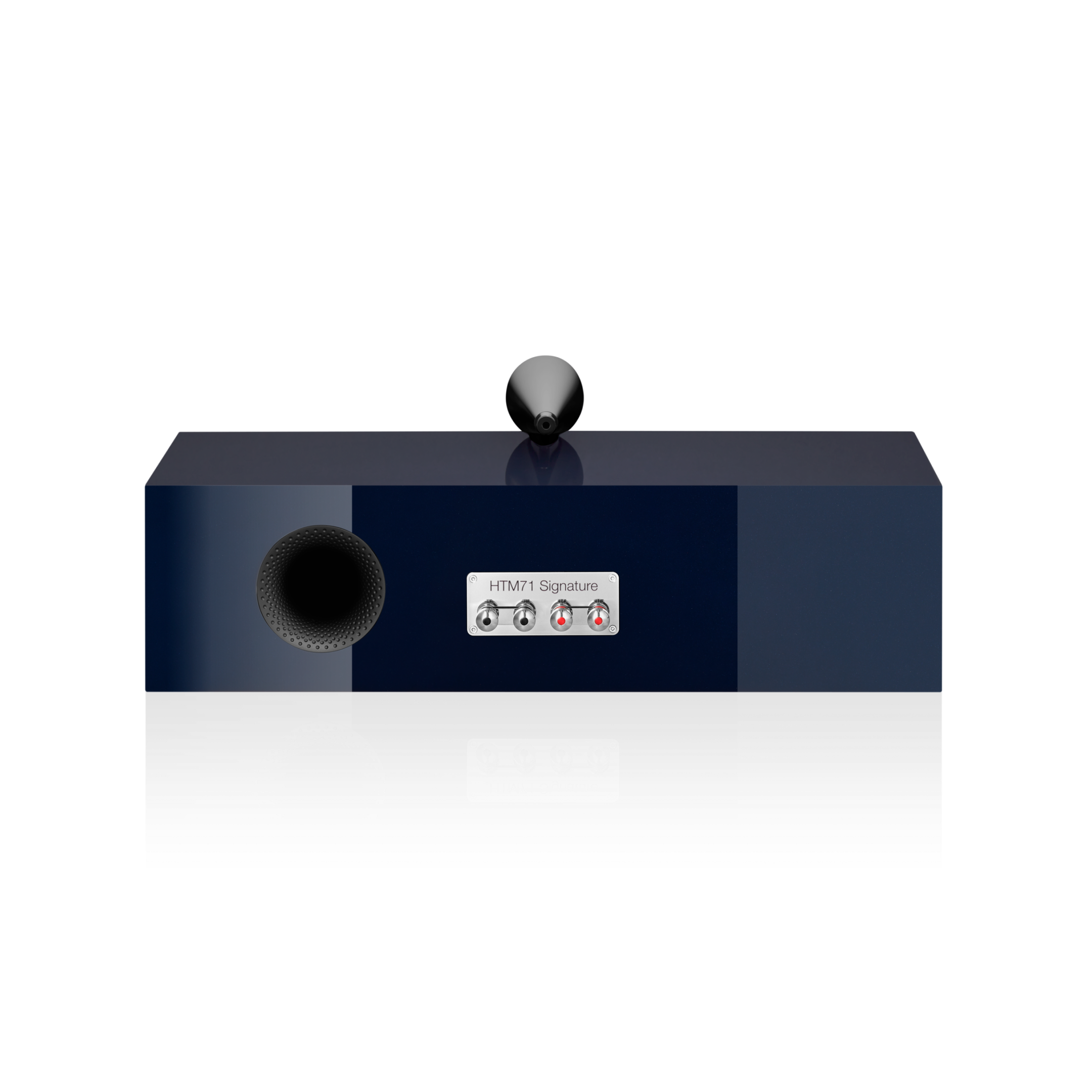

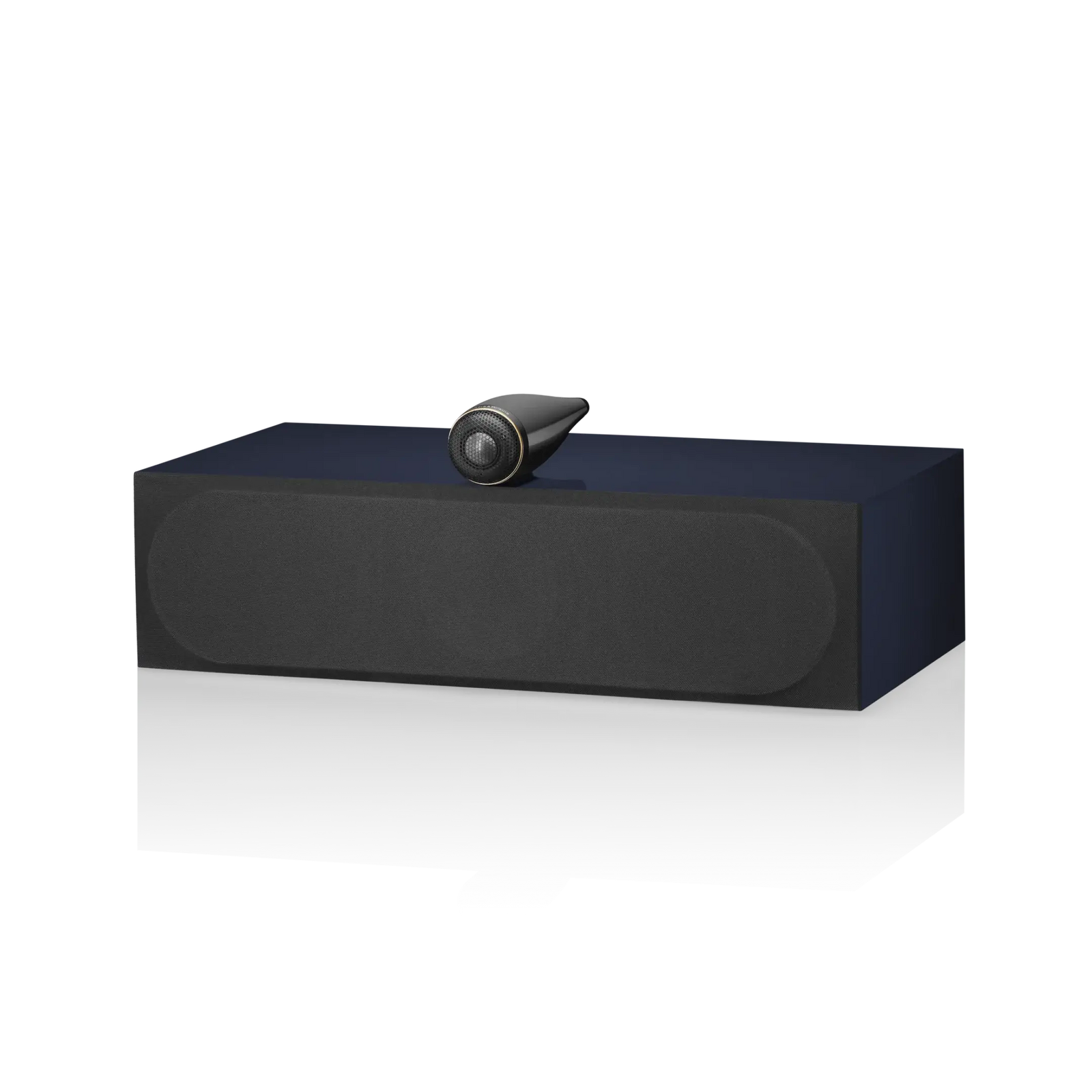

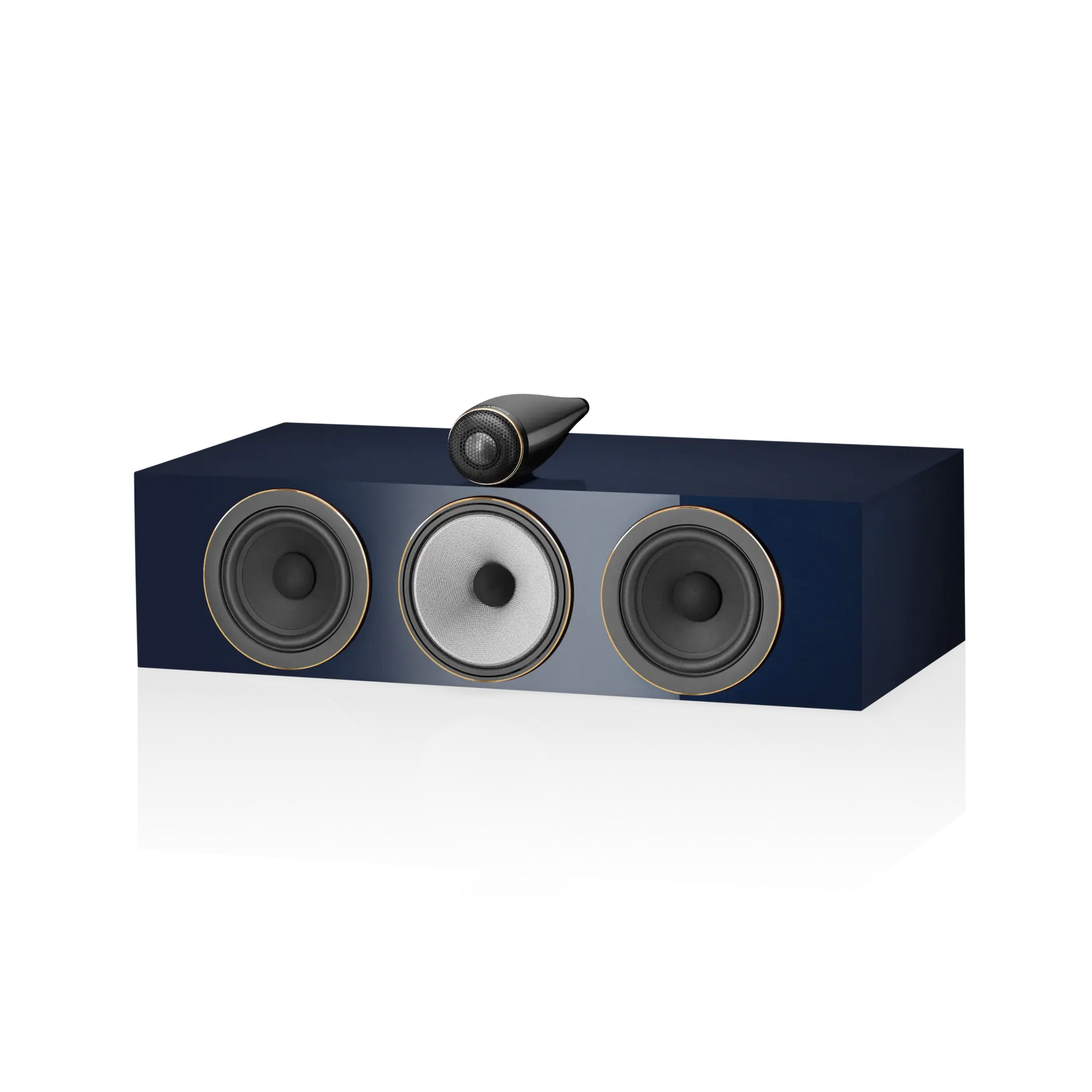

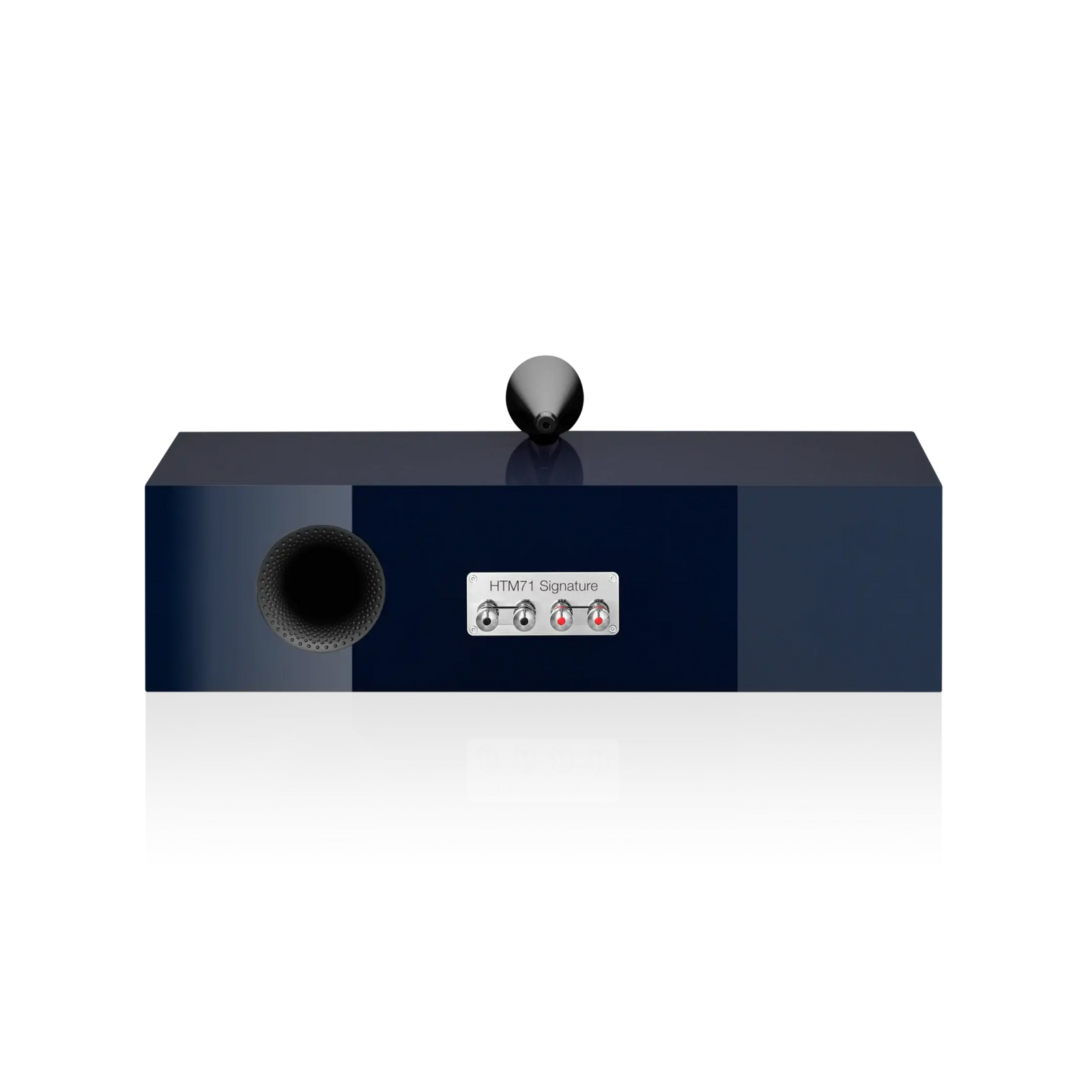

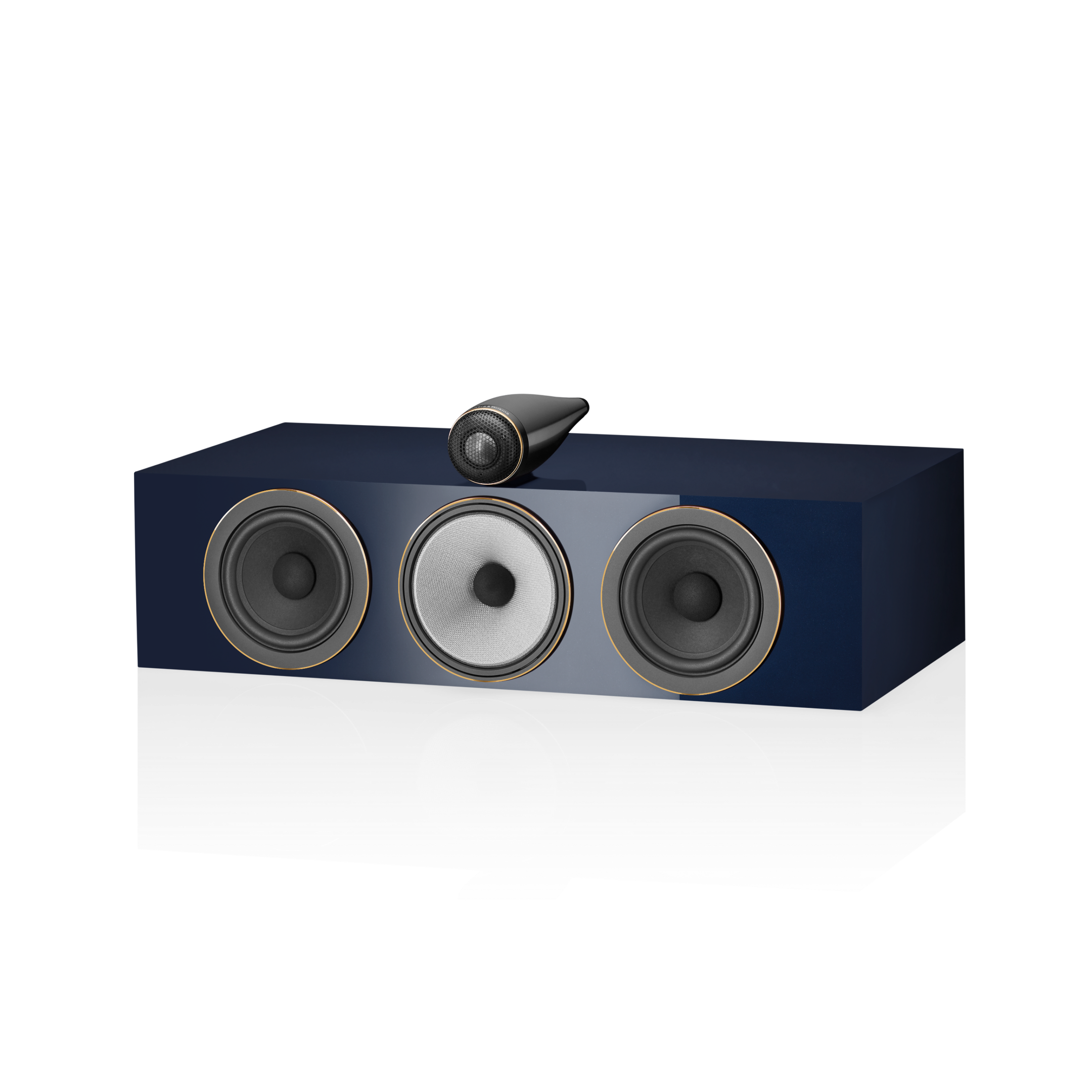

Midnight Blue Metallic
Grille finishes
Black
