Bowers & Wilkins CDA-16 16 Channel Distribution Amplifier

UPC: 714346334568
$1,999.00

SKU CDA-16

Product Qualifies for FREE Ground Shipping

Bowers & Wilkins CDA-16 16 Channel Distribution Amplifier

Our CDA-16 distribution power amplifier can drive any Bowers & Wilkins custom installation speaker to new heights of performance. Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space thanks to its compact 1U design. Its configurable specification supports bridging of its Class D stereo channels into even more powerful mono outputs, if needed.

Distribution Amplifier

CDA-16 has been engineered to work with any existing Bowers & Wilkins
custom installation speaker. With the ability to drive 16 channels or 8 zones
in a compact 1U design, CDA-16 gives you the maximum performance with
the minimum rack space.

The power to impress.
Ensure the best possible sound from your in-wall or
in-ceiling Custom Installation loudspeakers with our
powerful yet compact distribution amplifier.

Compact powerhouse.
Offering 16 channels of power, the CDA-16 can enable
your whole home with sound yet takes up minimal space
thanks to its compact 1U design.

Mighty flexible.
CDA-16 has a configurable specification supporting
bridging of its Class D stereo channels into even more
powerful mono outputs when needed.

Specs

Audio Specifications
Load impedance range: >3Ω per channel (>6Ω in bridge mode)
Output Power per channel, non-clipped: >50W into 8Ω, >100W into 4Ω
Output Power bridge mode, non-clipped: >200W into 8Ω
Output Power total, all channels: >400W short term, >200W continuous average
DC offset voltage: <50mV
Frequency Response (-3dB): <10Hz to >50kHz, any load impedance
Frequency response accuracy 20Hz-20kHz: ±0.5dB
Signal to Noise ratio (Ref. 50W/8Ω): >100dB A-Weighted
THD+N (1kHz, 12.5W, 4Ω): typically 0.05%
Voltage Gain: 34.9dB to - infinity, adjustable
Input impedance: 15KΩ
Maximum input voltage: 6.8V peak (4.8V rms sine wave)
Signal sense threshold: 2.5mV (independent of Gain setting)
Wake-up time: <0.2s (If other zones active) <2s (From all zones inactive)
Turn-off time: 15 minutes from last signal detected
12V trigger input threshold: typically 3V (recommended input is 5-15V)

Controls & Indicators

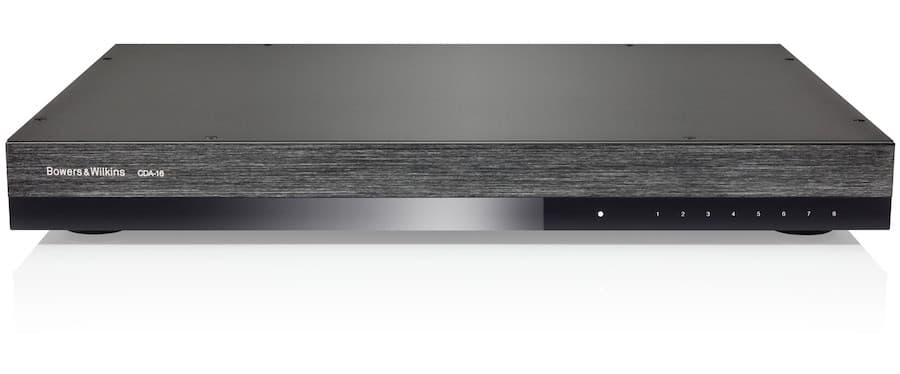

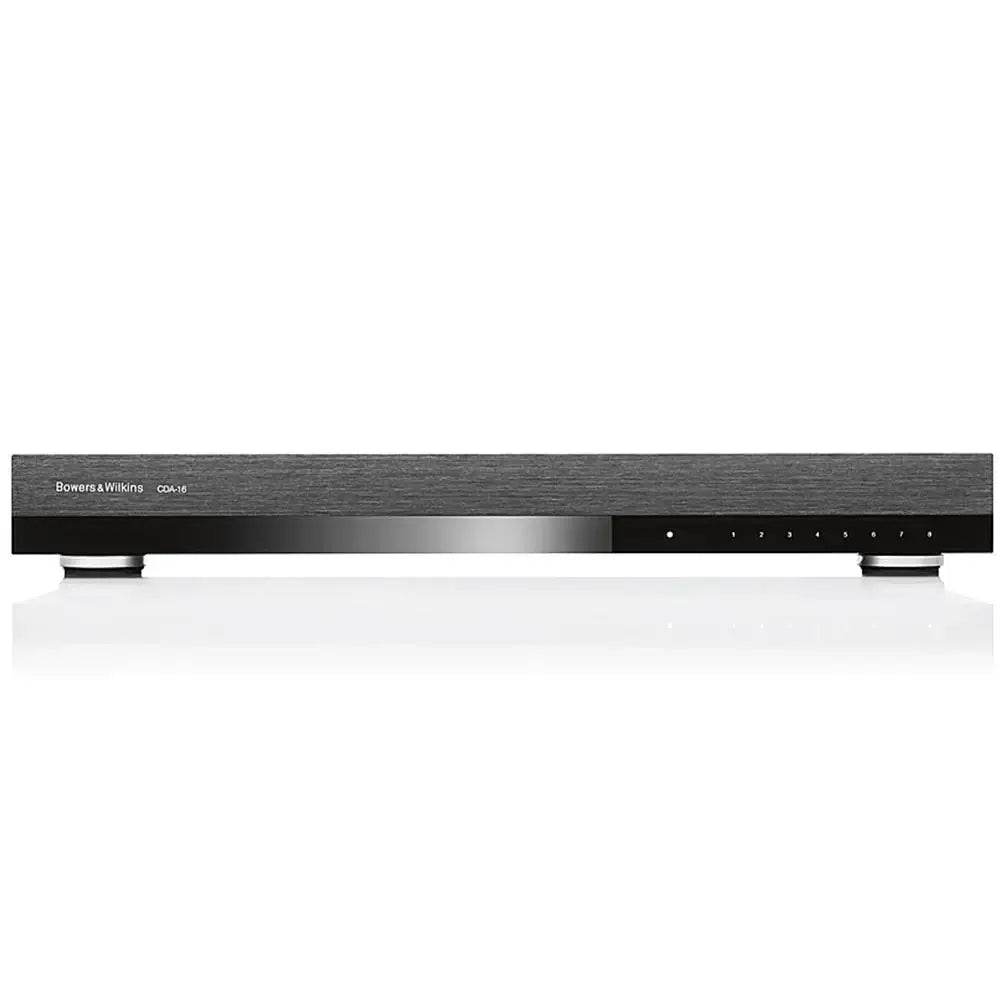

Front panel: 1 x Power LED (unit active – White, Fault – Red)
8 x Zone status LEDs (Signal present – White, Fault – Red)

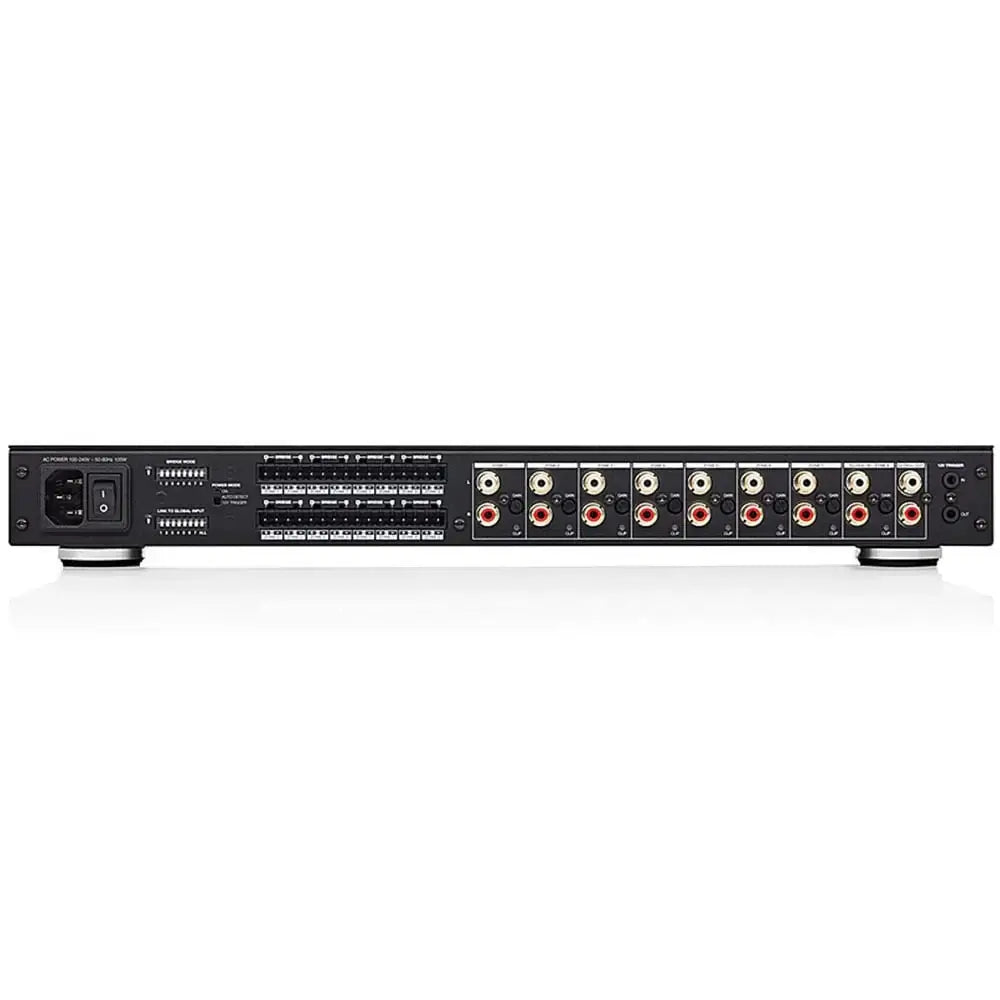

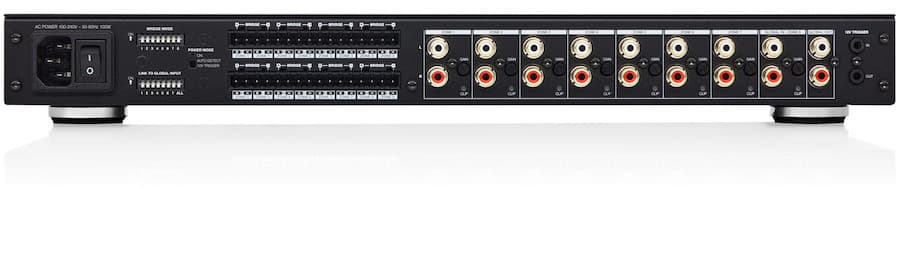

Rear panel: 8 x 2-position DIP switches (link to global input)
1 x 3-position switch (power mode: on, auto detect, 12V trigger)
8 x input gain control with Clip indicator LEDs

Connectors
Input 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)
Output 1 x RCA (pair) Phono socket (global out)
8 x 5.08mm Pitch 4-way Phoenix Combicon style
12V trigger control 1 x 3.5 mm jack - 12V trigger IN
1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)

Power
Power consumption: <0.5W All zones inactive, <45W All zones idling, 300W maximum average, 1,000W peak
AC supply: 100-240V 50/60Hz
AC inlet: IEC C14, switched

Thermal
Thermal dissipation 1.7 BTU/hr (standby), 150 BTU/hr (Idle), 400 BTU/hr (max)

Dimensions
Height: 44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet]
Width: 437 mm (17.2in)
Depth: 310 mm (12.2in)

Net weight: 4.5kg (9.9lb)
Finish Black
