Bowers & Wilkins CCM7.3 S2 Custom Installation 3-Way In-Ceiling Speaker (Each)

UPC: 714346332144
$2,100.00

SKU CCM7.3S2

Product Qualifies for FREE Ground Shipping

Bowers & Wilkins CCM7.3 S2 Custom Installation 3-Way In-Ceiling Speaker (Each)

See nothing, hear everything

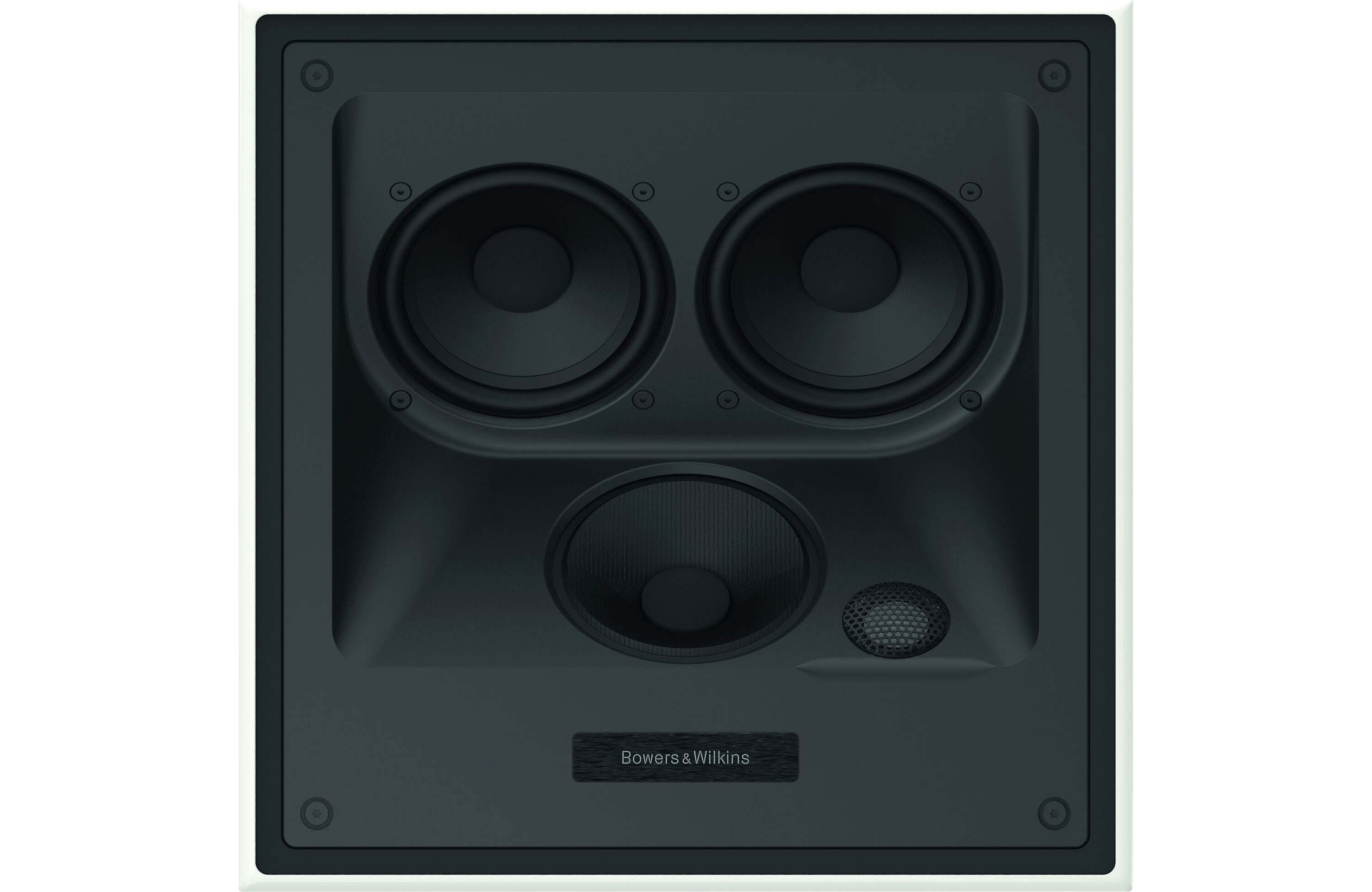

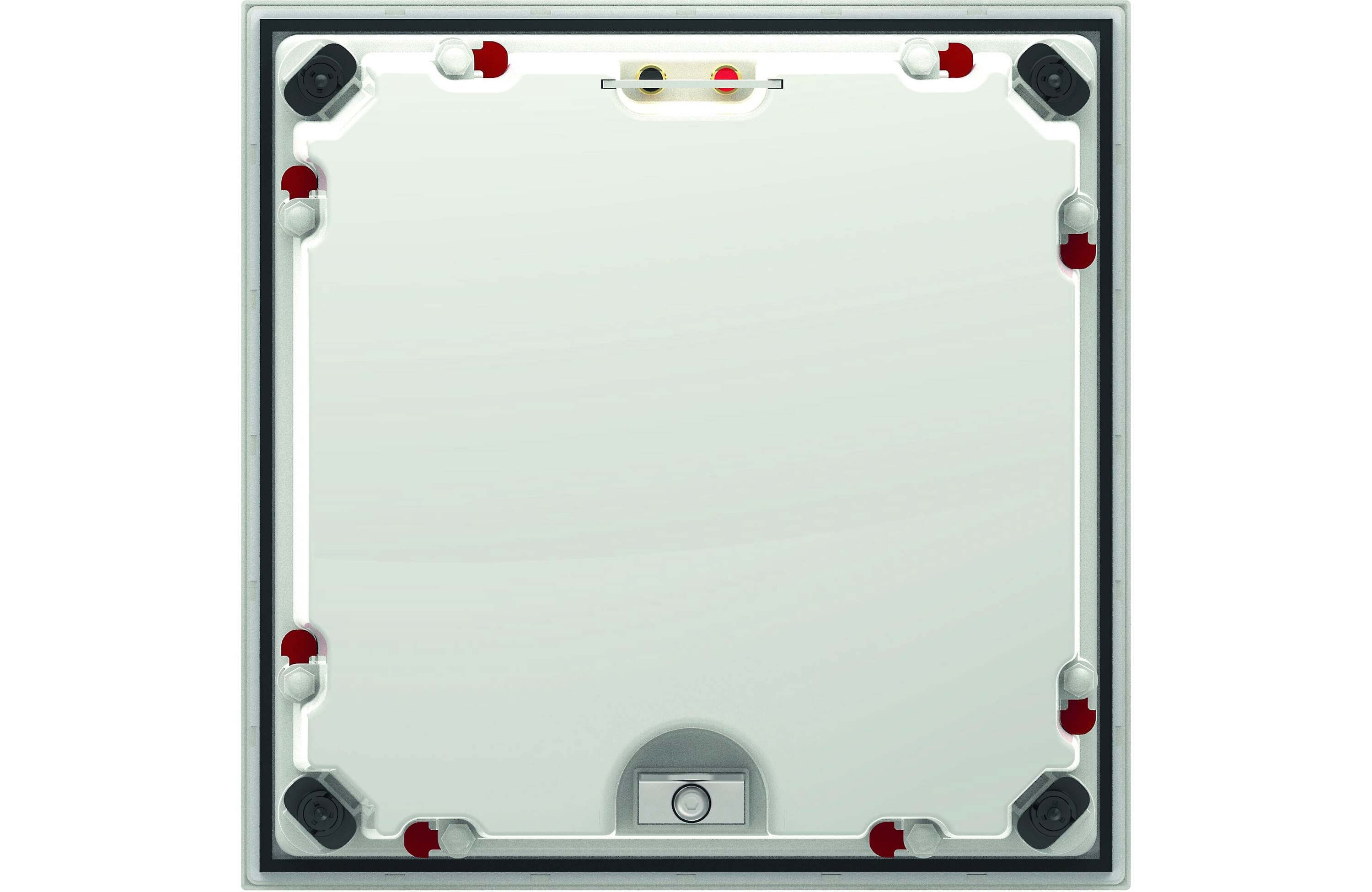

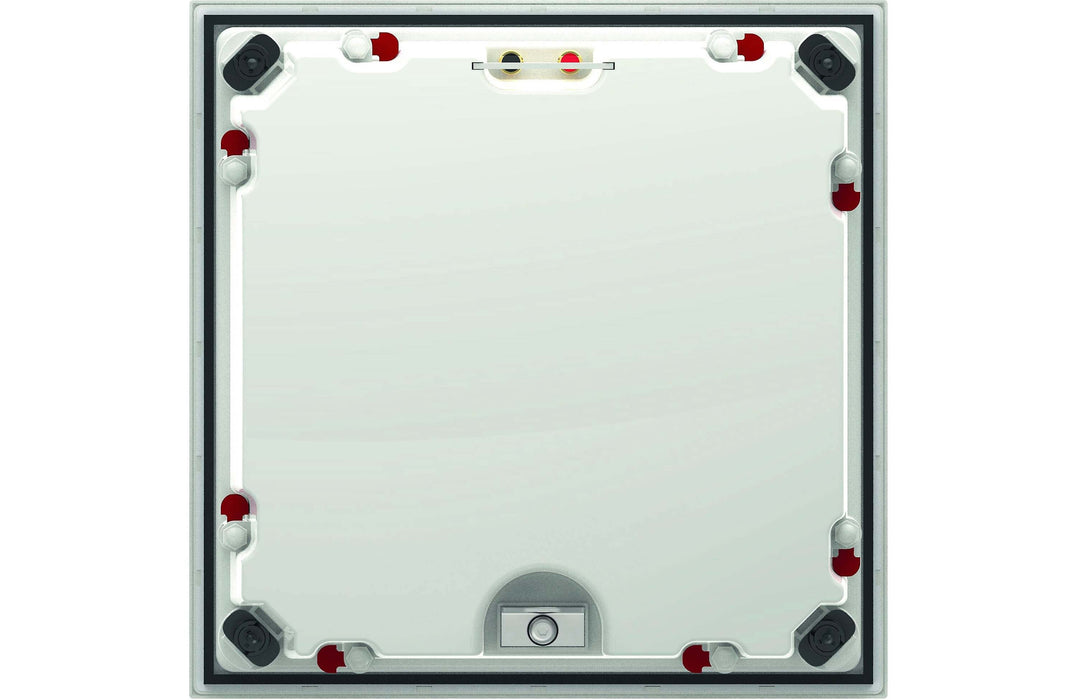

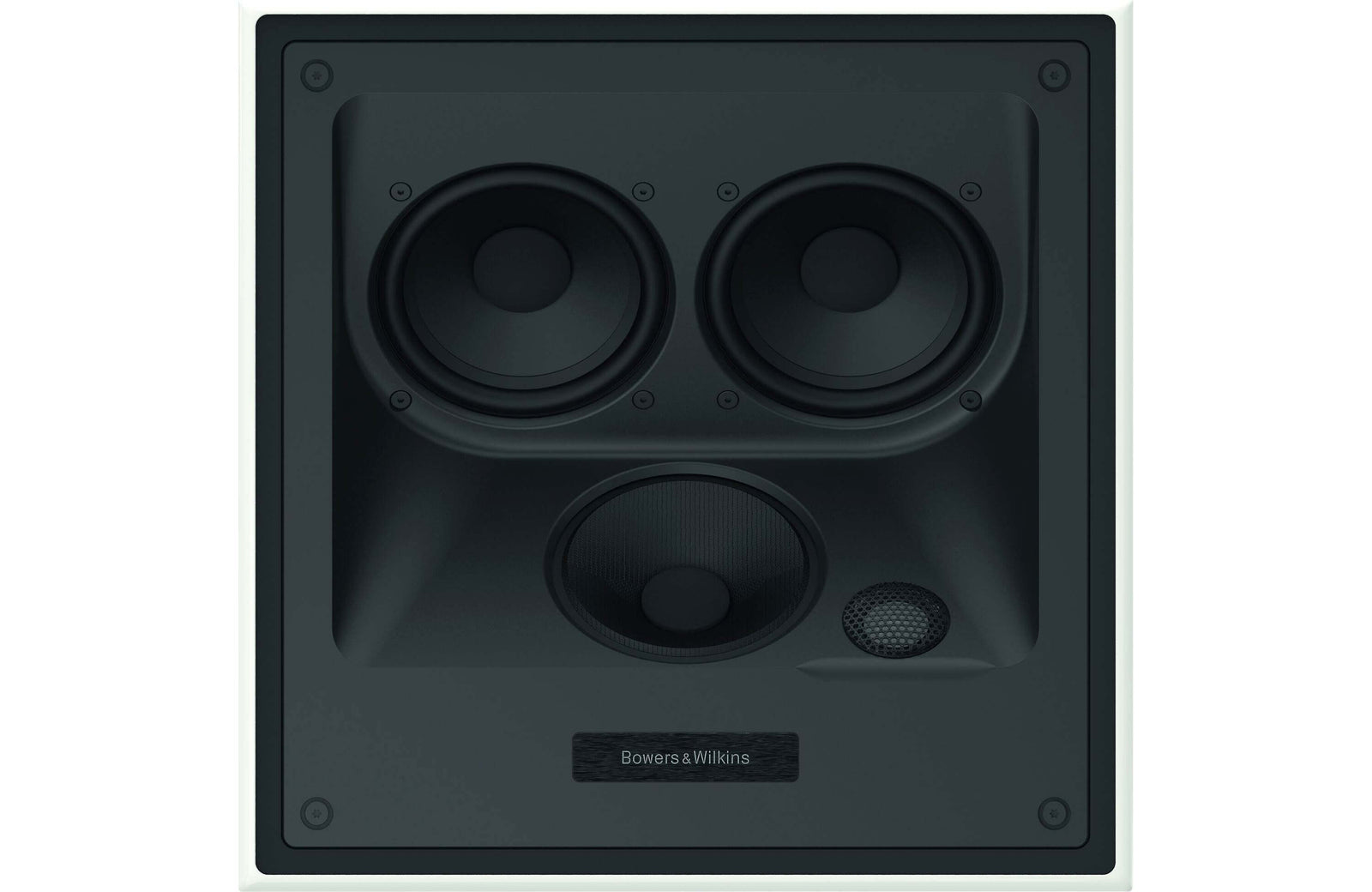

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.

Specs

Technical Specifications
Technical features Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Description 3-way in-ceiling system
Drive units 1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency range (-6dB) -6dB at 52Hz and 33kHz
Frequency Response -3dB 55Hz - 28kHz ±3dB
Sensitivity 90dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 25W - 200W into 8Ω on unclipped programme
Frame height 355mm (14in)
Frame width 355mm (14in)
Depth 194.5mm (7.66in)
Cut-out height 332mm (13.1in)
Cut-out width 332mm (13.1in)
Cut-out height w/PMK 335mm (13.2in)
Cut-out width w/PMK 335mm (13.2in)
Protrusion 8mm (0.3in)
PMK 7C
Net weight 9kg (19.84lb) Inc accessories
Finishes Back box: White Grille: White
