Audison SR 6.600 4 Channel Class D Amplifier

by Audison
UPC: 8018823140454.
Call for Availability

Audison SR 6.600 4 Channel Class D Amplifier

Amplifier | 1120 W total power | 140 W x 4 + 185 x 2 @2ohm | D-Class
At Audison, our commitment to delivering unparalleled sound quality and innovation in-car audio systems remains unwavering. We are thrilled to present our latest masterpiece – the Audison SR 6.600 6-Channel Amplifier with Hi-Res Audio Certification. This amplifier is engineered to redefine your in-car listening experience, setting a new standard in audio excellence.

  • High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5/6)
  • Staggered power optimized for a 3-way active front with higher power for woofers, or 600W of bridged power for a sub 5 ch output operation mode to create a five-channel system, with 2Ω subwoofer
  • Flexible crossover filter networks deliver Active 3-way, Front/Rear/Sub, or six channels of high-passed power
  • ADT (Audison D-Class) Technology 2Ω stable output providing Hi-Res certified audio performance with superior efficiency in a compact size.

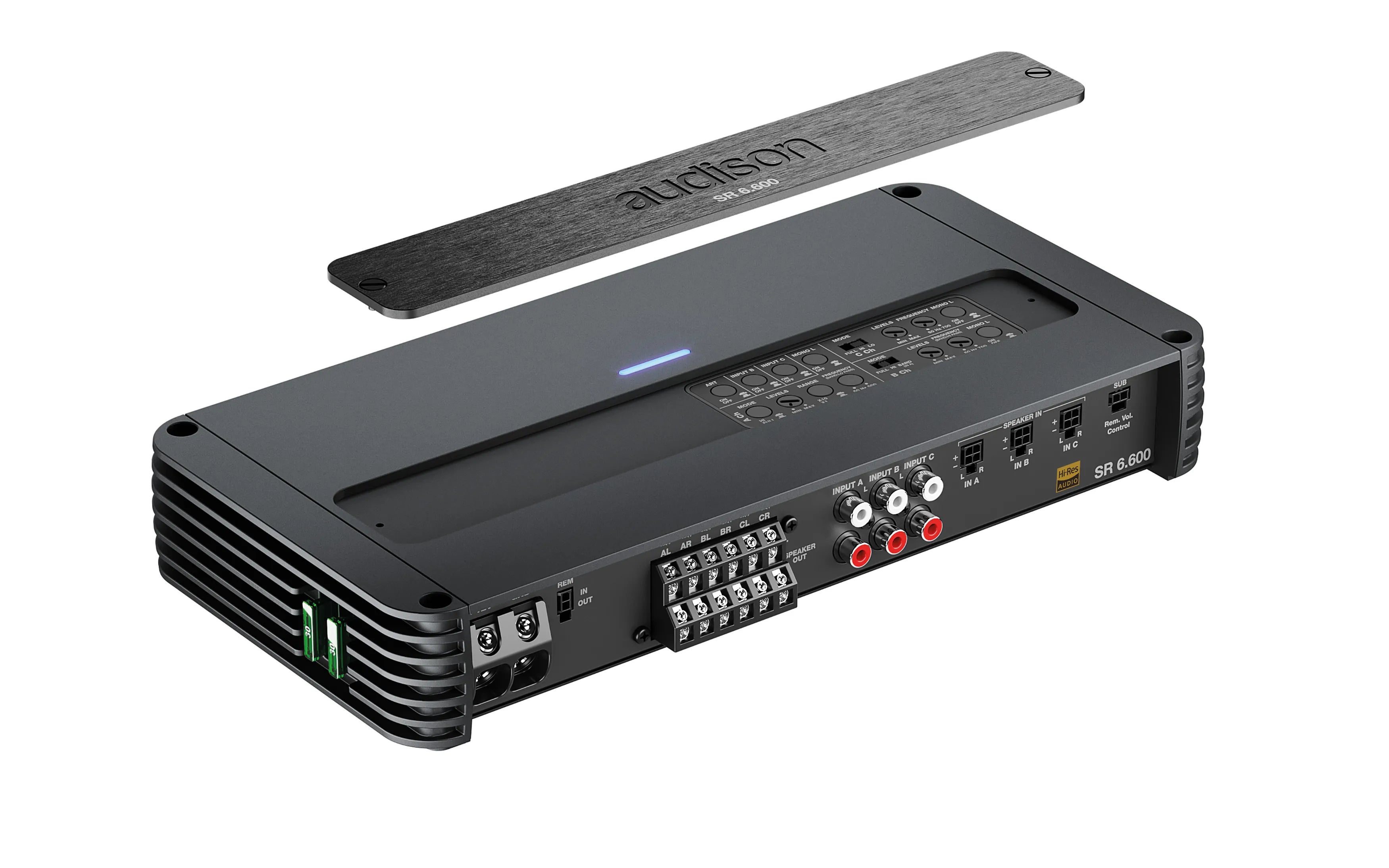

  • Extruded aluminum compact design with a fanless convection cooling system
  • Built-in USS (Universal Speakers Simulator)

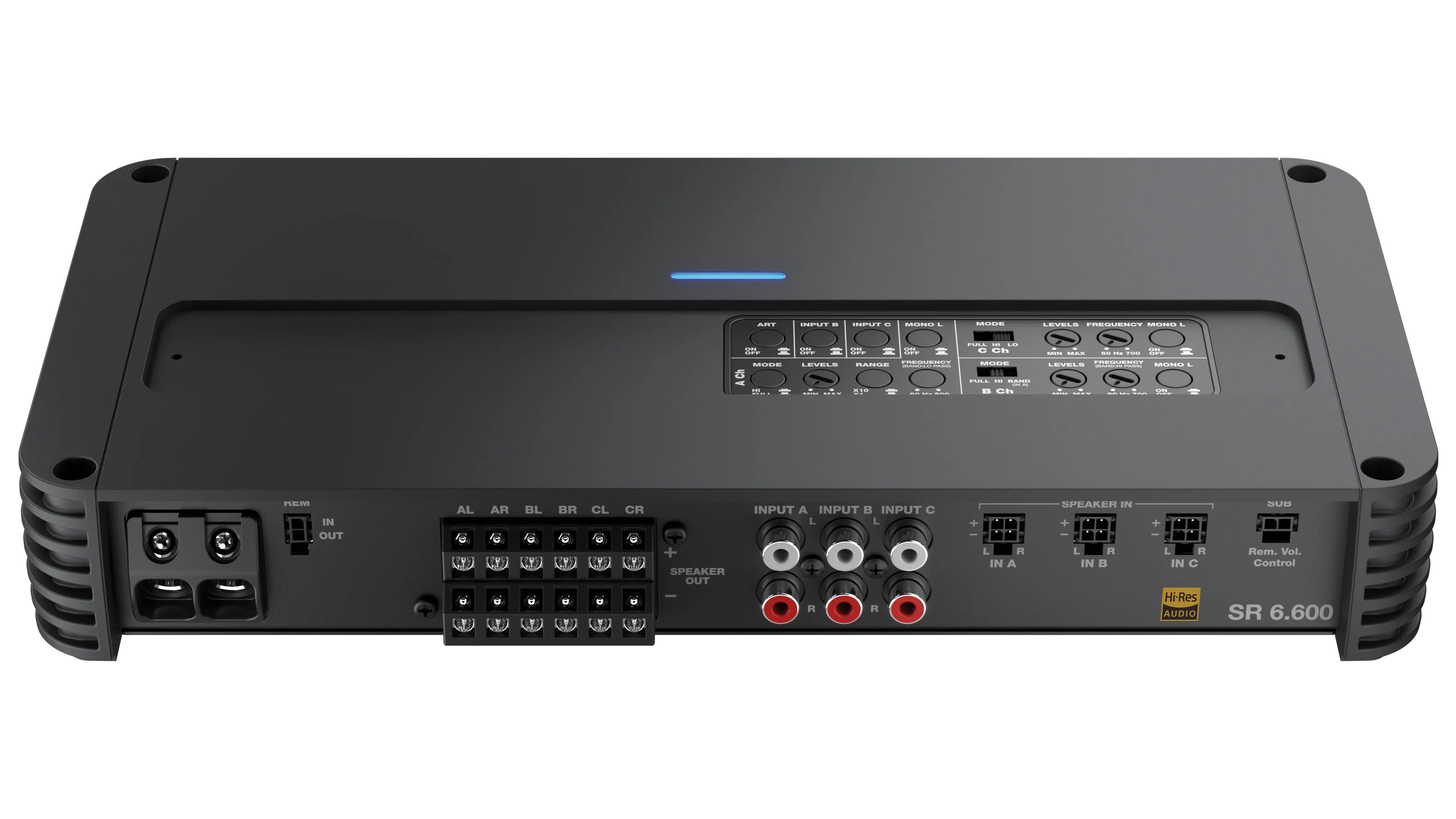

  • Balanced high-noise rejection inputs for Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units).
  • ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled, with Speaker-In inputs)
  • Accepts up to 40-volt input signal (Speaker-In)
  • Bass Boost(50 Hz) adjustable up to 12 dB, to increase the subwoofer punch
  • Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 5000 Hz) filters, providing the ability to build a 3-way system, a front 2-way + rear system, or a front 2-way + one powerful subwoofer (2Ω)
  • Optional VCR-S2/ARC 01 Remote Volume Control provides the ability to adjust the OUT 5/6
  • volume level from the dashboard

Channels    6
Class    D-Class
Efficiency    >87%
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 17 VDC
Operating power supply voltage    11 ÷ 17 VDC / 2 x 30A
Idling current    2.2 A
Idling current when off    0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    54 A
Remote OUT    4 ÷ 15 VDC (150 mA)
Remote IN    4 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 ÷ 7 VDC
