Audison Bit Ten Signal Interface Processor with 4 Channels In and 5 Out

by Audison
UPC: 8018823104937
Call for Availability
Original price $385.00
Current price $349.99

SKU BitTen

Audison Bit Ten Signal Interface Processor with 4 Channels In and 5 Out

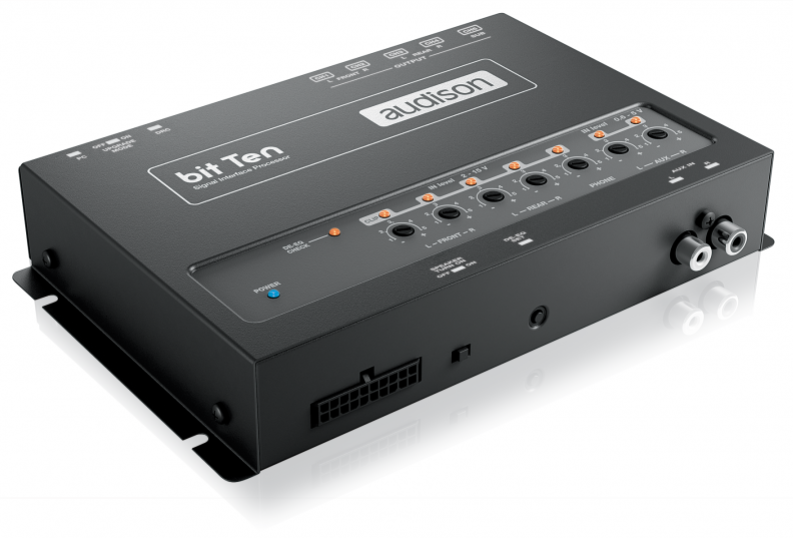

bit Ten is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system.
Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten is controlled by a software especially developed for signal treatment according to the vehicle acoustic peculiarities. Setting the parameters of each input single channel, setting the delays according to the listening position, adjusting crossovers and equalizers for each of the 5 output channels; all of these operations can be managed by the PC.During the installation phase, after converting the analog signal into digital, bit Ten automatically reconstructs a digital full-bandwidth stereo signal; de-equalizes the frequency response and, if necessary, reconstructs the central and subwoofer channels.The user can configure the output mode of each channel relative to the installed system.

Features
BIT DRIVE

Auto tuning by Audison bit Tune and communication with bit Drive portal.
DE-EQ

De-equalization function to “flatten” any equalization applied by default by OEM sources.

Specs

Tech. Features
Analog Inputs     4 high lev. + 2 pre in
Digital Inputs     Not available
Analog Outputs     5
Digital Outputs     Not available
Equalizers for each Outputs     31-band graphic equalizer (1/3 Oct.; ±12dB)
Crossover Filter Type     Full / Hi-Pass / Low Pass / Band Pass
Filter mode and slope     Linkwitz @ 12 / 24
Butterworth @ 6 / 12 / 18 / 24
