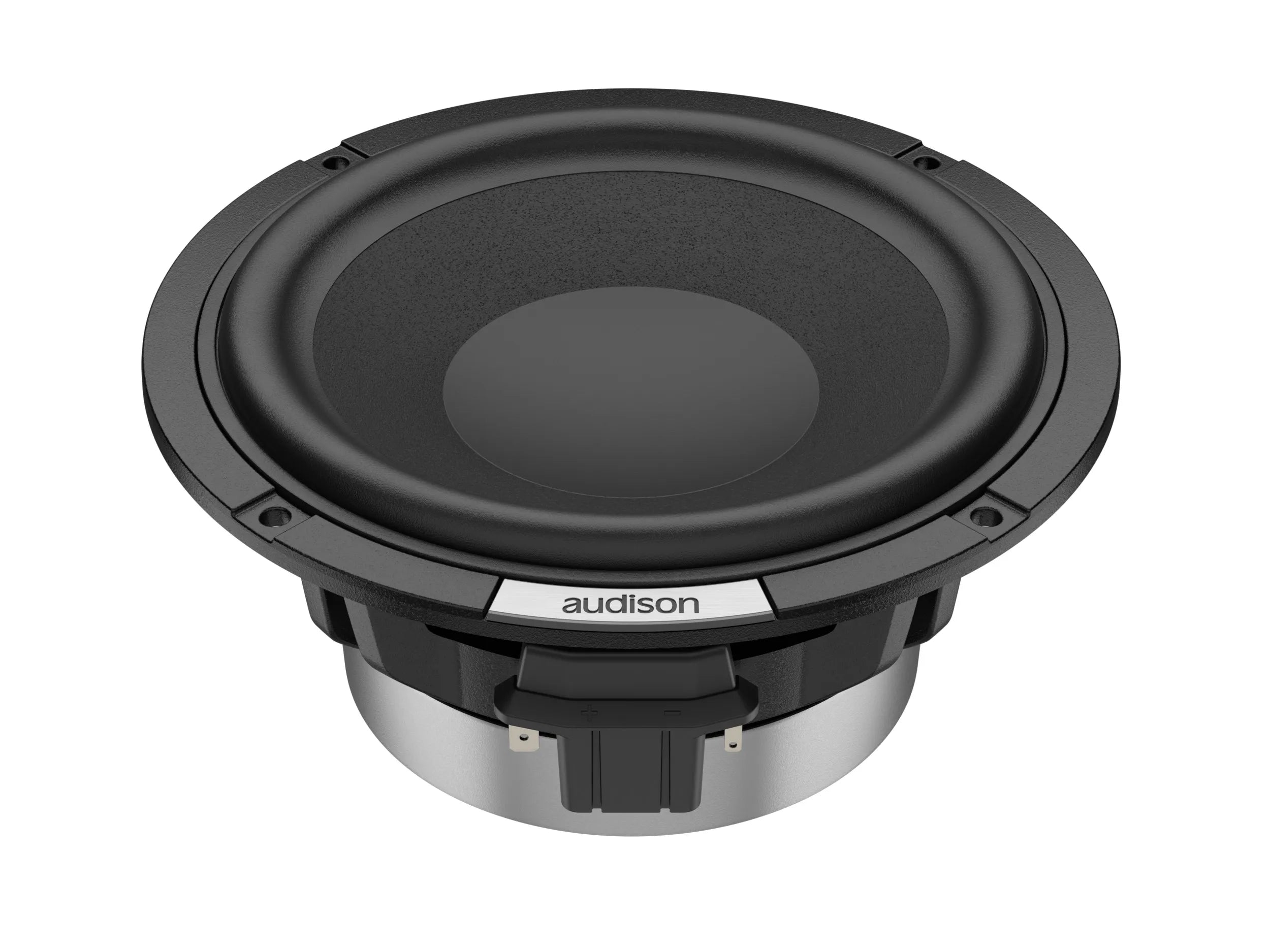

Audison AV 6.5 P II Voce II 6.5" Component Woofer (Pair)

Brand: Audison | SKU: AV 6.5P II | UPC: 8018823143288

Sale price
$699.99
Regular price
$805
You save
13%
Taxes calculated at checkout

Have a question?

Woofer | 300 W Peak Power | 165 mm (6.5 in.) | 4 ohm
The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.

Features:

  • 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
  • Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
  • Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.

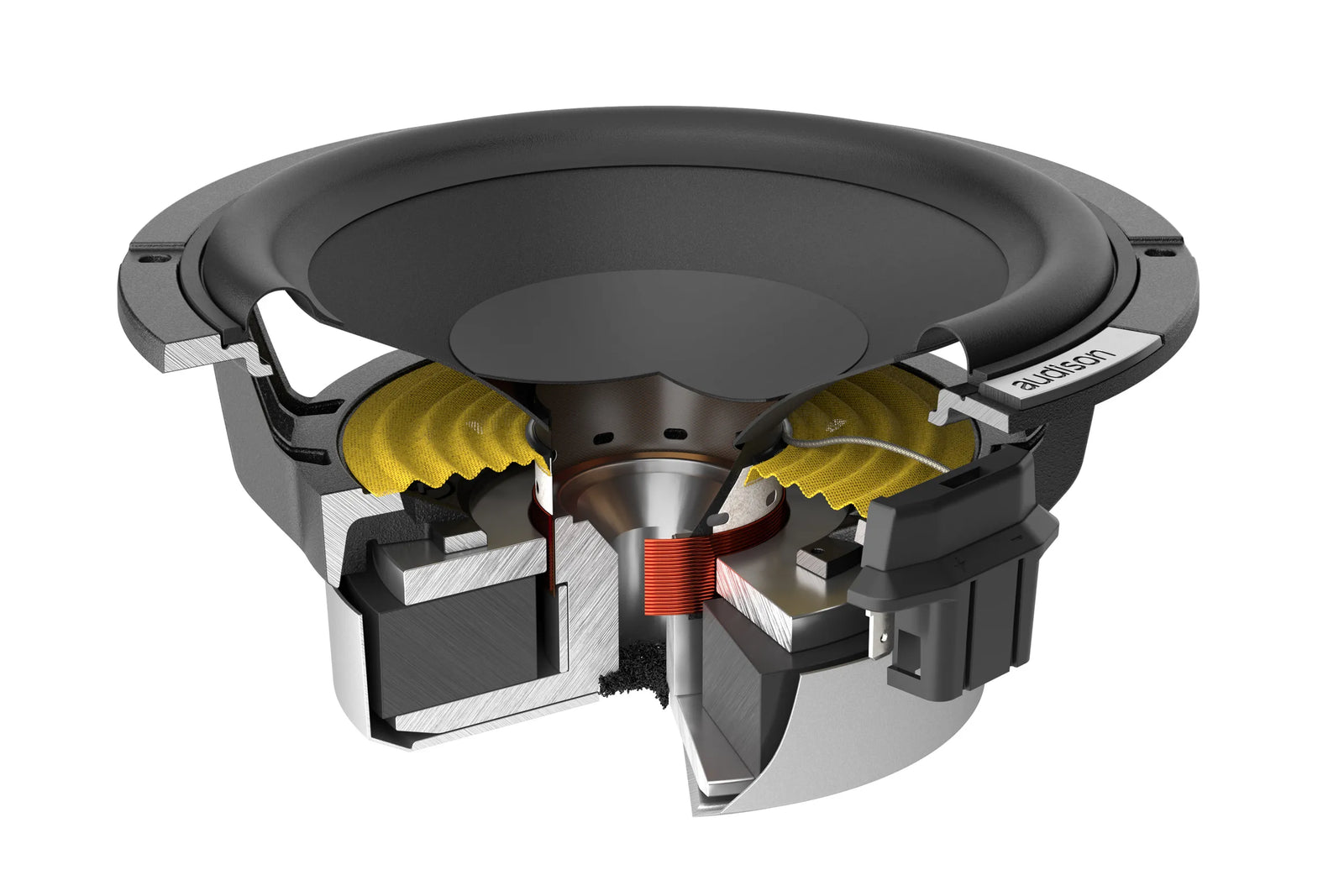

  • FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.

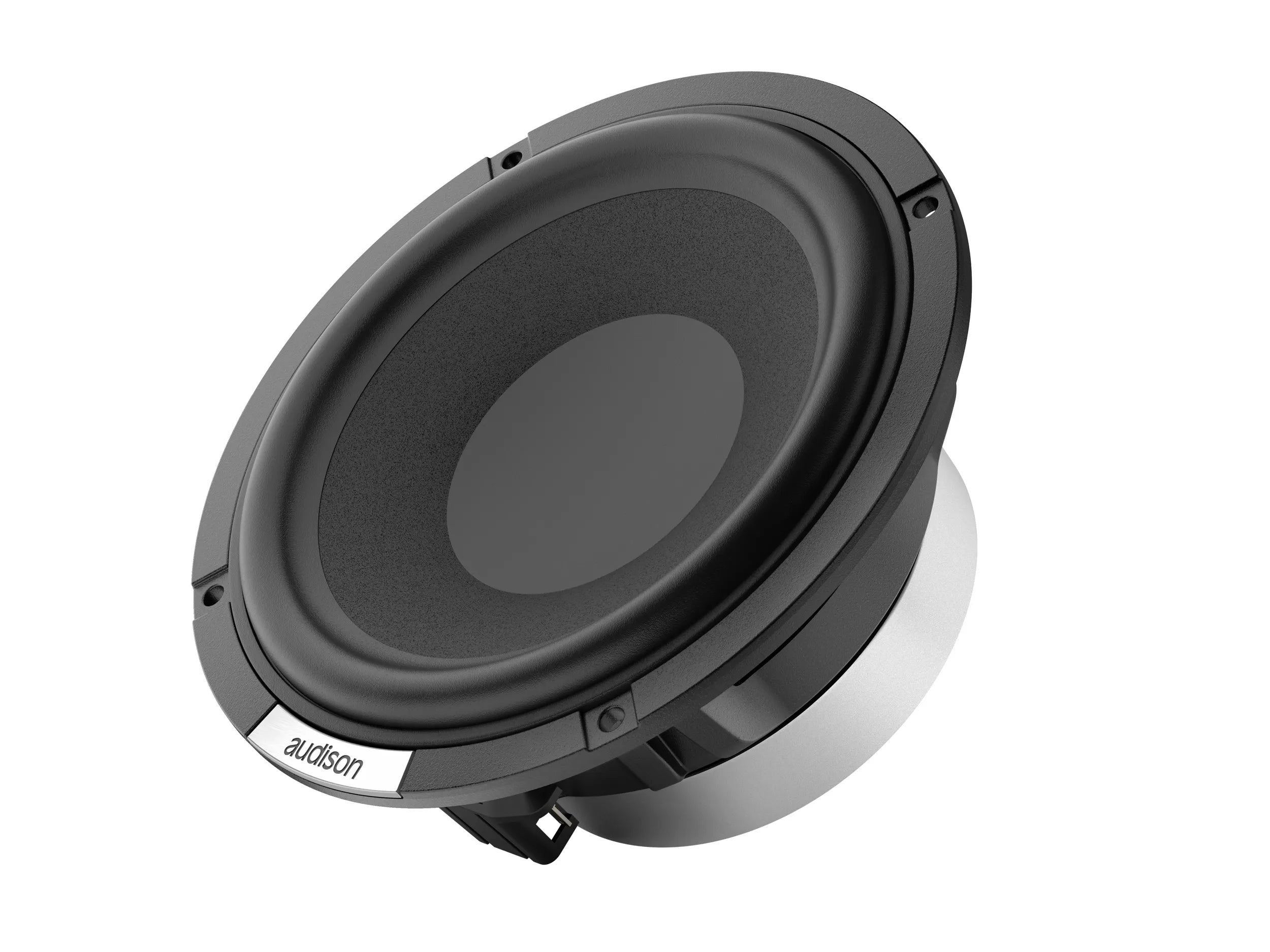

  • Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.

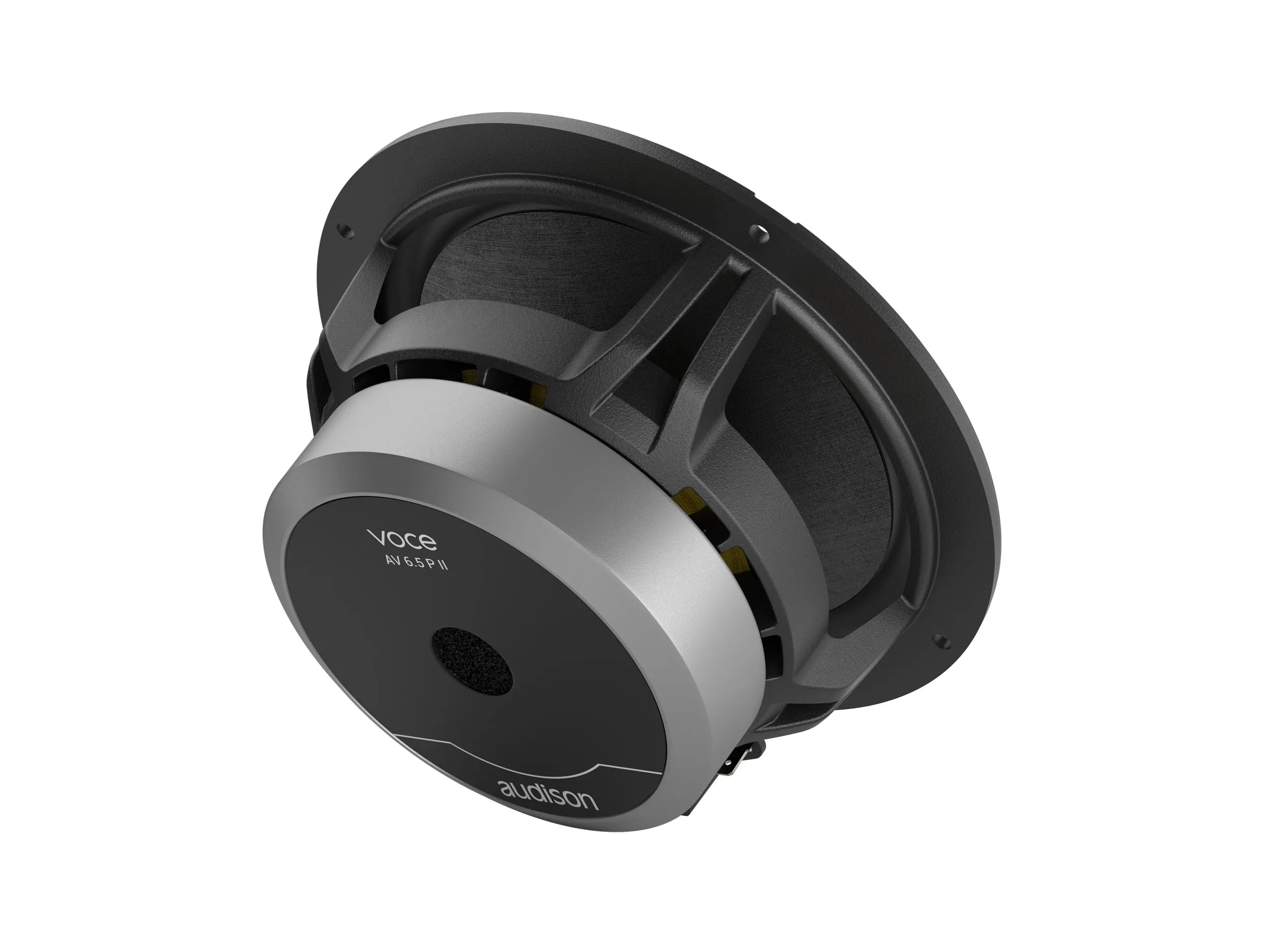

  • Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
  • High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.

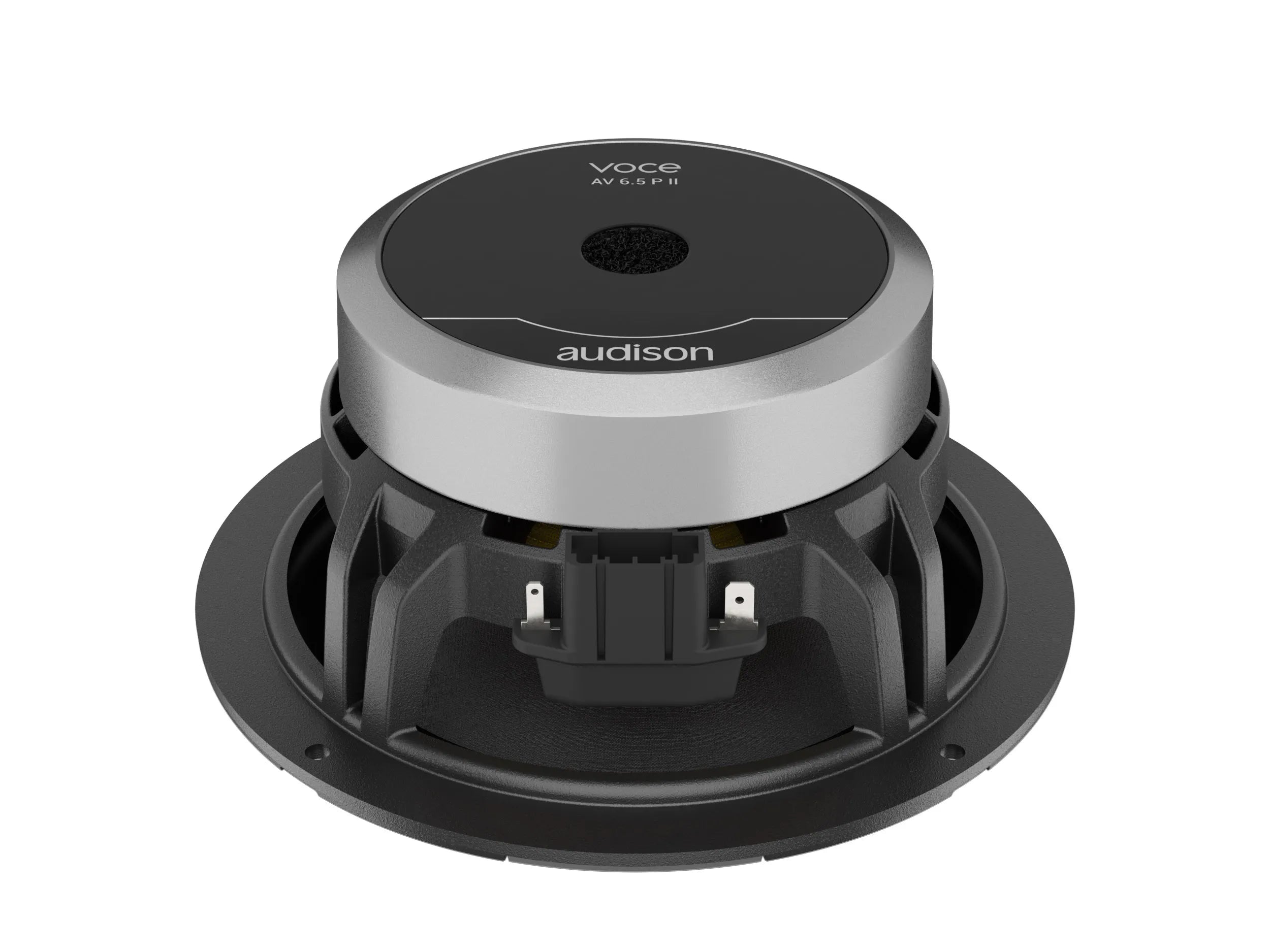

  • Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logo badges, allowing for personalized placement to enhance branding and aesthetics.

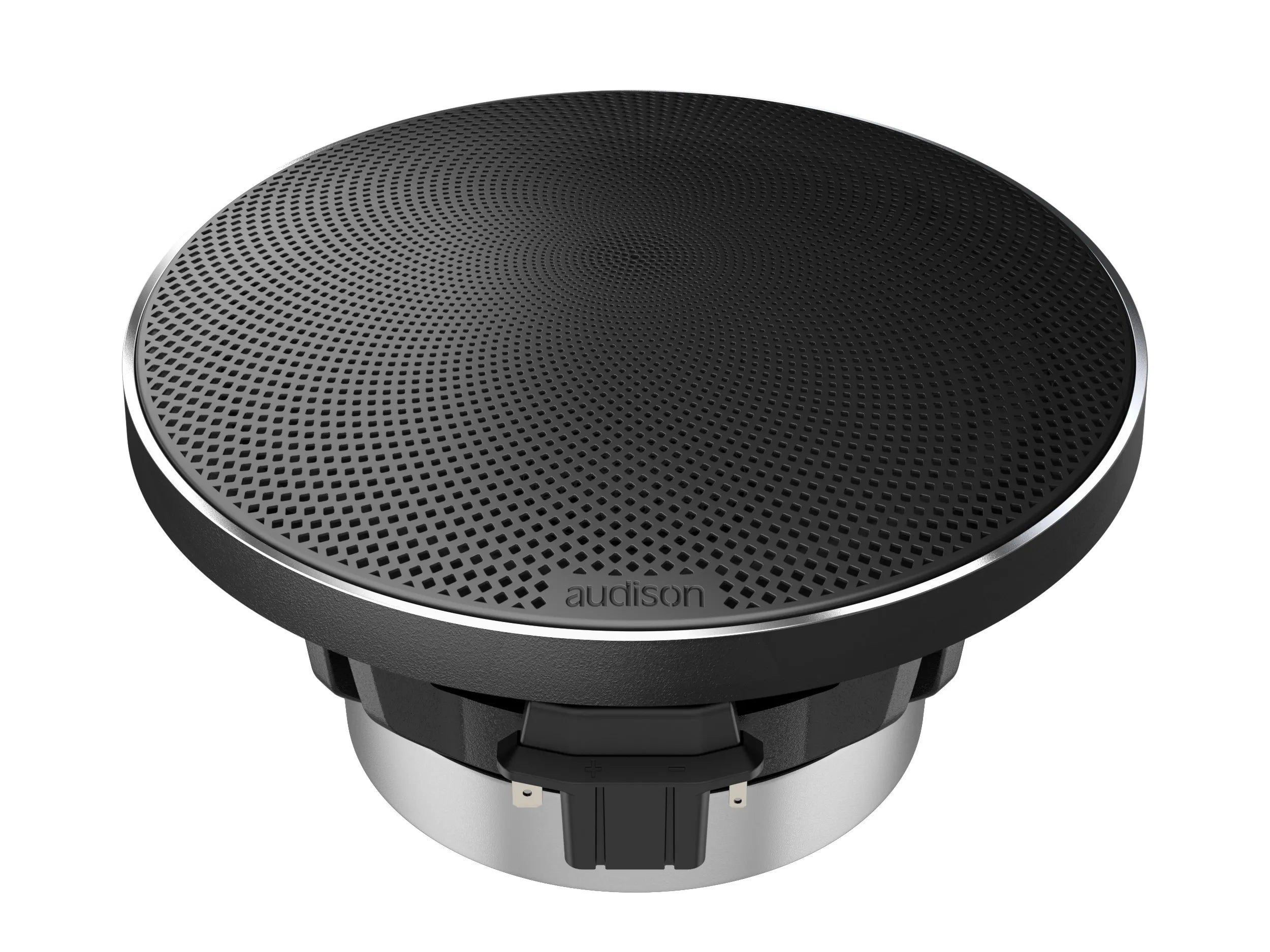

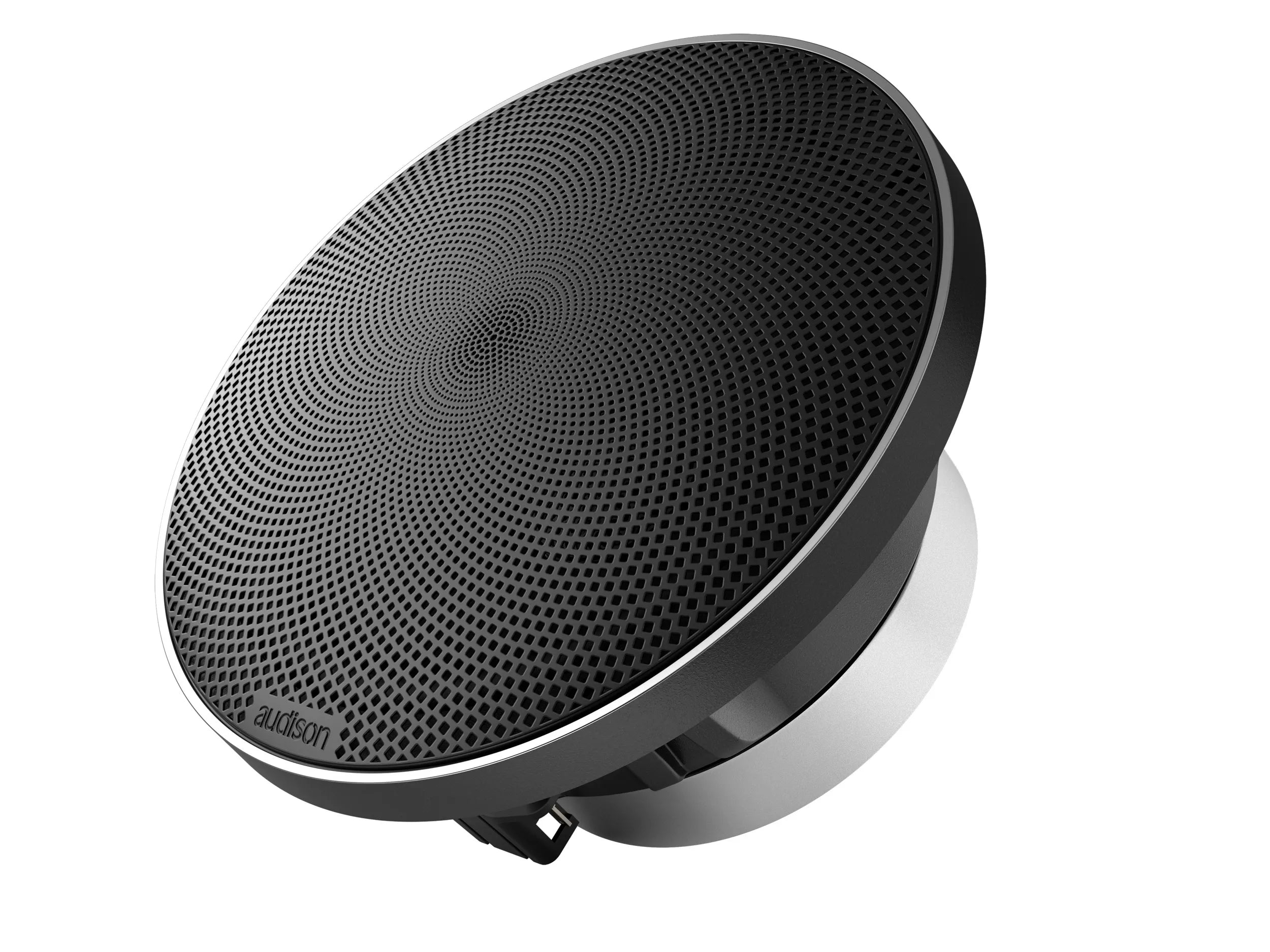

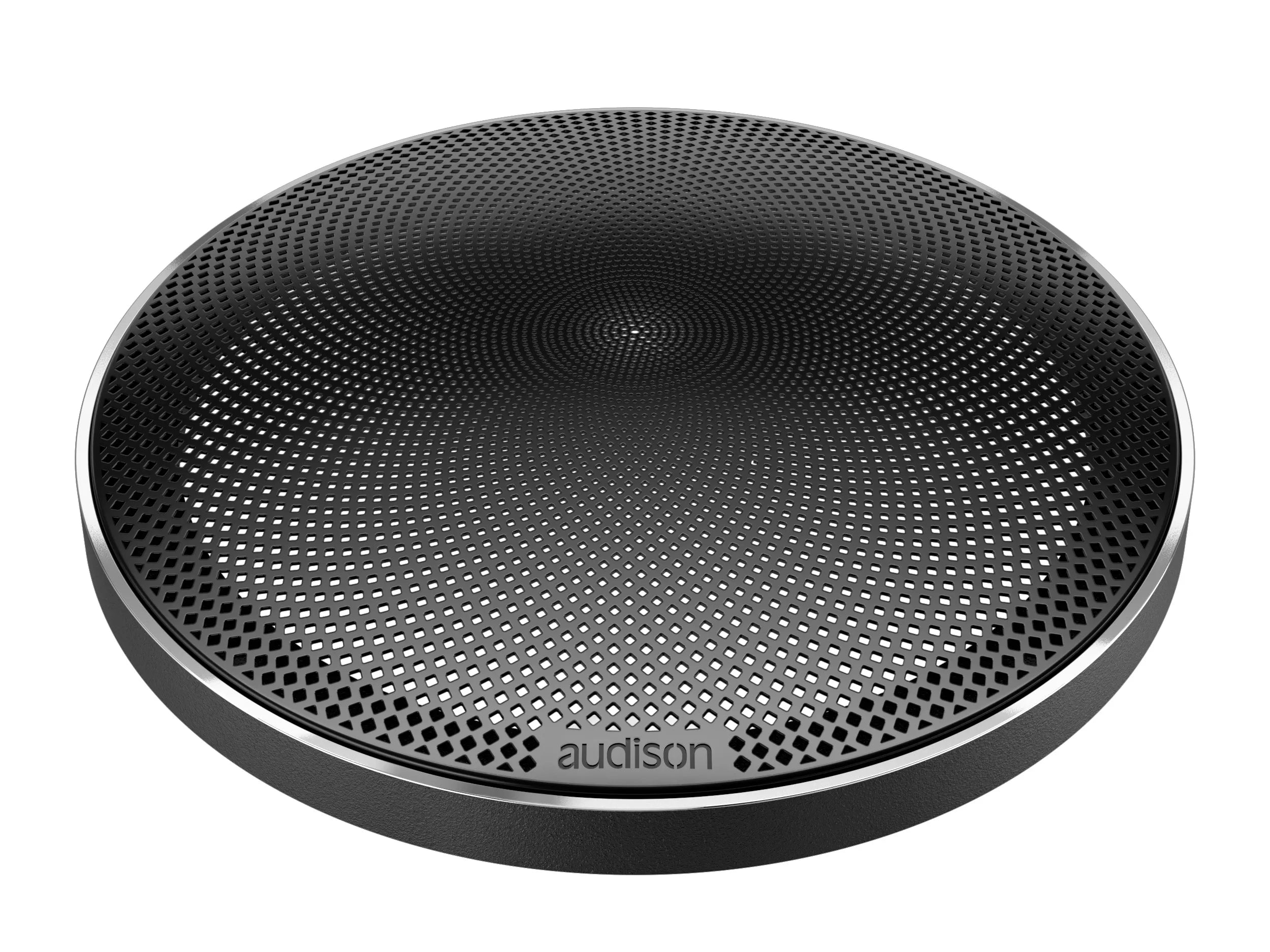

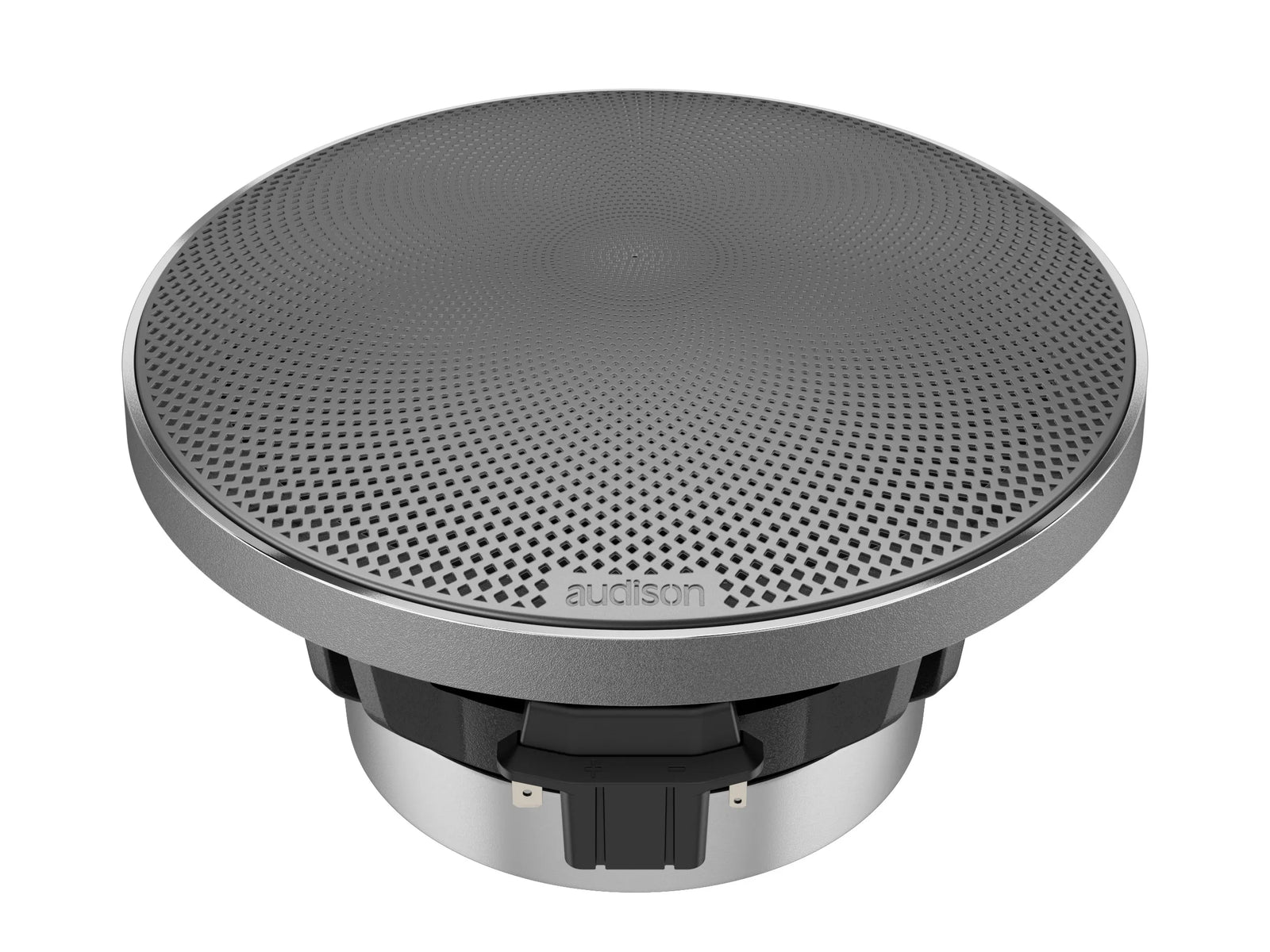

  • Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
  • eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.
Specs

Technical Specs
Nominal diameter    165 mm (6.5 in)
Impedance    4 Ohm
Minimum Impedance    3.1 Ohm
Power Handling - Peak    300 W
Power Handling - Continuous    150 W
Sensitivity    91 dB
SPL measured at 2.83V/1m;
Frequency Response    45 - 7500 Hz
(-6dB)
Voice Coil Ø    40 mm (1.6 in)
Chassis Material    ALUMINIUM
Magnet Material    HIGH DENSITY FLUX FERRITE
Magnet size D x d x h    100 x 45 x 18 (3.9 x 1.8 x 0.7) mm (in.)
Voice Coil Material    CCAW
Former Material    GLASS FIBER
Cone Material    SEMI-PRESSED PAPER
Surround Material    RUBBER
Xmax    4.95 mm (0.19 in)
Xmech    7.5 mm (0.3 in)
Voice Coil Winding Height    13 mm (0.51 in)
Gap Height    6 mm (0.24 in)

Electric-acoustic Specs
D    128.3 cm² (19.887 in²)
Re    2.9 Ohm
Fs    66 Hz
Le    0.3 mH
Vas    9.09 l (0.321 ft)
Mms    15.3 g (0.54 oz)
Cms    0.38 mm/N
BL    5.5 T•m
Qts    0.57
Qes    0.61
Qms    9.06

General
Weight    1.6 kg, 3.53 lbs

Brand Audison
