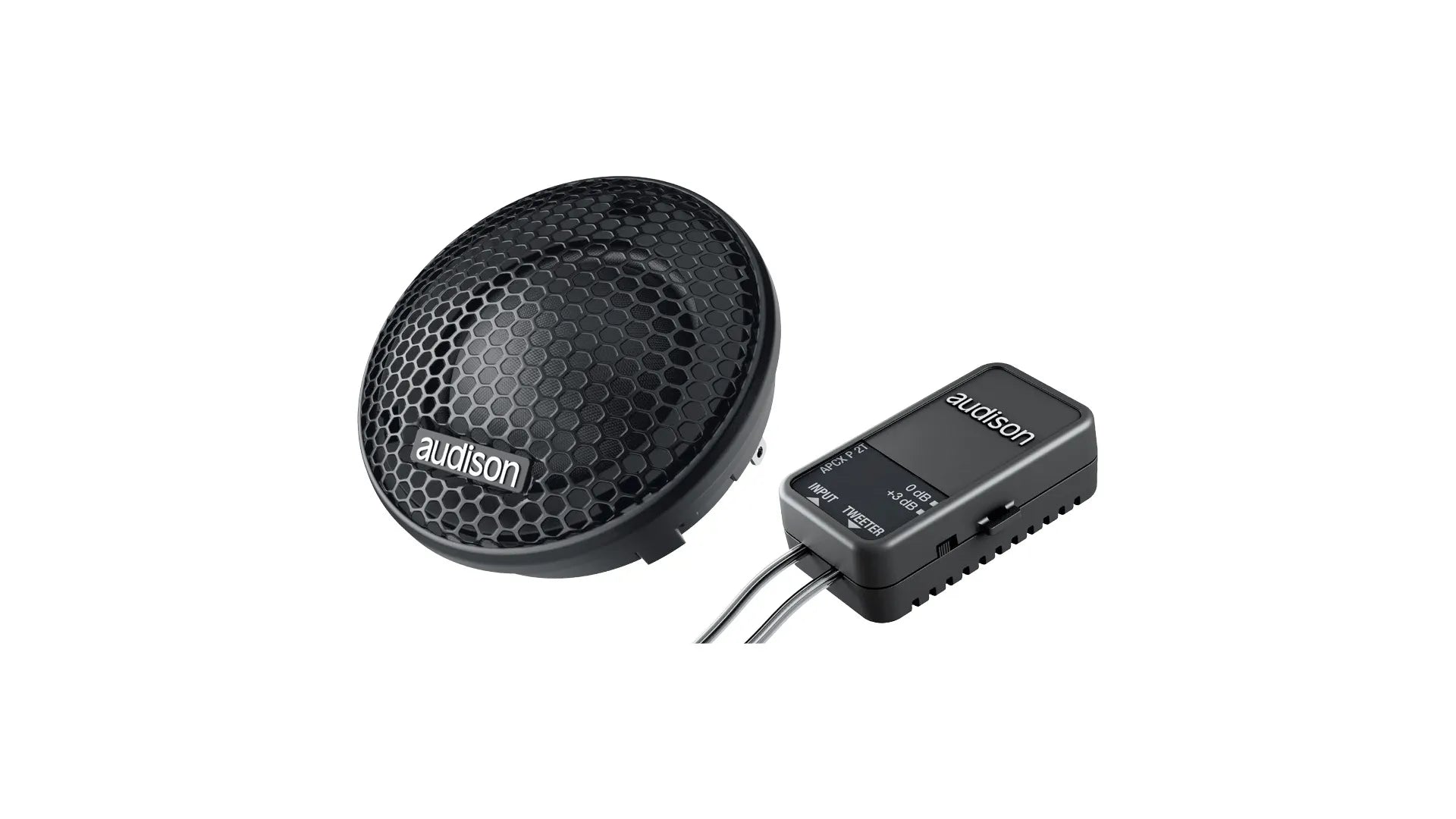

Audison AP 1P Prima 1 Inch Tweeter with High Power Crossover (Pair)

Brand: Audison | SKU: AP1P | UPC: 8018823135191

Sale price
$249.99
Regular price
$290
You save
14%
Taxes calculated at checkout

Have a question?

Tweeter | 150 W Peak Power | 29 mm | 8 ohm
The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response. AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:
OEM, for an easy and correct factory placement

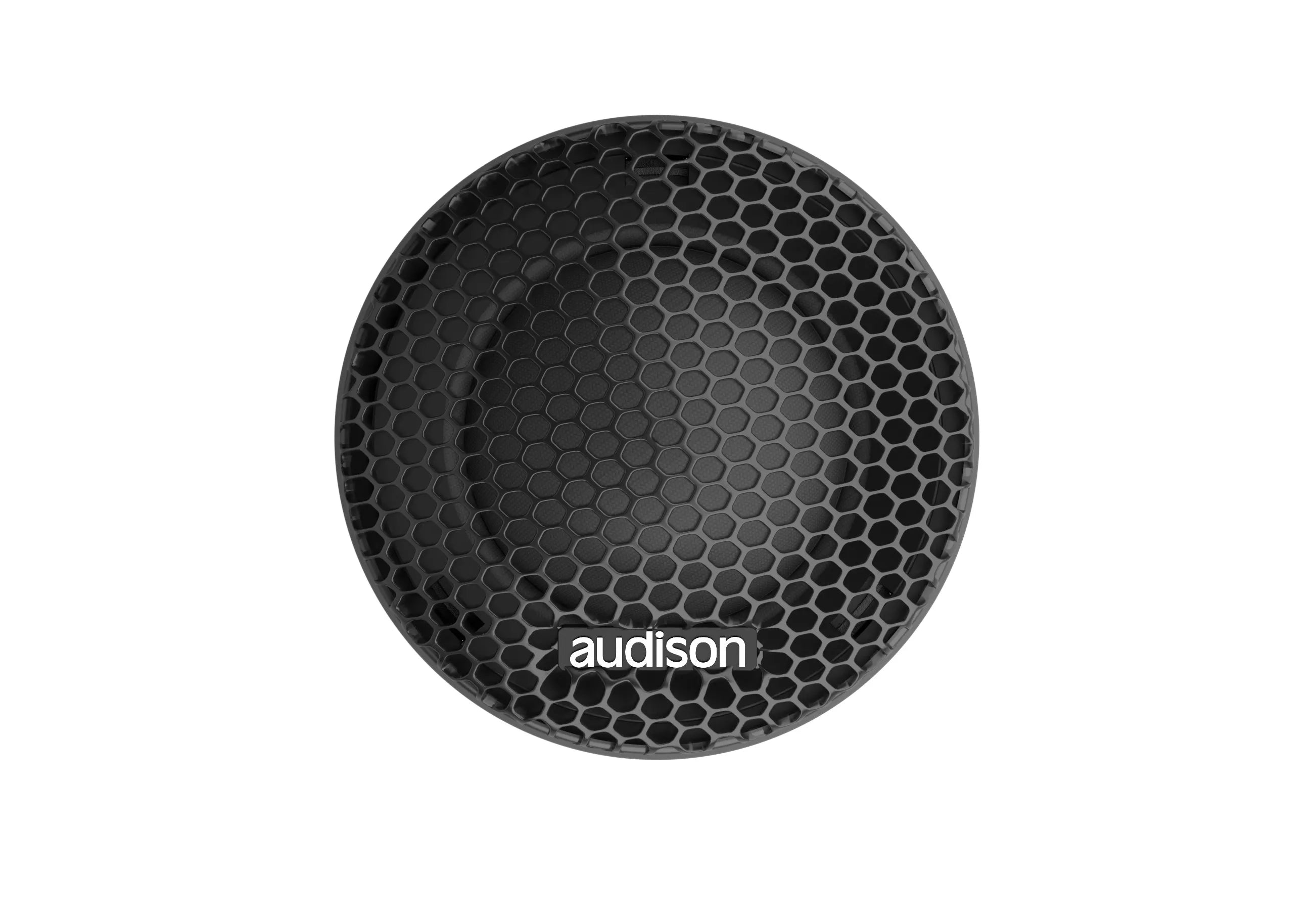

Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.
Spoke grille: for maximum acoustic performance with a-pillar installations
Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with three mounting accessories that make the AP 1P install a breeze:
Watch band;
Double-angle cup;
Flush Mounting Ring;
Metal mounting spring

Features:

  • AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
  • Three mounting accessories are supplied to provide a solution for any type of installation.

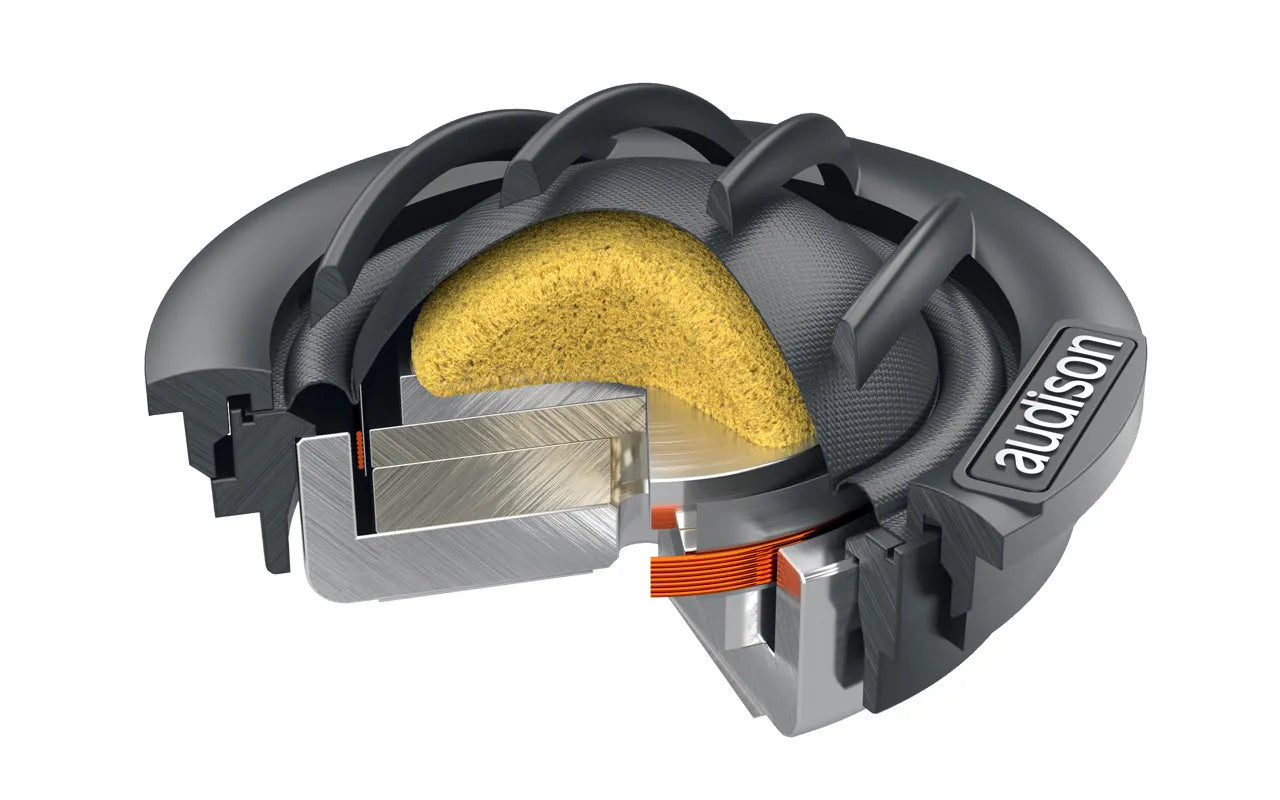

  • Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
  • 1 in. CCAW voice coil for superior dynamic response.
  • Dome profile optimized with FEM simulations for a wide off-axis dispersion
Specs

Technical Specs
Nominal diameter    29 mm (1.14 in)
Impedance    8 Ohm
Power Handling - Peak    150 W
Sensitivity    92 dB
Frequency Response    1,2 ÷ 25k Hz
Voice Coil Ø    25 mm (0.98 in)
Magnet Material    NEODYMIUM
Magnet size D x d x h    22 x 2,5 (0.87 x 0.1) mm (in.)
Dome Material    TETOLON FIBRE
Power Handling Crossover    Hi-pass filtered @2.5 kHz 12dB/oct
Crossover name    APCX P 2T
Crossover Type    High Pass 12 dB/oct.
Crossover adjustment    Tweeter Level: 0 / +3 dB

Electric-acoustic Specs
Re    5.75 Ohm
Fs    1600 Hz
Le    0.04 mH
Mms    0.23 g
Cms    0.05 mm/N
BL    2.7 T•m
Qts    1.21
Qes    1.74
Qms    4

General
Weight    0.067 kg, 0.15 lbs
Crossover Weight    0.065 kg, .14 lbs

Brand Audison
