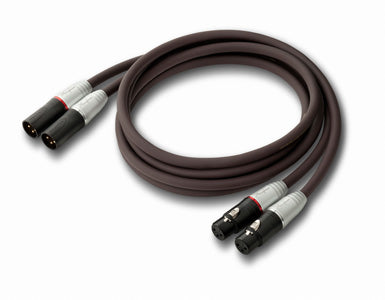

Includes XLR type connectors with gold-plated
terminals with low contact resistance and superior corrosion resistance.
By using an 8-core multi-hybrid construction with 2 sets of 4 different types of wires – including class 7N high-grade copper wire – the SR Series delivers extremely pure transmission with reduced loss at the range limits.
A high-density braid and double-layer structure with aluminum foil tape over the 192 φ 0.1 mm annealed copper wires reduces capacitance and creates excellent shielding results.
Phono plug
Configuration 8-core multi-hybrid construction
Insulator Polyethylene
Exterior insulation material PVC Dark brown φ8.7
Central conductor Class 7N high-grade copper wire
+ 3 types of copper wire
Shielded conductor Annealed copper wire × 192
Conductor resistance (mΩ/m) 9
Capacitance (pF/m) 187.5
Inductance (μH/m) 0.51
