Introducing the Bowers & Wilkins 800 D5 Diamond Series
View the 800 D5 Diamond Series
Bowers & Wilkins FS-HTM D5 Center Channel Stand for HTM81 D5 or HTM82 D5 (Each)
Bowers & Wilkins
Bowers & Wilkins FS-HTM D5 Center Channel Stand for HTM81 D5 or HTM82 D5 (Each)
Price
From $1,100
Bowers & Wilkins FS-805 D5 Floor Stand for 805 D5 Bookshelf Speaker (Pair)
Bowers & Wilkins
Bowers & Wilkins FS-805 D5 Floor Stand for 805 D5 Bookshelf Speaker (Pair)
Price
$2,000
Bowers & Wilkins HTM82 D5 800 Diamond Series Center Channel Speaker (Each)
Bowers & Wilkins
Bowers & Wilkins HTM82 D5 800 Diamond Series Center Channel Speaker (Each)
Price
$12,000
Bowers & Wilkins HTM81 D5 800 Diamond Series Center Channel Speaker (Each)
Bowers & Wilkins
Bowers & Wilkins HTM81 D5 800 Diamond Series Center Channel Speaker (Each)
Price
$15,000
Bowers & Wilkins 805 D5 800 Diamond Series Stand-Mount Loudspeaker (Pair)
Bowers & Wilkins
Bowers & Wilkins 805 D5 800 Diamond Series Stand-Mount Loudspeaker (Pair)
Price
$15,000
Bowers & Wilkins 804 D5 800 Diamond Series Floorstanding Speaker (Pair)
Bowers & Wilkins
Bowers & Wilkins 804 D5 800 Diamond Series Floorstanding Speaker (Pair)
Price
$25,000
Bowers & Wilkins 803 D5 800 Diamond Series Floorstanding Speaker (Pair)
Bowers & Wilkins
Bowers & Wilkins 803 D5 800 Diamond Series Floorstanding Speaker (Pair)
Price
$35,000
Bowers & Wilkins FS-805 D5 Floor Stand for 805 D5 Bookshelf Speaker (Pair)
Bowers & Wilkins
Bowers & Wilkins FS-805 D5 Floor Stand for 805 D5 Bookshelf Speaker (Pair)
Price
$2,000
Bowers & Wilkins FS-HTM D5 Center Channel Stand for HTM81 D5 or HTM82 D5 (Each)
Bowers & Wilkins
Bowers & Wilkins FS-HTM D5 Center Channel Stand for HTM81 D5 or HTM82 D5 (Each)
Price
From $1,100

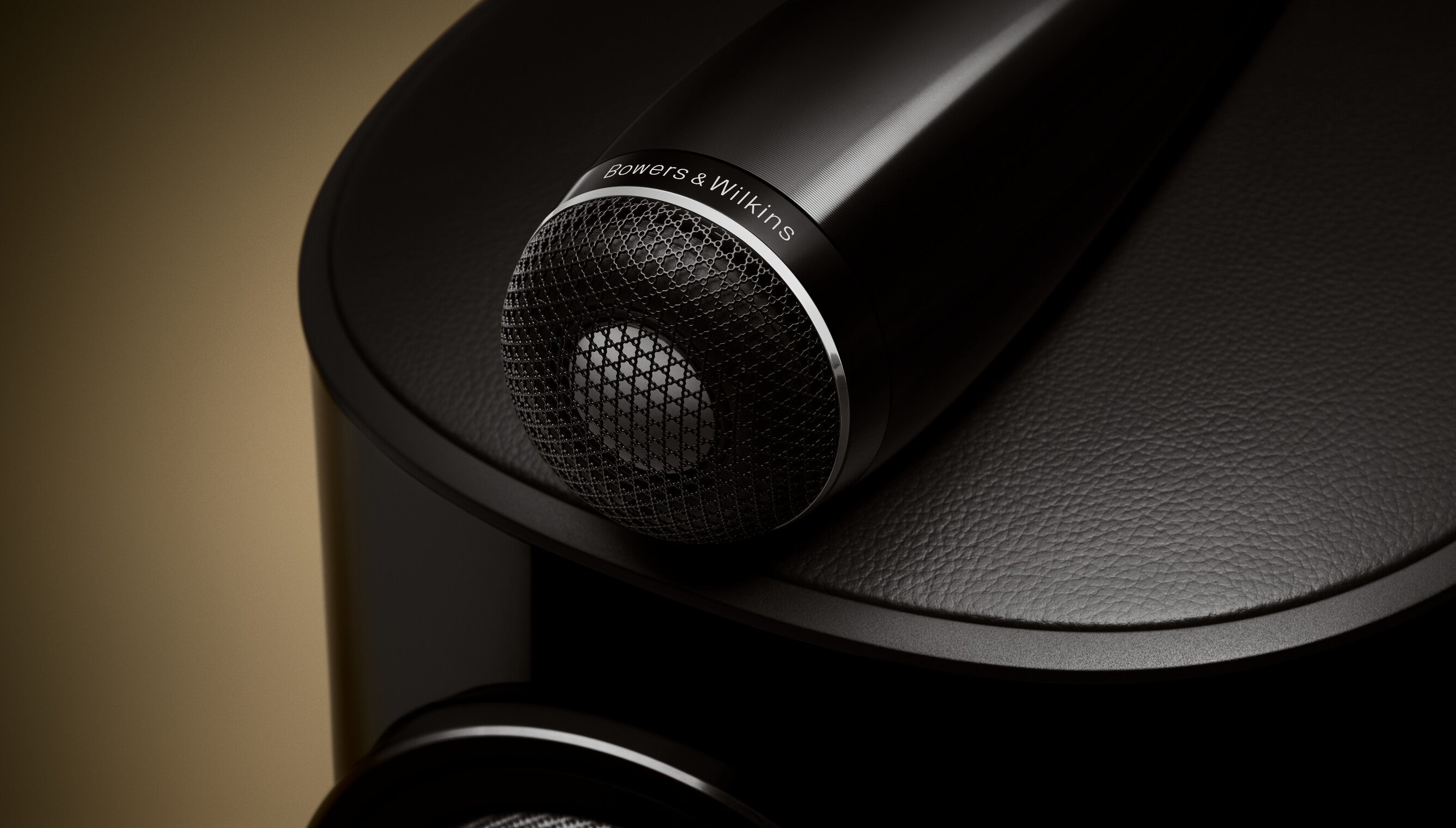

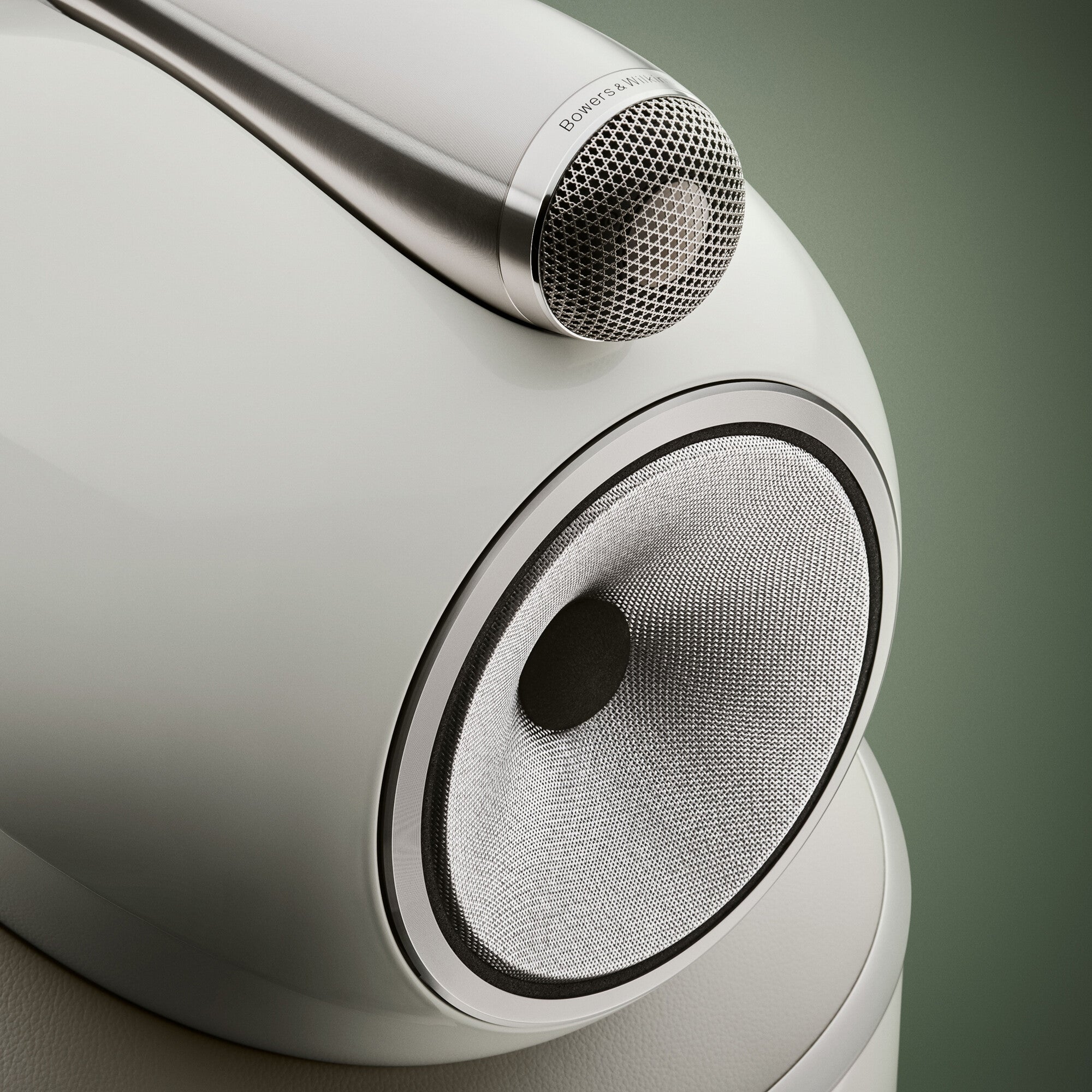

The Solid Body Tweeter-on-Top & Diamond Dome
The signature profile of the 800 Series isolates the high frequencies entirely from the main cabinet structure. Milled from a single, solid block of aluminum, this elongated tube-loading system houses the extraordinarily stiff, accurate Diamond Dome tweeter. By decoupling this assembly, cabinet diffraction and internal energy paths are completely eliminated.

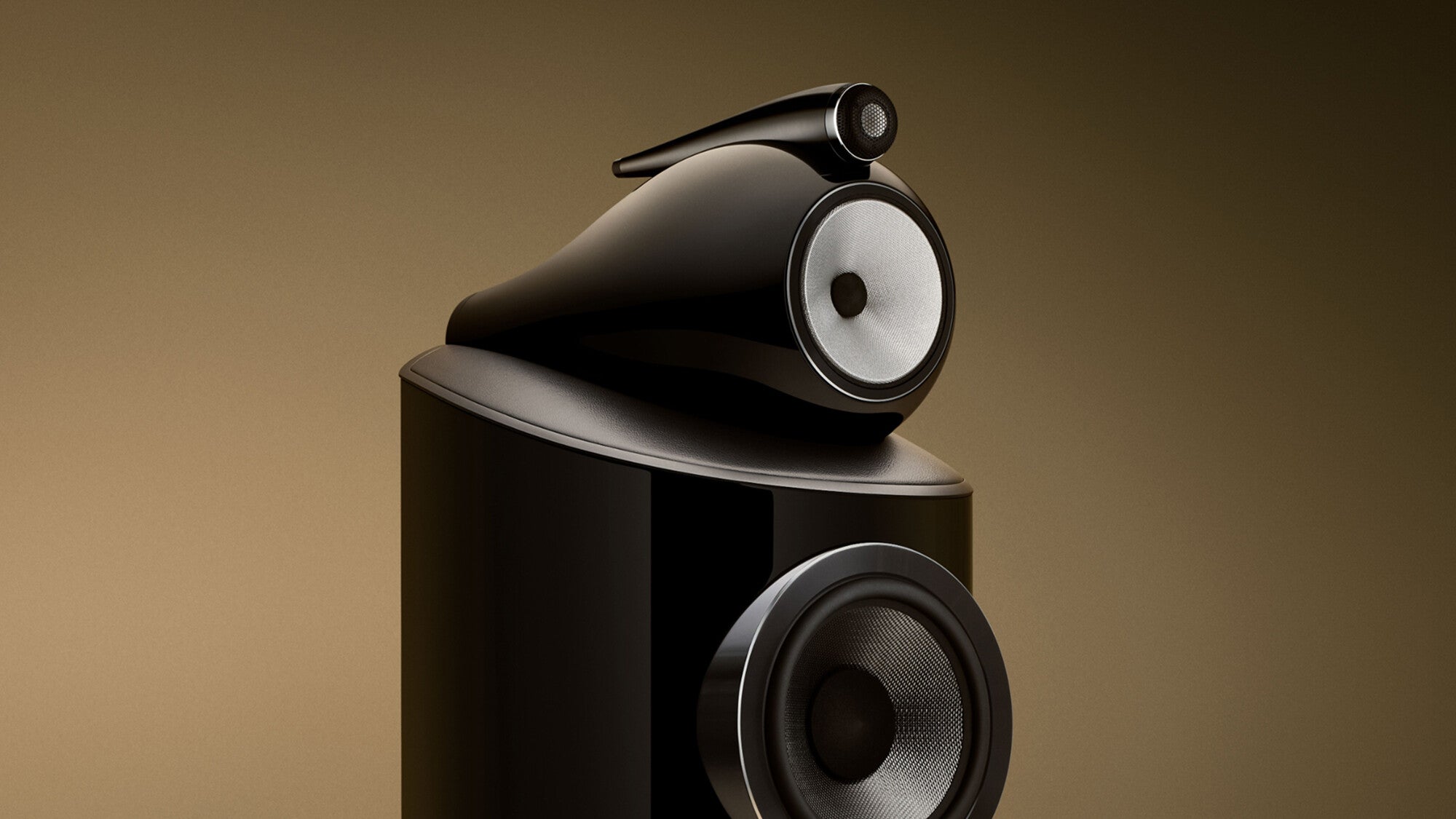

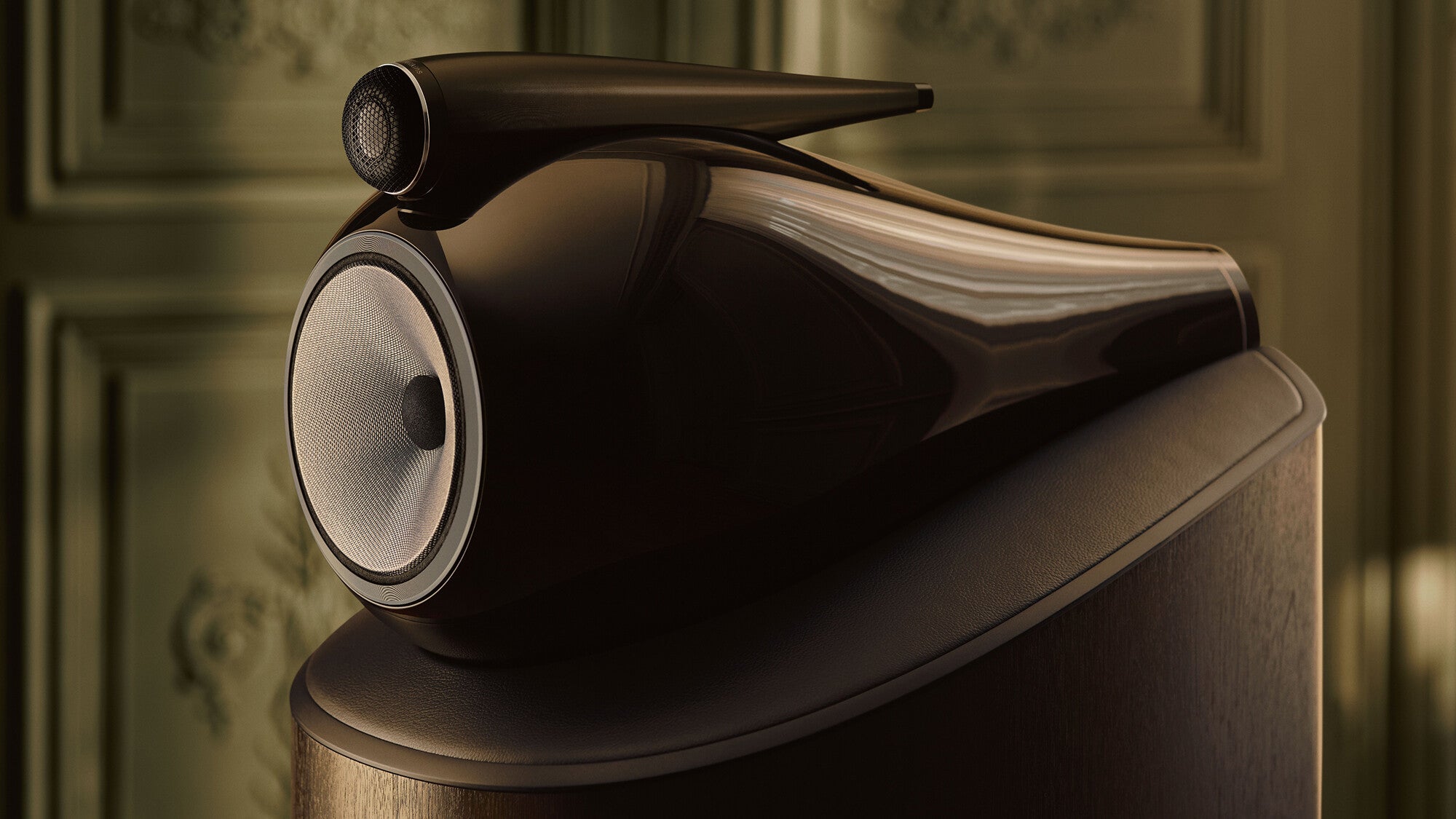

The Iconic Turbine Head Enclosure
Featured on the reference tier floorstanders (801, 802, and 803), the Turbine Head is an all-aluminum midrange housing. Its heavily dampened, biological teardrop shape prevents internal standing waves and completely separates the crucial midrange frequencies from the massive air pressure generated by the bass drivers below.
Continuum™ FST Cone & Biomimetic Suspension
Midrange realism is handled by the woven Continuum composite cone. Swapping traditional fabric spiders for a minimal, open-element Biomimetic Suspension, Bowers & Wilkins dramatically reduces unwanted air pressure variations and mechanical noise. The result is unparalleled vocal clarity and transparent transient response.

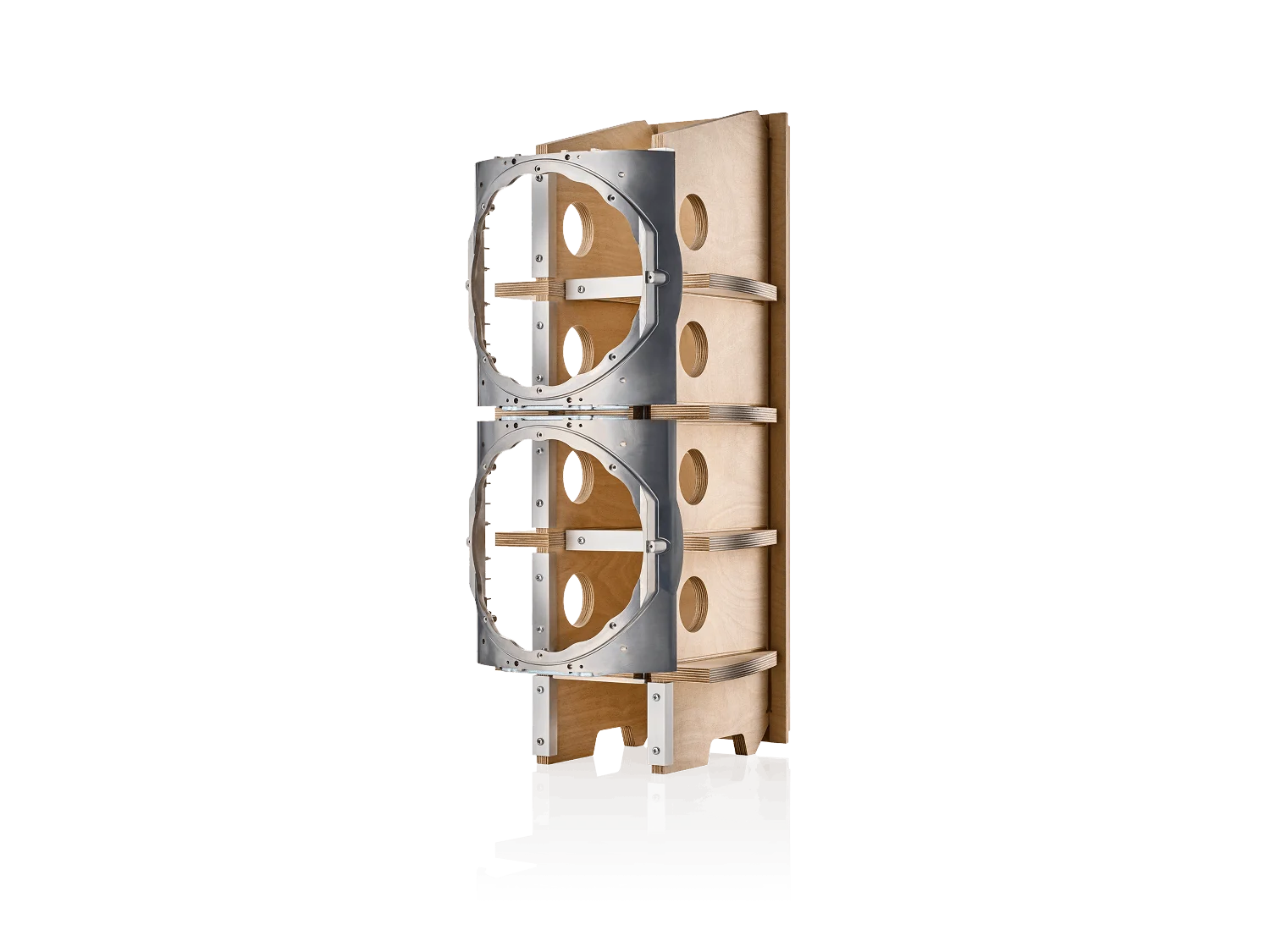

Advanced Space Frame Bracing & Matrix™ Skeletal Core
True sound adds nothing and takes nothing away. To make a cabinet entirely inert, the interior features interlocking structural panels known as Matrix Bracing. The latest generation introduces parallel Space Frame aluminum bracing rails that bolt directly to the back of the cabinet spine, locking down cabinet resonance.

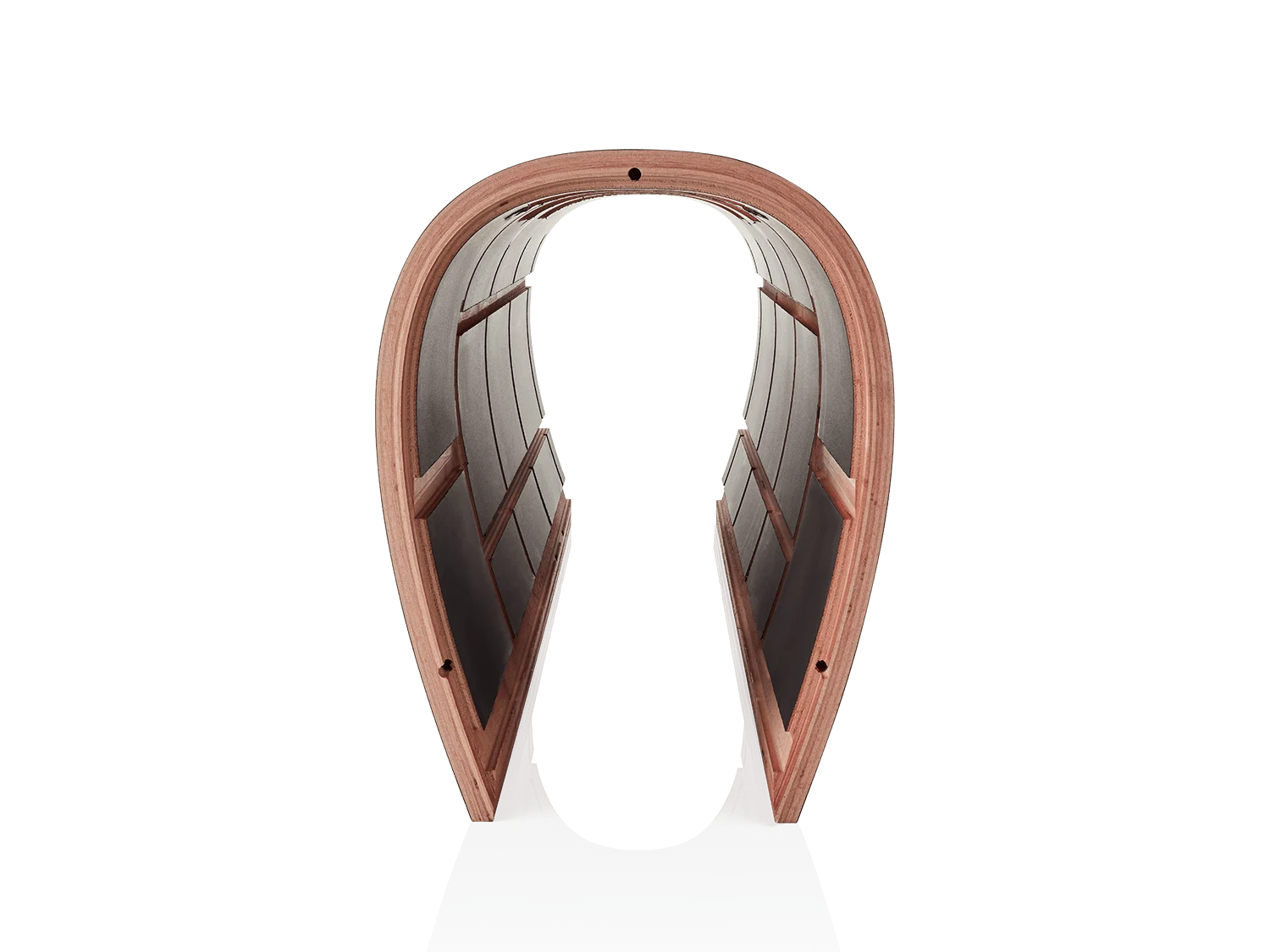

Aerofoil™ Profile Bass Cones & Curved Reverse-Wrap Cabinet
Low frequencies demand rigidity without weight. The Aerofoil bass cones use a variable-thickness design, keeping maximum stiffness exactly where the physical forces are greatest. These drivers are mounted into single-piece solid aluminum pods clamped directly into the ultra-stiff, curved Reverse-Wrap wooden cabinet shell.
Compare the 800 D5 Diamond Models
Model
Diamond Series 801 D5
Diamond Series 802 D5
Diamond Series 803 D5
Diamond Series 804 D5
Diamond Series 805 D5
Woofer
Aerofoil Cone
Aerofoil Cone
Aerofoil Cone
Aerofoil Cone
Continuum Cone
Speaker Type
3-Way Speaker
3-Way Speaker
3-Way Speaker
3-Way Speaker
2-Way Speaker
Cabinet Type
Bottom Ported
Bottom Ported
Bottom Ported
Bottom Ported
Front Ported
Impedence (Ohms)
8
8
8
8
8
Sensitivity (dB)
90
90
90
89
89
Frequency Response (Hz)
15-28,000
17-28,000
19-28,000
19-24,000
34-35,000
Power Range (watts)
50-1000
50-500
50-500
50-200
50-120
Woofer Size (Inches)
10
8
7
6.5
Midrange Size (inches)
6
6
5
5
6.5
Tweeter Size (inches)
1
1
1
1
1
Tweeter Type
Diamond Dome
Diamond Dome
Diamond Dome
Diamond Dome
Diamond Dome
Weight (lbs)
234.6
201.4
140.3
88.7
36
Dimensions HxWxD (Inches)
48.1" x 17.6" x 23.5"
48" x 16.2" x 23.2"
45.8" x 14.1" x 19.6"
43.3" x 12.1" x 15.4"
17.3" x 9.5" x 14.3"
Price
$65,000.00
$45,000.00
$35,000.00
$25,000.00
$15,000.00
