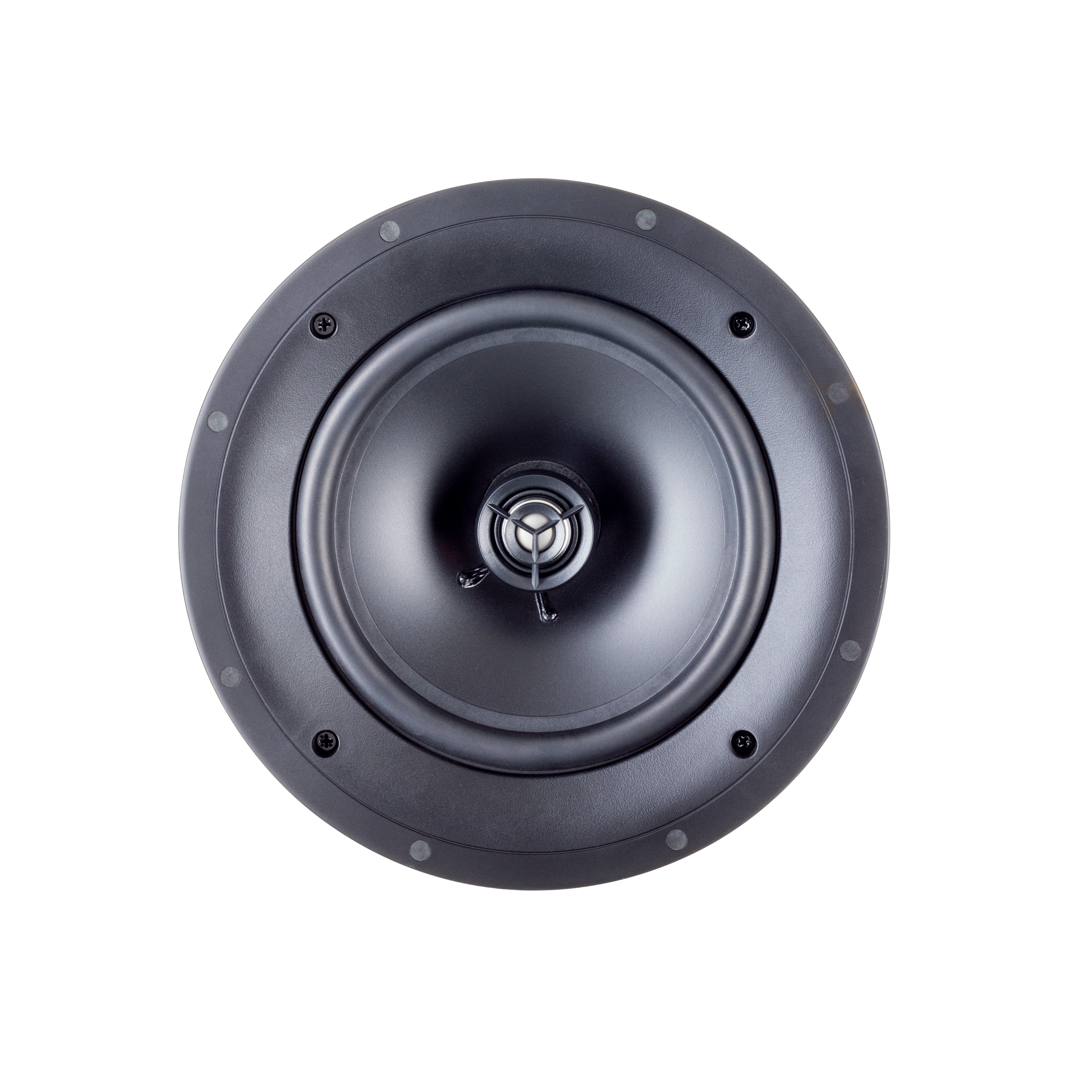

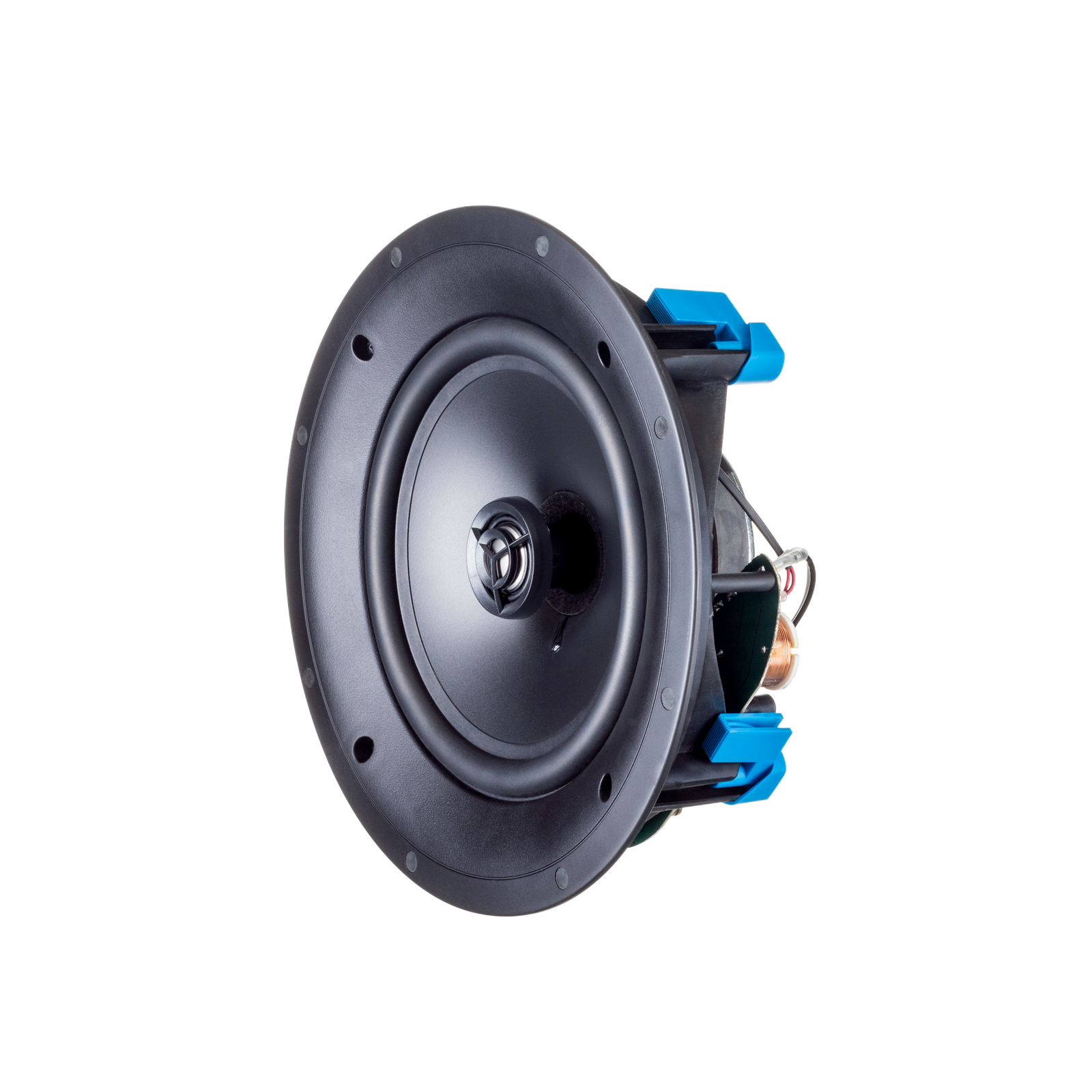

Paradigm CI Home H80-R 8" In-Ceiling Speaker (Each)
CI HOME SERIES
Your “Go-To” Custom Install Speaker.

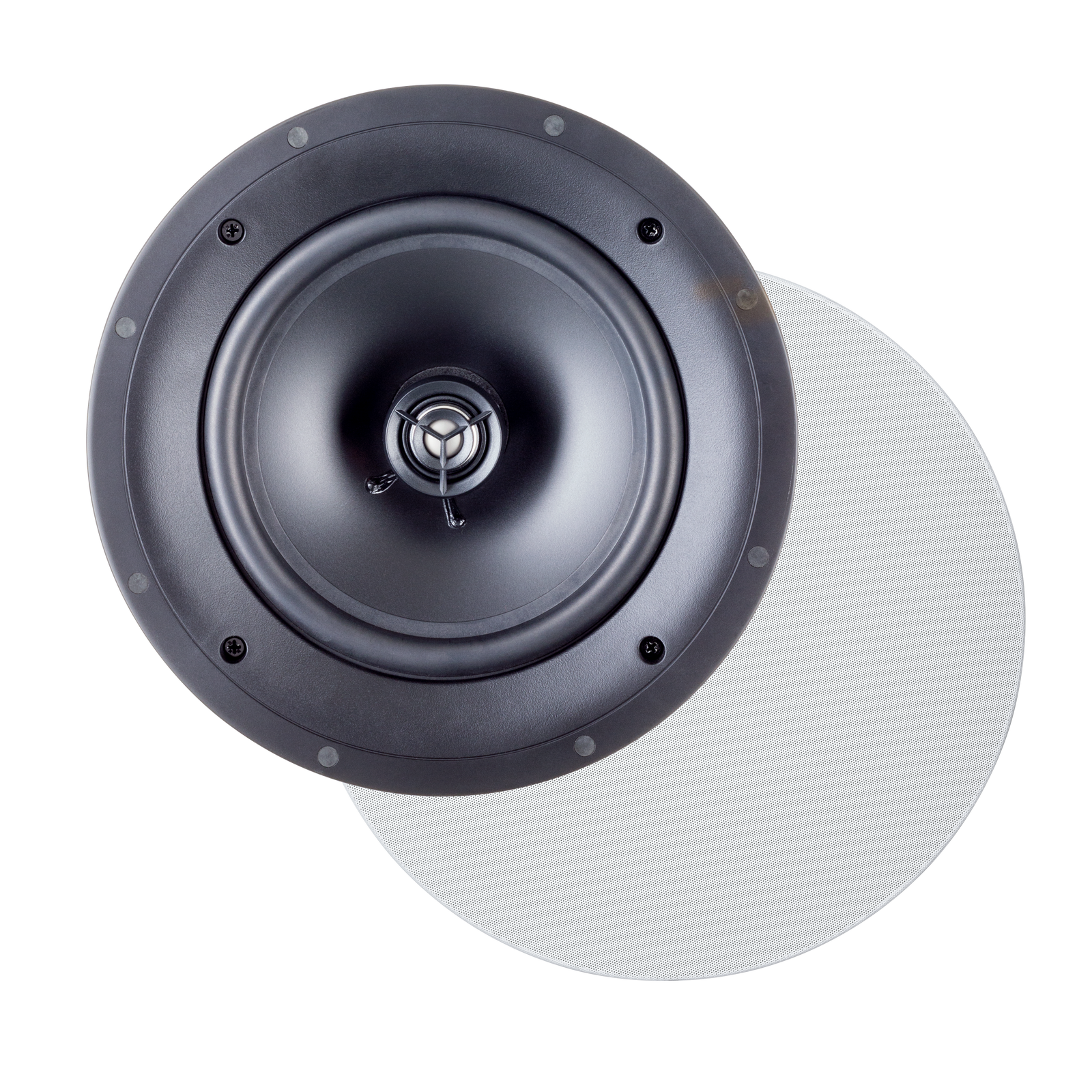

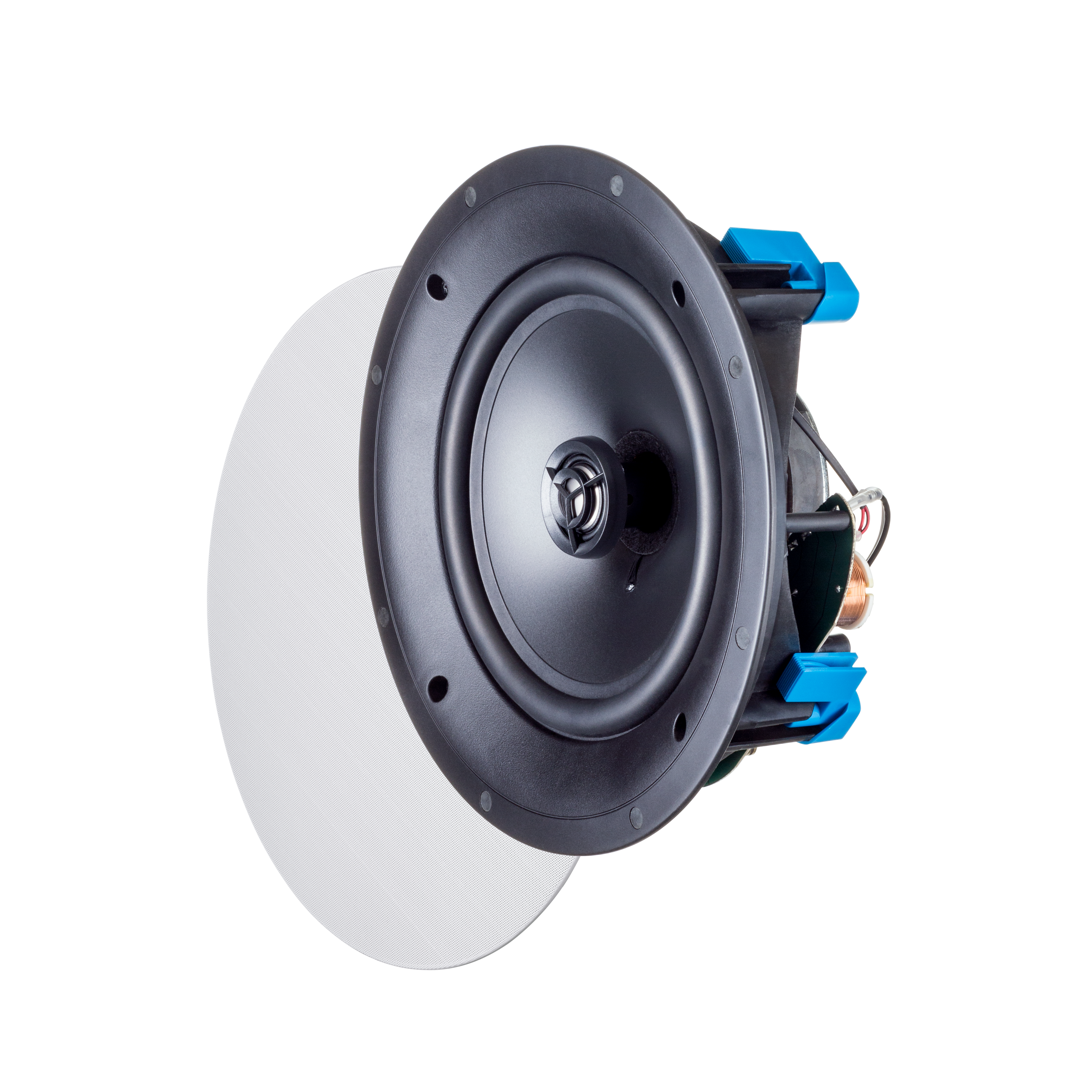

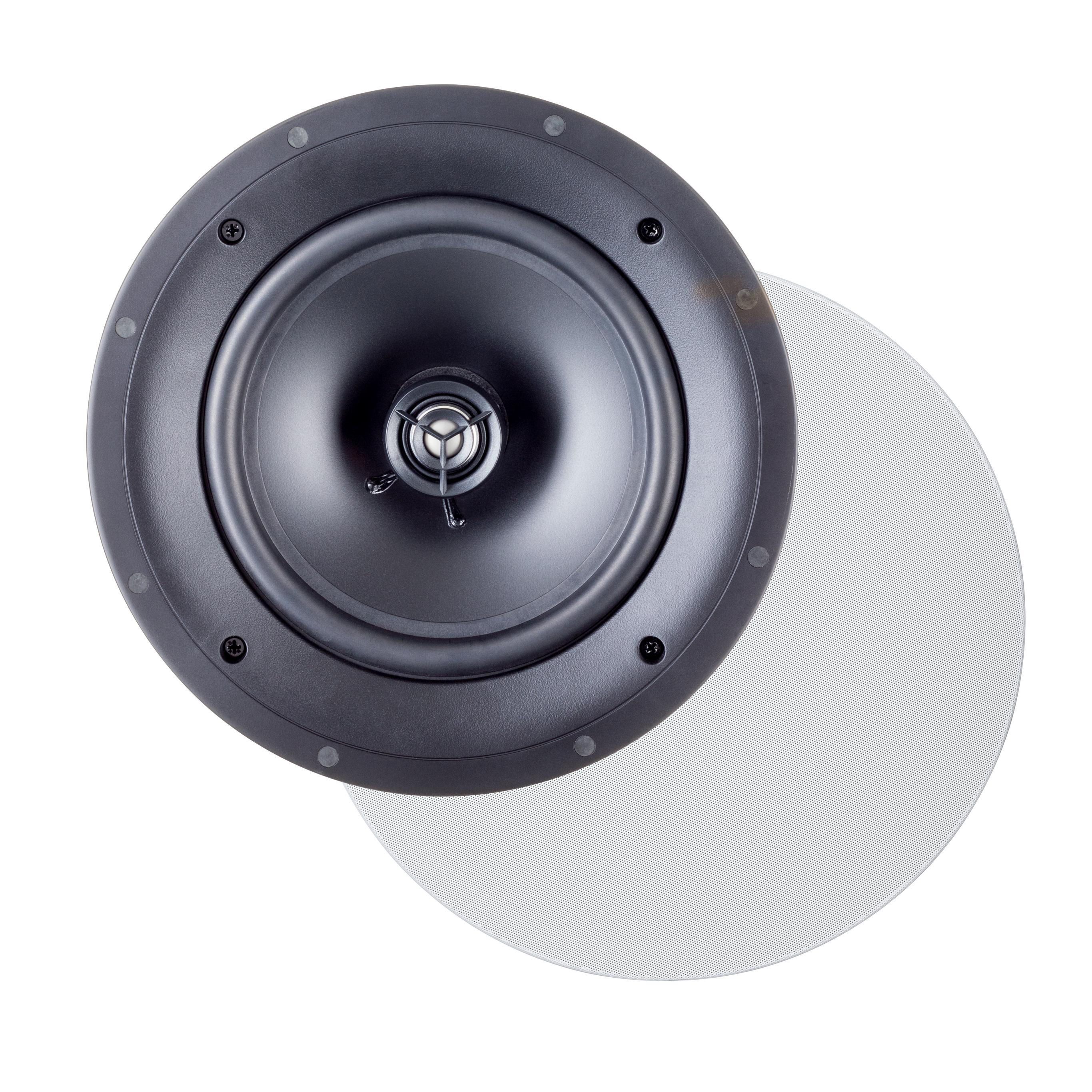

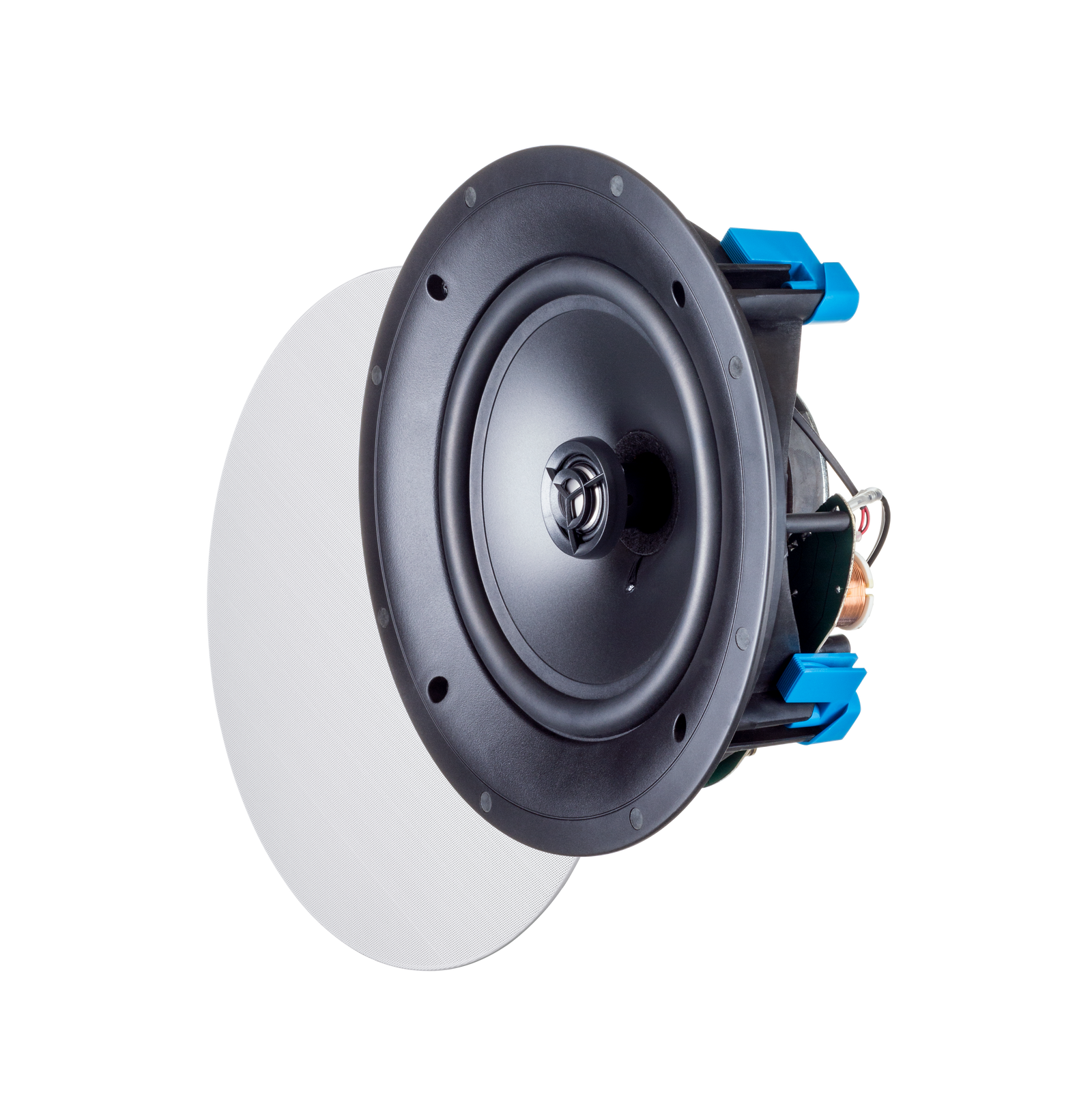

The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
High-Quality Components Make An Audible Difference

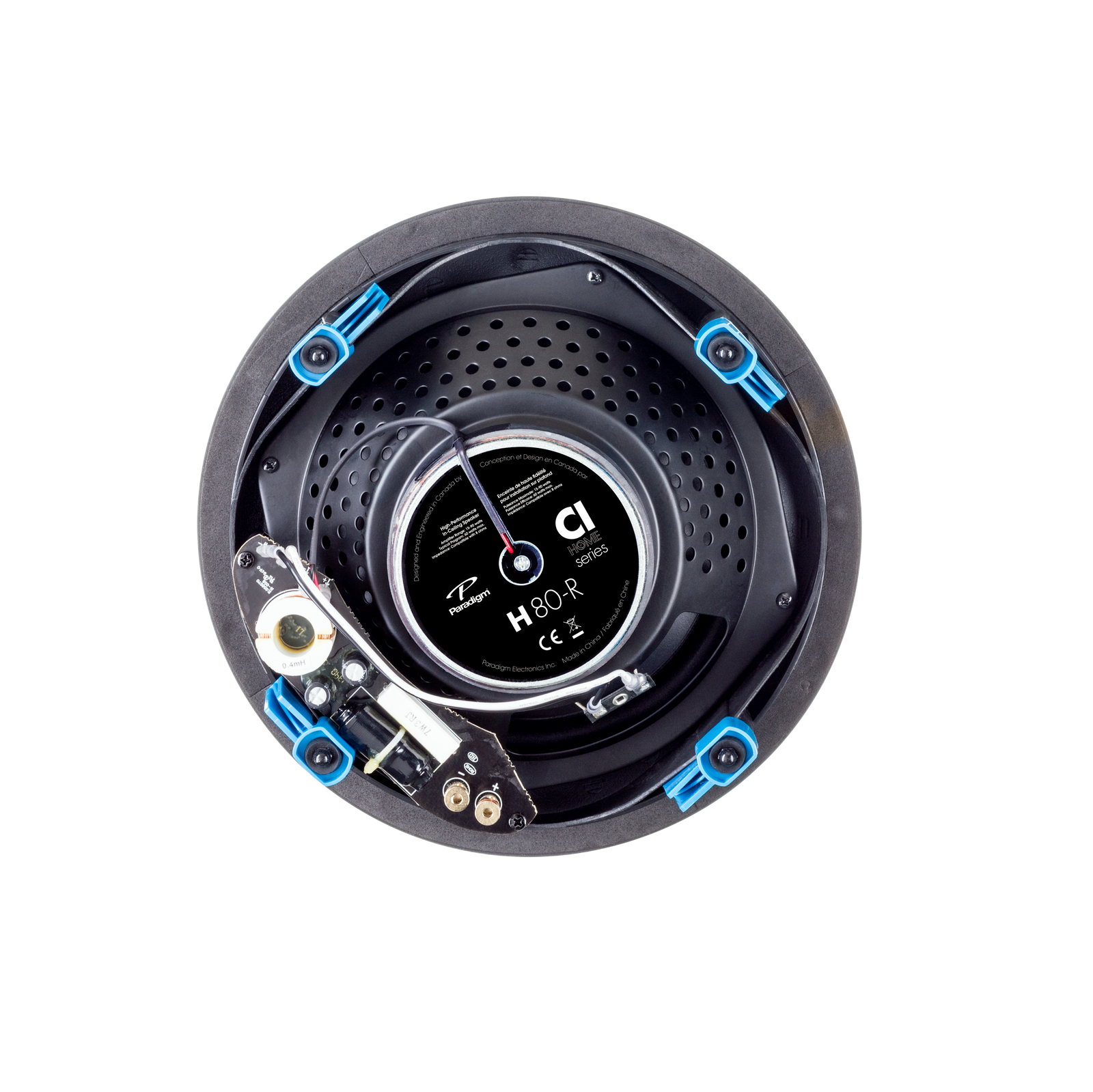

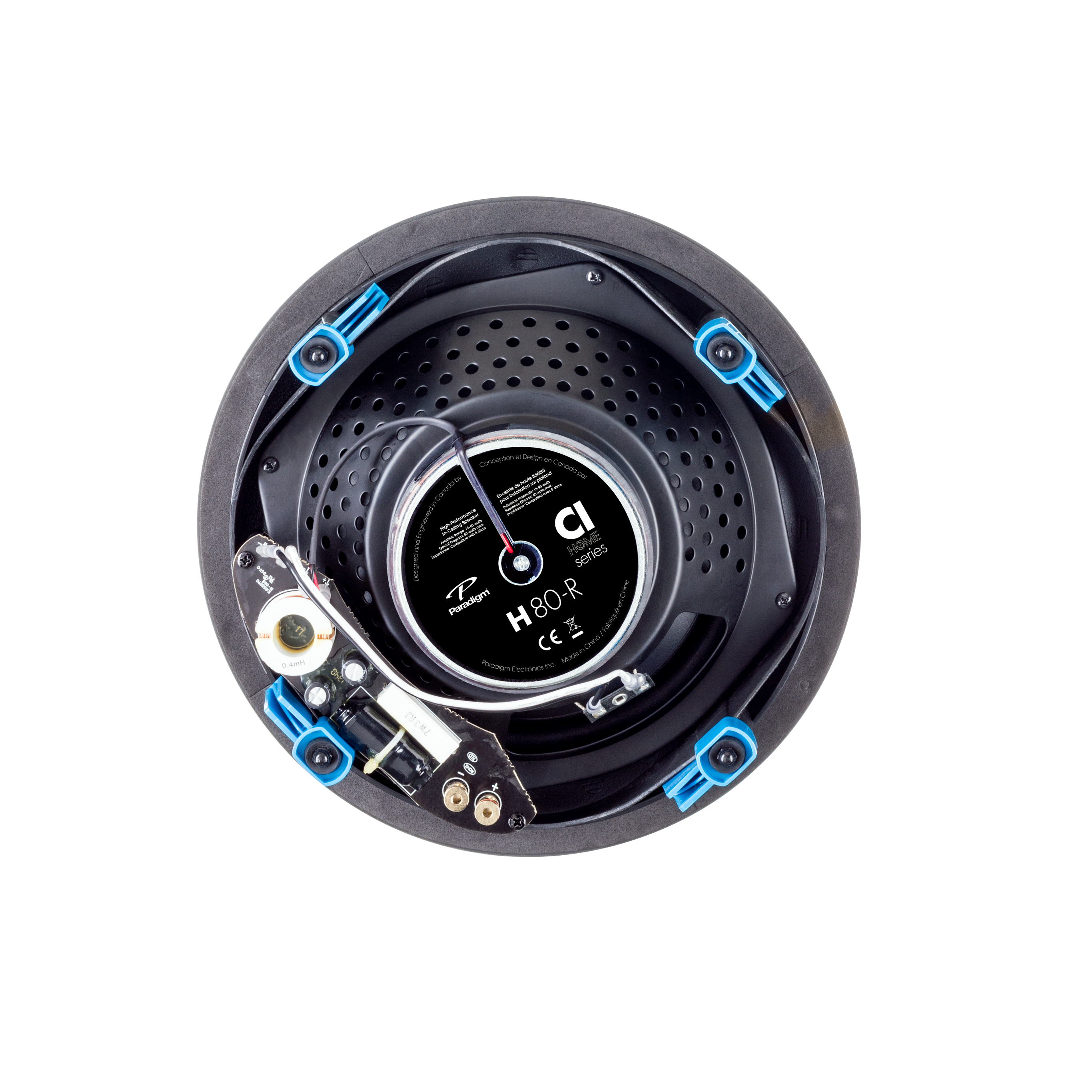

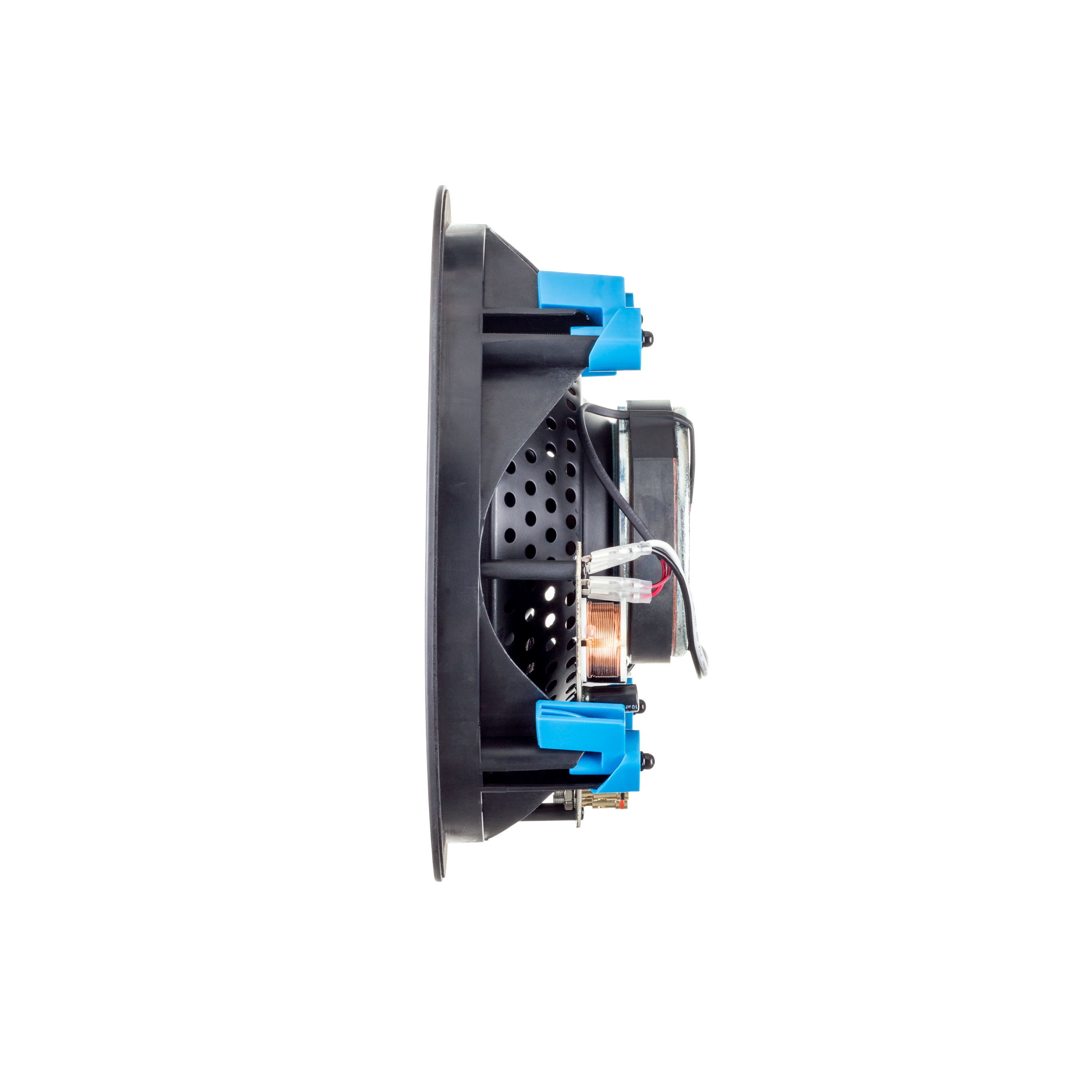

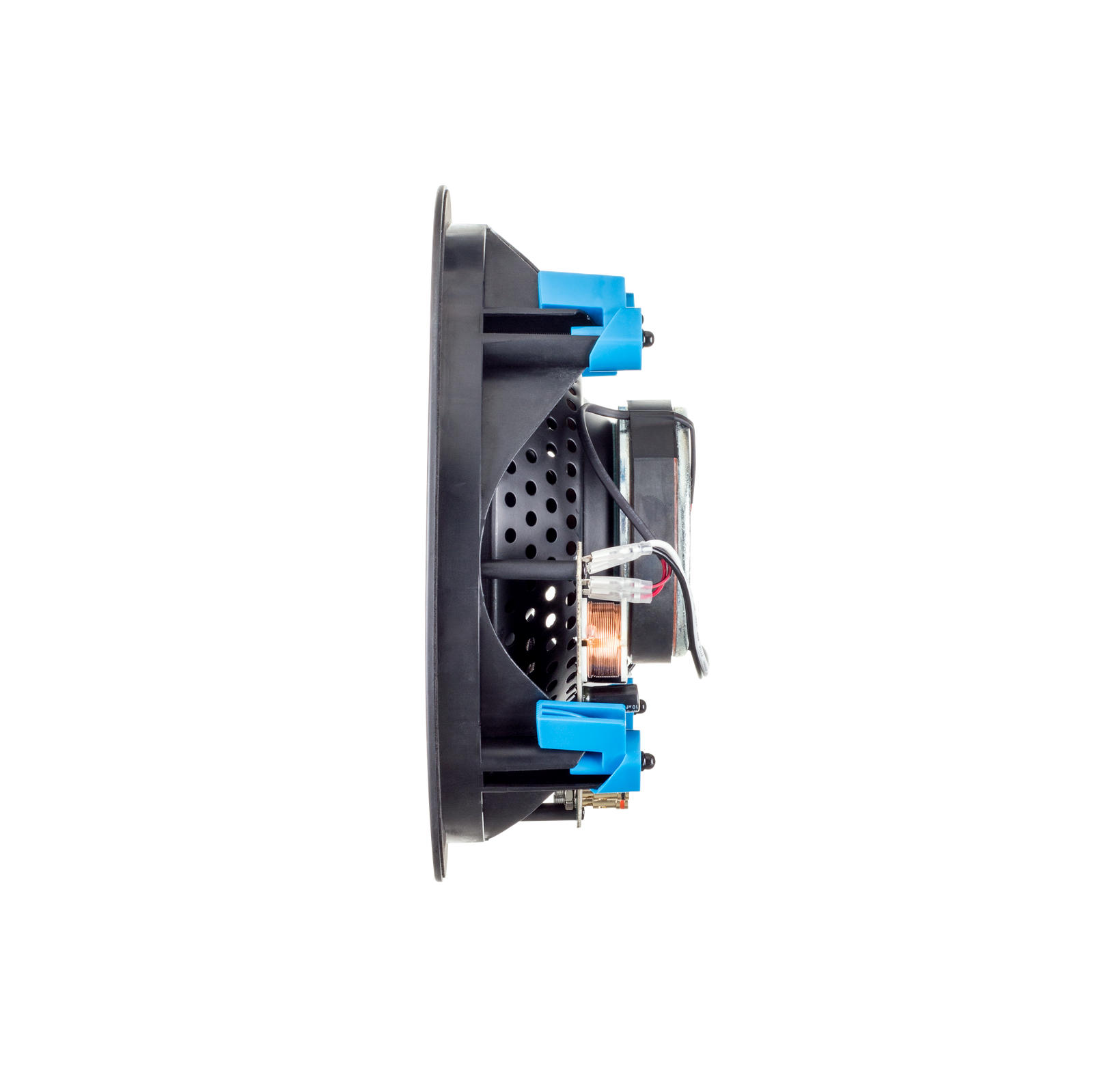

A Behind-the-Ceiling Look at Our ABS Clamps
Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!

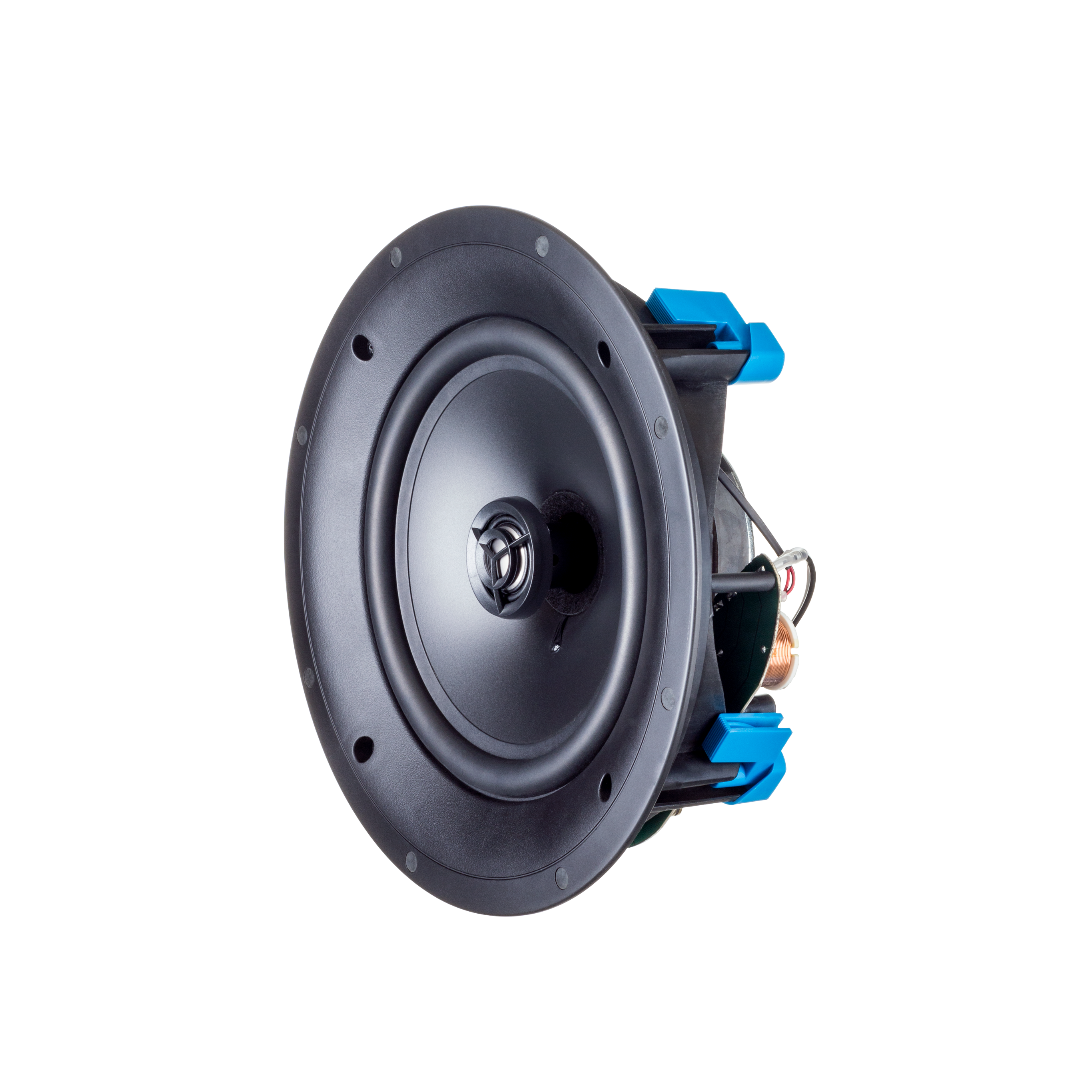

A Solid Installation
Our High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!
SpecsCI Home H80R Specifications
Design 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis ±2 dB from 60 Hz - 20 kHz
Frequency Response 30° Off-Axis ±2 dB from 60 Hz - 18 kHz
High Frequency Driver 1" (2.5cm) PTD™ dome
Mid/Bass Frequency Driver 8" (20.3cm) mineral-filled polypropylene cone
Low Frequency Extension 45 Hz
Sensitivity Room / Anechoic 90 dB / 86 dB
Impedance Compatible with 8 ohms
Suitable Amplifier Power Range 15-90 W
Maximum Input Power 60 W
Finishes White, paintable grille
Weight 4.4 lbs. (2 kg)
Overall Dimensions 10.375" (26.5cm) Diameter
Cut-Out Dimensions 9.375" (23.8cm) Diameter
Minimum Mounting Depth Depth required is the distance between 1/2" drywall, or similar material. 3.375" (8.6cm)
