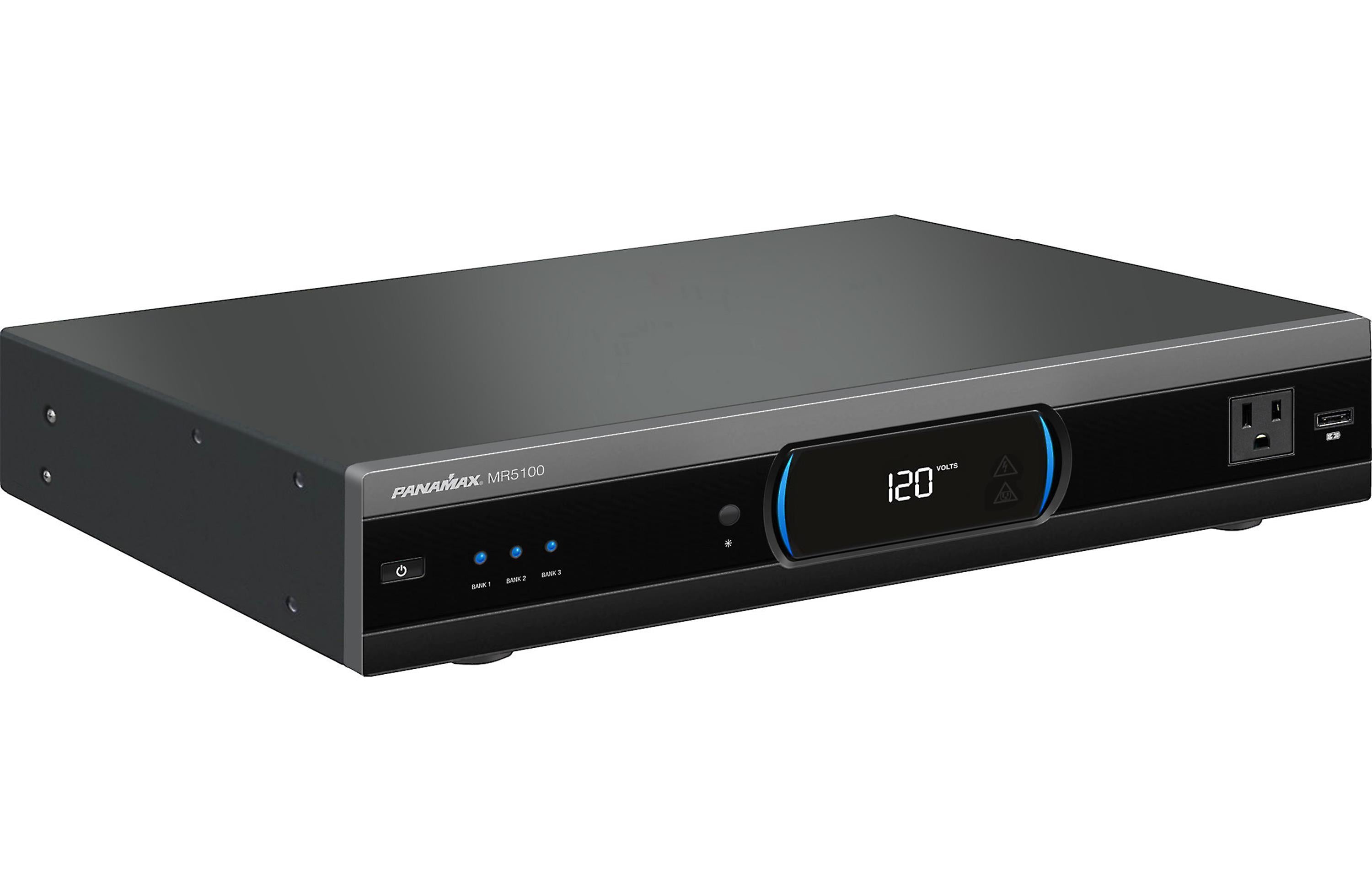

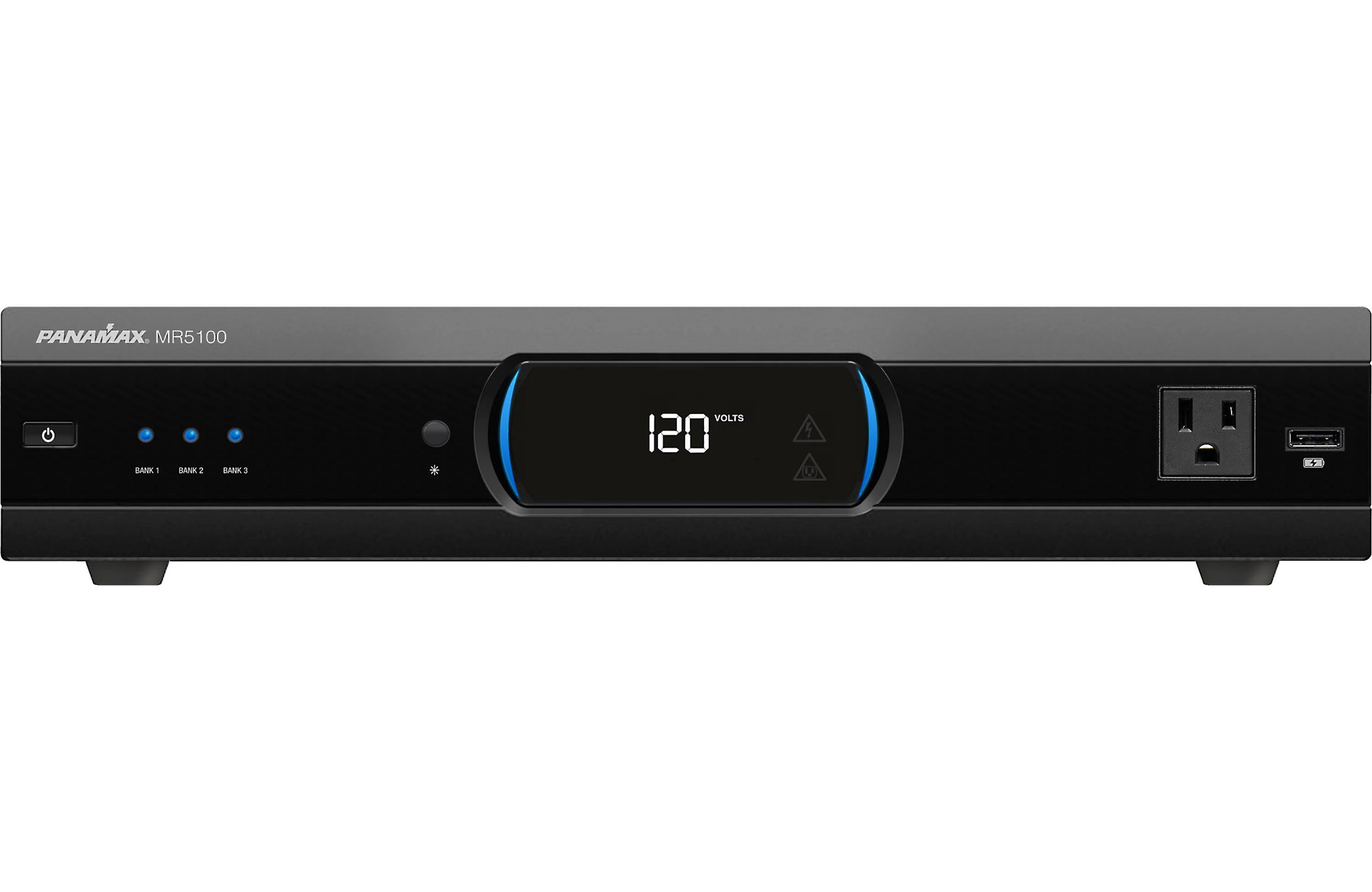

Panamax MR5100 Power Conditioner and Surge Protector

by Panamax
UPC: 50616008945
Call for Availability

SKU MR5100

Product Qualifies for FREE Ground Shipping

Panamax MR5100 Power Conditioner and Surge Protector

Panamax s MR Family of products offers several layers of surge protection. Panamax s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
AC Protection

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) 330V
Under-voltage shutoff 95V 2V
Thermal Fusing Yes
Single Pulse Energy Dissipation 2025 Joules
Response Time < 1ns
Protection Modes L-N, L-G, N-G
Protect or Disconnect Circuitry Yes
Peak Impulse Current 52,000 A
Over-voltage shutoff 135V 2V
Maximum Current Rating 15A
Line Voltage 120V, 50/60Hz
Initial Clamping Level 200V Peak, 141VRMS
Automatic Voltage Monitoring Circuit Yes

Linear Level 4 Noise Filtration

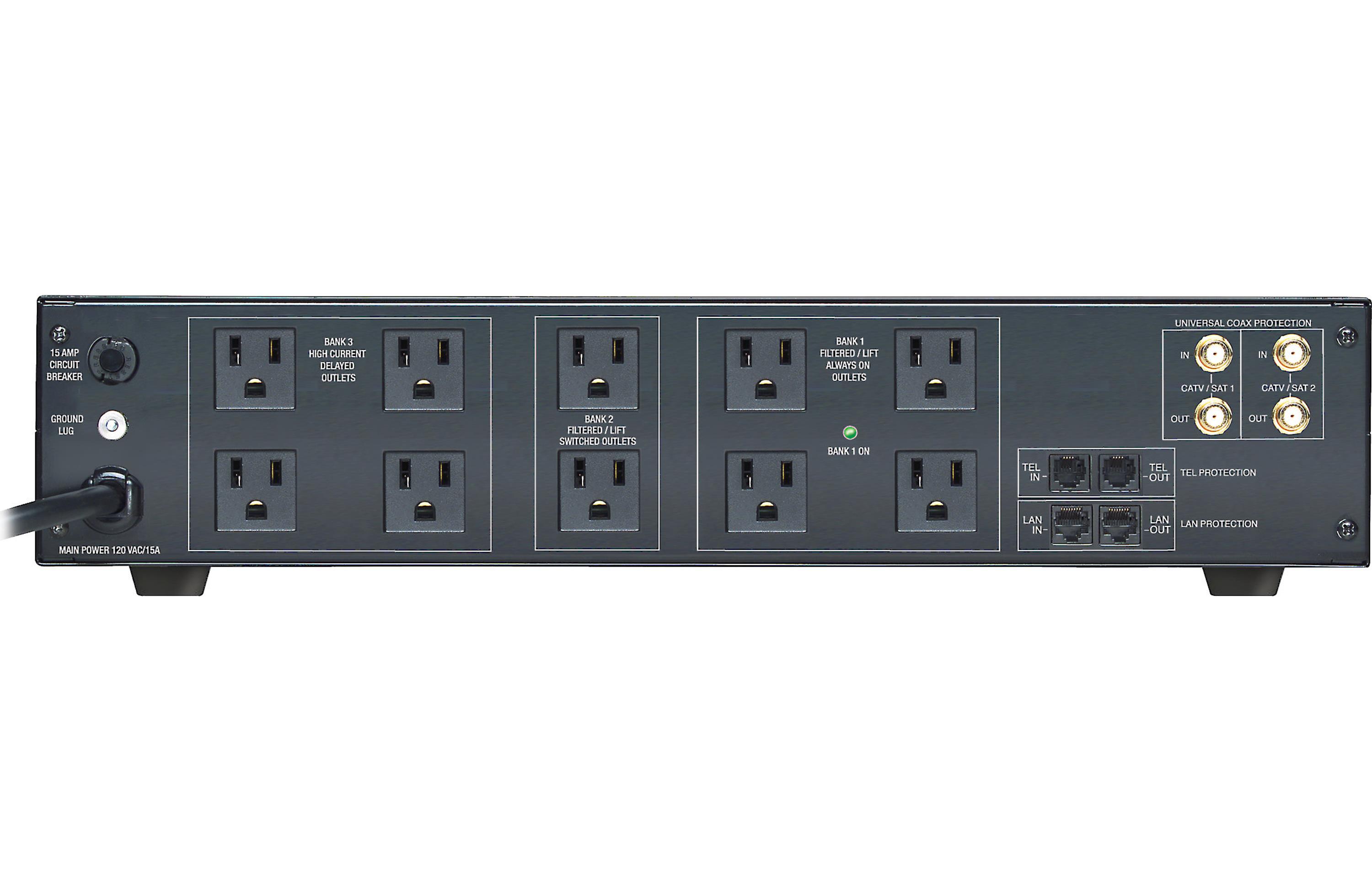

Bank 1 & 2
-65dB min. @ 100kHz
-65dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -80dB @ 150kHz

Bank 3 - High Current, Low Impedance
-50dB min. @ 100kHz
-60dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -63dB @ 250kHz

Bank-to-Bank (1 vs. 2) Noise Isolation
-60dB min. @ 100kHz
-65dB min. @ 250kHz
-50dB min. @ 500kHz
Max filtration: -75dB @ 125kHz


Weight 13.5 lbs.
Rack Ears Included
Dimensions 12 l x 17 w x 3.5 h, 4 h with feet

LAN Protection

Wires Protected 8-Wires
Jacks RJ-45
Compatibility 10/100/1000bT
Clamping Level 62V 6V @ 1 mA
TEL Protection

Wires Protected 2 Wires, 1 Pair (4, 5)
Jacks RJ-11
Fuseless/Auto-Resetting Yes
Clamping Level 260V

Universal Coax Protection

Shielded Yes
Insertion Loss < 0.5 dB
HD 1080 i/p Ready Yes
Frequency Range 0 MHz - 2.2 GHz
Connections Female "F", Gold Plated
Clamping Level 75V
Bidirectional Yes
