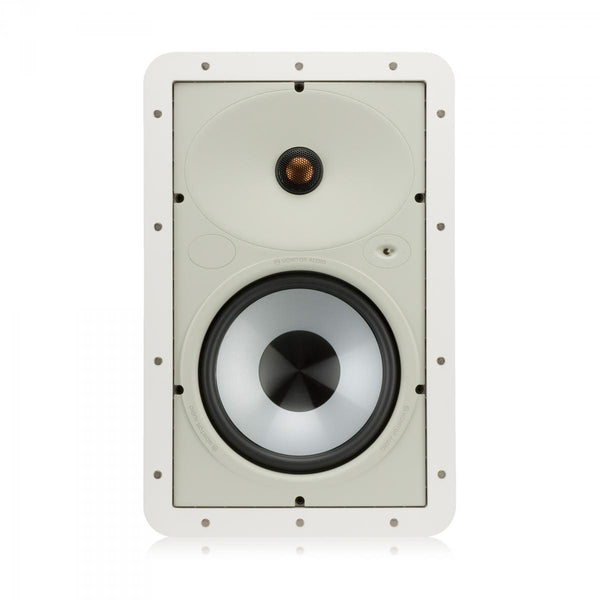

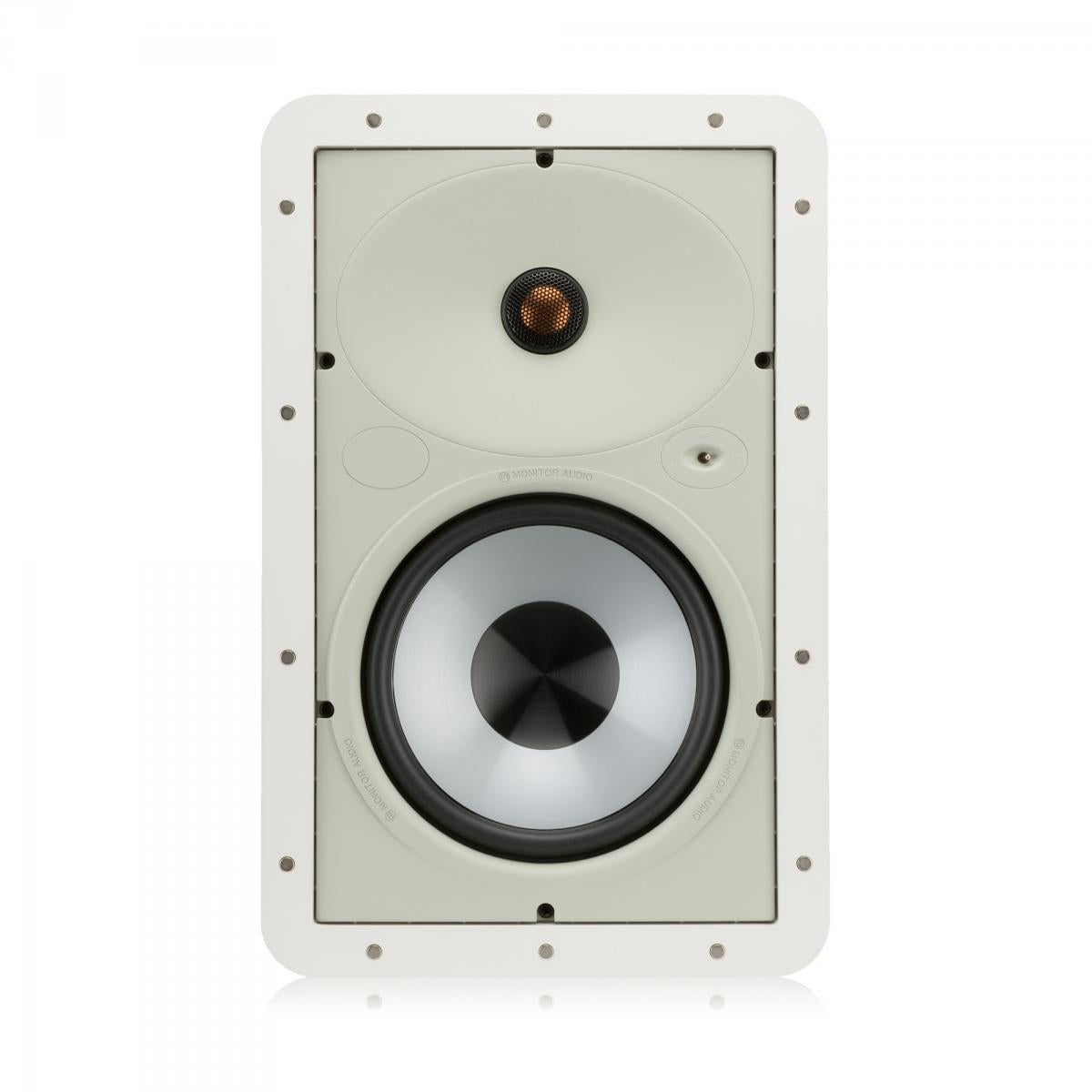

Monitor Audio WT180 Trimless 100 8" In-Wall Speaker (Each)

UPC: 5060028972418
Call for Availability
$330.00

SKU WT180

Product Qualifies for FREE Ground Shipping

Incorporating an 8-inch MMP®II bass driver with Monitor Audio’s signature C-CAM® gold dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3dB / 0dB /-3dB) level adjustment.

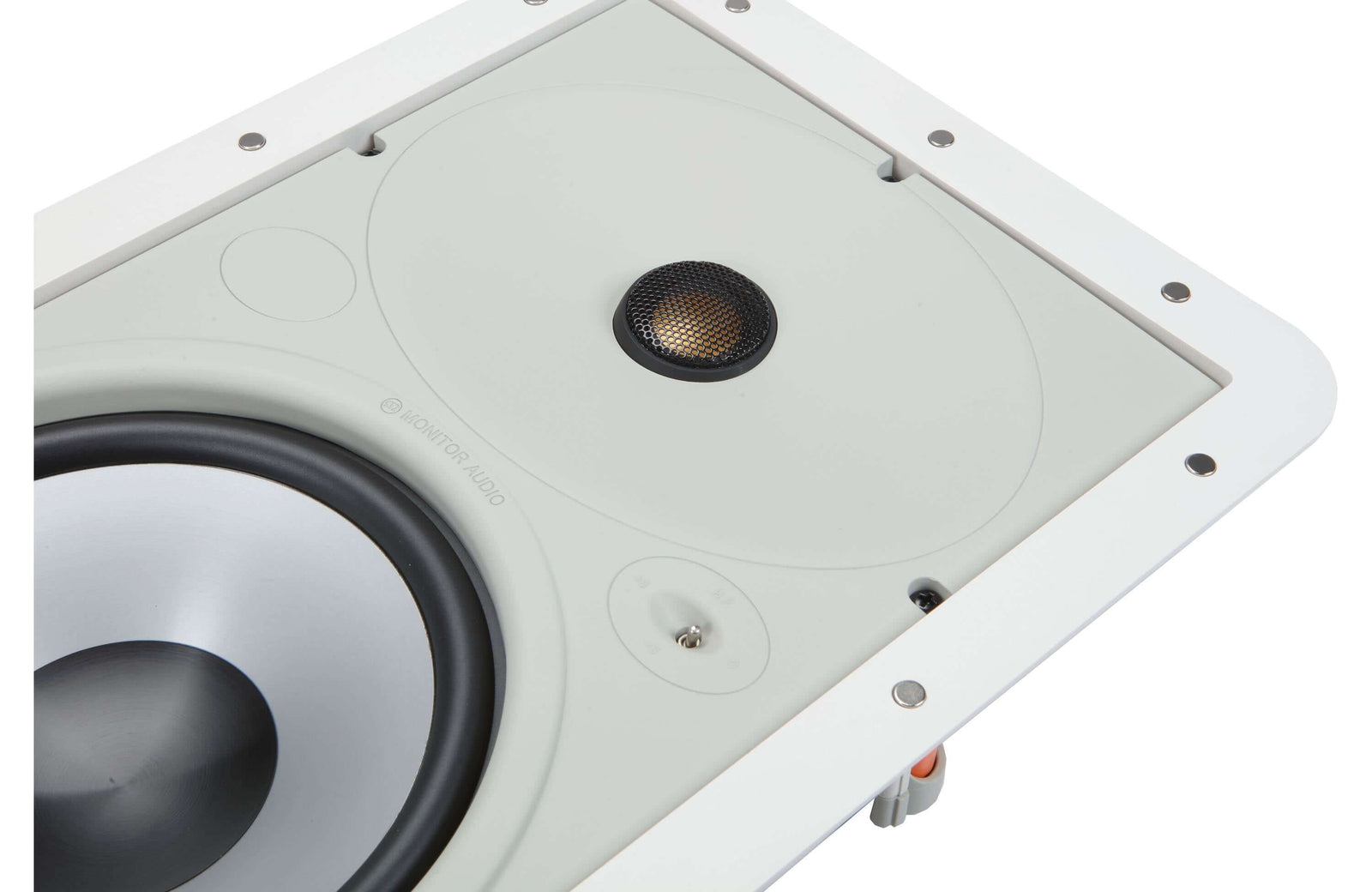

  • 2-way design with pivoting C-CAM tweeters (15 degrees of play).
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Audio match with CP range 100 models, Climate 10, Bronze BX and Radius Series hi-fi speakers.

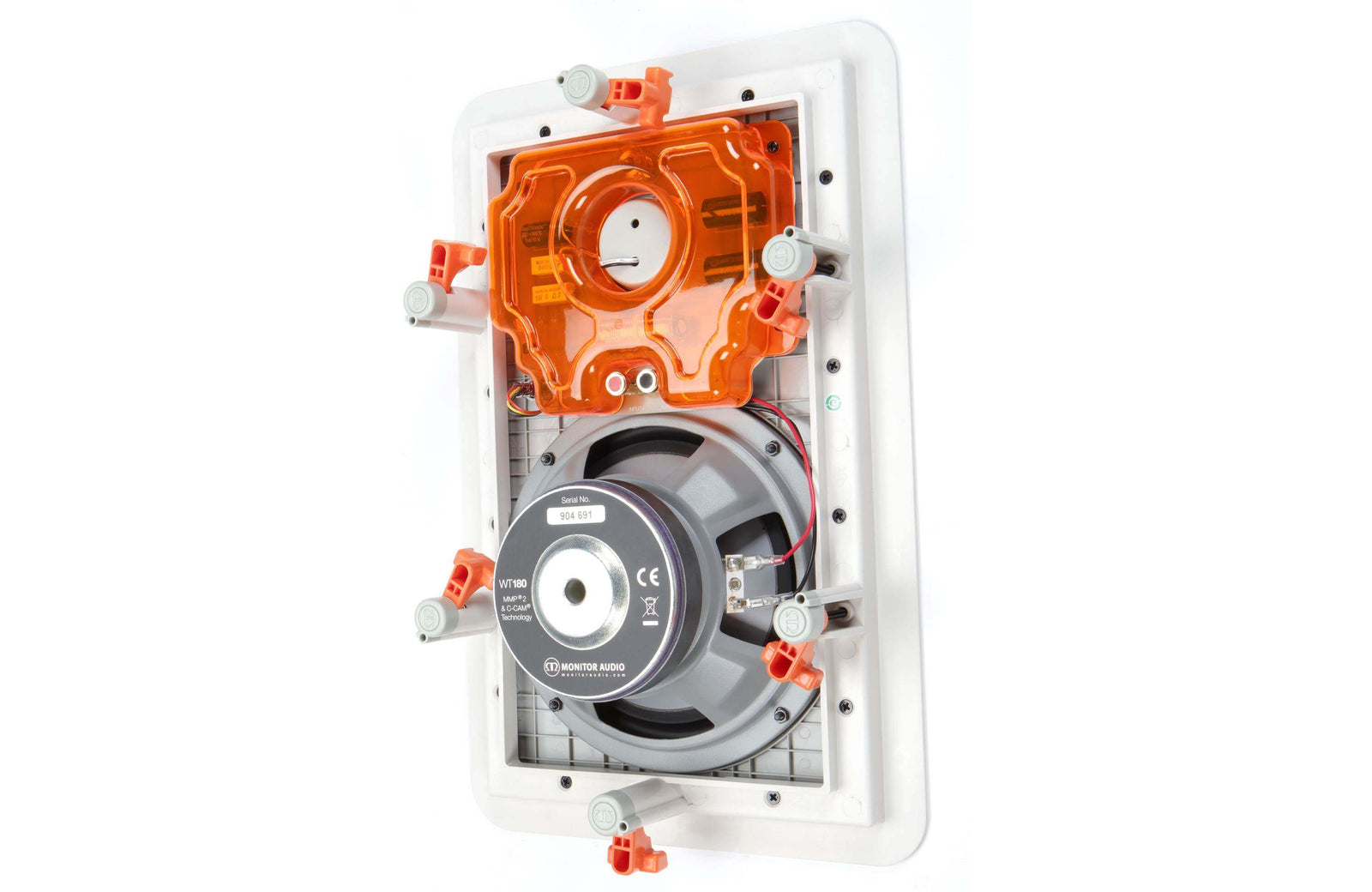

  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

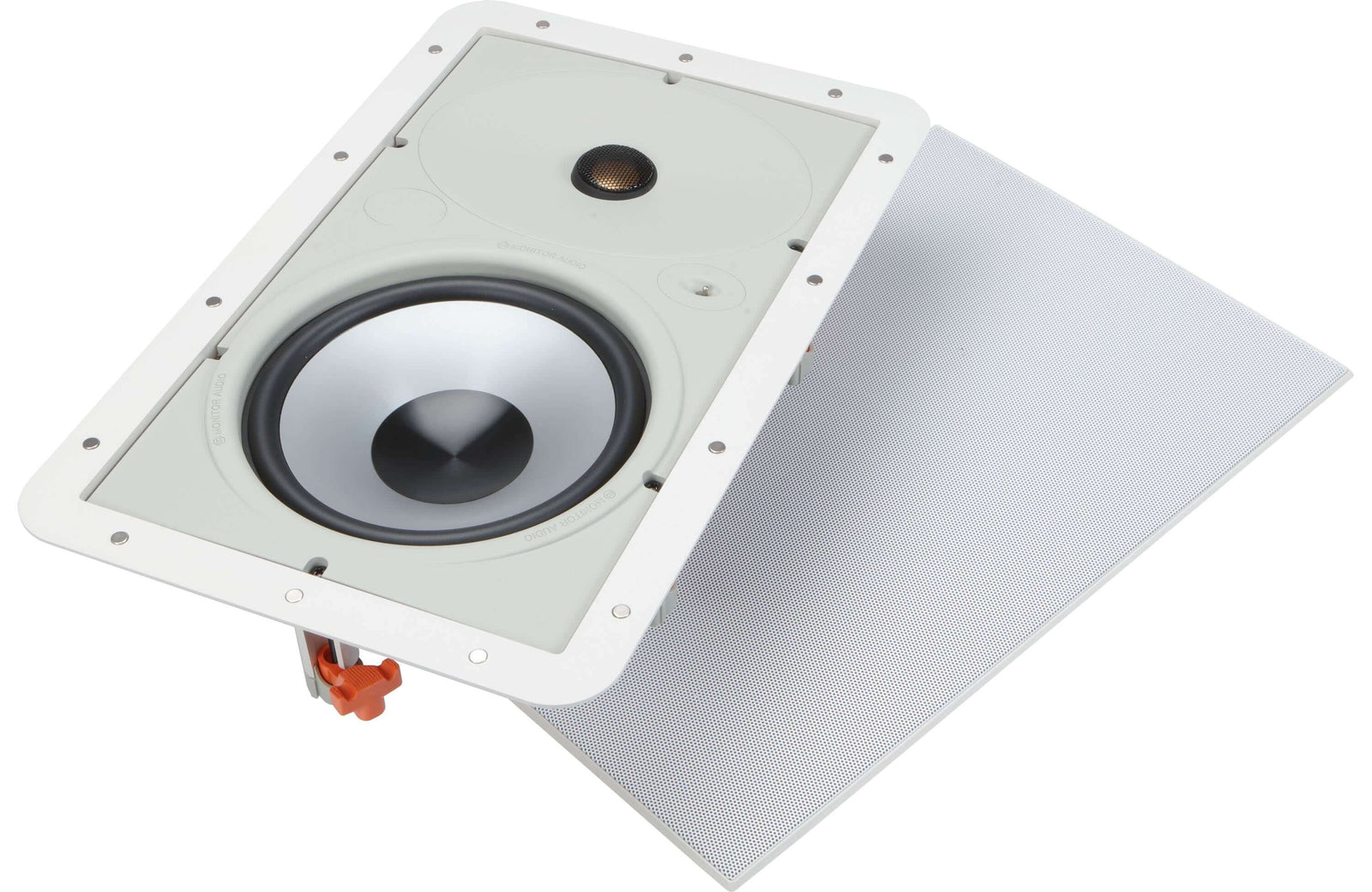

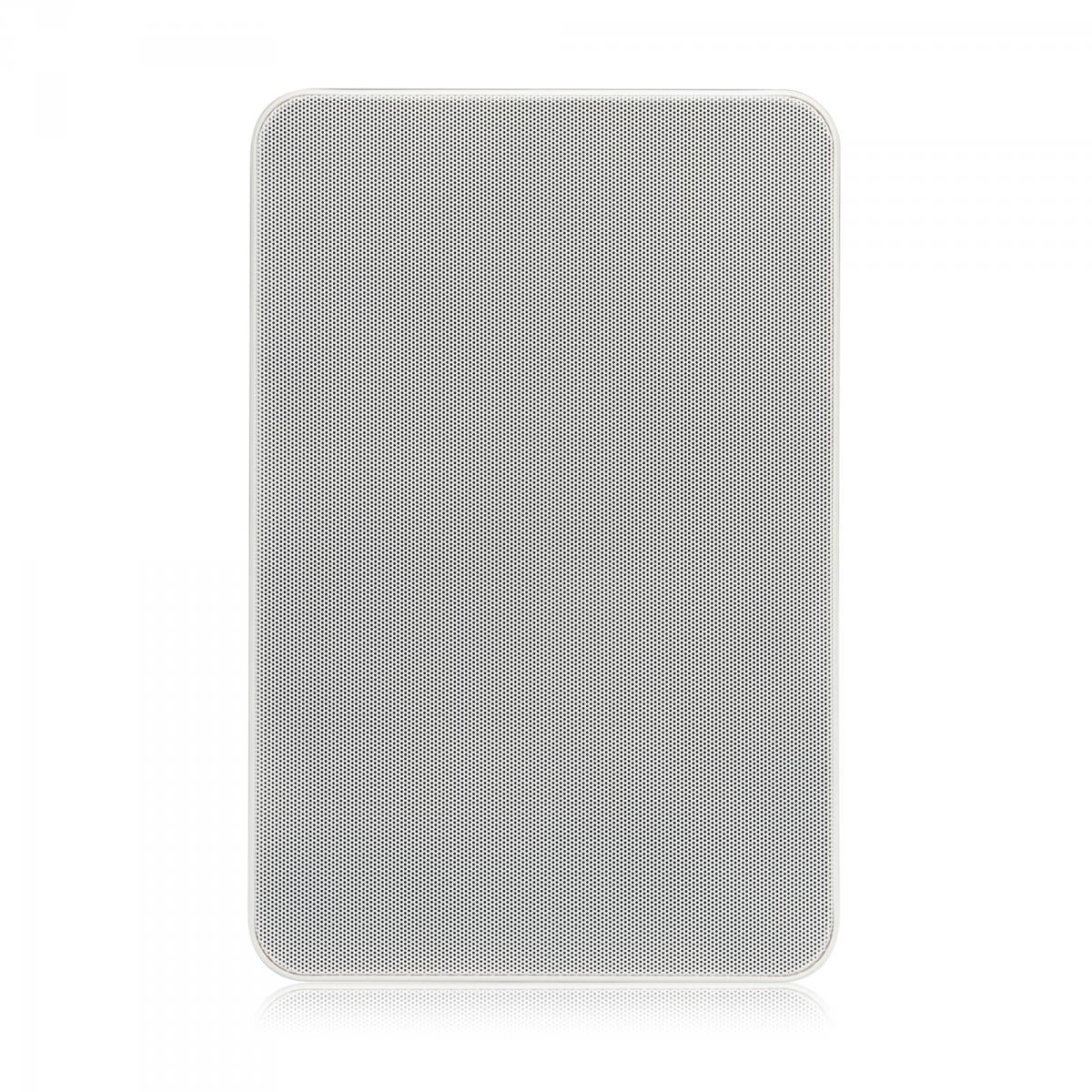

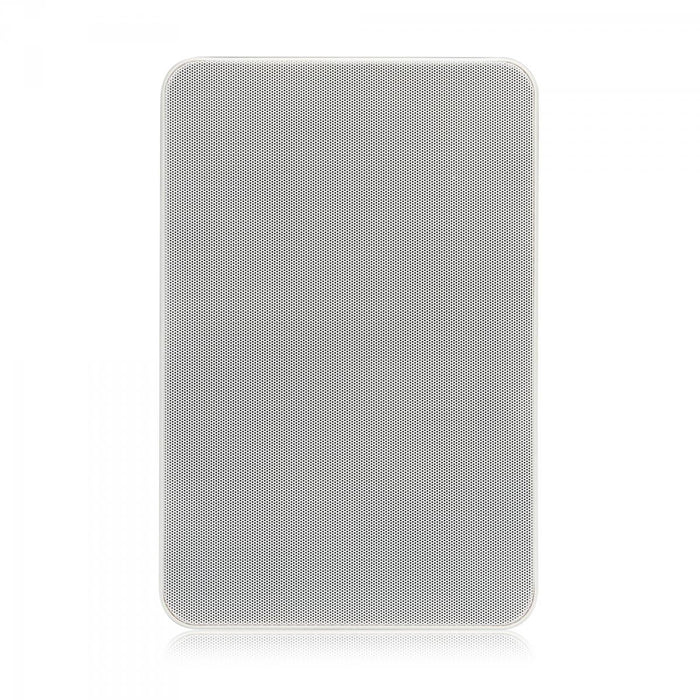

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Splash and humidity proof for installation in shower room or pool areas.
  • Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
  • Specs
    Frequency Response
    50 Hz - 25 kHz

    Impedance (Nominal)
    6 Ohms

    Sensitivity (1W@1M)
    90 dB

    Maximum SPL
    111.6 dBA

    Power Handling (RMS)
    120 W

    Recommended Amp Requirements
    30 - 120 W

    Drivers Unit Complement
    8” MMP®II cone bass driver 1” C-CAM® pivoting gold dome tweeter

    Adjustment Controls
    HF Level Switch (+3dB / 0dB / -3dB)

    Overall Dimensions:(including grille) (H x W)
    441 mm x 288 mm (17 3/8 inch x 11 5/16 inch)

    Overall Depth:(including grille)
    97.5 mm (3 13/16 inch)

    Cut Out Dimensions:(H x W)
    387 mm x 234 mm (15 1/4 inch x 9 3/16 inch)

    Mounting Depth
    93 mm (3 11/16 inch)

    Fixing Type
    6 position Tri-Grip® dog leg fixings

    Construction Material
    Mineral Filled ABS Plastic

    Pre-Construction Bracket
    WB8 (Green)

    Weight
    3.08kg (6lb 12oz)
