Denon AVR-S570BT 5.2 Channel 8K Surround Sound AV Receiver

by Denon
UPC: 747192138592
Save 20%
Original price $399.00
Current price $319.00

SKU AVR-S570BT

Product Qualifies for FREE Ground Shipping

Denon AVR-S570BT 5.2 Channel 8K Surround Sound AV Receiver

Bring movies to life in smaller spaces with amazing 8K picture quality and true surround sound. Enjoy all your favorite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.

True surround sound experience
Supports Dolby TrueHD and DTS-HD for high fidelity, lossless surround sound playback.

Affordable 8K
Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.

Easy music streaming
Stream audio from your favorite music service via Bluetooth from any smart device.

Lag-free gaming
Brings together the latest technologies to ensure a smooth, lag-free gaming experience.

Powerful, discrete 5-channel amplifier
With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), AVR-S570BT has enough power to drive any speaker for quality sound.

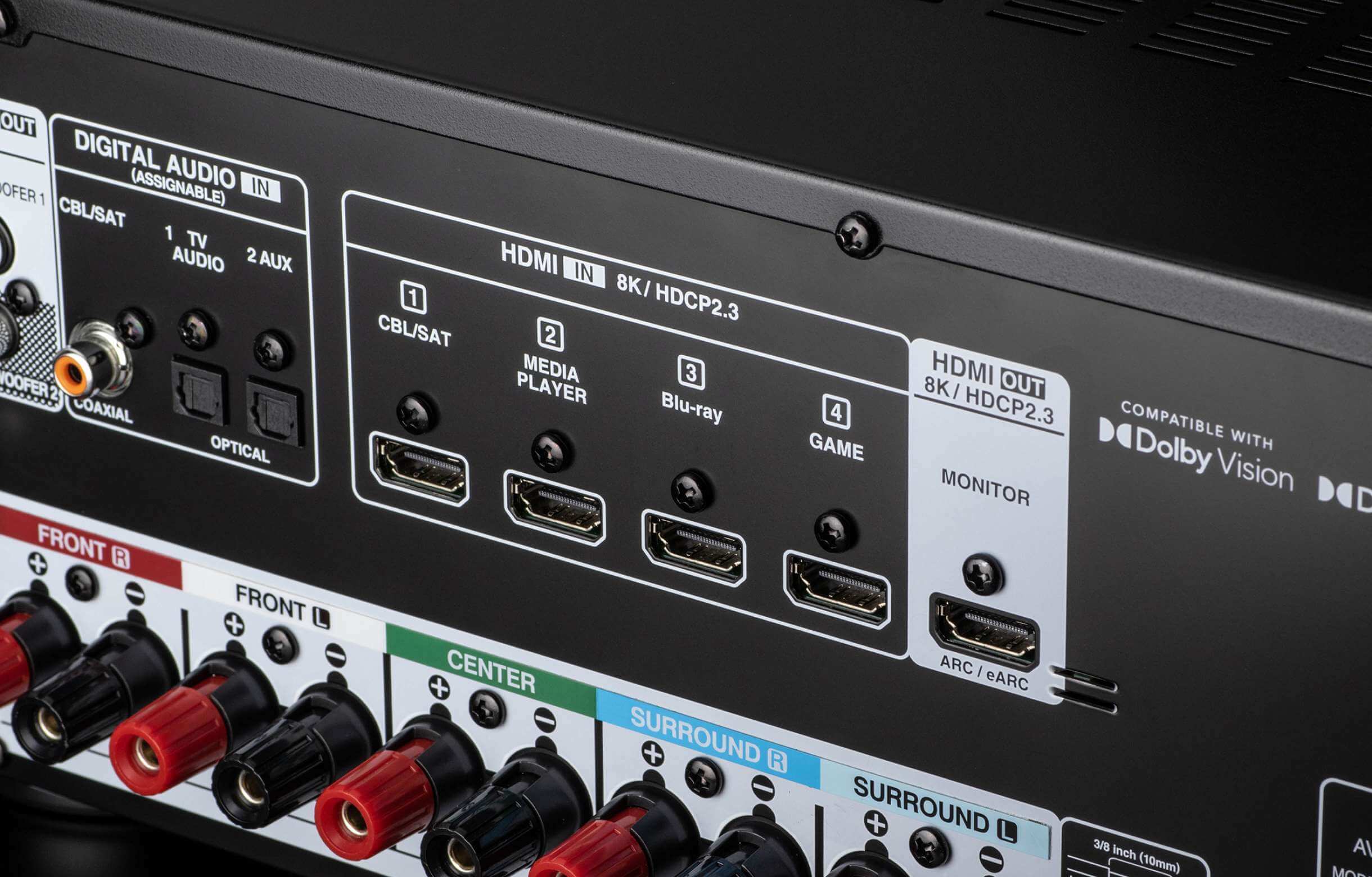

Advanced 8K HDMI connection
8K/60Hz, 4K/120Hz, HLG, HDR, Dolby Vision, HDR10+ pass-through, and 8K upscaling are supported on all four HDMI inputs and one output, for maximum bandwidth up to 40Gbps.

Enhanced gaming experiences
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag-free gaming experience.

Simple, intuitive setup
Setup is simple. Our award-winning guided setup assistant provides clear, step-by-step instructions to get you started.

Specs

 Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro Yes, No, No
DTS Neo:X, DTS Neural:X No, No
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, No, No, No
Dolby ProLogic Ilz, Dolby Surround No, No
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 5.1

Sound Enhancements
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey Dynamic EQ, Dynamic Volume No, No
Compressed Audio Restorer Yes

Network
Alexa / Google Voice Assistant / Apple HomePod No, No, No
Lossy Formats: MP3, WMA, AAC No, No, No
Lossless Formats: FLAC, ALAC, WAV No, No, No
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) No, No, No
Compatible with Remote APP for Smart Phones Denon 500 Series Remote
Bluetooth Yes

HDMI
HDMI Inputs: Back, Front 4, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 1 / No
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes

Multi-room CI
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog No, No, No, No
Zone Audio Output: Speaker, Pre-Out No, No
IP Control, RS232 Control, Web Control, App Control No, No, No, No
Remote In / Out No, No

Others
Auto Speaker Setup by Microphone yes
Front Display 1-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Others
Auto Speaker Setup by Microphone yes
Front Display 1-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Inputs Outputs
HDMI In, Out 4, 1
Multi-Room Video Out: Video, HDMI No, No
Analog In, Out 2, No
Digital In: Optical, Coaxial 2, 1
Multi-Room Out: Analog, Digital No, No
Multichannel Preout Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold-Plated Screw, Regular Screw No, No
Number of Speaker Terminals 5
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes

Specifications
Number of Power Amps 5
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 70W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 90W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 140W

General
System Remote Control RC-1254
Pre-Programmed, Learnable, LCD Display No, No, No
Power Consumption in W 310
Power Consumption No-Sound (ECO On / Off) in W 26W/35W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1 × 13 × 6
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.6 x 17.1 x 9.1 (in)
Weight in LBS 16.8
