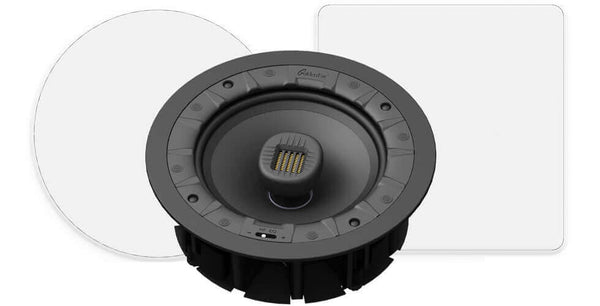

GoldenEar Invisa HTR 525 5-1/4" Round In-Ceiling/In-Wall Loudspeaker (Each)

UPC: 071720200007
$350.00

SKU Invisa525

Product Qualifies for FREE Ground Shipping

GoldenEar Invisa HTR 525 5-1/4" Round In-Ceiling/In-Wall Loudspeaker (Each)


GoldenEar's award-winning Invisa Series loudspeakers are engineered to deliver the finest possible sound quality achievable in architectural in-wall or in-ceiling speakers. They are designed to blend perfectly with their surroundings and virtually disappear by virtue of their magnetically attached grill-covered/hidden flange construction. All models incorporate a High Velocity Folded Ribbon (HVFR) high-frequency radiator similar to the unit used in all of GoldenEar's award-winning speakers.

The Invisa 525 utilizes a one-piece driver/frame/flange construction in order to minimize its footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. A complex multi-element crossovers precisely blends the drivers for seamless, exquisitely natural sound quality. The Invisa 525 is designed for in-ceiling and in-wall use. They come standard with a round, paintable MagneLock magnetically fastened micro-perf grill and there are optional square grills available. The grills fully cover the mounting flange for a highly desirable stealth appearance. The tweeters pivot to further optimize performance and a high-frequency equalization switch allows precise matching to any environment. Cut-Out Size: 6-3/16" diameter. Depth: 3-7/16". Driver Complement: One 5-1/4" bass/midrange driver, One (HVFR) high-frequency radiator.

Speakers sold individually.

Specs
Speaker Dimensions

7-3/16 diameter x 3-7/16 depth

Square Grille Dimensions

7-23/32 x 7-23/32

Round Grille Dimensions

7-23/32 diameter

Cutout

6-3/16 diameter

Weight

3.5 lbs (product) / 5 lbs (shipping)

Frequency Response

27 Hz - 35 kHz

Efficiency

89 dB

Nominal Impedance

Compatible with 8 ohms

Driver Complement

One - 5-1/4 High-Definition Cast-Basket Mid/Bass Driver
One - Pivotable HVFR High-Velocity Folded Ribbon Tweeter

Recommended Amplification

10 - 200 watt/channel
