The 909 MK5 is the largest power amplifier in Burmester s portfolio and one of the most powerful audio amps in the world. Its impressive size and the ability to not only play loud but also to convey the most intricate musical details have made the 909 a reference component all over the world. Audio journals have celebrated it for years as the ultimate power amp . This power amplifier represents the best in engineering ingenuity and available electronic components. With an extremely high damping factor and the ability to deliver huge currents the 909 effortlessly controls any speaker. Even speakers with very low impedance are no match for the unflappable power supply of the 909. Pulse transmission is practically load-independent. The warm and at the same time detailed sound signature of the 909 impresses even the most demanding audiophiles. Its ability to communicate even the smallest musical detail at any volume level with any speaker is unequalled on the world market today. Many awards bestowed on the 909 by international audio magazines have impressively confirmed this unique position.

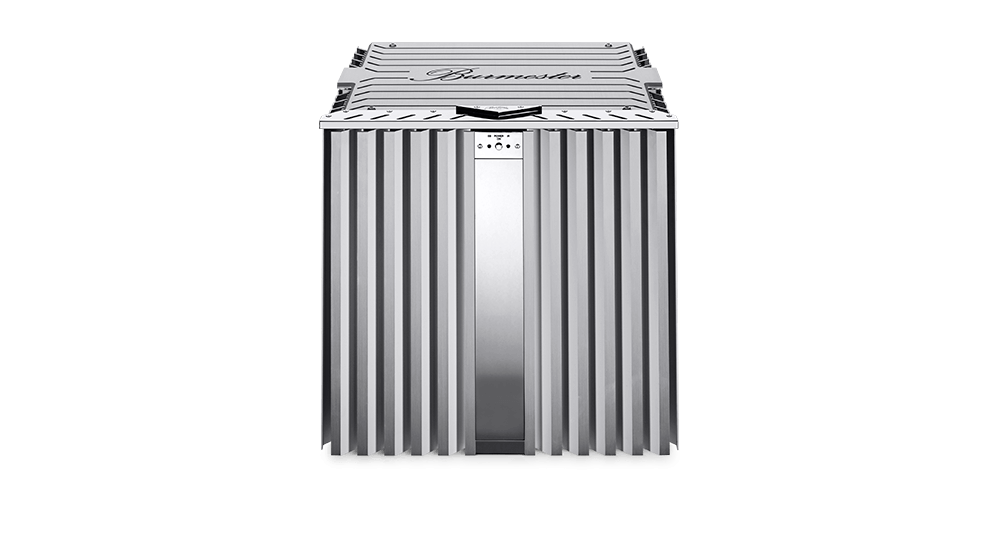

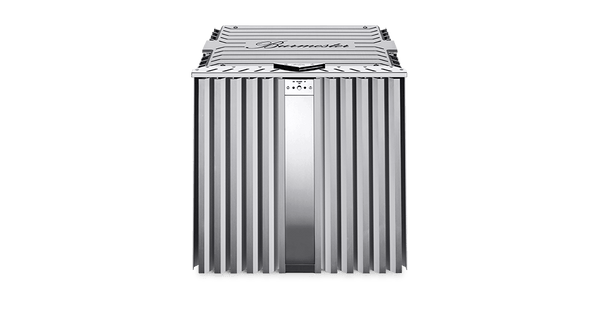

The imposing appearance of the 909 MK5 power amplifier gives form to the underlying total commitment to the highest level of audio reproduction. The massive heat sinks with their silver anodized fins are an easily recognizable feature of Burmester power amps. The same is true for their ability to project the finest sound at any volume level without strain or distortion. Form and function of the 909 meld to a commanding entity, which serves as reference point for all other power amps in Burmester s portfolio, not to mention the rest of the industry.

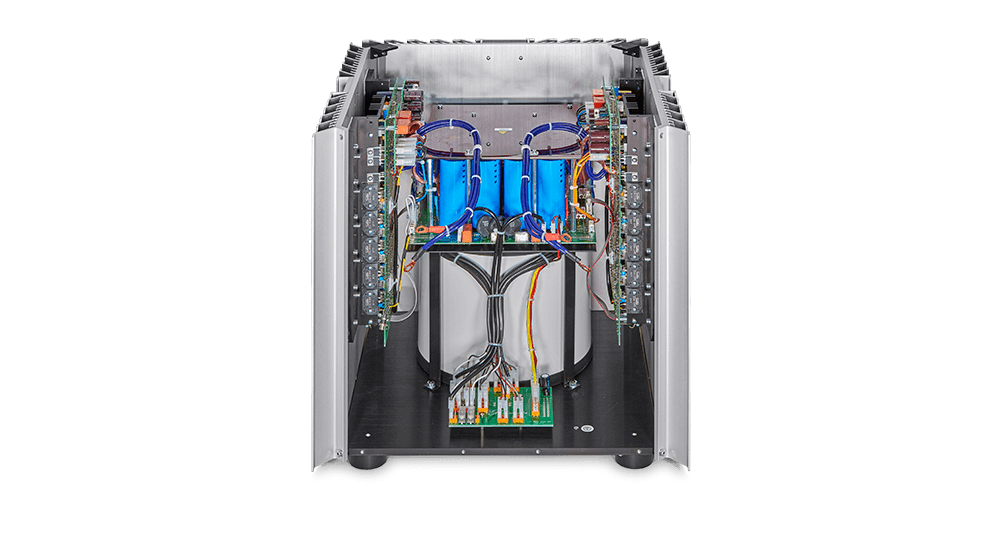

To complete a 909 power amplifier requires a whole range of assembly and quality control stages in the Berlin factory. From hand-assembled circuit boards, where each soldered connection is carefully checked, and top-quality transformers to computer-aided measuring stations it takes about 100 hours to produce a 909. This is not counting the seven-day burn-in period and the final quality control and listening tests under real-world conditions. All this is necessary to ensure that the customer receives an audio component that is outstanding in every respect.
Dimensions (WxHxD) 485 mm x 515 mm x 485 mm (19 inch x 20.3 inch x 19 inch)
Weight app. 80kg (170 lbs.)
Power output Stereo: 2 x 600 W (4 ), 2 x 1.250 W (1 )
(at appropriate AC input) Mono: >1x 1.930 W (4 ), >1x 3.200 W (1 )
Continous peak current 65 A
Damping factor >1000
Noise suppression >81 dB
Input sensitivity 730 mV for full gain320 mV for 100 W into 4 load
Frequency response 0-200 kHz (-3dB)
20 selected power transistors per channel
Rise time (stereo/mono) 1,4 s into 4/8 load
1,9 s into 1 load

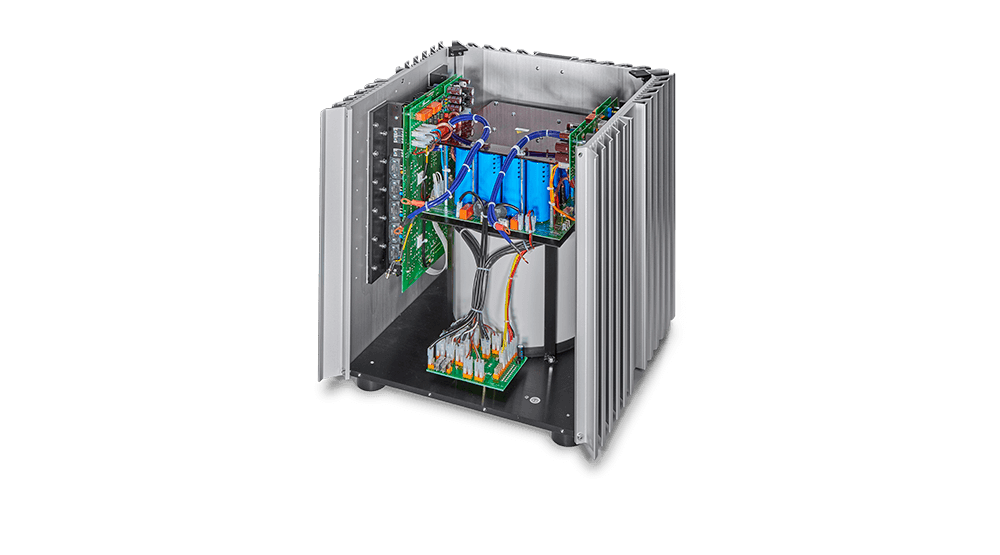

Over-dimensioned power supply with 160.000 F filtering and a 3,5 kW torodial transformer.
Bridgeable for mono operation by external mono-adapters. May also be ordered in
internal mono configuration from the factory
Completely balanced signal path design like all Burmester components
Input stages in Burmester Class A X-amp design
DC-coupled signal path without distorting capacitors
Generously dimensioned power supply for high current output
Effortless control of any loudspeaker through a high damping factor over the full frequency
range, even at highest volume levels
Stable operation into all loads
Remote on/off feature when used with Burmester power pre-amps
Processor-controlled error diagnosis

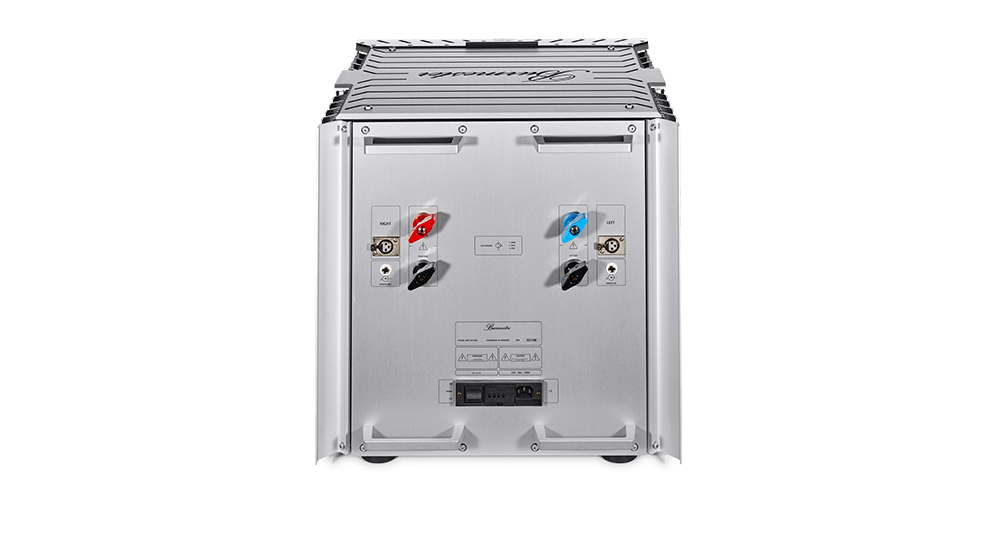

INPUTS AND OUTPUTS
Balanced inputs (stereo/mono)
Unbalanced input using supplied adapters (stereo mode only)
10V DC input for remote on/off switching by Burmester pre-amps
Loudspeaker output terminals (stereo/mono)
Standard version with chrome bracket, engraved gold triangle, housing and heatsinks
black or silver annodized. Custom design upon request.
