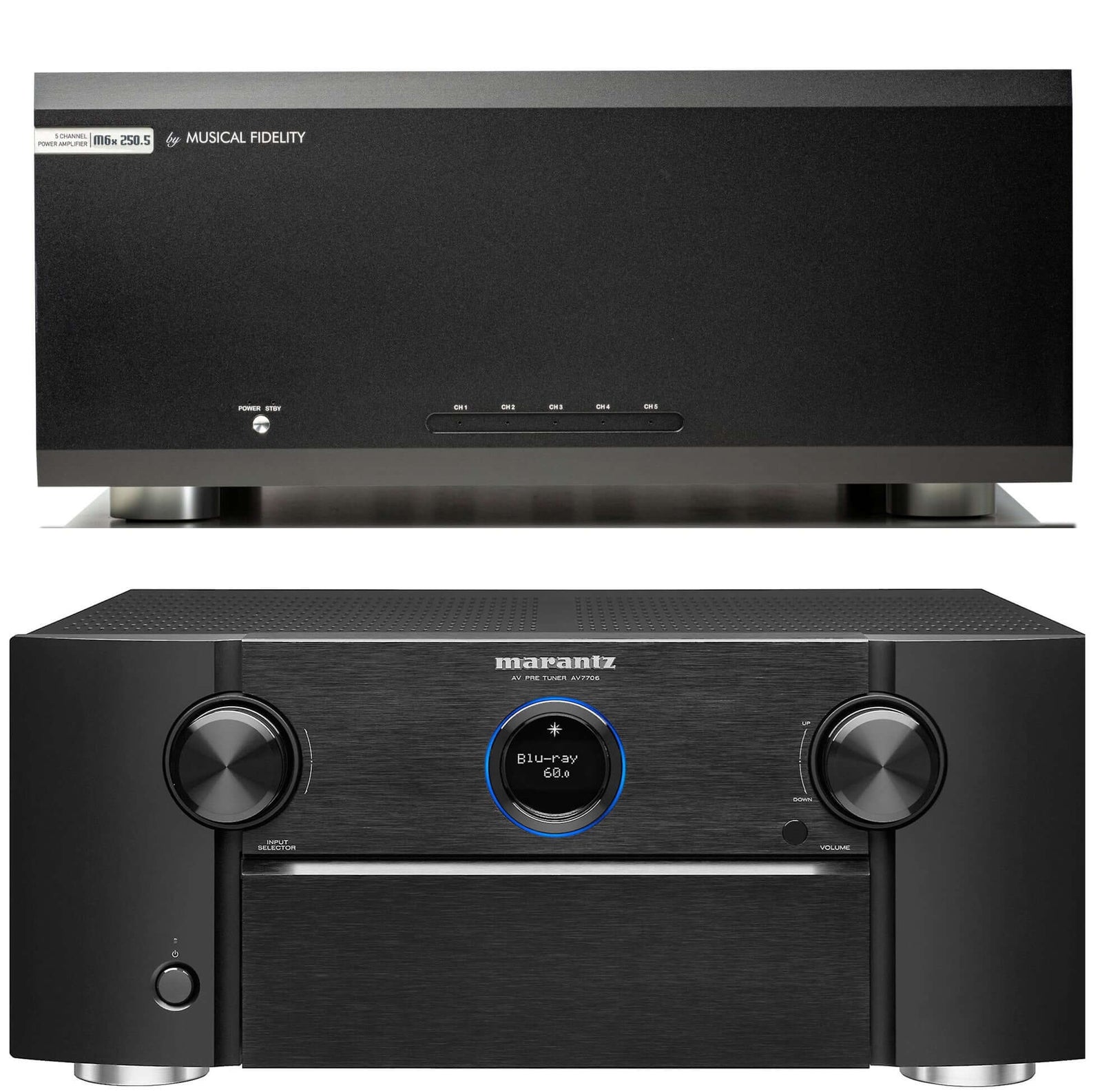

Marantz AV7706 11.2 Channel AV Surround Pre-Amplifier and Musical Fidelity M6X 250.5 5 Channel Power Amplifier Bundle

Marantz AV7706 11.2 Channel AV Surround Pre-Amplifier and Musical Fidelity M6X 250.5 5 Channel Power Amplifier Bundle

THIS BUNDLE INCLUDES:

QTY: 1 Marantz AV7706 11.2 Channel AV Surround Pre-Amplifier

QTY: 1 Musical Fidelity M6X 250.5 5 Channel Power Amplifier

Marantz AV7706 Details:

Your music with Marantz
Its high-resolution preamplifier uses custom-curated Marantz HDAM technology for the purest sound in audio.

Breathtakingly Natural 3D Audio
Movie and TV sound moves around you in space, emulating the finest movie theaters and the real world.

A Wealth of Channels
From high-resolution stereo to 11.2 channel surround sound, experience pure Marantz audio through any configuration you need.

Carefully Tuned for Pure Enjoyment
No matter how you listen or what you watch, the AV7706 is carefully tuned to deliver the most enjoyable music and movie experiences you can imagine.

Advanced 11.2 channel pre-amplifier
Experience a versatile home theater setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favorite voice assistants.

Sophisticated engineering
With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025.

Advanced 8K HDMI connectivity with eARC support
The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs.

Full 3D audio support
Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos , Dolby Atmos Height Virtualization Technology, DTS:X , DTS Virtual:X , IMAX Enhanced, and Auro-3D .

Marantz HDAM and current feedback topology
The AV7706 features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.

The next chapter in movie entertainment
The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.

More than 60 Years of audiophile heritage
Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV7706 continues our long tradition of delivering a best-in-class listening experience for music and cinema.

Musical Fidelity M6X 250.5 Details:

M6x 250.5 In Brief

• 250 watts per channel for each of its 5 channels
• Excellent technical Musical Fidelity performance finally available for home theater enthusiasts
• Amazing load driving ability, unconditional stability will drive any loudspeaker
• RCA and balanced XLR inputs
• Through Out for bi-amping
• Trigger In/Out for seamless home theater integration
• Complete silent operation, no active cooling elements
• Excellent, massive and clean build quality

M6x 250.5 - Overview
You listen to CDs or stream music without picture, but have you ever watched a movie without sound? The sound of a movie carries a significant part to deliver emotions and tell stories. Silence is as important as bombastic loudness. Sound designers use sound effects, foleys and music to enhance your experience. A soundbar can never reproduce a real cinema feeling. The M6x 250.5 will take your home cinema to the next level.

The Full Cinematic Experience
For many people, the cinema is just a place with a big screen and expensive snacks - but there is more, which is usually not visible at all: The surround-sound-system. It all started with a simple three speaker setup in the 1980s and evolved to object based systems with up to 20 speakers. With the new M6x 250.5 you can easily create a powerful 5.1 home cinema setup (your active subwoofer is powered separately). You can connect your preamplifier/AV processor with either RCA or fully balanced XLR cables. The XLR connection furthermore enhances the sound quality and keeps the signal transmission clean.

he Musical Fidelity M6x 250.5 will not only satisfy you with its sound quality, but also with the high quality metalwork and overall clean look. The front panel, in either black or silver finish, is a custom-made fine line aluminum extrusion.

Connection
The M6x 250.5 offers a gold-plated RCA and a balanced XLR input per channel. If you have XLR outputs on your preamp, we always recommend using a balanced connection. This kind of signal transmission leads to increased dynamics, less noise and improved signal-to-noise ratios. If you need the same signal on multiple inputs for e.g., bi-amping, you can use the gold-plated RCA through output and distribute the signal to the next input. The gold-plated isolated speaker output terminals accept 4 mm Banana plugs, spades connectors or naked wire. The trigger in-/output allows you to turn the device on/off via other components.

Power
Our new multichannel amplifier is built modular with one 250W class A/B amplifier stage per channel. We designed our amplifier to sound highly natural by keeping all transients and micro information. The super silent audiophile power transformer distributes clean power, which results in a high dynamic range and a detailed sound stage. This is a major feature for a home cinema amplifier. The M6x 250.5 is able to preserve all the details and emotion, no matter which volume. Due to the sophisticated heat sink design, the M6x 250.5 does not need a fan to keep the amplifier cool. Despite its big power, you will never hear any fan noise coming from the amp.

Specs

Marantz AV7706 Specifications:

Multichannel Surround
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D o
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 11.2

Sound Enhancements
Copper Plated Chassis No
Power Transformer: Toroidal / EI No / Yes
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Compressed Audio Enhancer: MDAX2 Yes

Network
HEOS Multi-room and Streaming Yes
Network Audio Sharing Yes
Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet radio Yes (TuneIn)
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Compatible with Remote APP for Smart Phones Marantz 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI
HDMI Inputs: Back / Front 7 / 1
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analog -> HDMI Yes
Analog to HDMI Scaling 480i/576i up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
Enhanced ARC Yes
3D Signal Pass-Through Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-Room / CI
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog o (2ch) /Yes(2ch) /Yes/ o
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes/Yes/Yes /Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes

Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines + port hole
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 3
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode No
Auto Power off Yes
Sleep / Timer Yes

Inputs/Outputs
VIDEO
Composite In / Out 3+1 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-Room Video Out: Video / HDMI Yes / Yes

AUDIO
Analog In / Out 5+1 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 2 / No
Multichannel Pre Out o (11.2 RCA & 11.2 XLR)
Subwoofer Out 2 (independant)
7.1 Multichannel Input Yes

OTHER
Speaker A B assignable pre out
Bi-Amp Drive assignable pre out
Multi-Room Speaker Terminal pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes /Yes/ No /Yes/ Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
General
Metal Front Panel Yes
System Remote Control RC044SR
Pre-Programmed / Learnable / LCD Display Yes / No / No
Power Consumption in W 60
Power Consumption No-Sound (ECO on/off) in W No
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 3.5
Network Control On Consumption in W TBD

Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.3 x 16.2 x 7.3
( 17.3 x 16.2 x 9.7 )
17.3 x 15.8 x 7.3
Weight in lbs. 22.9 (TBD)

Musical Fidelity M6X 250.5 Specifications:

Output

• Power: 5x 250W/4 ohms (Peak: 400W)
• THD+N: 0,003% at 100W power output
• Frequency Response: 20Hz - 20kHz for 0,5dB
• SNR: 105dB at 1kHz at 200W power output
• Damping Factor: >300
• Crosstalk 20Hz - 20kHz: >80dB

Connections

• 5x line level RCA input
• 5x line level balanced XLR input
• 5x line level RCA through output
• 5x pair speaker terminals
• 1x Trigger input & output

Input Sensitivity

• 700mV at RCA input, 1,4V at XLR input

General Information

• Dimensions (WxHxD): 17.1" x 7.7" x 16.9"
• Main voltages: 230V/115V Internally set or 100V optional AC 50/60Hz
• Max. Consumption: 1500W, <0.5W in standby
• Weight: 67.2 lbs (74.96 lbs incl. shipping carton)

Musical Fidelity Warranty

• Electronics - 5 Years

• Disc Player / Electronics - 5 Years

• Disc Player / Mechanics - 2 Years
• Server - 5 Years
• Remote Control - 1 Year
